ANOVA Analysis of Variance

1

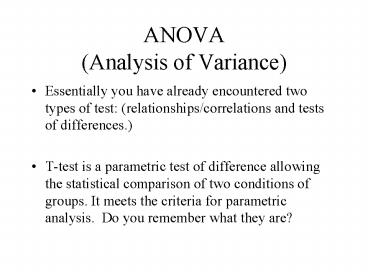

ANOVA(Analysis of Variance)

• Essentially you have already encountered two
  types of test (relationships/correlations and
  tests of differences.)
• T-test is a parametric test of difference
  allowing the statistical comparison of two
  conditions of groups. It meets the criteria for
  parametric analysis. Do you remember what they
  are?

2
Criteria for parametric analysis

• Real numbers (interval level, continuous scale)
• Normal distribution (test with a histogram)
• Homogeneity of variance (test with Levenes test
  or Box M test)

3
A reminder on Design Issues

• Between Subjects- Different groups of people
  take part in separate conditions (also called
  independent groups sometimes)
• Within Subjects- The same people take part in
  more than one condition (also called dependent
  groups)

4
Terminology

• IV /DV - the influence on, and outcome of, an
  experimental design respectively
• Effect- a difference/divergence or strength of
  relationship
• Treatment effect- the effect associated with the
  condition(s) administered the IV(s)
• Random error- chance fluctuations due to
  measurement, individual differences, etc.

5
Basic ideas Central tendency and variability

• Median 1, 3, 5, 7, 9 5
• Mean 13579 25/N 5
• Mode most frequent, may be bi-modal or
  multi-modal
• Range 1,3,5,7,9 diff btwn 1 9 8
• Variance S2 mean of squared deviation scores
• Standard Deviation square root of the variance
  / deviation of scores around the mean

6
ANOVA (analysis of variance)

• Questions of difference for more than 2 conditions

ANOVA
t-test
Allows comparison of 3 or more conditions
Condition 1
Condition 2
Condition 3
Think of the levels of the IV of age you might
use in a study
7
Single variables
Age
Young
Middle
Old
What other independent variable might you be
interested in comparing with age?
8
Multiple variables
How many IVs are there? What are the levels of
each?
Age
A multivariate design 2 x 3
Young
Middle
Old
Male
Gender
Female
9
A multivariate design
Age
Young
Middle
Old
Time of day 1-4
Male
Gender
Female
10
Testing differences with multiple
condition/variables
Parametric
T-test
ANOVA 1 - way
ANOVA 2-way
Nonparametric
There isnt a comparable non-parametric test for
two IVs
Kruskal wallis/ Friedman
Mann-Whitney/ Wilcoxon
Study on Environment and innate intelligence
11
Study looking at the effect of environment on
different strains of rats 2 way independent
ANOVA

• IV 1 type of environment
• Levels of IV1 free and restricted
• IV 2 strain of rat
• Levels of IV 2 dim, bright and mixed

12
The final result
F - ratio
Variance due to effect
Variance due to error
Degrees of freedom
Probability
13
The final result
Variance due to error
F - ratio
Variance due to effect
Probability
Degrees of freedom
14
Homogeneity of variance

• ANOVA (parametric) depends upon variance to tell
  us about difference between means so similarity
  of variances in conditions is important
• A Box M test is used for multiple variable
  designs and we look for (the opposite of a normal
  inferential test) a non sig. result no diff in
  variances

15
Post hoc tests

• Multiple testing is a possibility e.g. t-test
• E.g. Compare A with B A with C B with C three
  comparisons each at .05 .15 of finding a sig.
  Result
• Aim of post hocs is to identify the differences
  between conditions/groups more conservatively and
  avoid multiple testing

16
Repeated MeasuresOne Way ANOVA

• Because the participants in each condition are
  the same people this reduces some of the
  unsystematic variation that exists in between
  participants designs.
• This makes these tests more sensitive and
  powerful.
• However as well as the homogeneity of variance
  assumption we have the criteria of SPHERICITY
  that has to be met.

17
Sphericity

• The variance of the difference between pairs of
  scores are equal for all groups (i.e. A-B A-C
  B-C) Read Field p324 for more details.
• It is tested for by Mauchlys test which (like
  Levenes) you dont want to be significant.
• However if it is significant then there is a
  correction called the Greenhouse-Geisser and it
  is this row in the output that you should use.

18
Descriptive statistics
19
(No Transcript)
20
2-way repeated measures ANOVA

• Imagine that we are investigating the effect of 2
  IVs on 1 DV
• e.g. the effect of alcohol and also eating a
  kebab on the DV on vomiting at end of night
• Or the effect of gender and also the amount of
  violence in a film on the DV of how much the film
  was liked

21
Mean interaction plot for drinking and kebab
eating.
22
ANOVA summary table
23
Mean interaction plot for gender and violence on
liking a film
24
ANOVA summary table
25
Mixed design ANOVAs

• This is when one or more variables are between
  subjects AND
• One or more variables is within subjects
• Any combination of between and within subjects
  variables is termed mixed

26
Mixed Anova

• In this type of Anova one of the IVs is between
  participants and the other is a
  within-participant variable.
• For example you could investigate the effects of
  alcohol on driving but want to know if gender was
  also an important factor.
• In this case gender would be a between-participant
  IV (Obviously!) but alcohol could be a
  within-participant variable (in this case with 3
  levels sober, a bit drunk and completely psed)
• This would be a 2 x 3 mixed design.

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Some reminders

• ANOVA tests multiple conditions/ IVs
• All IVs between subjects between subjects ANOVA
• All IVs within subjects within subjects ANOVA
• Some of each mixed ANOVA design
• Different sources of variance are analysed to see
  if IVs have affected the DV

32

• Interaction effects one of the key advantages
  of ANOVAs
• Sphericity repeated measures or within subjects
  designs (only with 3 or more levels)
• Homogeneity of variance (Levenes) for between
  subjects designs
• Type I error
• Type II error
• Avoiding family-wise error using post hocs
