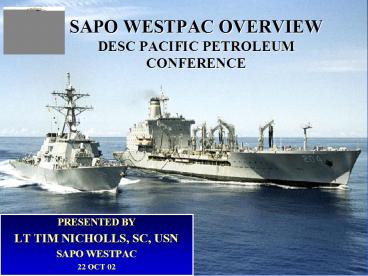

SAPO WESTPAC OVERVIEW DESC PACIFIC PETROLEUM CONFERENCE

1
SAPO WESTPAC OVERVIEWDESC PACIFIC PETROLEUM
CONFERENCE

• PRESENTED BY
• LT TIM NICHOLLS, SC, USN
• SAPO WESTPAC
• 22 OCT 02

2
Agenda

• Introduction to Seventh Fleet
• C7F Fuel Capabilities
• SAPO WestPac
• Deployment Transit Support
• COMLOG WESTPAC/CTF 73 Fuel Responsibilities
• Summary

3
Bridge Between the Fleets
COMLOG WESTPAC
3RD FLT
5TH FLT

4
C7F DFSP Facilities
KOREA (ARMY)
YOKOSUKA
SASEBO
OKINAWA (ARMY)
GUAM
SINGAPORE (ROYAL NAVY)
KWAJALEIN
DIEGO GARCIA

5
DFSP Storage Capacities
JP5
SINGAPORE 8

6
SAPO WESTPAC
KOREA
JAPAN
HAWAII
GUAM
SINGAPORE
DIEGO GARCIA

7
Bunker Contracts/FEAs

8
LOCATION PRODUCT METHOD
NOTE Darwin
F76 P / B 3,
4
ADF T
4 Broome ADF
P / T Port Hedland
ADF P / T
Dampier
ADF P
LOCATION PRODUCT METHOD Gove ADF P
Weipa ADF T Thursday Island ADF P
/ T Cairns ADF P / T
HMAS Cairns F76 P Townsville ADF
P (Berth 1 only) / T Mackay ADF
T Gladstone ADF T B
undaberg ADF T Brisbane ADF
P / B / T Newcastle ADF T
ADF - Auto Diesel Fuel P - Pipeline B
- Barge
T - Tank Truck
Thursday Island
Gove
Darwin / HMAS Coonawarra
Weipa
Broome
Cairns / HMAS Cairns
Townsville
Port Hedland
Mackay
Dampier
Gladstone
Bundaberg
Brisbane
Geraldton
Perth
Fremantle
HMAS Stirling
Newcastle
Esperence
Williamstown
Bunbury
Sydney / RAN Fleet Base
Albany
Adelaide
Port Kembla
Altona
Portland
Melbourne
Geelong
Burnie
LOCATION PRODUCT METHOD
NOTE Geraldton ADF
P / T Perth Kwinana Termin
al F76 (T-AO only ) P
1 F44 (T
-AO only) P 1
Fremantle ADF
P / T
HMAS Stirling F76
P / B 3
F44
T Bunbury
ADF T
Albany ADF
P (Berth 2 only) / T
Esperence ADF
T
Devonport
LOCATION PRODUCT METHOD
NOTE Adelaide ADF
P / B / T Williamstown ADF B / T Portland A
DF T Geelong ADF B / T
5 Altona F76 (T-AO only) P
1 Melbourne ADF P / B / T Burnie A
DF T 2
Devonport ADF T
2 Hobart ADF P / T
2
Hobart
LOCATION PRODUCT METHOD NOTE
Port Kembla ADF T
6 Sydney ADF T Gore Bay Termina
l F76 (T-AO only) P 1
F44 (T-AO only) P 1
RAN - Fleet Base West F76
P RAN - Fleet Base East F76
B 3 F44
T
9
DFSP Senoko(Singapore)

• U.S. U.K. MOU signed in 1999
• Supports units transiting WestPac
• Unofficial homeport for C7F Oilers
• U.S. issued 3.5 million bbls from Senoko in FY01
• U.S. storage capacity
• Nearly 700 Mbbls of F-76 JP5
• Personnel
• RNSTO (Royal Navy Supply Transport Officer)
• Fuel Engineer 22 locally hired operators
• Type C Lab Capabilities
• Future GoS support for Senoko

10
DFSP Guam

• Supports units transiting WestPac Prepos
• Storage capacity Over 1.4 million bbls
• F76, JP8, RME, JP-5
• Personnel
• 11 Fuel personnel after 1998 MEO
• Type C Lab. B tests performed via contract
• Unofficial homeport for 3 TAFS 2 TAE
• Sovereign U.S. Territory

11
DFSP Diego Garcia

• Supports Prepo units and occasional USN assets
• Collects, manages waste petroleum products
• Storage capacity Over 1.4 million bbls
• JP-5, F-76, MUM, RME
• Personnel
• LTJG, ABFC, ABF1
• 35 Contractors
• Type B Lab Capabilities
• Only U.S. facility in I.O.

12
(No Transcript)
13
Deployment Transit SupportCTF 73
14
CLWP Logistics Functions

• COMSEVENTHFLTS PRINCIPAL LOGISTICS AGENT FOR
• LOGISTICS COORDINATOR FOR EXERCISES

15
Logistic Support Partners
COMFAIRWESTPAC
CFA CHINHAE
USDAO BEIJING
SSO HONG KONG
CFA OKINAWA
USDAO BANGKOK
USDAO NEW DELHI
USDAO KUALA LUMPUR
USDAO MANILA
NRCC DET MANILA
USDAO COLOMBO
COMLOG WESTPAC
AMEMBASSY BRUNEI
NRCC SINGAPORE
USDAO JAKARTA
NAVSUPPFAC DIEGO GARCIA
COMAUSNAVSUP
COMSEVENTHFLT REP WESTERN AUSTRALIA

16
Fuel Management

• COORDINATE WESTPAC FUEL SUPPORT OPS
• DIRECT LIAISON WITH SHIPS AND FUEL MANAGERS
• Tanker Slates, QA, Exercise Support,
• Contingency Planning, Capabilities Reports
• BILATERAL SUPPORT
• AGREEMENTS
• Fuel Exchange Agreement (FEA)
• Memorandum of Understanding (MOU)
• Acquisition Cross Service Agreement
• (ACSA)

17
Combat Logistics Force
FUEL
USNS PECOS USNS GUADALUPE USNS RAPPAHANNOCK US
NS ERICSSON
RAP is Station T-AO for KHK U/W dates
ERC currently deployed to C5F

18
T-AO 187 Class

• (60/40 Tank Split)
• F-76 108,000 BBLS
• JP-5 72,000 BBLS

19
Notional Transit Routes
DAY 1
YOKOSUKA DAY 4 - 5
DAY 29
HONG KONG DAY 8 - 9
5TH FLT
7TH FLT
SINGAPORE DAY 19 - 20
DARWIN DAY 13 -14
TOWNSVILLE DAY 7 - 8
SYDNEY DAY 10-11
PERTH DAY 16-17

20
USS MOBILE BAY
I/C 03 AUG
PHUKET 21-25 AUG
O/C MOB 30 AUG
GUAM BSF/C 8 AUG
DET HPO 20 JUL
SINGAPORE 15-19 AUG
RAS F 5 AUG(ERC) 27 AUG(PEC)
21
USS REUBEN JAMESUSS PAUL HAMILTON
PHATTAYA 20-25 AUG
GUAM BSF 12 AUG
I/C 07 AUG
O/C 08 SEP
SINGAPORE 27-31 AUG
DET HPO 21 JUL
RAS F 09AUG (ERC) 18 AUG(PEC) 5 SEP(PEC)
22
USS ABRAHAM LINCOLNUSS CAMDENUSS SHILOHUSS
FLETCHER
HONG KONG 23-26 AUG
SASEBO ABE 16-18 AUG
YOKOSUKA CAM/FLE 16-18 AUG
FUKUOKA SHI 16-18 AUG
O/C 11 SEP
SINGAPORE 31 AUG-04 SEP
DET HPO 21 JUL
RAS 08 AUG (KIS) 15 AUG(ERC/SJO) 29 AUG (ERC/S
JO
09 SEP(WSD)
23
ABRAHAM LINCOLN CVBG
HONG KONG ABE/CAM/ SHI/FLE 23-26 AUG
SASEBO ABE 16-18 AUG
YOKOSUKA CAM/FLE 16-18 AUG
FUKUOKA SHI 16-18 AUG
PHATTAYA RJA/PHM 20-25 AUG
PHUKET MOB 21-25 AUG
GUAM BSF MOB 8 AUG RJA/PHM 12 AUG
O/C MOB 30 AUG PHM/RJA 08 SEP ABE/CAM SH
I/FLE
11 SEP
I/C MOB 03 AUG PHM/RJA 07 AUG ABE/CAM SH
I/FLE
08 AUG
SINGAPORE MOB 15-19 AUG RJA/PHM 27-31 AUG
ABE/CAM/ SHI/FLE 31 AUG-04 SEP
RAS SUPPORT MOB 5 AUG(ERC) 27 AUG(PEC) ABE/C
AM/SHI/FLE 8 AUG (KIS) 15 AUG(ERC/SJO) 29 AUG (
ERC/SJO 9 SEP(WSD) RJA/PHM 9AUG (ERC) 18 AU
G(PEC) 5 SEP(PEC)
24
CLWP CLF DataCY 02
25
CLWP CLF DataCY 02
26
CLWP CLF DataCY 02
27
Summary

• SAPO WESTPAC - Singapore, Guam, DGAR
• C7F Logistics Integrator for the Western Pacific
• Limited T-AOs create a challenge due to C7F
  geography and time/distance factors

• CTF 773 C7F Afloat Logistics for OPLAN
  5027/5077


28
QUESTIONS?
