Title: Experience with legislation on environmental protection

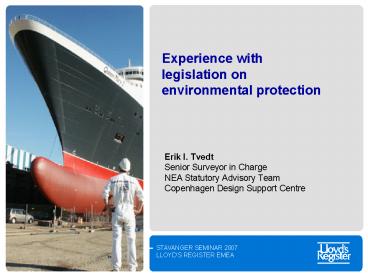

1
Experience with legislation on environmental
protection
  • Erik I. Tvedt
  • Senior Surveyor in Charge
  • NEA Statutory Advisory Team
  • Copenhagen Design Support Centre

2
Objectives
  • Introduction
  • Details of IMO new legislation on environmental
    protection
  • MARPOL Annex I
  • MARPOL Annex II and IBC Code
  • MARPOL Annex VI
  • Ballast water management
  • Anti-fouling systems
  • Recycling of ships and Green Passport
  • Lloyds Register classification notation on
    environmental protection

3
What is Copenhagen Design Support Centre (CDSC)???
  • Design Support and Plan Approval for the Nordic
    countries
  • One stop shop for both advise and traditional
    Plan Approval
  • All disciplines represented
  • Specialises in
  • Off-shore support vessels
  • RO/PAX vessels
  • Chemical carriers
  • MODU certification
  • Augmented by our colleagues in Hamburg and
    Rotterdam
  • Further back-up by the rest of the Lloyds
    Register Group around the globe

4
What is NEA Statutory Advisory Team
  • A group of statutory specialists within CDSC
  • Skills in the following areas
  • Stability
  • Fire Safety
  • Life Saving Arrangements
  • SOLAS Chapter V
  • MARPOL
  • Other MEPC issues
  • EU regulations
  • Advising clients and Lloyds Register Group field
    surveyors on statutory issues
  • Working with clients on design problems
  • Participates in IMO and EU work (often by
    invitation of the DMA)

5
A politically incorrect formula
  • Cp Perceived cost of pollution
  • Mas Miles of affected shoreline
  • Mvs Number of voters on affected shoreline
  • Ndb Number of dead birds
  • J Number of journalists present
  • Cf Country factor
  • My message this is the decade of environmental
    regulation!

6
Introduction Things to remember
  • Statutory rules and regulations are made by
  • Civil servants
  • Academia
  • Industry representatives (and that means your
    representatives!)
  • Statutory rules and regulations are promulgated
    by politicians
  • Statutory rules and regulations are put into
    force by flag administrations
  • Statutory rules and regulations are enforced by
    Recognised Organisations (RO)
  • Statutory rules and regulations are to be adhered
    to by ship-owners, shipyards, designers,
    equipment manufactures etc.
  • The only one with responsibility for the ship is
    the shipowner!!!!!

7
One more thing
  • Flag is always right
  • Class as an RO are acting on behalf of the
    flag state administration in order help the
    shipowner to comply with statutory regulations.

8
Part IKey Dates for Statutory legislation (1)
  • Enter into force date for a convention
  • 12 month after the ratification date on which day
    the convention has been ratified sufficient
    number of stats with enough percentage of Gross
    Tonnage of the worlds fleets.
  • At present IMO conventions enter into force
    within an average of five years after adoption.
  • Enter into force date for a resolution containing
    amendments
  • Final implementation date according to tacit
    acceptance procedure.
  • Normally six months after the deemed acceptance
    date

9
Key Dates (2)for Statutory legislation
  • Application key dates for a specific
    amendments/regulations
  • Building Contract Signed Date
  • Construction Date (keel-laying date or similar
    stage)
  • Delivery Date
  • First survey after a certain date (including
    initial survey)

10
Key Dates (3)for LR Rules and Regulations
  • Application key dates (after 1 July 2003)
  • Building Contract of Construction Signing Date
  • Sister/optional ships not later than one year.
  • To see detail in Lloyds Register Ship Rules,
    Part 1, Chapter 1, Section 7.

11
Reference of Statutory Legislation and LR Rules
in Contracts
  • In building specifications
  • Date of contract of construction, Keel-laying
    date, estimated Delivery date
  • To specify additional requests which do not
    covered by the applicable legislation applicable
    by those dates above
  • In contracts signed with Lloyds Register
  • Clear statement of three key days or estimated
    ones
  • To specify additional requests which need to have
    additional assessment and/or statement of
    compliance issued by Lloyds Register.

12
Part IIRevised MARPOL Annex I (1)
  • Revised Annex I is adopted by MEPC. 117(52) on 15
    October 2004
  • MEPC. 117(52) Deemed to have been accepted on 1
    July 2006 but to enter into force on 1 January
    2007
  • Application
  • Building contract placed on or after 1 January
    2007
  • In the absence of building contract, the keel of
    which are laid or which are at a similar stage of
    construction on or after 1 July 2007
  • Delivery of which is on or after 1 January
    2010
  • Undergo major conversion.

13
Revised MARPOL Annex I (2)
  • Main New Requirements
  • Regulation 22 Pump-room Protection
  • IMO unified interpretations adopted by MEPC 54
    (March 2006) Applicable to cargo pump-room and
    ballast lines are acceptable in DB spaces
  • Regulation 23 Accidental Oil Outflow
    Performance
  • Alternative solution
  • Software developing, current Aids and NAPA SCM in
    future
  • Regulation 37(4) All oil tankers of 5,000 tons
    deadweight or more shall have prompt access to
    computerised, shore-based damage stability and
    residual strength calculation program.
  • Lloyds Register services of SERS

14
Revised MARPOL Annex I (3)Regulation 12A -
Protection of Fuel Oil Tanks (1)
  • Adopted by MEPC.141(54) on 24 March 2006
  • used to be called as Regulation 13A but being
    renumbered to avoid confusion with current
    Regulation 13A.
  • Application
  • Building contract placed on or after 1 August
    2007
  • In the absence of building contract, the keel of
    which are laid or which are at a similar stage of
    construction on or after 1 February 2008
  • Delivery of which is on or after 1 August 2010
  • Undergo major conversion.

15
Revised MARPOL Annex I (4)Regulation 12A -
Protection of Fuel Oil Tanks (2)
  • Apply to all ships with an aggregate oil fuel
    capacity of 600 m3.
  • Apply to all oil fuel tanks except small oil fuel
    tanks (not greater than 30 m3) but excluding
    those tanks which would not contain oil fuel in
    normal operation, such as overflow tanks.
  • Individual oil fuel tank not to be more than
    2,500 m3.
  • any oil fuel tanks that do not border the outer
    shell plating shall be located minimum h from
    the bottom shell plate and at least w from side
    shell plating.
  • Alternative arrangement to comply with accidental
    oil fuel outflow performance standard.
  • Influence piping design as well.

16
Revised MARPOL Annex I (5)Regulation 12A -
Protection of Fuel Oil Tanks (3)
  • Arrangement of fuel tanks on different types of
    ships.
  • Container Ships, RoRo Vessels, Multi-purpose
    Vessels, Bulk Carriers, Tankers
  • Safe carriage of cargoes.
  • One BC Code cargo - Ammonium Nitrate Fertilizers,
    Type B (UN. No. 2071) (not a dangerous goods)
  • Away from all sources of heat. Away from any tank
    or double bottom containing fuel oil immediately
    adjacent to the cargo space if heated to more
    than 50C.
  • Certificate of Compliance.
  • Dangerous Goods. Operational matter.
  • Document of Compliance for Reg.II-2/19 or 54.
  • Discussions of arrangement and installations
    underway.

17
Part IIIRevised MARPOL Annex II and IBC Code
  • Revised MARPOL Annex II adopted by MEPC. 118(52)
    on 15 October 2004 and Revised IBC Code adopted
    by MSC. 176(79) on 10 December 2004
  • Enter into force both on 1 January 2007.
  • Applicable to
  • New ships constructed on and after 1 January
    2007
  • Existing ships converted to chemical tankers on
    and after 1 January 2007
  • Existing ships due to re-categorisation of
    chemicals.
  • Issue of certificates
  • NLS certificate for MARPOL Annex II.
  • Certificate of Fitness for IBC code.

18
Revised MARPOL Annex II and IBC Code
(2)Re-categorization of Chemicals
  • New four-category system of category X, Y, Z and
    OS (other substances).
  • Replacing previous five-category system of
    category A, B, C, D and III (other substance in
    Appendix III).
  • Some chemicals may not be categorised yet because
    of lack of essential data for evaluation.
  • Without being at least provisionally assessed,
    they will not be able to be carried after 1
    January 2007.
  • Will not to be listed on new certificate of
    fitness or NLS certificate.
  • Could be added in an addendum if there is
    provisional assessment/evaluation.
  • The work is estimated to be complete by 1 January
    2009.

19
Revised MARPOL Annex II and IBC Code (3)Carriage
of Particular Cargoes
  • Vegetable Oils
  • Most of vegetable oils (previously in Chapter 18)
    have been upgraded during re-categorization due
    to environmental threat.
  • Most of then have been now put in Chapter 17 of
    the revised IBC Code and shall be carried on ship
    type 2 chemical tankers.
  • Special consideration/exemption for carriage on
    ship type 3 chemical tanker. Note the 3 000 m3
    problem
  • Carriage on dry cargo ship on specific trades
    after 1 January 2007. To see MEPC.120(52).
  • Oil-like substances
  • To be only carried on full chemical tankers after
    1 January 2007.
  • Any residues must be discharge as for chemical
    substance.
  • Bio-fuels (e.g. bio diesel)
  • Not yet categorised Tri-partied agreements

20
Revised MARPOL Annex II and IBC Code (4)Major
Technical Requirement Changes
21
Revised MARPOL Annex II and IBC Code (3)Type of
Vessel
  • NLS carried on Offshore Supply Vessels
  • Resolution A.673 (16) Guidelines of the
    transport and handling of limited amounts of NLS
    in bulk on Offshore Support Vessel
  • The resolution is being revised by IMO in light
    of 2007 amendments to MARPOL Annex II and the IBC
    Code.
  • Remember your mud-tanks

22
Revised MARPOL Annex II and IBC Code (5)LR
Services
  • Assessment based on current record of a ship to
    determine which cargoes could be carried after 1
    January 2007.
  • can be undertaken for non-LR ships upon request.
  • Analysis proposed changes and modifications to
    enable carriage of additional cargoes.
  • Issuing new Certificate of Fitness and NLS
    certificates including new list of cargoes.
  • Guide and approval of revised PA Manuals and
    SMPEPs.

23
Part IVMARPOL Annex VI (1)
  • This annex was original adopted at MEPC 40 on 26
    September 1997 and was ratified by enough flag
    states on 18 May 2004
  • Entered into force on 19 May 2005 (one year after
    18 May 2004)
  • Application
  • All ships and fixed and floating drilling rigs
    and other platform
  • Issue of Certificates
  • International Air Pollution Prevention (IAPP)
    Certificate or
  • Certificate or Statement of Compliance

24
MARPOL Annex VI (2)
  • To control what
  • Ozone Depleting Substances (ODSs)
  • Nitrogen Oxides (NOx)
  • Sulphur Oxides (SOx)
  • Volatile Organic Compounds (VOCs) (Tankers only
    and if VEC system fitted)
  • SOx Emission Control Area (SECA) (1.5 m/m
    sulphur content)
  • the Baltic Sea
  • the North Sea
  • Amendments adopted by MEPC.132(53) on 22 July
    2005
  • from 22 November 2007 ships entering the North sea

25
MARPOL Annex VI (3)
  • To check what
  • Main Engines (NOx Code) by EIAPP Certificate
  • Other Diesel Engines with a power output of 130
    kW, except those intended solely for emergency
    use (NOx Code) by EIAPP Certificate
  • Incinerators (MEPC. 76 (40)) by Type Approval
    Certificate
  • Fire Fighting Systems (free of ODSs) by Statement
  • Refrigeration Systems (free of ODSs) by Statement
  • VECS (VOCs) by Plan Approval DAD
  • Fuel Oil Quality (SOx) by Bunker Delivery Note
    Sample

26
MARPOL Annex VI (4)Discussion and Development
  • To reduce pollution during operating at sea
  • Discussion of limit use of residual oils
  • Discussion of use lower sulphur fuel oil 1.5
    and 0.5 or even less (0.1)
  • To reduce pollution during berthing at a port
  • Port regulations EU, California (USA), Vancouver
    (Canada)
  • Discussion of on-shore power supply. It is also
    called Alternative Marine Power (AMP) or
    Cold-ironing.
  • Technical developing by working group from
    ISO/IEC
  • Ports cost effective study and test
    projects/scheme
  • Facilities at quay
  • Facilities on board
  • Wash water from SOx scrubbers (and from Inertgas
    plants!)

27
Part VBallast Water Management
  • International Convention for the Control and
    Management of Ships Ballast Water and Sediments
  • adopted on 13 February 2004
  • Not entered into force yet but will be 12 month
    after ratification by 30 States (6 currently),
    representing 35 per cent (0.62 currently) of
    world merchant shipping tonnage.
  • Target to enter into force on 1 January 2008.
  • But many states and areas ask for ballast water
    management plan of approved or examined format.
    For example,
  • Brazil (approved) (by 30 June 2006 and extended
    to 30 December 2006)
  • Canada (examined) (by 8 December 2006)

28
Ballast Water Management (2)
  • Obtaining a statement of compliance with the
    convention will assist in compliance with those
    national requirement and will ensure that the
    ship.
  • Ballast Water Management Plan shall be examined
    to compliance with
  • Reg. B-1 of the convention and IMO Resolution
    MSC.127(53) Guidelines for Ballast Water
    Management and the development of ballast water
    management plan, or
  • LR ShipRight Procedure Assessment of Ballast
    Water Management Plans on the basis of IMO
    Resolution A. 868 (20) Guidelines for the
    control and management of ships ballast water to
    minimize the transfer of harmful aquatic
    organisms and pathogens.

29
Ballast Water Management (3)
  • LR custom-made, well-structured systematic
    procedure and user-friendly Model Plan
  • Offices in this region authorized to provide the
    services
  • Piraeus, Copenhagen, Madrid and Rotterdam
  • Exchange Method
  • Sequential Method
  • Flow Through Method
  • Dilution Method
  • Additional piping system and pumps.
  • Few ships

30
Ballast Water Management (4)Treatment Method
  • A certificate or letter of acceptance of the
    ships ballast water treatment system issued by
    at least one Port State Authority within whose
    territorial jurisdiction it is intended to
    operate is required.
  • No approved system currently on the market. But
    the convention does allow the use of prototype
    systems provided they are installed and used in
    accordance with a scheme run in conjunction with
    the flag administration.
  • USCG STEP (Shipboard Technology Evaluation
    Program) programme.
  • http//www.uscg.mil/hq/gm/mso/step.htm
  • First fully approved ballast water treatment
    system with certification might be completed in
    mid of 2007.

31
Part VIAnti-fouling Systems
  • IMO International Convention on the Control of
    Harmful Anti-fouling Systems on Ships (AFS
    Convention), 2001
  • Adopted on 5 October 2001
  • Not entered into force yet but will be 12 month
    after ratification by 25 States (17 currently),
    representing 25 per cent (15.72 currently) of
    world merchant shipping tonnage.
  • EU AFS Regulation, EC No.782/2003.
  • Applicable to all ships of 400 GT and above
    engaged on international voyages
  • From 1 January 2008, to remove organotin
    anti-fouling systems from the hull or apply a
    sealer coat.

32
Anti-fouling Systems (2)LR Services
  • Anti-fouling paint identification, sampling and
    testing
  • LR recognized anti-fouling paint list
  • Anti-fouling system survey and certification
  • International Anti-fouling System Certificate, or
  • Anti-fouling System Certificate of Compliance
    (EU)
  • Both with a copy of record of anti-fouling
    system.

33
Anti-fouling Systems (3)Certification Flow Chart
34
Part VIIShip Recycling and Green Passport
  • IMO Guidelines on Ship Recycling, A.952(23)
  • adopted on 5 December 2003
  • Green Passport is a document that contains an
    inventory of materials onboard a ship which may
    be hazardous to human health or to the
    environmental.
  • Certificate (Document of Compliance) Inventory
  • to be maintained throughout the ships
    operational life. At the end of a ships life,
    the Green Passport can be used to assist safer
    and more environmentally sound dismantling of the
    ship.
  • Life cycle Design Construction, through-life
    operation and end of life.

35
Ship Recycling and Green Passport (2)Benefits to
the Owners
  • Provides formal summary of hazards, thus
    promoting better hazard management, enhancing
    onboard safety and enabling better long term
    liability planning
  • Assists financial planning through better
    awareness of changing value of assets (on account
    of enhanced dismantling requirements) and onboard
    hazard liabilities
  • Promotes better environmental awareness and
    planning
  • Enhances Owner reputation through compliance with
    (currently) voluntary initiative
  • Provides measurable and achievable objective(s)
    for ISO 14001 certified companies

36
Ship Recycling and Green Passport (3)LR Services
  • LR service covers the approval and verification
    of Green Passports for accuracy and compliance
    with the IMO Guidelines
  • LR do not compile Green Passports
  • For new ships, the yard should prepare the
    hazardous materials inventory and for existing
    ships, Owners/crews will need to compile
    inventory.
  • LR supply a Guide to the Green Passport, Rev.
    July 2006 and supply an electronic template to
    assist preparation
  • World-wide service net with well trained
    surveyors
  • Singapore, Yokohama, Piraeus, Rotterdam, London,
    Miami and Korea

37
First Green Passport forShell LNG Tanker,
GRANATINA LR 9253105
38
Ship Recycling and Green Passport (5)
Document of Compliance with IMO Guidelines on
Ship Recycling under Lloyds Registers own
authority
39
Ship Recycling and Green Passport (6)Completing
the Inventory (1)
  • Part 1 Potentially hazardous materials in the
    ships structure and Equipment
  • 11 categories of hazardous materials, 1A1K
  • covering Asbestos, Paint, Plastic Rubber
    materials, Materials containing PCBs/PCTs/PBBs,
    ...
  • Part 2 Operationally generated wastes and Part
    3 Stores
  • Do not need to be completed until the ship is
    being prepared for recycling.

40
Ship Recycling and Green Passport (7)Completing
the Inventory (2)
  • In case where testing would be required in order
    to establish whether a hazard exists, the owner
    have the option not to test, but to declare the
    material a probable or presumed hazard.
  • Proper safety and environmental hazard management
    systems must exist for all noted probable,
    possible, presumed or actual hazards.
  • These systems are not part of the Green Passport
    since they are covered by the ISM code. However,
    the Green Passport will be available to ISM
    auditors and may be used as a source of reference
    during the audit.

41
Ship Recycling and Green Passport (7)Latest
Development
  • New legally binding Instrument on Ship Recycling
    agreed IMO MEPC, July 2005 for adoption
    2008-2009
  • New instrument to set out mandatory requirements
    governing
  • Ship design and construction, operation and
    maintenance, preparation for recycling
  • Requirements for recycling facilities
  • Enforcement mechanisms
  • Draft International Convention for the Safe and
    Environmentally Sound Recycling of Ships, March
    2006
  • Consistent, but additional aspects
    prohibition/restriction of materials Technical
    Group

42
Part VIIILR Rules on Environmental Protection
  • Development History
  • First launched in May 1998 as provisional Rules
  • Incorporated in Ship Rules in January 2001
  • Amended in 2002/2003/2006
  • Current Ships Rules, Part 7, Chapter 11
    Arrangement and Equipment for Environmental
    Protection.
  • Covers major areas of concern with regard to
    operational pollution from shipping.

43
EP Notation (2)Benefits
  • Demonstrates environmental responsibility
  • Improves environmental performance
  • Mitigates risk of fines, etc. from environmental
    infringements
  • Helps future proof your ship
  • Rules on EP aim to predict where legislation may
    be introduced in the future and thus compliance
    with these minimises risk of future legislative
    compliance problem

44
EP Notation (3)General (Prerequisite)
Requirements
  • Comply with all relevant Annexes of MARPOL.
  • Possess valid ISM certificates, Document of
    Compliance for the company and Safety Management
    Certificate (SMC) for the ship.
  • Enrol in LRs Ship Emergency Response Service, or
    an equivalent scheme by an IACS member.

45
EP Notation (4)
  • Basic notation EP
  • Supplementary Characters
  • A - Hull anti-fouling
  • B Ballast Water Management
  • G Grey Water
  • N NOx Emissions
  • O Oily Bilge Water
  • P Protected Oil Tanks
  • R Refrigeration System
  • S SOx Emissions
  • V Vapour Emission Control Systems Vc and Vp

46
EP Notation (5)Basic EP Notation (1)
  • NOx emissions
  • Emission limits are the same as those specified
    in Regulation VI/13 to MARPOL
  • SOx emissions
  • Max fuel sulphur content 3.5 S
  • Max fuel sulphur content 1.5 S in SOx Emission
    Control Area
  • Refrigeration systems
  • Free of Chlorofluorocarbons (CFC)
  • System design, operation maintenance to
    minimise refrigerant gas leakage. Max allowable
    leakage 10
  • Leakage detection system for monitoring
    continuously the spaces into which the
    refrigerant could be leak shall be provided and
    the alarm shall be given in a permanently manned
    station

47
EP Notation (6)Basic EP Notation (2)
  • Fire-fighting system
  • Free of halon or halo-carbons.
  • Oil pollution Prevention
  • Oil water separator 15 ppm. Type approval
  • Separate tanks for sludge and waste oil. Combined
    tank acceptable when operating on distillate fuel
    only
  • Collection and recovery any oil spilled on deck
  • Garbage handling and disposal
  • Garbage management plan. More details specified
  • Incinerator, if fitted. Type approval operation
    to following Regulation VI/16 to MARPOL

48
EP Notation (7)Basic EP Notation (3)
  • Sewage treatment
  • Treat Black water only Minimum capacity of
    115/15 litres/person/day for conventional
    flushing system/ vacuum system
  • Treat both black and grey water the above
    additional allowance of 135 litres/person/day.
  • Type approved sewage treatment system.
  • Ventilation pipes from treatment system to be
    independent of others.
  • Hull anti-fouling systems
  • Free of TBT from 1 January 2003.
  • Up to 1 January 2008, TBT leaching rate not
    exceeding 4 µm/cm2/day.
  • Ballast water
  • Precautionary measures

49
EP Notation (8)More Stringent Requirements for
SCs (1)
  • A - Hull anti-fouling
  • Antifouling system to be non-biocidal. Silicone
    based paints acceptable.
  • B Ballast Water Management
  • BWMP to be approved
  • G Grey Water
  • To install plant for the treatment of grey water
  • The effluent
  • faecal coliforms content not to exceed 250/100 ml
    M.P.N. (most probable number)
  • Suspended solids test on shore/board not to
    exceed 50/100 mg/l
  • Biochemical Oxygen Demand (BOD5) test on
    shore/board not to exceed 50/100 mg/l
  • If re-used or recycled, to meet potable water
    quality standard

50
EP Notation (9)More Stringent Requirements for
SCs (2)
  • N NOx Emissions
  • Not exceeding 80 of the limits specified in
    Regulation VI/13 to MARPOL
  • O Oily Bilge Water
  • Oil water separator 5 ppm
  • P Protected Oil Tanks
  • The same as new Regulation I/12A to MARPOL
  • R Refrigeration System
  • Refrigerant gases restricted to those
  • Ozone Depleting Potential (ODP) 0
  • Global Warming Potential (GWP) lt 1950

51
EP Notation (10)More Stringent Requirements for
SCs (3)
  • S SOx Emissions
  • Maxi allowable fuel S content
  • Gas oil 0.2 m/m
  • Fuel oil 1.5 m/m
  • V Vapour Emission Control Systems
  • Vc VECS to be fitted and to comply with USCG 46
    CFR 39 or IMO MSC/Circ. 585
  • Vp to fit a self-contained system to prevent
    vapour emission formation during loading
  • LR type approved type with reduce vapour emission
    formation by at least 75 v/v.

52
EP Notation (11)
53
EP Notation (12)LR Services
  • Type approval of equipment/system
  • Plan approval
  • Initial survey and audit
  • Period survey and audit
  • Change of Company
  • Notation will be suspended when a ship changing
    company.
  • Re-assign after successful completion.

54
Part IX Introduce some new concepts
  • Integrated Bilge Water Treatment Systems (IBTS)

55
Integrated Bilge Water Treatment System (IBTS)
  • MEPC.1/Circ.511 - Revised guidelines for systems
    for handling oily waters in machinery spaces of
    ships adopted on 18 April 2006
  • Previously MEPC/Circ.235 adopted on 13 December
    1990 (applicable to ships constructed on or after
    1 January 1992)
  • Improvement has been made on pollution prevention
    equipment for machinery spaces bilge by
    MEPC.107(49). But the treatment process of oily
    bilge water with the improved equipment and the
    engineers load is basically unchanged and the
    amount of oily bilge water generated in ships has
    not been reduced.
  • Approved the concept of an Integrated Bilge Water
    Treatment Systems (IBTS)
  • Incorporates the means to reduce the amount of
    oily bilge water and process the oily bilge water
    and oil residue (sludge) in a holistic manner.

56
Integrated Bilge Water Treatment System
(2)Concept
  • IBTS is a system to minimize the amount of the
    oily bilge water generated in machinery spaces by
    means to treat the leaked water and oil
    separately. It is also provides integrated means
    to process the oily bilge water and oil residue
    (sludge).
  • Outline of IBTS
  • Collection of drains
  • Pre-treatment of oily bilge water
  • Discharge of oily bilge water
  • Discharge of clean drains
  • Treatment of oil residue (sludge)

57
IBTS (3)
Typical Flow Diagram of IBTS
58
Integrated Bilge Water Treatment System
(4)Additional Installation of IBTS (1)
  • Drainage System
  • Drip trays or coamings for equipment used for oil
    such as diesel engines, burners, pumps, heaters,
    filters and tanks to keep spillage of oil.
  • Drip trays or coamings for equipment used for
    water such as pumps, heaters, coolers, filters,
    tanks, condensers and boilers to keep spillage of
    water.
  • Pre-treatment unit for oil separation
  • Bilge primary tank with construction of cascade,
    which is able to separate oil from oily bilge
    water by gravity with drainage facilities of the
    oil on the top as primary separation of oily
    bilge water.

59
Integrated Bilge Water Treatment System
(5)Additional Installation of IBTS (2)
  • Storage tanks
  • Clean drain tank Tank for the retention of clear
    drains.
  • Bilge water holding tank Tank for the retention
    of oily bilge water.
  • Waste oil tank tank for preparation of oil
    residue (sludge) for incineration.
  • Discharge arrangement of clean drains
  • The discharge arrangement of clean drains to
    overboard should be independent from the system
    for oily bilge water.
  • Exclusive pump for the oil filtering equipment
  • It is preferable to be provided with an excusive
    pump to transfer the pre-treated bilge water from
    bilge water holding tank to the oil filtering
    equipment so as not to mix the pre-treated bilge
    water and untreated oil bilge water.
  • Heating Arrangement
  • To the bilge primary tank to facilitate
    separation of oil
  • To the waste oil tank to vaporize water and
    facilitate incineration.

60
One last thing
  • The shipowner is the one who are
  • Going to court (with the captain and perhaps the
    crew)
  • To pay for any damages and fines imposed
  • Getting the bad publicity
  • Paying the bill for everybody else involved
  • Is the only one responsible for the Safety,
    Security and Environmental Condition of the ship
  • Class as an RO are acting on behalf of the
    flag state administration in order help the
    shipowner to comply with statutory regulations.

61
Thank you very much for your attention For more
information, please contact Copenhagen Design
Support Center Denmark London Design Support
Office External Affairs Department United
Kingdom Lloyds Register EMEA
Write a Comment
User Comments (0)
About PowerShow.com
