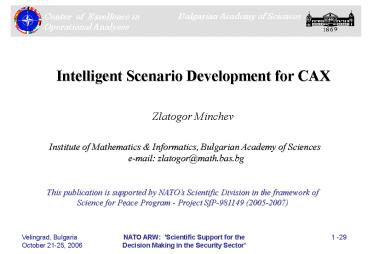

Intelligent Scenario Development for CAX
Zlatogor Minchev
Institute of Mathematics Informatics, Bulgarian
Academy of Sciences e-mail zlatogor_at_math.bas.bg
This publication is supported by NATOs
Scientific Division in the framework of Science
for Peace Program - Project SfP-981149 (2005-2007)
2
Theoretical Background
1. ?-R (Entity Relationship) model - Chen, 1976
3
2. Systems Theory Bertalanffy, 1950
4
SCIP Scenario Computer Interface Program
5
Functional abilities
6
Main menu
7
File
8
Edit
9
Window
10
Toolbar
11
Sensitivity Diagram
12
Objects Characteristics Form
13
Relations Characteristics Form
14
File Format
15
Excel Interoperability
16
Scenario Example for Crises Management
17
Sensitivity Diagram
18
Ideas to add Intelligence in SCIP

• Better Relations Evaluation

19
w Evaluation

• Brainstorming
• Multi-criteria Approach
• Fuzzy Sets Implementation

20
Multi-criteria Evaluation

• Multi-valued logic Lukasiewicz, 1920
• Fuzzy Sets Zadeh, 1965
• Intuitionistic Fuzzy Sets Atanassov, 1983

21
Intuitionistic Fuzzy Sets
22
Graphical Representation
23
Possible Applications of IFS in SCIP

• w - ?A
• Interchange among ?A, ?A and ?A in accordance
  with your information
• Utilization of F?,? optimizing operator for
  uncertainty minimizing

24
w - ?A

• Create two scales for ?A and ?A that are filled
  up trough experts knowledge and/or brainstorming

25
Interchange among ?A, ?A and ?A in accordance
with your information

• 1. Create two scales for a and b that are filled
  up trough experts knowledge and/or brainstorming
  for things that you know, dont know or are
  uncertain for you
• 2. Substitute a and b with ?A, ?A or ?A in
  accordance with 1.
• 3. Utilize IFS basic relations (see IFS
  definition) or IFS optimization (see next slide)

26
Utilization of F?,? optimizing operator for
uncertainty minimizing

• ?A (x) ?x, ?A (x) , 1- ?A (x) ? x ? E
• ?A (x) ?x, ?A (x) , 1- ?A (x) ? x ? E
• F?,? (A) ?x, ?A (x) ?..?A(x), ?A (x)
  ?..?A(x)? x ? E, ? ?, ? ? 0, 1, ? ? ? 1,
  A fixed set, E universe of disclosure, x
  element from E (see IFS definition).

27
I-SCIP Contribution

• SfP 981149 Scientific Research
• TACOM SEE 2006 / Protection 2006 Scenario
  Development
• NATO MSG 049 Scenario Development

28
Conclusions

• Utilization of E-R model, systems theory and
  holistic thinking
• Interoperability between different software
  products
• Interactive work
• General view and evaluation of the scenario
  theatre.

29

• QUESTIONS ?
