Spline Interpolation Method

1

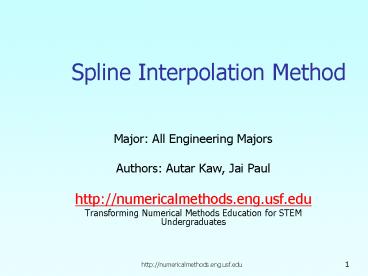

Spline Interpolation Method

• Major All Engineering Majors
• Authors Autar Kaw, Jai Paul
• http//numericalmethods.eng.usf.edu
• Transforming Numerical Methods Education for STEM
  Undergraduates

2
Spline Method of Interpolation
http//numericalmethods.eng.usf.edu
3
What is Interpolation ?

Given (x0,y0), (x1,y1), (xn,yn), find the
value of y at a value of x that is not given.
4
Interpolants

• Polynomials are the most common choice of
  interpolants because they are easy to
• Evaluate
• Differentiate, and
• Integrate.

5
Why Splines ?
6
Why Splines ?
Figure Higher order polynomial interpolation is
a bad idea
7
Linear Interpolation
8
Linear Interpolation (contd)
9
Example

• The upward velocity of a rocket is given as a
  function of time in Table 1. Find the velocity at
  t16 seconds using linear splines.

Table Velocity as a function of time
(s) (m/s)
0 0
10 227.04
15 362.78
20 517.35
22.5 602.97
30 901.67
Figure. Velocity vs. time data for the rocket
example
10
Linear Interpolation




11
Quadratic Interpolation
12
Quadratic Interpolation (contd)
13
Quadratic Splines (contd)
14
Quadratic Splines (contd)
15
Quadratic Splines (contd)
16
Quadratic Spline Example

• The upward velocity of a rocket is given as a
  function of time. Using quadratic splines
• Find the velocity at t16 seconds
• Find the acceleration at t16 seconds
• Find the distance covered between t11 and t16
  seconds

Table Velocity as a function of time
(s) (m/s)
0 0
10 227.04
15 362.78
20 517.35
22.5 602.97
30 901.67
Figure. Velocity vs. time data for the rocket
example
17
Solution






Let us set up the equations
18
Each Spline Goes Through Two Consecutive Data
Points
19
Each Spline Goes Through Two Consecutive Data
Points
t v(t)
s m/s
0 0
10 227.04
15 362.78
20 517.35
22.5 602.97
30 901.67
20
Derivatives are Continuous at Interior Data Points
21
Derivatives are continuous at Interior Data Points
At t10
At t15
At t20
At t22.5
22
Last Equation
23
Final Set of Equations
24
Coefficients of Spline
i ai bi ci
1 0 22.704 0
2 0.8888 4.928 88.88
3 -0.1356 35.66 -141.61
4 1.6048 -33.956 554.55
5 0.20889 28.86 -152.13
25
Quadratic Spline InterpolationPart 2 of
2http//numericalmethods.eng.usf.edu
26
Final Solution
27
Velocity at a Particular Point

• a) Velocity at t16

28
Acceleration from Velocity Profile

• b) The quadratic spline valid at t16 is given by

29
Distance from Velocity Profile

• c) Find the distance covered by the rocket from
  t11s to t16s.

30
Additional Resources

• For all resources on this topic such as digital
  audiovisual lectures, primers, textbook chapters,
  multiple-choice tests, worksheets in MATLAB,
  MATHEMATICA, MathCad and MAPLE, blogs, related
  physical problems, please visit
• http//numericalmethods.eng.usf.edu/topics/spline
  _method.html

31

• THE END
• http//numericalmethods.eng.usf.edu
