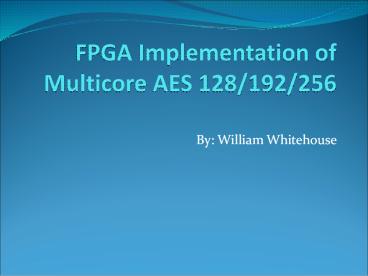

FPGA Implementation of Multicore AES 128/192/256

1
FPGA Implementation ofMulticore AES 128/192/256

• By William Whitehouse

2
Objectives

• Design an FPGA that is capable of AES encryption
  and decryption with 128, 192, and 256 bit keys.
• Optimize encryption/decryption throughput by
  implementing multiple cores
• Synthesize multi-core design and generate a
  simulated throughput

3
AES Core Modules

• Used AES Core Modules developed by Jerzy Gbur
• Contains
• key_expansion.vhd 128, 192, or 256 bit key
  expansion module
• aes_enc.vhd AES encryption module
• aes_dec.vhd AES decryption module

4
Single AES Core Timing
Key Size 128-bit 192-bit 256-bit
Key Valid (cycles) 16 24 32
Key Expansion (cycles) 133 123 157
Enc/Dec Data Valid (cycles) 16 16 16
Enc/Dec (cycles) 99 119 139
5
Single Core Wave
6
Top Level Diagram
7
Multi-Core Timing
Key Size 128-bit 192-bit 256-bit
Initial Enc/Dec (cycles) 99 119 139
Enc/Dec (cycles) 17 17 17
Max Cores Utilized 8 9 11
8
Multi-core Enc/Dec Wave
9
AES Design Synthesis

• Target FPGA Xilinx Virtex 5 XC5VLX110

Single Core 11 Core
Slice Registers 693 7282
Slice LUTs 2416 26121
Block RAMs 4 44
Max Freq. (MHz) 297.95 297.42
Max Throughput (MBps) 39 (128-bit) 33 (192-bit) 29 (256-bit) 266
10
Growth Opportunities

• Add more Enc/Dec inputs and 11-core modules
• Optimize the design for size
• Allow the key to be different for each core
• Use different AES Core

11
Questions

• Design is located at
• http//code.google.com/p/multicore-aes-fpga/
• If you have any questions please email me at
• wdwhiteh_at_iastate.edu
