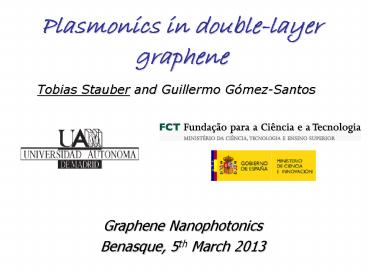

Plasmonics in double-layer graphene
Tobias Stauber and Guillermo Gómez-Santos

Graphene Nanophotonics Benasque, 5th March 2013
2
Overview
Optical properties double-layer graphene
Effect of temperature and inhomogeneous
dielectric background on Plasmons Near-field
amplification Perfect transmission
Optical properties of twisted bilayer
graphene (Work in progress with L. Brey, P. San
Jose, E. Prada)
Drude weight Plasmons excitations
3
Plasmons in double-layer graphene
4
Double-layer graphene
Coulomb drag, field effect tunneling transistor,
and optical modulator.
S. Kim, et. al., Phys. Rev. B 83, 161401(R)
(2011).
L. A. Ponomarenko et. al., Nature Physics 7, 958
(2011). L. Britnell et. al., Science 335 (6071)
947-950 (2012)
Ming Liu et al., Nano Lett. 12, 1482 (2012).
Johan Christensen et al, ACS Nano 2011
5
Double-layer graphene
Linear response in matrix form
Define loss function
6
Previous approaches
Often, the dielectric function is discussed
The loss function is given by

• Problems
• This function changes sign, because it is not
  based on a true response function .
• The absolute value gives incorrect weight for
  Landau damping regime.

7
Results for the loss function at finite
temperature
8
Plasmons at finite temperature
The plasmon dispersion is red-shifted for
intermediate temperatures and blue-shifted for
high temperatures.
TS and G. Gómez-Santos, New J. Phys. 14, 105018
(2012).
9
Plasmons at zero doping
There are plasmons at zero doping at T300K
TS and G. Gómez-Santos, New J. Phys. 14, 105018
(2012).
10
Inhomogeneous dielectric medium
An inhomogeneous dielectric medium can shift
relative weight of in-phase and out-of-phase
plasmons.
Topological insulators have high-dielectric
buffer layer
TS and G. Gómez-Santos, New J. Phys. 14, 105018
(2012).
11
Acoustic plasmon mode
A substrate with large dielectric constant turns
plasmonic mode into acoustic mode
Graphene on top of Pt(111)
TS and G. Gómez-Santos, New J. Phys. 14, 105018
(2012).
12
Near-field amplification
13
Near-field amplification
Exponential amplification for R0.
Analogy to Pendrys perfect lens
14
Numerical results
Longitudinal polarization
Transverse polarization
See also Poster 20 by A. Gutiérrez
TS and G. Gómez-Santos, Phys. Rev. B 85, 075410
(2012).
15
Numerical results
For different densities order of layers
determines amplification
n1gtn2
n1ltn2
16
Retardation effects
17
Strong light-matter coupling
The presence of doped graphene at the interfaces
leads strong light-matter coupling for ?lta?F

• Quenched Fabry-Pérot resonances
• Extraordinary transmission in tunnel region

G. Gómez-Santos and TS, Europhys. Lett. 99, 27006
(2012).
18
Fabry-Pérot resonances
Quenched Fabry-Pérot resonances
Response shows Fano lineshape Particle-in-a-box
states leak out and interact with continuum.
19
Quantum-Dot model
Quasi-localized states between two doped graphene
layers
20
Extraordinary transmission
Extraordinary transmission in tunnel region
Transmission between light cones
21
Finite relaxation time
Non-linear absorption sets in for angles beyond
total reflections
Different layer distances
Different relaxation times
22
Optical properties of Twisted bilayer
23
Atomic structure
For small angles, the formation of periodic Moiré
superlattices is seen.
P. Moon and M. Koshino, arXive1302.5218 (2013).
24
Electronic structure
The electronic structure changes for small twist
angles.
Renormalization of the Fermi velocity
J. M. B. Lopes dos Santos et al., Phys. Rev.
Lett. 99, 256802 (2007).
25
Optical conductivity
The optical conductivity is characterized by a
van Hove singularity independent of the angle.
26
Drude weight
Drude weight follows the shell structure of the
DOS.
27
Drude weight
For small angles, a substructure appears in the
Drude weight not present in the DOS
28
Plasmonic excitations
For small chemical potential Interband plasmons
29
Plasmonic excitations
For large chemical potential Intraband plasmons
30
Summary
31
Concluding remarks

• There is spectral transfer of in-phase and
  out-of-phase mode, near-field amplification and
  perfect transmission in double-layer graphene.
• Plasmonic spectrum of twisted bilayer graphene
  stronly depends on doping.

Thanks for your attention!
