Title: Configuration Management


1

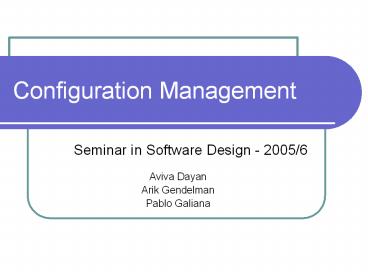

Configuration Management
Seminar in Software Design - 2005/6
  • Aviva Dayan
  • Arik Gendelman
  • Pablo Galiana

2
What is Configuration Management?
  • The control of changes made throughout the system
    lifecycle.
  • Allows changes to be evaluated before they are
    approved.
  • Considers interrelationships among system
    components.

3
Software Configuration Management
  • A software engineering discipline
  • Comprised of tools and techniques
  • used to manage change to software assets.
  • A set of activities to control change by
  • identifying the products establishing
    relationships
  • defining mechanisms for management, control,
    auditing and reporting on changes made.
  • In short A methodology to control and manage a
    software development project.

4
Why do we need SCM?
  • To manage
  • Many people working on the same code.
  • Projects delivered in several releases (builds).
  • Rapid evolution of software and hardware.
  • Project surveillance
  • i.e. projects status, bugs, features, etc.
  • Concurrent support and development.
  • Stress time requirements of projects.

5
Goals of SCM
  • Configuration Control
  • Controlling product release and its updates.
  • Status Accounting
  • Recording and reporting components status.
  • Review
  • Ensuring completeness and consistency of all
    parts.
  • Build Management
  • Managing the build process and its tools.

6
Goals of SCM cont.
  • Process Management
  • Ensuring adherence to the development process.
  • Environment Management
  • Managing the components that host our system.
  • Teamwork
  • Facilitate team interactions

7
SCM How it is accomplished?
  • All these goals are accomplished through
  • Version control
  • Management of multiple revisions of the same unit
    of information.

8
Version control
  • Commonly used in engineering and software
    development.
  • Changes identified by incrementing an associated
    number or letter code - revision number, or
    revision level.
  • Revision numbers (levels) are associated
    historically with the person making the change.

9
Vocabulary
  • Repository
  • A server where the files are stored.
  • Check-Out
  • copies a working copy from the repository
  • (the opposite of an import).
  • Change
  • A specific modification to a document under
    version control.
  • The granularity of the modification considered a
    change varies between version control systems.

10
Vocabulary cont.
  • Change List
  • The set of changes made in a single commit.
  • A sequential view of the source code.
  • Commit or Check-in
  • Copy the changes on the local files to the
    directory.
  • (the VC software takes care of changes since the
    last synchronization).
  • Update
  • copies the changes that were made to the
    repository into your working directory.
  • (opposite of a commit).

11
Vocabulary cont.
  • Merge / Integration
  • brings together (merges) concurrent changes into
    a unified revision.
  • Revision or version
  • one version in a chain of changes.
  • Conflict
  • Occurs when two changes are made by different
    parties to the same document or place within a
    document.
  • Resolve
  • The act of user intervention to address a
    conflict between different changes to the same
    document.

12
Example
CM Clients
CM Server
Trunk
Machine A
Machine B
13
History
  • CM systems save the files history.
  • Old versions can be viewed, compared, and
    downloaded.
  • New versions can be (irreversibly) replaced with
    old versions and wiped off the map.

14
Central repositories
  • Files are saved in a central file server.
  • Developers can view the files in the repository,
    through the use of filters.

15
Labels
  • Several files can be labeled together.
  • Allows
  • Access to the label as a whole set of files.
  • Changes to the labeled files as a unit.
  • Useful for marking product releases.

16
Check-in
  • Copies a file into the database.
  • The version you see is (usually) the latest
    version that was checked in.
  • The old version is kept and can be accessed later.

17
Check out
  • Copies the database file to your personal folder,
    and raises a flag on the database copy.
  • Need to check out before checking in.

18
Undo check out (uncheck-out)
  • The undo checkout command does just that the
    file returns to the status it had before it was
    checked out.
  • This can be done even if changes have been made
    to the local copy of course, these do not go
    into the database!

19
Versioning Models
  • Lock-Modify-Unlock Solution
  • Only one person can change a file at a time.
  • Example VSS.
  • Copy-Modify-Merge Solution
  • Users modify private copies only - in parallel
  • Private copies are merged together into a new,
    final version.
  • Example CVS, Subversion.

20
Problems With Locking
  • Administrative problems
  • A user can lock a file and forget about it.
  • Time is wasted while others wait to edit the
    file.
  • Unnecessary serialization
  • Different parts of a file dont necessarily
    overlap.
  • E.g. Alice works on the beginning of a file, Bob
    wants to edit the end of the same file.

21
Problems With Locking cont.
  • False sense of security
  • Lets say Alice locks and edits file A, while Bob
    simultaneously locks and edits file B.
  • Lets say A and B depend on one another, and the
    changes made to each are semantically
    incompatible.
  • Suddenly, A and B don't work together anymore.

22
The Copy-Modify-Merge Solution
Repository
Aviva and Arik both check out file A. Here,
checkout has no locking effect its just a
local copy.
Read
Read
23
The Copy-Modify-Merge Solution
Both edit their local files.
Repository
24
The Copy-Modify-Merge Solution
Repository
Aviva checks in her file to the repository first.
Write
25
The Copy-Modify-Merge Solution
Repository
Now, Arik tries to check-in his file. He gets an
up-to-date check error
Write
26
The Copy-Modify-Merge Solution
Arik updates his local copy to contain the
changes made by Aviva. Changes are added to the
local file. During this merge, conflicts may
occur.
Repository
Read
27
The Copy-Modify-Merge Solution
Repository
A new merged file is created on Ariks machine.
28
The Copy-Modify-Merge Solution
Repository
Arik commits his file to the repository.
Write
29
The Copy-Modify-Merge Solution
Repository
Aviva updates her file from the repository.
Read
30
Check-out etiquette
  • If two people have a file checked out, they have
    to merge their changes before check-in
  • Merging files can be messy!
  • This requires coordination and responsibility on
    the part of developers, not to make unnecessary
    check-outs, and not to hold check-outs for too
    long.

31
File Comparison
  • Users can graphically compare two versions of
    files, in or out of the database.
  • Tools BeyondCompare, Windiff, AraxisMerge
  • This helps with manual merges
  • Also helps people decide which version to access

32
SourceSafe
  • Central repository of read-only files.
  • Everybody sees the same version.
  • Only one user can check in at once.
  • No branching.
  • Limited merge capabilities.
  • Synchronized with Visual Studio

33
Advantages of SourceSafe
  • Synchronized with Visual Studio.
  • Relatively inexpensive.
  • Relatively simple to administrate.

34
Disadvantages of SourceSafe
  • Does not support branching
  • Requires verbal coordination.
  • Poses a problem for large projects.
  • Complicates development of features
  • Not compatible with other OSs.

35
Get Latest Version (?)
  • Getting the latest version copies (rather than
    links) the file from the database to your
    personal directory - And so
  • Getting latest version overwrites files in
    personal folders.
  • Rename local files beforehand if you want to keep
    them.
  • Database updates do not update local copies.
  • Changes to database necessitate manual merges.

36
Preserving Database Integrity (or watch
SourceSafe limp)
  • Before a SourceSafe check-in
  • Verify thoroughly that the modified file works
    with other files
  • Otherwise there could be big trouble
  • Other systems allow for new branches
  • Files can be updated there.
  • Branch is merged with main trunk only after
    integrity checks.
  • Advantage source control throughout the checking
    process!

37
Demo- SourceSafe
  • Demo SourceSafe

38
Concurrent Versions System
  • CVS has UNIX origins.
  • Available also for Linux and Windows.
  • Stores only the differences between versions.

39
Clients
  • Command line.
  • GUI (i.e. WinCVS, tkCVS, etc)
  • NOTE Most GUI/Plugins are wrappers around the
    basic CVS command line client.

40
Revisions
  • Each version of a file has a unique Revision
    number. Revision numbers look like 1.1, 1.2,
    1.3.2.2 or even 1.3.2.2.4.5.

1.1
1.2
1.3
1.4
Main.c
41
Revision Numbering
  • By default
  • revision 1.1 is the first revision of a file.
  • Successive revisions incremement the rightmost
    number.

42
Tags
  • Tags are used to give a symbolic name to a
    certain collection of file revisions.

1.1
1.2
1.3
1.4
Main.c
TAG_XXX
1.1
1.2
Main.h
1.1
1.2
1.3
Lala.c
43
Branching
  • Like ClearCase, CVS allows branches
  • Allows changes to be isolated into a separate
    development line.
  • Branches are good for
  • Fixing bugs in historical releases.
  • Developing features without disrupting primary
    development.

44
Trunks and Branches
  • The main branch is called the main trunk.
  • A branch can be merged back to the main trunk, or
    left as a branch.

45
Branches and Revisions
1.2.2.2.2.1
1.2.2.2.2.2
Branch 1.2.2.2.2 -gt
1.2.2.1
1.2.2.2
Branch 1.2.2. -gt
1.1
1.2
1.3
1.4
Main Trunk
Main.h
1.2.4.1
1.2.4.2
1.2.4.3
Branch 1.2.4. -gt
46
ClearCase - Overview
  • Rational ClearCase is a software tool for
    revision
  • control of source code and other software
  • development assets.
  • Basic concepts
  • Items under ClearCase are generally referred to
  • as elements.
  • For example
  • design models, source files, project files,
    DLLs, etc.

47
VOB
  • All elements stored in VOBs Version Object
    Bases.
  • Depending on the size and complexity of your SW
  • development environment ClearCase elements
  • may be distributed across more than one VOB.
  • For example
  • elements used by the Documentation group can be
    stored in one VOB, while elements contributing to
    software builds can be stored in a different VOB.

48
VOB Illustration
  • This diagram
  • illustrates a VOB
  • that contains the
  • file elements
  • prog.c,
  • util.h,
  • msg.cat,
  • and lib.c

49
View
  • To access an element under ClearCase, you set up
    and work in a view,
  • A view shows a directory tree of specific
    versions of the element.

50
Two kinds of views
  • Snapshot views
  • copy files from VOBs to your computer.
  • Dynamic views,
  • use the multiversion file system (MVFS) of
    ClearCase to provide immediate, transparent
    access to the data in VOBs.

51
Configuration Specifications
  • A set of rules called a configuration
    specification determines which files are in a
    view.
  • These rules are written in a special and powerful
    script language.

52
Version Trees
  • Each time an element is revised and checked in,
    ClearCase creates a new version of the element in
    the VOB.
  • ClearCase organizes the different versions of an
    element in a VOB into a version tree.

53
Version Trees and Branches - Illustration
  • This
  • diagram
  • illustrates a
  • version tree
  • and several
  • branches

54
Advantages of ClearCase
  • Can handle projects that
  • a) Consists from a lot of developers.
  • b) Go on for a very long time.
  • Developed and marketed by IBM,
  • i.e. very smooth and natural integration with a
    lot of other IDE/CM/test/profiling Tools.
  • Versatile lots of possibilities and
    capabilities.

55
Advantages cont.
  • Supported by multiple OS
  • Windows, Unix (Solaris, AIX, ), Linux.
  • Can be accessed from client on one OS to a server
    on another OS.
  • Enables real parallel development - work on
    multiple versions of the same source file
    concurrently.

56
Disadvantages
  • High price.
  • Too versatile
  • one can never learn all capabilities.
  • Complex support
  • must have very good - full time - administrator.

57
  • ClearCase View Snapshots
  • Windows Unix

58
ClearCase Integrated in Visual Studio IDE.
59
Checkout Operation Snapshot Windows
Unix
60
ClearCase Merge Utility Windows Unix
61
Version Tree Snapshot Windows
Unix
62
General Info Unix version
General information about a file in the
repository in the Unix GUI.
63
(No Transcript)
64
(No Transcript)
65
  • THE END
Write a Comment
User Comments (0)
About PowerShow.com
