Florida TechSolar-PoweredBand Organ Details

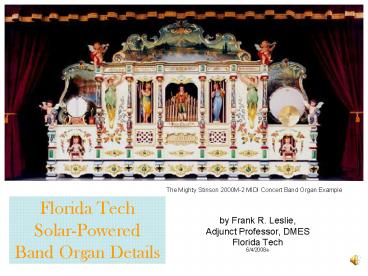

The Mighty Stinson 2000M-2 MIDI Concert Band
Organ Example

• by Frank R. Leslie,
• Adjunct Professor, DMES
• Florida Tech6/4/2008a

2
Background/History

• While a calliope is identified with circuses,
  Indiana University has one that is used at sports
  events and parades
• Florida Tech students might construct a band
  organ as a Capstone Project to show the
  integration of science, engineering, and fine arts

Circus calliope, lithograph by Gibson Co.,
1872.
080521
3
Introduction

• Florida Tech has been introducing courses that
  express our motto of High Tech with a Human
  Touch
• The Music Department can bridge the engineering
  disciplines with some development of an automated
  band organ to play at various events
• An keyboardist can play it manually
• A computer can play it automatically
• An auxiliary power source of solar modules can
  provide pressure for actuation

080425
4
Band Organ vs. Calliope

• Band organs date from
• Basically organ pipes, but often expanded to
  include piano, bells, drums, violins, horns,
  chimes, etc., primarily in theater organs
• Calliopes are high-pressure steam-powered
  patented 1855 by Joshua Stoddard in New York and
  demonstrated on a train
• Early steamboats had calliopes to alert a town of
  their arrival
• Newer versions use compressed air and have less
  range (usually under 1 mile)
• These are one rank organs one set of pipes

Calliope on the Minnie-Ha-Ha, a stern-wheeler on
Lake George, NY
080319
5
Indiana Universitys 1924 Calliope

• Indiana University plays this steam calliope at
  various events!
• Shouldnt Florida Tech have one, too?
• This is direct from steam to sound
• The range is typically about three miles on a
  quiet day
• The original Boom Car

080319
6
Modern Calliope Example

• Kitch Greenhouse Steam Calliope at the Ohio
  Historical Society - July, 2006

080319
7
Band Organ Example
http//www.freewebs.com/mechanicalorgangallery/gds
f2004.htm

• Mobile fairground organ and a horn organ

080128
8
Music Playing and Control

• Keyboards (some 37 or 44 notes) control solenoids
  that open a valve to sound a note, strike a drum,
  triangle, or chime, etc.
• Early units used pin drive, perforated cards
  derived from Jacquard fabric-weaving loom
  control, and later, paper piano rolls
• Musical Instrument Digital Interface (MIDI) is
  now used
• Conversion from other formats exist and
  MIDI-to-discrete translators can drive solenoid
  actuators with direct current to blow pipes or
  beat drums, etc.

080521
9
Music Composition

• The rate of solenoid valve operation might
  require slower tempos, but most music can be
  performed at normal tempi
• Music composition software can read MIDI inputs
  from a keyboard for modification and adaptation
  for driving the instrument
• When the final MIDI file is sent to the band
  organ, it plays as directed by the composition

080521
10
Psychological Planning

• The instrument can impress the audience with
  music not normally associated with circus
  compositions
• Classical, rock, jazz, popular, bluegrass, etc.
• The visual design of the pipes for stereo (not
  symmetry) and exterior façade embellishments
• Two-sided vs. one-sided display (parade trailer
  or fixed full width for against a wall) design
  for show flexibility
• An emotional appeal comes from the appearance of
  the instrument as well as the unique sounds and
  moving parts

080521
11
Design and Construction Skills, Etc.

• Engineering Systems
• Dr. ? and 2 students
• School of Business
• Dr. ? and 1 students
• Cost management and schedule
• Computer Engineering
• Dr. ? and 2 students
• MIDI interfaces
• Electrical Engineering
• Dr. ? and 2 students
• Controls and power
• Façade Art
• Dr. ?, (C. Funk?) and 2 students

• Mechanical Engrg
• Dr. ? and 2 students
• Case and mountings trailer tuning
• Musical Dept
• Dr. Younkin and 2 students
• MIDI compositions/organist
• Physics Dept
• Dr. ? and 2 students
• Pipe/percussion design pneumatics
• Psychology
• Dr. ? and 1 students
• Visual/auditory impact design

080521
12
System Architecture

• A keyboard permits a student to play manually
• The MIDI interpreter/decoder converts .mid files
  into discrete actuator signals at 12 volts d.c.
• Pipes and percussion provide sonic variety
• Power supply provides sufficient drive for all
  instruments at once
• The case supports all other components and allows
  moving to a trailer or storage
• Exterior façade decoration provides visual
  interest and nostalgia

080521
13
Band Organ System Diagram
2 Pipe Rank(s)(24/rank?)
45?
Solar Modules
Air Manifold 12Vdc Valves
Low PressureBlower
12Vdc
Percussion
ChargeController
6
MIDI Files
MIDIDecoder
NotebookPC Computer
13.8 V _at_ 2A
DisplayLighting
12 V Deep-CycleBattery
Piano RollPlayer/Reader
120V Inverter
MIDISoftwareComposer
LinePower Supply
120Vacindoors
Two-SectionCase
1 or 2Keyboard(s)

• Block diagram

080321
14
Budgetary Estimate for Initial Build
Budget Bogey Number   6,000 Bogey plus 30 Margin 7,800
    Totals Comments Notes
Case, Main   298.00 Two-piece 76"H OA x 120"W total x 24" D 1
Cases, Wings   130.00 Two-piece 48"H x 30"W x 18" D 1
Façade   324.00 Six pieces 1/2" plywood textiles 1
MIDI Devices   1,389.00 includes notebook computer 1
Electrical/Air Supply   681.30 low pressure 1
Software   100.00 MIDI S/W, etc. 1
Pipes   216.00 two ranks flutes 1, 2
Percussion   141.00 bass and snare drums plus xylophone 1
Misc   42.00 hardware 1
Labor   900.00 Extent is TBD volunteers? 1
Trailer, Parade/Moving   725.00 utility trailer, basic low-side 3
Lighting   24.00 LED highlighting 3
Solar Power   670.00 optional for parades and other outdoors events 3
Trips   190.00 purchase trips to Sanford FL at RMR 1, 8
Presentation/Publicity   170.00 optional, (?) 3
Main Budget Total   6,000.30 with 30 margin 7,800.39
Main Budget Margin   -0.30 is under budget -0.39
With Donated Labor   5,100.30 volunteer or student project work reduces cost
080529
15
Conclusion

• Creation of this instrument provides a lasting
  example of interdisciplinary teamwork across the
  multiple colleges for use at university events
• Periodically, the band organ would be used in
  local parades and for demonstration at schools to
  stimulate students in pursuing careers in arts,
  sciences, and engineering
• The system provides an example of how fine art,
  science, and engineering can be blended in a
  unique, entertaining display for public
  entertainment

080521
