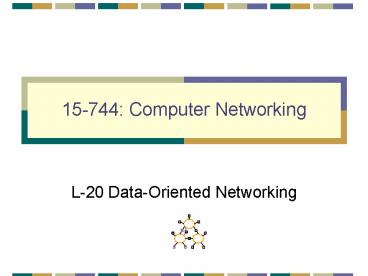

15-744 Computer Networking

• L-20 Data-Oriented Networking

2
Outline

• Data-oriented Networking
• DTNs

3
Data-Oriented Networking Overview

• In the beginning...
• First applications strictly focused on
  host-to-host interprocess communication
• Remote login, file transfer, ...
• Internet was built around this host-to-host
  model.
• Architecture is well-suited for communication
  between pairs of stationary hosts.
• ... while today
• Vast majority of Internet usage is data retrieval
  and service access.
• Users care about the content and are oblivious to
  location. They are often oblivious as to
  delivery time
• Fetching headlines from CNN, videos from YouTube,
  TV from Tivo
• Accessing a bank account at www.bank.com.

4
To the beginning...

• What if you could re-architect the way bulk
  data transfer applications worked
• HTTP
• FTP
• Email
• etc.
• ... knowing what we know now?

5
Innovation in Data Transfer is Hard

• Imagine You have a novel data transfer technique
• How do you deploy?
• Update HTTP. Talk to IETF. Modify Apache, IIS,
  Firefox, Netscape, Opera, IE, Lynx, Wget,
• Update SMTP. Talk to IETF. Modify Sendmail,
  Postfix, Outlook
• Give up in frustration

6
Data-Oriented Network Design
SENDER
RECEIVER
Features

• Multipath and Mirror support

• Store-carry-forward

7
New Approach Adding to the Protocol Stack
Object Exchange
Transport
Router
Network
Bridge
Data Link
Physical
Software-defined radio
Internet Protocol Layers
8
Data Transfer Service
Application Protocol
and Data
Data

• Transfer Service responsible for
  finding/transferring data
• Transfer Service is shared by applications
• How are users, hosts, services, and data named?
• How is data secured and delivered reliably?
• How are legacy systems incorporated?

9
Naming Data (DOT)

• Application defined names are not portable
• Use content-naming for globally unique names
• Objects represented by an OID
• Objects are further sub-divided into chunks
• Secure and scalable!

10
Similar Files Rabin Fingerprinting
File Data
4
7
8
2
8
Rabin Fingerprints
Given Value - 8
11
Naming Data (DOT)

• All objects are named based only on their data
• Objects are divided into chunks based only on
  their data
• Object A is named the same
• Regardless of who sends it
• Regardless of what application deals with it
• Similar parts of different objects likely to be
  named the same
• e.g., PPT slides v1, PPT slides v1 extra slides
• First chunks of these objects are same

11
12
Naming Data (DONA)

• Names organized around principals.
• Names are of the form P L.
• P is cryptographic hash of principals public
  key, and
• L is a unique label chosen by the principal.
• Granularity of naming left up to principals.
• Names are flat.

13
Self-certifying Names

• A piece of data comes with a public key and a
  signature.
• Client can verify the data did come from the
  principal by
• Checking the public key hashes into P, and
• Validating that the signature corresponds to the
  public key.
• Challenge is to resolve the flat names into a
  location.

14
Locating Data (DOT)
Request File X
OID, Hints
put(X)
read() data
OID, Hints
get(OID, Hints)
15
Name Resolution (DONA)

• Resolution infrastructure consists of Resolution
  Handlers.
• Each domain will have one logical RH.
• Two primitives FIND(PL) and REGISTER(PL).
• FIND(PL) locates the object named PL.
• REGISTER messages set up the state necessary for
  the RHs to route FINDs effectively.

16
Locating Data (DONA)
17
Establishing REGISTER state

• Any machine authorized to serve a datum or
  service with name PL sends a REGISTER(PL) to
  its first-hop RH
• RHs maintain a registration table that maps a
  name to both next-hop RH and distance (in some
  metric)
• REGISTERs are forwarded according to interdomain
  policies.
• REGISTERs from customers to both peers and
  providers.
• REGISTERs from peers optionally to
  providers/peers.

18
Forwarding FIND(PL)

• When FIND(PL) arrives to a RH
• If theres an entry in the registration table,
  the FIND is sent to the next-hop RH.
• If theres no entry, the RH forwards the FIND
  towards to its provider.
• In case of multiple equal choices, the RH uses
  its local policy to choose among them.

19
Interoperability New Tradeoffs
Applications
Limits Application Innovation
Applications
Moving up the
Innovation
Transport(TCP/Other)
Thin Waist
Network (IP/Other)
Increases Data Delivery Flexibility
Data Link
Data Link
Flexibility
Physical
Physical
The Hourglass Model
The Hourglass Model
20
Interoperability Datagrams vs. Data Blocks
Datagrams Data Blocks
What must be standardized? IP Addresses Name?Address translation (DNS) Data Labels Name ? Label translation (Google?)
Application Support Exposes much of underlying networks capability Practice has shown that this is what applications need
Lower Layer Support Supports arbitrary links Requires end-to-end connectivity Supports arbitrary links Supports arbitrary transport Support storage (both in-network and for transport)
21
Outline

• Data-oriented Networking
• DTNs

22
Unstated Internet Assumptions

• Some path exists between endpoints
• Routing finds (single) best existing route
• E2E RTT is not very large
• Max of few seconds
• Window-based flow/cong ctl. work well
• E2E reliability works well
• Requires low loss rates
• Packets are the right abstraction
• Routers dont modify packets much
• Basic IP processing

23
New Challenges

• Very large E2E delay
• Propagation delay seconds to minutes
• Disconnected situations can make delay worse
• Intermittent and scheduled links
• Disconnection may not be due to failure (e.g. LEO
  satellite)
• Retransmission may be expensive
• Many specialized networks wont/cant run IP

24
IP Not Always a Good Fit

• Networks with very small frames, that are
  connection-oriented, or have very poor
  reliability do not match IP very well
• Sensor nets, ATM, ISDN, wireless, etc
• IP Basic header 20 bytes
• Bigger with IPv6
• Fragmentation function
• Round to nearest 8 byte boundary
• Whole datagram lost if any fragment lost
• Fragments time-out if not delivered (sort of)
  quickly

25
IP Routing May Not Work

• End-to-end path may not exist
• Lack of many redundant links there are
  exceptions
• Path may not be discoverable e.g. fast
  oscillations
• Traditional routing assumes at least one path
  exists, fails otherwise
• Insufficient resources
• Routing table size in sensor networks
• Topology discovery dominates capacity
• Routing algorithm solves wrong problem
• Wireless broadcast media is not an edge in a
  graph
• Objective function does not match requirements
• Different traffic types wish to optimize
  different criteria
• Physical properties may be relevant (e.g. power)

26
What about TCP?

• Reliable in-order delivery streams
• Delay sensitive 6 timers
• connection establishment, retransmit, persist,
  delayed-ACK, FIN-WAIT, (keep-alive)
• Three control loops
• Flow and congestion control, loss recovery
• Requires duplex-capable environment
• Connection establishment and tear-down

27
Performance Enhancing Proxies

• Perhaps the bad links can be patched up
• If so, then TCP/IP might run ok
• Use a specialized middle-box (PEP)
• Types of PEPs RFC3135
• Layers mostly transport or application
• Distribution
• Symmetry
• Transparency

28
TCP PEPs

• Modify the ACK stream
• Smooth/pace ACKS ? avoids TCP bursts
• Drop ACKs ? avoids congesting return channel
• Local ACKs ? go faster, goodbye e2e reliability
• Local retransmission (snoop)
• Fabricate zero-window during short-term
  disruption
• Manipulate the data stream
• Compression, tunneling, prioritization

29
Architecture Implications of PEPs

• End-to-end ness
• Many PEPs move the final decision to the PEP
  rather than the endpoint
• May break e2e argument may be ok
• Security
• Tunneling may render PEP useless
• Can give PEP your key, but do you really want to?
• Fate Sharing
• Now the PEP is a critical component
• Failure diagnostics are difficult to interpret

30
Architecture Implications of PEPs 2

• Routing asymmetry
• Stateful PEPs generally require symmetry
• Spacers and ACK killers dont
• Mobility
• Correctness depends on type of state
• (similar to routing asymmetry issue)

31
Delay-Tolerant Networking Architecture

• Goals
• Support interoperability across radically
  heterogeneous networks
• Tolerate delay and disruption
• Acceptable performance in high loss/delay/error/di
  sconnected environments
• Decent performance for low loss/delay/errors
• Components
• Flexible naming scheme
• Message abstraction and API
• Extensible Store-and-Forward Overlay Routing
• Per-(overlay)-hop reliability and authentication

32
Disruption Tolerant Networks
33
Disruption Tolerant Networks
34
Naming Data (DTN)

• Endpoint IDs are processed as names
• refer to one or more DTN nodes
• expressed as Internet URI, matched as strings
• URIs
• Internet standard naming scheme RFC3986
• Format ltschemegt ltSSPgt
• SSP can be arbitrary, based on (various) schemes
• More flexible than DOT/DONA design but less
  secure/scalable

35
Naming

• Support radical heterogeneity using URIs
• scheme ID (allocated), scheme-specific-part
• associative or location-based names/addresses
  optional
• Variable-length, can accommodate any nets
  names/addresses
• Endpoint IDs
• multicast, anycast, unicast
• Late binding of EID permits naming flexibility
• EID looked up only when necessary during
  delivery
• contrast with Internet lookup-before-use DNS/IP

36
Message Abstraction

• Network protocol data unit bundles
• postal-like message delivery
• coarse-grained CoS 4 classes
• origination and useful life time assumes syncd
  clocks
• source, destination, and respond-to EIDs
• Options return receipt, traceroute-like
  function, alternative reply-to field, custody
  transfer
• fragmentation capability
• overlay atop TCP/IP or other (link) layers layer
  agnostic
• Applications send/receive messages
• Application data units (ADUs) of possibly-large
  size
• Adaptation to underlying protocols via
  convergence layer
• API includes persistent registrations

37
DTN Routing

• DTN Routers form an overlay network
• only selected/configured nodes participate
• nodes have persistent storage
• DTN routing topology is a time-varying multigraph
• Links come and go, sometimes predictably
• Use any/all links that can possibly help (multi)
• Scheduled, Predicted, or Unscheduled Links
• May be direction specific e.g. ISP dialup
• May learn from history to predict schedule
• Messages fragmented based on dynamics
• Proactive fragmentation optimize contact volume
• Reactive fragmentation resume where you failed

38
Example Routing Problem
2
Internet
City
bike
3
1
Village
39
Example Graph Abstraction
Village 2
City
Village 1
time (days)
bike
bandwidth
satellite
phone
Connectivity Village 1 City
40
The DTN Routing Problem

• Inputs topology (multi)graph, vertex buffer
  limits, contact set, message demand matrix
  (w/priorities)
• An edge is a possible opportunity to communicate
• One-way (S, D, c(t), d(t))
• (S, D) source/destination ordered pair of
  contact
• c(t) capacity (rate) d(t) delay
• A Contact is when c(t) gt 0 for some period
  ik,ik1
• Vertices have buffer limits edges in graph if
  ever in any contact, multigraph for multiple
  physical connections
• Problem optimize some metric of delivery on this
  structure
• Sub-questions what metric to optimize?,
  efficiency?

41
Knowledge-Performance Tradeoff
Algorithm
LP
Oracle
Higher performance, higher complexity
Contacts Queuing Traffic
Performance
FC
None
Use of Knowledge Oracles
42
Routing Solutions - Replication

• Intelligently distribute identical data copies
  to contacts to increase chances of delivery
• Flooding (unlimited contacts)
• Heuristics random forwarding, history-based
  forwarding, predication-based forwarding, etc.
  (limited contacts)
• Given replication budget, this is difficult
• Using simple replication, only finite number of
  copies in the network Juang02, Grossglauser02,
  Jain04, Chaintreau05
• Routing performance (delivery rate, latency,
  etc.) heavily dependent on deliverability of
  these contacts (or predictability of heuristics)
• No single heuristic works for all scenarios!

43
Using Erasure Codes

• Rather than seeking particular good contacts,
  split messages and distribute to more contacts
  to increase chance of delivery
• Same number of bytes flowing in the network, now
  in the form of coded blocks
• Partial data arrival can be used to reconstruct
  the original message
• Given a replication factor of r, (in theory) any
  1/r code blocks received can be used to
  reconstruct original data
• Potentially leverage more contacts opportunity
  that result in lowest worse-case latency
• Intuition
• Reduces risk due to outlier bad contacts

44
Erasure Codes
Message n blocks
Encoding
Opportunistic Forwarding
Decoding
Message n blocks
45
DTN Security
Bundle Agent
Source
Destination
Receiver/ Sender
BAH
BAH
BAH
BAH
Sender
Receiver/ Sender
Receiver/ Sender
Security Policy Router (may check PSH value)
PSH

• Payload Security Header (PSH) end-to-end security
  header

• Bundle Authentication Header (BAH) hop-by-hop
  security header

credit MITRE
46
So, is this just e-mail?

• Many similarities to (abstract) e-mail service
• Primary difference involves routing, reliability
  and security
• E-mail depends on an underlying layers routing
• Cannot generally move messages closer to their
  destinations in a partitioned network
• In the Internet (SMTP) case, not
  disconnection-tolerant or efficient for long RTTs
  due to chattiness
• E-mail security authenticates only user-to-user

47
(No Transcript)
48
Performance Opportunistically Aggregate Upstream
Bandwidth
Neighbors decide whether to ship thepieces
upstream
Sender broadcaststo available neighbors

• Challenges
• Multi-hop decide whether to send upstream or
  forward one extra hop
• Requires both data-oriented design and
  opportunistic forwarding
