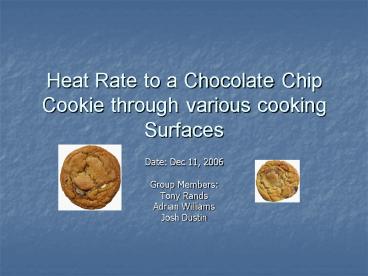

Heat Rate to a Chocolate Chip Cookie through various cooking Surfaces

1
Heat Rate to a Chocolate Chip Cookie through
various cooking Surfaces

• Date Dec 11, 2006
• Group Members
• Tony Rands
• Adrian Williams
• Josh Dustin

2
Introduction

• Baking is not an exact science.
• Attempting to bake items to a satisfactory
  condition is very difficult to say the least.
• The variations within oven temperature and time
  duration of baking items can lead to over and
  under cooked items.
• Those people that bake items can attest to the
  tediousness of having to stand around and check
  the oven every so often.
• Our goal was to find out cooking times for a
  chocolate chip cookie while using three different
  cooking surfaces
• Baking Stone
• Pyrex 9x13 inch dish
• Single layer stainless steel cookie sheet

3
Objectives

• Calculate the amount of heat transfer from the
  oven coils through a baking/cooking surface into
  a cookie.
• Ascertain if different cooking surfaces produced
  different cooking times for the chocolate chip
  cookie

4
Setup of Heat Transfer Experiments

• Cookie dough used throughout
• experiment was made from the
• same batch. Recipe was from
• the Better Homes and Garden
• Cook Book.
• Oven was electric with
• three (3) cooking shelves.
• Our experiment used the lowest
• and the one directly
• above it (20cm between shelves).

5
Setup of Heat Transfer Experiments

• Three thermocouple units were
• used to gather temperature information.
• Placement were are follows
• Affixed to bottom of
• baking surface.
• Embedded into cookie
• dough.
• Tied to cookie rack to record temperature of oven
  compartment

6
Setup of Heat Transfer Experiments

• Cookie dough specimens were shaped into 6cm
  diameter spheres.
• A total of six cookies were
• tested. One cookie per cooking
• surface on each of the shelves
• (i.e. three cooking surfaces,
• two shelves).
• The temperature was recorded every minute until
  the cookies turned golden brown.

7
Experiment

• Heat radiating from the electric
• coils was captured by the baking
• surface.
• By heat conduction through
• the cooking surface, the cookie
• absorbed the energy.
• By free convection in the
• oven, the cookie absorbed
• additional energy.
• Note The assumption was
• made that all energy was
• transferred from the baking
• surface to the cookie

8
Experiment

• The cookie dough started
• out as a spherical shape but
• during baking process the
• cookie flattened out.
• Initially, there was more
• surface area exposed to heat
• convection but as the cookie
• neared completion more surface
• area was exposed to the cooking surface.
• Oven preheated to 375F.

9
ExperimentThermocouple Hookup

• SS Sheet Pyrex Baking Stone

10
ResultsTime Duration and Temperatures
11
Assumptions

• Calculations used the following
• Thermal Conductivity (k). Values were based on
  information from class text and internet.
• Cooking stone 0.3 W/mK
• Pyrex 1.4 W/mk
• Stainless Steel 16 W/mk
• Cookie Dough 0.154 W/mk (assumed constant
  throughout baking process)
• Temperatures were average across cooking
  duration. Oven temperature fluctuated from 300F
  to 500F even though oven set to 375F. The
  average of the oven temperature was taken.
• Surface areas were estimated from visual
  inspection of cookie during process.
• Due to the complexity of the problem, radiation
  is considered negligible.

12
Results (Ceramic Cooking Stone)
13
Results (Pyrex)
14
Results (Stainless Steel Sheet)
15
Cookie Cooking Times and Amount of energy cookies
absorbed
16
Conclusion/Observations

• Cooking times average about 11 minutes over all
  cooking surfaces.
• Average heat transfer rate was 20.9 Watt for all
  cookies. This rate is similar to a low wattage
  light bulb.
• Average amount of energy absorbed by the cookie
  over the cooking time was 12,160 Joules. For
  comparison, a 40 Watt light bulb emits 26,400
  Joules of energy for an 11 minute span.
• Cookies were done when reached 212F. Note This
  is the boiling point of water. Once water boils
  off then cookie is done.
• Convective coefficient decreased when the
  cookies shape changed from a sphere to a flat
  plate. This accounts for the increase in heat
  rate for each cookie around minute 6.

17
Conclusion/Observations

• Stainless Steel baking sheet showed the most
  amount of heat transfer. This is because the
  metal conducts heat a lot better than stone or
  glass.
• Cooking stones absorb heat well but release it at
  a slower rate.
• Cookie completion times depended on visual
  inspection which was inconsistent for each
  cookie.
• Note Surface areas used in calculations are
  approximations. Not possible to measure this
  while baking was in progress.
