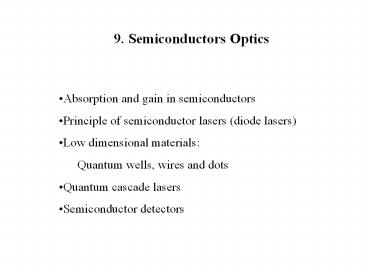

9. Semiconductors Optics

• Absorption and gain in semiconductors
• Principle of semiconductor lasers (diode lasers)
• Low dimensional materials
• Quantum wells, wires and dots
• Quantum cascade lasers
• Semiconductor detectors

2
Semiconductors Optics

• Semiconductors in optics
• Light emitters, including lasers and LEDs
• Detectors
• Amplifiers
• Waveguides and switches
• Absorbers and filters
• Nonlinear crystals

3
The energy bands
One atom
Two interacting atoms
N interacting atoms
Eg
4
Insulator
Conductor (metals)
Semiconductors
5
Doped semiconductor
p-type
n-type
6
Interband transistion
? ? nanoseconds in GaAs
7
Intraband transitions
? ? lt ps in GaAs
n-type
8
UV
Optical fiber communication
9
InP
GaAs
ZnSe
10
(No Transcript)
11
Bandgap rules The bandgap increases with
decreasing lattice constant. The bandgap
decreases with increasing temperature.
12
Interband vs Intraband
C
Interband Most semiconductor devices operated
based on the interband transitions, namely
between the conduction and valence bands. The
devices are usually bipolar involving a p-n
junction.
V
Intraband A new class of devices, such as the
quantum cascade lasers, are based on the
transitions between the sub-bands in the
conduction or valence bands. The intraband
devices are unipolar. Faster than the intraband
devices
C
13
Interband transitions
E
Conduction band
k
Valence band
14
E
Conduction band
Eg
k
Valence band
Examples mc0.08 me for conduction band in
GaAs mc0.46 me for valence band in GaAs
15
Direct vs. indirect band gap
k
k
GaAs AlxGa1-xAs xlt0.3 ZnSe
Si AlAs Diamond
16
Direct vs. indirect band gap
Direct bandgap materials Strong
luminescence Light emitters Detectors
Direct bandgap materials Weak or no
luminescence Detectors
17
Fermi-Dirac distribution function
E
1
0.5
EF
f(E)
18
Fermi-Dirac distribution function
For electrons
For holes
E
1
0.5
EF
f(E)
kT
kT25 meV at 300 K
19
Fermi-Dirac distribution function
For electrons
For holes
E
f(E)
1
0.5
EF
kT
kT25 meV at 300 K
20
E
Conduction band
Valence band
21
E
Conduction band
Valence band
For filling purpose, the smaller the effective
mass the better.
22
Where is the Fermi Level ?
E
Conduction band
n-doped
Intrinsic
Valence band
P-doped
23
Interband carrier recombination time (lifetime)
nanoseconds in III-V compound (GaAs, InGaAsP)

microseconds in silicon
Speed, energy storage,
24
Quasi-Fermi levels
E
E
E
Ef e
Immediately after Absorbing photons
Returning to thermal equilibrium
Ef h
25
E
fe
of carriers
EF e
x

EF h
26
E
Condition for net gain gt0
EF c
Eg
EF v
27
P-n junction unbiased
EF
28
P-n junction Under forward bias
EF
29
Heterojunction Under forward bias
30
Homojunction
hv
N
p
31
Heterojunction waveguide
n
x
32
Heterojunction
10 100 nm
EF
33
Heterojunction A four-level system
10 100 nm
Phonons
34
Absorption and gain in semiconductor
g
Eg
E
?
35
Absorption (loss)
g
Eg
?
?
Eg
36
Gain
g
Eg
?
?
Eg
37
Gain at 0 K
Eg
EFc-EFv
g
EFc-EFv
Eg
?
?
Density of states
38
Gain and loss at 0 K
g
EF(EFc-EFv)
Eg
Ehv
?
39
Gain and loss at T0 K at different pumping rates
g
EF(EFc-EFv)
Eg
E
N2 gtN1
N1
?
40
Gain and loss at Tgt0 K
?laser
g
Eg
N2 gtN1
N1
E
?
41
Gain and loss at Tgt0 K Effect of increasing
temperature
?laser
g
Eg
N2 gtN1
N1
E
At a higher temperature
?
42
A diode laser
Larger bandgap (and lower index ) materials
lt0.2?m
p
n
lt0.1 mm
Substrate
Cleaved facets w/wo coating
Smaller bandgap (and higher index ) materials
lt1 mm
43
Wavelength of diode lasers

• Broad band width (gt200 nm)
• Wavelength selection by grating
• Temperature tuning in a small range

44
Wavelength selection by grating tuning
?
45
A distributed-feedback diode laser with imbedded
grating
lt0.2?m
p
n
Grating
46
Typical numbers for optical gain Gain
coefficient at threshold 20 cm-1 Carrier
density 10 18 cm-3 Electrical to optical
conversion efficiency gt30 Internal quantum
efficiency gt90 Power of optical damage
106W/cm2 Modulation bandwidth gt10 GHz
47
Semiconductor vs solid-state

• Semiconductors
• Fast due to short excited state lifetime ( ns)
• Direct electrical pumping
• Broad bandwidth
• Lack of energy storage
• Low damage threshold
• Solid-state lasers, such as rare-earth ion based
• Need optical pumping
• Long storage time for high peak power
• High damage threshold

48
Strained layer and bandgap engineering
Substrate
49
Density of states
3-D (bulk)
E
?
50
Low dimensional semiconductors
When the dimension of potential well is
comparable to the deBroglie wavelength of
electrons and holes.
Lzlt10nm
51
2- dimensional semiconductors quantum well
Example GaAs/AlGaAs, ZnSe/ZnMgSe
Al0.3Ga0.7As
GaAs
Al0.3Ga0.7As

E
constant
For wells of infinite depth
E2
E1
?
52
2- dimensional semiconductors quantum well
E2c
E1c
E1v
E2v
53
2- dimensional semiconductors quantum well
E
E2c
E1c
E1v
E2v
?(E)
54
2- dimensional semiconductors quantum well
T0 K
g
E2c
E1c
E1v
E2v
N00
N1gtN0
?
N2gtN1
55
2- dimensional semiconductors quantum well
T300K
g
E2c
E1c
Ehv
E1v
E2v
N00
N1gtN0
?
N2gtN1
56
2- dimensional semiconductors quantum well
Wavelength Determined by the composition and
thickness of the well and the barrier heights
g
E2c
E1c
Ehv
E1v
E2v
N00
N1gtN0
?
N2gtN1
57
3-D vs. 2-D
T300K
g
2-D
3-D
Ehv
E2v
?
58
Multiple quantum wellcoupled or uncoupled
59
1-D (Quantum wire)
E
Quantized bandgap
Eg
?
60
0-D (Quantum dot) An artificial atom
E
Ei
?
61
