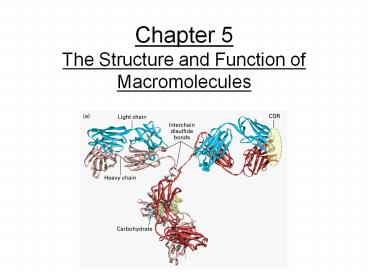

Chapter 5 The Structure and Function of Macromolecules

1
Chapter 5The Structure and Function of
Macromolecules
2
Types of Macromolecules

• Carbohydrates
• Lipids (phospholipids)
• Proteins
• Nucleic Acids

3
Polymers

• Covalent monomers
• Condensation reaction (dehydration reaction)
• One monomer provides a hydroxyl group while the
  other provides a hydrogen to form a water
  molecule
• Hydrolysis
• bonds between monomers are broken by adding
  water (digestion)

4
(No Transcript)
5
Carbohydrates

• Monosaccharides CH2O formula
• multiple hydroxyl (-OH) groups and
• 1 carbonyl (CO) group
• Aldehyde sugar (aldose)
• Ketone sugar (ketose)
• Cellular Respiration
• raw material for amino acids and fatty acids

6
Linear and Ring Forms of Glucose
7

• Disaccharides
• glycosidic linkage
• (covalent bond) between
• 2 monosaccharides
• covalent bond by dehydration reaction
• Sucrose
• most common
• disaccharide
• glucose fructose

8
Polysaccharides of Glucose

• Structural
• Plants cellulose
• Animals chitin

• Storage
• Plants starch (plastids)
• Animals glycogen

9
Glycogen branched structure
10
Chitin structure
11
Lipids

• No polymers glycerol and fatty acid
• Fats, phospholipids, steroids
• Hydrophobic H bonds in water exclude fats
• Carboxyl group fatty acid
• Non-polar C-H bonds in fatty acid tails
• Ester linkage 3 fatty acids to 1 glycerol
  (dehydration formation)
• Triacyglycerol (triglyceride)
• Saturated vs. unsaturated fats
• single vs. double bonds

12
Lipids Diverse Hydrophobic Molecules

• Fats - store large amounts of energy, solid or
  oil
• - glycerol 3 fatty acid molecules
• Phospholipids - cell membranes
• - glycerol, 2 fatty acids and PO4 group
• Steroids - precurser to sex steroids, cell
  membranes
• - 4 fused carbon rings with functional
  groups

13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
LDLs (bad) carry cholesterol from the liver to
the body, leaving deposits in the blood vessels.
HDLs (good) carry cholesterol from the body
back to the liver for elimination
19
(No Transcript)
20
(No Transcript)
21
Manufacturers bombard cis fats with hydrogen
(hydrogenation) in order to render the oil more
solid better shelf life and cooking
characteristics.
22
(No Transcript)
23
(No Transcript)
24
Phospholipids

• 2 fatty acids instead of 3 (phosphate group)
• Tails hydrophobic heads hydrophilic
• Micelle (phospholipid droplet in water)
• Bilayer (double layer)cell membranes

25
Structure of a Phospholipid
26
Steroids

• Lipids with 4 fused carbon rings
• E.g. cholesterol cell membranes precursor for
  other steroids (sex hormones) atherosclerosis

27
Proteins

• Importance
• Instrumental in nearly everything organisms do
  50 dry weight of cells most structurally
  sophisticated molecules known
• Monomer amino acids (there are 20)
• Carboxyl (-COOH) group, amino group (NH2),
  variable group (R)
• Variable group (R) characteristics
• polar (hydrophilic), nonpolar
  (hydrophobic), acidic or basic
• Three-dimensional shape (conformation)
• Polypeptides (dehydration reaction)
• peptide bonds covalent bond carboxyl group to
  amino group (polar)

28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Protein Structure
Animation 5.4.1
32
Primary Structure

• Conformation Linear structure
• Molecular Biology each type of protein has
  a unique primary structure of amino acids
• Amino acid substitution hemoglobin sickle-cell
  anemia

33
Primary Structure of Proteins
Animation 5.4.2
34
Secondary Structure

• Conformation coils folds (hydrogen
  bonds)
• Alpha Helix coiling keratin
• Pleated Sheet parallel silk

35
Secondary Protein Structure
Animation 5.4.3
36
Tertiary Structure

• Conformation irregular contortions from R
  group bonding.
• Hydrophobic and v.d.w.
• disulfide bridges
• hydrogen bonds
• ionic bonds

37
Tertiary Protein Structure
Animation 5.4.4
38
Quaternary Structure

• Conformation 2 or more polypeptide
  chains aggregated into 1 macromolecule
• e.g. collagen (connective tissue)
• E.g. hemoglobin

39
Quaternary Protein Structure
Animation 5.4.5
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
Denaturation and Re-naturation of a
Protein
High temperatures or various chemical treatments
will denature a protein, causing it to loose its
conformation and hence its ability to
function. Proteins can often re-nature when the
chemical and physical aspects of its environment
are restored.
44
(No Transcript)
45
(No Transcript)
46
Spider Silk
Normal length, 5 times length,
20 times length
47

• Spider silk is 5 times stronger than steel

Spider silk goes through this sort of stretching
before it breaks, and in doing so, it absorbs a
lot of energy. The energy that you're putting
into pushing it or pulling it is actually being
taken up by the stretching process. This
energy-absorbing process is what makes the
material so tough.
48
(No Transcript)
49
Prions
50
Nucleic Acids

• Deoxyribonucleic acid (DNA)
• Ribonucleic acid (RNA)
• DNA-gtRNA-gtprotein
• Polymers of nucleotides (polynucleotide)
• nitrogenous base
• pentose sugar
• phosphate group
• phosphodiester bond
• Nucleoside base sugar
• Nitrogenous bases
• pyrimidinescytosine, thymine, uracil
• purinesadenine, guanine

51
(No Transcript)
52
Double helix (Watson Crick - 1953)

• Inheritance based
• on DNA replication
• H bonds - between
• paired bases
• van der Waals - between stacked bases
• A to T C to G pairing
• Complementary

53
The Double Helix
