1

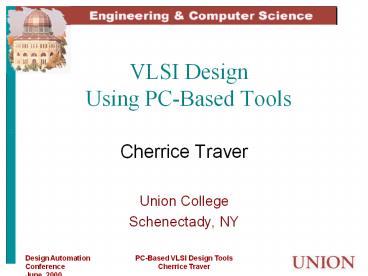

VLSI Design Using PC-Based Tools
  • Cherrice Traver
  • Union College
  • Schenectady, NY

2
Why use PC-based tools?
3
Outline
  • Tanner Research Tools for Education
  • Practical issues
  • Tool flow and capabilities
  • Example use
  • Curriculum examples

4
Practical Issues System Requirements
  • Minimum requirements
  • 100 MHz PCs, 32M RAM
  • Recommended
  • 500 MHz PCs, 256M RAM
  • 3-button mouse

5
Practical IssuesInstallation
  • Tool installation - Install-Shield Wizard
  • License server
  • Sentinel LM on NT Server
  • Floating individual tool licenses

6
Practical IssuesTool Choices
L-Edit
DRC EXT SPR
L-Edit Pro
CMOS Libraries
Tspice S-Edit W-Edit
T-Spice Pro
Design Pro
Tanner Tools Pro
7
Practical Issues Cost and Maintenance
  • Educational pricing
  • Quantity pricing
  • Free support for 60 days
  • No annual maintenance fee required
  • 15 maintenance fee per year for updates and
    continued support

8
Practical IssuesDocumentation
  • Help Menu Indexed PDF Manual

9
Contact Information
  • Janice Barthelemy
  • Account Manager
  • janice_at_tanner.com

Tanner EDA 2650 East Foothill Blvd. Pasadena, CA
91107
Toll free (877) 325-2223 Fax (626)
792-0300 www.tanner.com
10
Simplified Tanner Tool Flow
S-Edit TM Schematic Editor
T-Spice TM Circuit Simulator
W-Edit TM Waveform Viewer
L-Edit TM Full Custom Layout Editor
GDS II CIF
11
Overview of Examples
  • Layout Editor - L-Edit
  • Schematic Editor - S-Edit
  • Standard Cell Place and Route - SPR
  • Spice simulator - T-Spice

12
L-Edit Tool Flow
S-Edit TM
T-Spice TM
L-Edit/SPR TM Standard Cell Place Route
L-Edit/Extract TM General Device Extractor
Layout Libraries SCMOSLib ...
L-Edit TM Full Custom Layout Editor
L-Edit/DRC TM On-line Design Rule Checker
Cross Section Viewer
13
L-Edit Layout Editor Features
14
L-Edit Example
  • CMOS Inverter
  • Layout Editing
  • DRC
  • Cross Section Viewing
  • Extract Spice File

15
S-Edit Tool Flow
Technology Mapping Library SCMOS ...
S-Edit TM Schematic Editor
SchemLib TM Technology Independent Library
netlist extract
T-Spice TM
NetTran
SPR
L-Edit TM
16
S-Edit Schematic Editor Features
17
S-Edit Example
  • Full Adder Circuit
  • Schematic Drawing
  • Spice Export
  • Tanner Place and Route Export

18
SPR Tool Flow
S-Edit TM
.tpr file
L-Edit/SPR TM Standard Cell Place Route
Layout Libraries SCMOSLib ...
L-Edit TM Full Custom Layout Editor
19
SPR Example
  • Full Adder Circuit
  • L-Edit - Place and Route
  • Core Padframe
  • Extract Spice Circuit

20
T-Spice and W-edit Tool Flow
S-Edit TM
netlist extract
T-Spice TM Circuit Simulator
W-Edit TM Waveform Viewer
device extract
L-Edit TM
21
T-Spice and W-edit Features
  • Menu-based command insertion
  • Integrated W-Edit waveform viewer
  • Circuit Probing from S-Edit

22
T-Spice and W-edit Example
  • Full Adder simulation
  • Simulation of schematic netlist
  • Waveform probing
  • Simulation of extracted layout

23
Tool Integration in VLSI Design Course
  • Laboratories
  • Tool use
  • Reinforcement of lecture topics
  • Project
  • Behavior --gt Layout design experience

24
Laboratories
  • Lab 1 - L-Edit/T-Spice
  • Extract/simulate NAND gate
  • Layout/extract/simulate inverter
  • Lab 2 - L-Edit/T-Spice
  • Manual placement/routing standard cells
  • Manual stick diagrams
  • Extraction/simulation
  • Lab 3 - S-Edit/L-Edit/SPR/T-Spice
  • Schematic capture - netlist simulation
  • Standard cell place/route

25
Kitchen Timer Projectfrom Modern VLSI Design
Systems on Silicon, Wayne Wolf
26
Buzz Circuit
  • Schematic Given - Lab Exercise

27
Display Circuit
  • Block Diagram Given - Lab Exercise

28
Controller
  • Specified by state diagram and VHDL model
  • Logic simulation outputs provided

29
Timer
30
Support Provided
  • VHDL Golden behavioral model
  • Simulation output results
  • Lots of guidance on debugging

31
Top Level Schematic
32
Kitchen Timer Chip Statistics
  • 600 Gates
  • 8000 Transistors
  • Layout area 1550 um x 1375 um

33
Final Layout
34
MOSIS Fabrication
  • Pads provided
  • Flatten layout
  • Export CIF file

35
Other Past DesignsUsing Tanner Tools
  • Quadrature Decoder
  • http//doc.union.edu/154/Quad.decode.project/index
    .html
  • Simple Floating-Point Multiplier
  • http//doc.union.edu/154/Mult.project/mult.project
    .html

36
Conclusion
  • Ease of Installation/Maintenance
  • Reasonable Design Flow
  • Good Interface for MOSIS Fabrication
