Title: Time Abstraction in Simulation-Based Hardware Verification


1

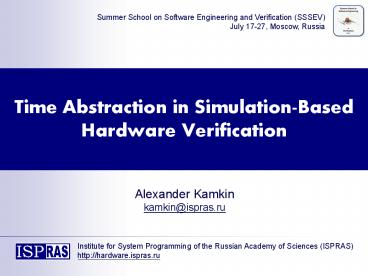

Time Abstraction in Simulation-Based Hardware
Verification
Summer School on Software Engineering and
Verification (SSSEV) July 17-27, Moscow, Russia
  • Alexander Kamkin
  • kamkin_at_ispras.ru

Institute for System Programming of the Russian
Academy of Sciences (ISPRAS) http//hardware.ispra
s.ru
2
Agenda
  • Introduction
  • Digital hardware design
  • Simulation-based verification
  • Time abstraction in hardware modeling
  • Main part
  • Time abstraction levels
  • Model-based reaction checking
  • Error diagnostics
  • Conclusion
  • CTESK testing toolkit
  • Future work
  • Questions answers

3
Time
  • Time is a part of measuring system used to
    sequence events, to compare the durations of
    events and the intervals between them
  • Wikipedia
  • The only reason for time is so that everything
    doesnt happen at once
  • Albert Einstein

4
Abstraction
  • Abstraction is the act of considering something
    as a general quality or characteristic, apart
    from concrete realities, specific objects, or
    actual instances
  • Websters Dictionary
  • Abstraction captures only those details about an
    object that are relevant to the current
    perspective
  • Wikipedia
  • Time abstraction is (1) generalization of events
    ordering relationship and (2) factorization of
    time intervals between them
  • This Presentation

5
Hardware design in a nutshell
  • Hardware is designed using hardware description
    languages (HDL), like Verilog and VHDL
  • The result is a software model that can be
    executed in an HDL simulator
  • The main approach to verify a design is to test
    the HDL model (simulation-based verification)
  • To automate simulation-based verification,
    reference models are used (C/C)

6
Inputs, outputs, and system clock
Clock
Outputs
Inputs
7
Hardware description language (HDL)
  • input S
  • output R1, R2
  • void design()
  • while(true)
  • wait(S)
  • delay(6)
  • R1 1
  • delay(1)
  • R1 0
  • delay(1)
  • R2 1
  • delay(1)
  • R2 0
  • V1 1

CLK
S
R1
R2
6 cycles
Concurrent assignments
8
Simulation-based verification
S2
Stimuli
S3
S1
Reactions
R3
Generation
R1
R2
Checking
9
Simulation-based verification tasks
  • Stimuli generation
  • Reaction checking
  • Coverage tracking

Stimulus Generator
Reaction Checker
Coverage Tracker
10
Reaction checking
Functionality
  • Number of reactions is correct
  • Each reaction is correct
  • Order of reactions is correct
  • Time intervals between reactions are correct

Timing
11
Design modifications
Requirements are not time-accurate designs
timing constantly changes
Timing
??
Interface
Function
12
Model abstraction
? ?
  • Abstract models are easier to develop and to
    maintain
  • Abstract models are more stable (reusable)
  • Abstract models are less error-prone
  • Abstract models provide lower verification
    quality
  • Abstract models are less deterministic and
    predictable

13
Time abstraction
S
Stimulus
Concrete event sequence S 6 R1 2 R2 Abstract
specification S R1 R2 More abstract
specifications S (( R1 R2) ( R2
R1)) S (( R1) ( R2))
R2
Reactions
Events
R1
14
Time abstraction in practice
  • Hardware design modeling
  • Development of reference models at different
    abstraction levels (specification of time
    properties)
  • Change of abstraction level (refinement of time
    properties)
  • Reference model adaptation
  • Adaptation of abstract (untimed) reference models
    for co-simulation in a time environment
  • Tuning time properties being checked without
    changing a reference model (reaction arbitration,
    etc.)

15
To be continuedQuestions?
16
Agenda
  • Introduction
  • Digital hardware design
  • Simulation-based verification
  • Time abstraction in hardware modeling
  • Main part
  • Time abstraction levels
  • Model-based reaction checking
  • Error diagnostics
  • Conclusion
  • CTESK testing toolkit
  • Future work
  • Questions answers

17
Time abstraction levels
  • Time-accurate (cycle-accurate) models
  • Time-inaccurate (time-approximate) models
  • Untimed (functional) models

18
Cycle-accurate models
  • input bool val_in_data
  • input uint8_t in_data
  • output bool val_out_data
  • output uint8_t out_data
  • void store_word()
  • uint32_t data 0
  • uint32_t temp 0
  • while(true)
  • wait(val_in_data)
  • for(int i 0 i lt 4 i)
  • data in_data ltlt (i ltlt 3)
  • delay(1)
  • temp memory
  • delay(1)
  • memory data
  • delay(1)
  • val_out_data 1

input bool val_in_data input uint8_t
in_data output bool val_out_data output uint8_t
out_data void store_word() uint32_t data
0 uint32_t temp 0 for(int i 0 i lt
4 i) data in_data ltlt (i ltlt 3)
delay(1) temp memory
delay(1) memory data delay(1)
val_out_data 1 for(int i 0 i lt 4 i)
out_data (temp gtgt (i ltlt 3)) 0xff
delay(1) val_out_data 0
19
Modeling concurrency
Operation
Operation
Operation
delay(1)
delay(1)
delay(1)
delay(1)
Operation
delay(1)
delay(1)
delay(1)
delay(1)
delay(1)
return
delay(1)
return
Time
return
return
20
Functional (untimed) modelstime interval
abstraction
input in_ifaceltuint32_tgt output
out_ifaceltuint32_tgt void store_word()
uint32_t temp memory memory
recv(in_iface) // delay(0,??))
send(out_iface, temp)
uint32_t store_word(uint32_t data) uint32_t
temp memory memory data return temp
21
Functional (untimed) models (cont.)
input bool val_in_data input uint8_t
in_data4 output bool val_out_data output
uint8_t out_data4 void store_word()
uint32_t data 0 uint32_t temp 0
for(int i 0 i lt 4 i) data
in_datat1 ltlt (i ltlt 3) delay(1)
temp memory delay(1) memory data
delay(1) val_out_data 1 for(int i 0
i lt 4 i) out_datat2 (temp gtgt (i
ltlt 3)) 0xff delay(1)
val_out_data 0
input in_ifaceltuint32_tgt output
out_ifaceltuint32_tgt void store_word()
uint32_t data 0 uint32_t temp 0 data
recv(in_iface) temp memory memory
data send(out_iface, temp)
t1
t2
22
Functional (untimed) modelsevents ordering
abstraction
  • input in_iface ltuint32_tgt
  • output out_iface1ltuint32_tgt
  • output out_iface2ltuint32_tgt
  • void store_word()
  • uint32_t temp memory
  • memory recv(in_iface)
  • // Order of events is undefined
  • send(out_iface1, temp)
  • send(out_iface2, memory)

23
Time-approximate models
input in_ifaceltuint32_tgt output
out_ifaceltuint32_t, FIFOgt // Reactions ordering
void store_word() uint32_t data 0
uint32_t temp 0 data recv(in_iface,
in_data) temp memory delay(0, 3) //
Delays are approximate memory data
delay(1, 4) // Delay(01)1,
Timeout(3-0)(4-1)6 send(out_iface, temp)
24
Transaction-level modeling (TLM)
  • TLM is a hardware modeling approach that
    separates communication among design units from
    the functional description of those units

TLM is data transmission encapsulation
Wires/pins
Channels/interfaces
Discrete signals distributed in time
Untimed data package (message)
25
25
Model interface adapters
Input interface 1
Output interface 1
Target Design (HDL Model)
input in_ifaceltuint32_tgt output
out_ifaceltuint32_tgt void store_word()
uint32_t temp memory memory
recv(in_iface) ... send(out_iface,
temp)
Input interface N
Output interface M
Reaction Checker
Input Interface Adapters (Serializers)
Output Interface Adapters (Deserializers)
Reference Model (TLM)
26
Problems caused by time abstraction
  • Design state uncontrollability
  • DesignModel is not deterministic
  • ? Problems in stimulus generation coverage
    tracking
  • Reaction order ambiguity
  • Order of reactions is unpredictable
  • ? Problems in reaction checking

27
Design state uncontrollability
Designs Inputs/Outputs
S
R1
R2
Designs State
Uncontrollable actions
Models State
PreImpl(S)false
S
PreImpl(S)true
S
Nondeterministic behavior
28
Reaction order ambiguity
Model Execution Trace
recv(in_iface, S)
...
Output Interfaces Queue
send(out_iface, R1)
Failed R2 ? R1
...
R1
R2
Passed R2 ? Queue
send(out_iface, R2)
Designs Inputs/Outputs
S
R2
R1
Different order
29
Agenda
  • Introduction
  • Digital hardware design
  • Simulation-based verification
  • Time abstraction in hardware modeling
  • Main part
  • Time abstraction levels
  • Model-based reaction checking
  • Error diagnostics
  • Conclusion
  • CTESK testing toolkit
  • Future work
  • Questions answers

30
To be continuedQuestions?
31
Reaction arbitration
  • Reaction arbiter finds a model reaction
    corresponding to a reaction received from the
    target design
  • Reaction checking accuracy depends not only on
    the model abstractness, but on reaction
    arbitration as well
  • Each output interface has its own reaction
    arbiter
  • Reaction arbiters encapsulates all reaction
    ordering aspects of the reaction checker

32
Model-based reaction checker
Target Design
Reaction Checker
Reference Model
Models Reactions
Reaction Arbiters
Input Interface Adapters
Output Interface Adapters
Stimuli
Reaction Comparators
Designs Reactions
Verdict
33
Reaction arbiter types
  • Deterministic model-based arbiters
  • arbiter 2Reaction ? Reaction ?? fail
  • Adaptive arbiters
  • arbiter 2Reaction?? Feedback ? Reaction ??
    fail
  • Two-level arbiters
  • arbiter(reactions) ? arbiter2(arbiter1(reactions)
    , feedback)
  • Nondeterministic model-based arbiter
  • arbiter1 2Reaction ? 2Reaction
    arbiter1(reactions) ? reactions
  • Adaptive arbiter
  • arbiter2 2Reaction?? Feedback ? Reaction ??
    fail

34
Deterministic model-based arbiter
S
R
Models Reactions
send(R1)
Order is defined
...
R1
R2
Reaction Arbiter
send(R2)
FIFO
Designs Reactions
R1
R2
R1
Comparison
35
Adaptive arbiter
S
R
Models Reactions
send(R1)
R1
Order is undefined
...
Reaction Arbiter
send(R2)
R2
Get(R1)
Designs Reactions
R1
R2
R1
Comparison
Feedback
36
Two-level arbiter
S
R
Models Reactions
send(R1)
R1
Order is partially defined
Candidates
...
Arbiter 1
send(R2)
R2
Arbiter 2
Get(R1)
Designs Reactions
R1
R2
R1
Comparison
Feedback
37
Reaction checking algorithm
  • On model reaction R on interface out
  • Reactionsout Reactionsout ? R
  • wind(TimerR)
  • On model reactions time-out
  • return Missing reaction
  • On designs reaction R on interface out
  • Candidateout Reactionsout
  • if(Candidateout ?? 2)
  • Candidateout
    Arbiter1out(Reactionsout)
  • if(Cadidatesout ? 2)
  • Candidatesout
    Arbiter2out(Reactionsout, R)
  • assert(Cadidatesout lt 2)
  • if(Cadidatesout ??)

38
Simple error classification
  • Missing reaction
  • The reference model generates a reaction, but
    the designs reaction is not appeared in time
  • Unexpected reaction
  • The target design produces a reaction, but it is
    not expected by the reference model
  • Incorrect reaction
  • Both the reference model and the target design
    generate reactions, but those reactions are
    different

39
Classification of abstraction levels
  • ? Cycle-accurate models
  • G (?out?? Reactionsout lt 2)
  • Cycle-accurate models (Time(R) 0)
  • Quasi cycle-accurate models (otherwise)
  • ? Order-accurate models
  • G (?out?? Reactionsout lt 2 ?
    Arbiter1out(Reactionsout) lt 2)
  • Order-accurate models (Arbiter1out FIFO)
  • Quasi order-accurate models (otherwise)
  • Order-inaccurate models
  • otherwise

40
Error diagnosis problem
0xf953e8d83a9b9209 ? 0x19c3827ab2920e58
0x19c3827ab2920e58 ? 0xf953e8d83a9b9209
41
Error diagnosis approach
??,??
??,??
??,?
??,??
??,??
??,??
??,??
??,??
??,??
??,??
??,??
??,??
??,?
?,?
??,??
??,??
??,??
??,??
??,??
??,??
?,?
42
Control errors model
  • ??,?? ?
  • ??,?? ? ??,??
  • ??,?? ??,?? ? ??,?? ??,??
  • ??,? ??,?? ? ??,?? ??,?
  • ??,?? ??,?? ? ??,?? ??,??
  • ??,?? ??,?? ? ??,?? ??,??
  • ??,?? ??,?? ? ??,?? ??,??

43
Functional errors model
  • ??,?? ? ??,??
  • ??,? ??,?? ? ??,?? ??,?
  • ??,?? ??,?? ? ??,?? ??,??
  • ??,? ??,?? ? ??,?? ??,?
  • ??,?? ??,?? ? ??,?? ??,??

44
Agenda
  • Introduction
  • Digital hardware design
  • Simulation-based verification
  • Time abstraction in hardware modeling
  • Main part
  • Time abstraction levels
  • Model-based reaction checking
  • Error diagnostics
  • Conclusion
  • CTESK testing toolkit
  • Future work
  • Questions answers

45
CTESK testing toolkit
  • Development of hardware models at different
    abstraction levels and model adapters
  • Description of test coverage and test scenarios
  • Report generation (coverage and errors)
  • Automated test sequence generation based on state
    graph exploration
  • Test execution parallelization based on
    distributed state graph exploration

46
CTESK testing toolkit (cont.)
Web http//forge.ispras.ru/projects/cpptesk-to
olkit E-mail cpptesk-support_at_ispras.ru
47
Conclusion
  • Time abstraction hides control logic (timing) of
    a design (pipelining, arbitration, queuing, etc.)
  • Time-abstract models are easier to develop and
    sufficiently easier to maintain (timing is
    changeable)
  • Time-abstract models reduce verification efforts
    and allow creating reusable tests (quality is
    reduced also)
  • Verification quality can be increased by refining
    time properties of a model (events ordering,
    durations, etc.)

48
Conclusion (cont.)
  • Interface transformation
  • serialization(S) S ? inputs
  • deserialization(R) outputs ? R
  • Reaction queuing
  • send(R) is asynchronous enqueue(R)
  • Reaction arbitration
  • arbiter1(queue) ? candidates
  • arbiter2(candidates, R) ? R ? ?R, R?
  • Reaction comparison
  • compare(R, R) ? status
  • Error diagnosis
  • diagnose(?Ri, Ri?i1,n) ? diagnosis

49
Contacts
  • Institute for System Programming of RAS
    (ISPRAS)http//www.ispras.ru
  • Hardware Verification RD _at_ ISPRAShttp//hardware
    .ispras.ru
  • Alexander Kamkinkamkin_at_ispras.ru

50
The EndThank you! Questions?
Write a Comment
User Comments (0)
About PowerShow.com
