Chapter 1. Fundamentals of Computer Design

1

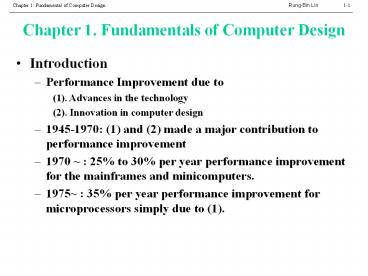

Chapter 1. Fundamentals of Computer Design

• Introduction
• Performance Improvement due to
• (1). Advances in the technology
• (2). Innovation in computer design
• 1945-1970 (1) and (2) made a major contribution
  to performance improvement
• 1970 25 to 30 per year performance
  improvement for the mainframes and minicomputers.
• 1975 35 per year performance improvement for
  microprocessors simply due to (1).

2
Performance Growth for Micro-processors
3
Changes in the Marketplaces Made a Successful
Architecture

• The virtual elimination of assembly language
  reduced the need for object code compatibility
• The creation of standardized, vendor-independent
  operating system, such as Unix and Linux, lowered
  the cost and risk
• Consequence of the changes
• Enable the development of RISCs to focus on
• Exploitation of instruction level parallelism
• Use of caches
• Lead to 50 increase in performance per year

4
The Effect of the Growth rate in Computer
Performance

• Significantly enhanced the capability available
  to computer users
• Lead to the dominance of microprocessor-based
  computers across the entire range of computer
  design.
• Workstations and PCs have emerged as major
  products.
• Servers replace minicomputers.
• Multiprocessors replace mainframe computers and
  super computers.
• The advance of IC technology
• Emergence of RSIC
• Renewal of CISC such as x86 (IA32)
  microprocessors.

5
The Changing Face of Computing

• 1960s Large mainframes
• Business data processing and scientific computing
• 1970s Minicomputers
• Time-sharing
• 1980s Desktop computing(personal computing)
• 1990s Internet and Word Wide Web (servers)
• 2000s Embedded computing, mobile computing,
  and pervasive computing

6
Tasks of a Computer Designer

• Determine what attributes are important for a new
  machine, then design a machine to maximize
  performance while staying within cost
  constraints.
• Task aspects Instruction set design, functional
  organization, logic design, and implementation.
• In the past, Computer Architecture often
  referred only to instruction set design. Other
  aspects of computer design were called
  implementation.
• In this book, Computer Architecture is intended
  to cover all three aspects of computer design
  instruction set architecture, organization and
  hardware.
• Instruction set architecture refers to the
  actual programmable-visible instruction set. It
  serves as the boundary between the hardware and
  software.

7

• organization includes the high-level aspects of
  a computers design, such as the memory system,
  the bus structure, and the internal CPU.
• NEC VR5432 and NEC VR 4122 have the same
  instruction set architecture but with different
  organization.
• Hardware would include the detailed logic
  design and packaging technology of the machine.
• For example different Pentium microprocessors
  running in different frequency have the same
  instruction set architecture and organization but
  with different hardware implementation
• Organization and hardware are two components of
  implementations.

8
Functional Requirements (Fig. 1.4)

• Application Area
• General purpose, scientific and server,
  commercial, embedded computing
• Level of Software Compatibility
• At programming language, object code or binary
  code compatibility
• Operating System Requirements
• Size of address space, memory management,
  protection
• Standards
• Floating point, I/O bus, operating systems,
  networks, programming languages

9
Technology Trends

• A successful instruction set architecture must be
  designed to survive changes in computer
  implementation technology.
• Trends in implementation technology
• Integrated circuit logic technology
• Transistor density 35 increase per year,
  quadruple in 4 years.
• Die size 1020 increase per year
• Transistor count/per chip 55 increase per year.
• Transistor speed scales more slowly.
• DRAM
• Density 4060 increase per year recently.
• Cycle time decrease 1/3 in 10 years.
• Magnetic disk
• Density 100 increase per year recently.
• 30 increase per year, double in 3 years,
  prior to 1990.
• Network technology
• Ethernet 10M to 100M to 1G byte band width.

10
Scaling of IC Technology

• IC Process Technology
• 10um(1971) 0.18um(2001)
• IC Technology and Computer Performance
• Transistor performance
• Wire delay
• Power consumption

11
Cost, Price and Their Trends

• Cost reduction factors
• Learning curve drives the cost down
  manufacturing costs over time, i.e., yield
  improvement.
• High volume (i.e. mass production)
• Commodities are products sold by multiple vendors
  in large volumes and essentially identical, i.e.,
  competition.
• Price of DRAM (fig. 1.5)
• Price of Pentium III (fig. 1.6)
• Cost of an integrated circuit
• Cost of die f(die area)
• Computer designer affects die size both by what
  functions are included on the die and by the
  number of I/O pins.
• Distribution of cost in a system (fig. 1.9, 1.10)

12
Prices of DRAM
13
Price of Pentium III
14
Price for 1000 PC
15
Measuring and Reporting Performance

• X is n times faster than Y means
• The term system performance is used to refer to
  elapsed time on an unloaded system.
• CPU performance refers to user CPU time on an
  unloaded system.
• To evaluate a new system is to compare the
  execution time of her workload - the mixture of
  programs and operating system commands run on a
  machine.

16
Choosing Programs to Evaluate Performance

• Best case Measure the execution time of a
  systems workload
• General case five levels of programs are used
• Real programs C compiler, Tex, Spice, etc.
• Modified (scripted) applications A collection of
  real applications
• Kernels small, key pieces from the real
  programs, ex., Livermore loops and Linpack.
• Toy Benchmarks 10 to 100 lines of code and
  produce a result the user already knows, ex.,
  puzzle, quicksort,
• Synthetic benchmarks try to match the average
  frequency of operations and operands of a large
  set of programs, ex., Whetstone and Drystone.
• Performance prediction accuracy
• Real programs is best, wile synthetic benchmarks
  is worst. and reporting performance results (fig.
  1.9 1.10)

17
Benchmark Suites

• SPEC (Standard Performance Evaluation
  Corporation)
• www.spec.org
• Benchmark types
• Desktop benchmarks
• Server benchmarks
• Embedded benchmarks

18
Desktop Benchmarks

• SPEC Benchmarks
• SPEC CPU2000 (SPEC95, SPEC92, SPEC89) (Fig. 1.12)
• Graphic benchmarks
• SPECviewperf
• SPECapc
• Windows OS benchmarks (Fig. 1.11)
• Business Winstone
• CC Winstone
• Winbench

19
Server Benchmarks

• SPEC
• File server benchmarks SPECSFS
• Measuring NFS performance
• Web server benchmarks SPECWeb
• Simulate multiple clients requesting both static
  and dynamic pages.
• TPC (Transaction-Processing Council)
• TPC-A, TPC-C, TPC-H, TPC-R, TPC-W
• Simulate a business-oriented transactions
  (queries)
• www.tpc.org

20
Embedded Benchmarks

• EDN Embedded Microprocessor Benchmark Consortium
  (EEMBC) (Fig. 1.13)
• Automotive/industrial
• Consumer
• Networking
• Office automation
• Telecommunications

21
Reporting Performance Results

• Guiding Principle
• The performance measurements should be
  reproducibility.
• Needs to tell
• Hardware configurations
• Software used
• Is source code modification for benchmarks
  allowed?

22
Comparing Performance

• Computer A Computer B Computer C
• P1 (secs) 1 10 20
• P2 (secs) 1000 100 20
• Total time 1001 110 40
• Total execution time A consistent summary
  measure
• Another metrics
• Average execution time (arithmetic mean)
• Harmonic mean
• Weighted execution time
• Geometric mean

23
Quantitative Principles of Computer Design

• Make the common case fast A fundamental law,
  called Amdahls Law, can be used to quantify this
  principle.
• Amdahls Law
• the performance improvement to be gained from
  using some faster mode of execution is limited by
  the fraction of the time the faster mode can be
  used.
• Amdahls Law defines speedup as
• Example on pages 41 and 42

24
CPU Performance Equation

• Dependency
• Clock cycle time - Hardware technology and
  organization
• CPI - Organization and instruction set
  architecture
• Instruction count - Instruction set architecture
  and compiler
• Sometimes
• and overall
• Example on page 44.

25
Measuring the Components of CPU Performance

• Clock cycle time Timing simulator or timing
  verifiers
• IC(instruction count)
• Direct measurement from running the applications
  on hardware
• Instruction set simulator - slow but accurate
• Instrumentation code approach the binary program
  is modified by inserting some extra code into
  every basic block. Fast but need instruction set
  translation if simulated machine differs from
  simulating machine.
• CPI very difficult to measure
• CPI Pipeline CPI Memory system CPI
• Basic block
• Labelxxx Branch Branch
  Label xxx
• Branch Branch Label xxx
  Label xxx
• Use the CPU performance equations to compute
  performance

26
Principle of Locality

• Application of Amdahls Law
• A program spends 90 of execution time in on 10
  of the code.
• Temporal locality Recently accessed items are
  likely to be accessed in the near future.
• Spatial locality Items whose addresses are near
  one another tend to be referenced close together
  in time.

27
Put it All Together

• Performance and Price-Performance
• Desktop computers
• Server computers
• Embedded processors

28
Price and Performance of Desktops (1)
29
Price and Performance of Desktops (2)
30
Price and Performance of Servers (1)
31
Price and Performance of Servers (2)
32
PricePerformance of Embedded Processors (1)
33
PricePerformance of Embedded Processors (2)
34
PricePerformance of Embedded Processors (3)
