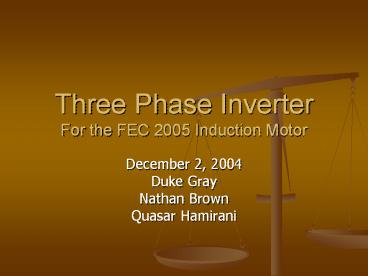

Three Phase Inverter For the FEC 2005 Induction Motor

1
Three Phase InverterFor the FEC 2005 Induction
Motor

• December 2, 2004
• Duke Gray
• Nathan Brown
• Quasar Hamirani

2
What is the Future Energy Challenge?

• The Future Energy Challenge (FEC) has been
  organized for participation by student
  engineering teams around the world. The objective
  is to introduce engineering design innovations
  that can demonstrate dramatic reductions in
  residential electricity consumption from utility
  sources. The innovations should be low in cost,
  and should have broad potential for the future.

3
FEC 2005

• The goal of FEC 2005 is to design a motor (with
  drive) with the following specs
• EFFICIENCY gt 70 (current motors lt50)
• SPEED 150 5000 R.P.M.
• LOAD 50 500 WATTS (at 1500 R.P.M.)
• INPUT SINGLE PHASED VOLTAGE
• OUTPUT THREE PHASED VOLTAGE
• COST lt 40.00 U.S. (in quantity)
• MTBF gt 10 years

4
Motivation for FEC

• American Society uses 3.6 trillion kWh
  continuously (every second)
• Roughly 1 billion motors in use in the U.S.
• Motors account for around 64 of total U.S.
  electrical usage.
• Motors of the type we are designing (lt 500 W)
  account for 230 billion kWh and 10 of the total
  motor electricity consumption

5
Motivation for FEC

• For a 20 increase in efficiency, this would
  equal a 28 decrease in induction motor energy
  usage.
• This equates to a cost savings of
• (.28)(230 billion kWh)(0.07/kWh) 4.5
  billion/hr.

6
Motivation for FEC

• Costs not only dollars and cents.
• For each 1 billion in savings
• 6-10 million tons of coal saved
• 15-20 million tons of CO2 not released
• Greenhouse effect lessened

7
IMPLEMENTATION
8
Three-Phase Inverter Specifications

• Voltage Input 200 Vdc ? 5V
• Output Three-Phase 100 Vac (line to line) sine
  wave
• Control Digital TTL commands at 10kHz
• Power Supply 12V, 5V available

9
HEX BRIDGE INVERTER
10
CHALLENGE 1 SWITCHES

• TWO TYPES RATED FOR OUR NEEDS
• IGBT (HGTP12N60B3D)
• 600 V, 15 A , 1.70 EACH
• POWER LOSS SOMEWHAT LINEAR (IVSAT)
• EQUIVALENT RESISTANCE 0.07 OHMS
• MOSFET (FQP17N40)
• 400 V, 10 A, 0.96 EACH
• 2ND ORDER POWER LOSS (I2RDS)
• EQUIVALENT RESISTANCE 0.27 OHMS

11
CHALLENGE 1 SWITCHES

• MOSFET has smaller loss at 3-5 amp range (where
  we are operating)

12
CHALLENGE 1 SWITCHES

• Pro MOSFET
• Considering cost of IGBT (1.70 vs. 0.96)
• Losses of IGBT (higher for 3-5 amp range)
• Pro IGBT
• On state resistance lower (0.07 vs. 0.27 O)
• We chose to go with FQP17N40 MOSFETS.

13
GATE DRIVE SELECTION

• WHAT IS A GATE DRIVER?
• A gate driver tells the MOSFETS, (switches)
  when to open and close.
• More advanced models have
• Dead time to prevent signal shoot through.
• Over current protection (surge protection).
• Fault self clearing mechanisms.
• Enable switches to turn on/shut off drive.

14
GATE DRIVE SELECTION

• There are many many many gate driver chips to
  choose from.
• Tradeoff Cost Vs. Functionality
• Wanted high MTBF (mean time before failure)
  therefore, fewer parts (single chip)
• Low cost for required ratings
• Little or no external circuitry

15
GATE DRIVE SELECTION

• SOLUTION The IR 21362 Gate Drive
• All six drivers on one chip (fewer parts, MTBF)
• Dead time, fault clearing, enable all there
• Required bootstrap capacitors to charge low
  side MOSFETS
• Cost 4.63 in quantity

16
THE CIRCUIT

• After deciding on MOSFETS and the gate drive
  chip, we needed to determine
• Bootstrap Capacitor size and voltage rating
• Resistor size and power rating
• Diode voltage rating
• Implement fault protection circuitry

17
THE CIRCUIT

• Bootstrap capacitors are needed with this gate
  drive to generate a floating voltage supply above
  the source of the high-side FETs
• Bootstrap Capacitor Size Determined By
• QqGate charge of high side FET
• Icbs(leak)Bootstrap capacitor leakage current
• VfForward voltage drop across bootstrap diode
• ffrequency of operation
• VLSVoltage drop across low-side FET
• Therefore, a common capacitor value of 1 µF (50V
  rating) was selected
• A 1 µF capacitor was also used as a decoupling
  capacitor across the logic supply voltage to
  cancel wire inductance of circuit

18
THE CIRCUIT

• To provide fault detection, a simple shunt
  resistor was selected.
• Voltage divider resistors apply change in logic
  voltage to the current trip input when the sensed
  current is too high.
• A potentiometer allows the resistance to be
  tuned, thus altering the current limit.
• An LED was added for visual fault indication.

19
THE CIRCUIT

• The current sensing resistor rating was
  determined by the IR 21362 data sheet.
• The gate drive requires the input to fall below
  0.46 volts in order to trip the circuit.
• Therefore, by V2/R, we have
• (0.46)2/0.05 4.232 Watts 5.0 Watts
• Thus, the current sensing resistor was rated for
  5 watts.

20
THE CIRCUIT

• Determining resistor values
• All resistors have a power rating based upon
  power (I2R) going through them.
• For our needs, all resistors (save the current
  sensing resistor) were rated for ¼ Watt.
• Theoretically, our gate resistors would have no
  current flowing in them (Igate 0).
• The others are connected across 5 and 12 volt
  inputs respectively, thus very low currents.

21
THE CIRCUIT

• Diode voltage rating
• Ratings dependent upon DC blocking voltage.
• As we are sending 200 Vdc to an output of 140 Vac
  (RMS), we selected a diode voltage rating of 600
  V.

22
THE CIRCUIT

• The IR 21362 allows you to set your own fault
  clearing time. This permits you to visually see
  that there has been a fault, yet allows the
  system to quickly clear it.
• We chose 1.5 seconds as a fault clearing time.
  Thus, R and C values were
• R 33kO C 47µF
• Thus, RC 1.551 seconds

23
THE CIRCUIT

• A negative voltage spike is seen on the gate
  drive outputs at the beginning of each switch
  pulse (exceeding the MOSFET gate ratings)
• Gate resistors (24?) were selected to decrease
  the amplitude of this spike while keeping the
  switching delay reasonable.

24
Power Losses

• The power levels in the hex-bridge are much
  greater than those the gate drive circuitry
• Losses in the circuit are primarily due to the
  MOSFETS
• Switching losses
• Conduction Losses

25
Power Losses
Ton 656ns, toff 420ns, fsw 10kHz Pswtotal
9.13W Rds 0.27? Pcond-total 3.24W gt
Efficiency ? 97.5 at full load (ignoring gate
drive losses)
26
CIRCUIT SCHEMATIC
27
TESTING PROCEDURES

• Gate drive operation tested under no load
• Output phases tested individually using 60V power
  supply and resistive loads
• High voltage power supply acquired from Power
  Applications lab to test with 200V target bus
  voltage
• Three function generators were programmed to
  provide control signals and test three-phase
  operation
• A commercial induction motor was used to test the
  inverter real operating conditions
• Final performance analysis and fine tuning will
  take place once the other FEC stages are completed

28
THE PICTURES!

• Our original circuit, without bells and
  whistles.

29
THE PICTURES!

• Here, hooking up a wimpy 120 volt, 125 ohm load.

30
THE PICTURES!

• Now with a more robust 200 Volt, 100 ohm load.

31
THE PICTURES!

• The edge of the waveform showing delays and
  switch slamming

32
THE PICTURES!

• A more all encompassing picture of all the
  equipment and the circuit

33
THE PICTURES!

• Our friend, the 200 volt DC supply

34
Three Phased Current Output
35
MAKING WAVES

• Since we are dependent upon another FEC team in
  FEC for our control signals, we must make our
  own for testing
• Incorporated a MATLAB script with three Agilent
  33250A waveform generators
• Each generator outputs a 10kHz PWM control signal
• Each generator phased 120º apart
• Allowed inverter to generate three-phase voltage
  signals to the motor

36
MAKING WAVES

• Agilent 33250A waveform generators

37
MOTOR

• Again, since another FEC team is currently in the
  design phase of the final motor, a similar motor
  was used.
• Used the Dayton 3N843 industrial motor rated for
  1725 r.p.m. at 208 volts.

38
MOTOR
39
EFFICIENCY

• The results of our efficiency measurements are
• Measured 96.3 in preliminary testing.
• Preliminary test used different type of motor at
  900 r.p.m.

40
DYMOLA 5 Circuit Simulation

• Modeled circuit in Dymola 5
• Simulated the circuit to ensure correct outputs
• Circuit simulation completed successfully and
  three phase current was outputted
• Ensured that the circuit design was good
• Output waveform on next slide

41
Three Phase Current from DYMOLA
42
PCB DESIGN

• PCB design implemented in Layout Plus
• Used original schematic from Orcad
• Assigned footprints to all components
• Back annotated between Orcad and Layout Plus to
  get components on the board
• Used Auto-Route to make all connections

43
Optimization of PCB

• Reduced unnecessary long connections
• Changed the width of the wire for high voltage
  bus to prevent overheating of the copper wires
• All standard connections are 12 mils thick
• Connections for high voltage traces set to 48
  mils
• Equation used I k . ?T 0.44 . A 0.725

44
ROUTED PCB BOARD
45
MTBF

• The MTBF for each component is
• ¼ Watt Resistors 17,732 years
• Current sensing resistor 13,946 years
• Diodes 1,017
  years
• Capacitors 17,732
  years
• IR 21362 Gate Driver 327 years
• MOSFETS 111
  years
• LED 18,253
  years
• Total MTBF 72.85 years

46
COST ANALYSIS(PARTS)
47
COST ANALYSIS(LABOR)
48
SUMMARY

• Our team has successfully met our objectives.
• Inverter designed with high efficiency (96.3)
• Parts cost around 15.00 (even less in larger
  quantities)
• MTBF surpasses 10 year mark
• PCB board layout ready for manufacturing

49
FUTURE EFFORTS

• Next years inverter team will have to
• Incorporate PCB into overall package.
• Implement thermal design additions.
• Fix inevitable bugs associated with fusing the
  sub-assemblies together.
• Determine overall project efficiency.
• Have fun accepting first prize in the contest!

50
