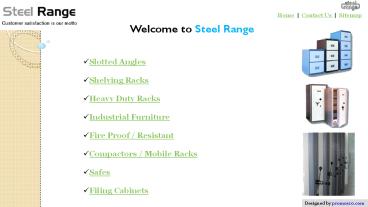

• Welcome to Steel Range
• Slotted Angles
• Shelving Racks
• Heavy Duty Racks
• Industrial Furniture
• Fire Proof / Resistant
• Compactors / Mobile Racks
• Safes
• Filing Cabinets

Designed by promos10.com
2
Home Contact Us Sitemap

• Slotted Angles

We offer slotted angles in 35mm, 40mm, 60mm and
80mm with thickness ranging from 1.6mm to 3.15mm
depending upon load bearing capacities. Due to
very convenient combination of hole locations the
systems can be easily configured to meet any
storage demands.
PANELS We offer 6 bend panels with standard
lengths of 3 feet and varying widths of 12in,
15in, 18in, and 24in. These panels are available
in varying thickness from 0.8mm to 1.6mm.
L W
905 600
905 450
905 375
905 300
L W

864 895
438 635
438 864
CLADDING SHEETS Cladding sheets can be cladded
to storage system for storing small components,
thus providing a shuttering effect to the rack.
Designed by promos10.com
3
Home Contact Us Sitemap

• Shelving Racks

2 Tier Shelving Rack - Ground / Floor View
2 Tier Top Rack View
2 Tier Rack with Mezzanine
Designed by promos10.com
4
Home Contact Us Sitemap

• Heavy Duty Racks

Heavy duty systems help smarter space management,
reducing costs in material handling, improving
housekeeping, space utility. Improved material
handling leads to better efficiency and
productivity. These components are designed to
handle upto 2 tones / level and a total of 10
tones per rack, thus creating tremendous saving
in space and handling. Load beam span is
available upto 14 feet for storage of
non-standard items. These systems can be
installed in all kinds of storage rooms, finished
goods store, cold rooms etc. These components can
be assembled, disassembled, reassembled to have
new configuration suiting your daily changing
needs at absolutely no extra cost. All components
are designed with a factor of safety of 2.5 as
specified by BIS 800/801 to ensure safety of the
system.
Designed by promos10.com
5
Home Contact Us Sitemap

• Industrial Furniture

Industrial Lockers Cabinet with 18 units
Personal Lockers (with 6,4 2 and 1 unit)
Pigeon Hole Cupboard
Designed by promos10.com
6
Home Contact Us Sitemap

• Fire Protection Cabinet

Fire Protection cabinets The fire protection
cabinet has a double wall construction with a
specially formulated for fire resistant compound
sandwiched in-between. The sheet metal thickness
has been maintained to a minimum to minimize the
conduction of heat and has been substantially
reinforced at vital places to withstand impact.
Poured cement insulating materials forms a
monolithic barrier and does not powder, flake or
break on curing. Construction This fire
resistant / protection cabinet has a double wall
construction with a specially formulated fire
resistant compound sandwich in-between. The
sheet metal thickness has been maintained to a
minimum to minimize the condition of heat and has
been substantially reinforced at vital places to
withstand impact.
Poured cement insulating material forms a
monolithic barrier and does not powder, flake or
break on curing.The tongue and groove
construction between the door and the body jambs
prevent the passage of hot gases and flames into
the cabinet.The door is secured to the body by
means of eight shooting bolts i.e. 3 on each
vertical side and 1 each on top and bottom. The
movement of both is locked by specially
manufactured - 6 level dual control key lock with
stainless steel keys in duplicate.
Fire Protection cabinets
Fire Protection Cabinet with 4 adjustable shelves.
Technical Specifications
Dimensions Dimensions Dimensions Dimensions Dimensions Dimensions
Outside Outside Outside Inside Inside Inside Weight
Height Width Depth Height Width Depth Kgs.
74" 321/2" 28" 64 3/8" 26" 21 1/2"
1875 mm 825 mm 170 mm 1635 mm 660 mm 545 mm 500
Designed by promos10.com
7
Home Contact Us Sitemap

• Compactors / Mobile Racks

CompactorsSteelRange compactors are engineered
to help you recover your lost floor space. These
rail mounted compactors can be easily configured
to suit any type of storage. Special wheel and
rail constructions increase the life span of
compactor and facilitates easy operation.
Available to suit every requirement, these come
as manual operated and mechanically assisted
mobile providing maximum storage capacity by
compaction. This system not only provides more
space but also security. Each rack is provided
with an individual push button steering lock.
When fully compacted the entire system can be
locked into position with 1 locking operation.
All materials are made of prime quality CRCA
conforming to IS 513 grade for a longer life,
these are passed through a 7 tank pre-treatment
process before being powder coated for a long
scratch resistance finish.All trolleys are
manufactured with hot rolled steel and fitted
with precision engineered shaft and antifriction
bearings for extremely smooth operation.
Same capacity,  half the space
Same capacity almost twice the space
Regular Space
Compactor Tracks
Designed by promos10.com
8
Home Contact Us Sitemap

• Safes

BodyThe entire body of the Safe is made of thick
steel plates with the latest steel bending
techniques. Made of multiple bends with fully
welded construction, it forms a solid revertless
block. For enhanced security, the inner-linnning
is made of a thicker steel plate as compared to
the outer.DoorThe door is constructed out of
thick and tough steel plates, and it is further
reinforced with another steel plate which is
drill and hammer resistant. The door tightly
meshes to the body when closed.Locking
MechanismOperated by a pronged handle in front
allowing fingers to fit in snugly and controlled
by an eight lever dual control lock with evenly
spaced shooting bolts to give a balanced pressure
and safety from dislodgement. Automatic Self
Locking DeviceThe safe is also protected by an
automatic self-locking device, which gets
activated if the lock is dislodged by explosives
or comes under attack by other means. Which means
that the door remains firmly shut and the
valuables are safe.
Fire and Burglar Resistant Safes
Check Technical specifications gtgt
Designed by promos10.com
9
Home Contact Us Sitemap

• Safes

Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications Technical specifications
Model External Dimensions (mm) External Dimensions (mm) External Dimensions (mm) Internal Dimensions (mm) Internal Dimensions (mm) Internal Dimensions (mm) Volume m3 Net Wt Standard Fittings Standard Fittings Standard Fittings
FBR 575 22" Height Width Depth Height Width Depth Inner (Kg) Locks Shelves Drawers
FBR 575 22" 575 490 493 375 290 245 0.0266 315 1 1 1
FBR 675 26" 680 555 550 480 355 295 0.0502 440 1 1 1
FBR 800 31" 790 639 640 590 439 385 0.0997 626 1 1 1
FBR 1050 41" 1060 785 705 860 585 450 0.2263 1000 2 2 2
FBR 1225 48" 1230 785 705 1030 585 450 0.2711 1075 2 2 2
FBR 1525 60" 1530 785 705 1330 585 450 0.3501 1340 2 3 2
FBR 1525DD 60" 1530 1044 705 1330 844 450 0.5051 1700 2 3 2
FBR 2085 82" 2085 990 840 1885 790 585 0.8711 2375 2 4 2
Fire and Burglar Resistant Safes
Designed by promos10.com
10
Home Contact Us Sitemap

• Filing Cabinets

FullScape Filing Cabinet with 4 drawers
Model No. Height Width Depth
SRFC-016 1375mm 470mm 700mm
4/D (54") (181/2") (271/2")
FullScape Filing Cabinet with 3 drawers
Model No Height Width Depth
SRFC-015 1065mm 470mm 700mm
3/D (411/2") (181/2") (271/2")
FullScape Filing Cabinet with 4 drawers
Model No Height Width Depth
SRFC-014 750mm 470mm 700mm
2/D (29") (181/2") (271/2")
Designed by promos10.com
11
Home Contact Us Sitemap

• Contact Us

Sai Steel Range 194, 10th Lane Corner, Khetwadi
Main Road Khetwadi, Mumbai - 400004 Tel
022-23877554 Email info_at_steelrange.com Website
http//www.steelrange.com
