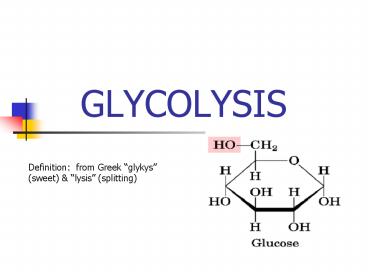

GLYCOLYSIS

1
GLYCOLYSIS
Definition from Greek glykys (sweet)
lysis (splitting)
2

• Living organisms, like machines, conform to the
  law of the conservation of energy, and must pay
  for all their activities in the currency of
  catabolism
• Ernest Baldwin, Dynamic Aspects of Biochemistry
  (1952)

3
I. BACKGROUND

• Glycolysis
• Carried out by nearly every living cell
• In cytosol of eukaryotes
• Catabolic process
• Releases energy stored in covalent bonds
• Stepwise degradation
• Glucose
• Other simple sugars

4
I. Background, cont

• Anaerobic process
• Evolved in an environment lacking O2
• Primitive earth millions of years ago
• Early, important pathway
• Provided means to extract energy from nutrient
  molecules
• Central role in anaerobic metabolism
• For the first 2 billion years of biological
  evolution on earth
• Modern organisms
• Provides precursors for aerobic catabolic
  pathways
• Short term anaerobic energy source

5
Background, cont

• Glucose is a precursor
• Supplies metabolic intermediates
• Three fates
• Storage
• Oxidation to pyruvate
• Oxidation to pentoses

6
(No Transcript)
7
Background, cont

• beta D-Glucose is the major fuel
• Rich in potential energy
• Stored in bonds
• Is literally solar energy
• ?G01 -2840 kJ/mole
• Advantages to glucose
• Catabolism ? ATP
• Can be stored
• Eg Polysaccarides, sucrose
• Can be transported
• Blood glucose
• Organism to organism

8
Background, cont

• History
• Began with Pasteur Mid- nineteenth century
• Eduard Buchner 1897
• Fermentation in broken extracts of yeast cells
• Arthur Harden and William Young 1905
• Discover phosphate is required for glucose
  fermentation
• Gustov Embden, Otto Meyerhof and Jocob Parnas
• Seminal work
• Often called the Embden-Meyerhof-Parnas pathway
• Elucitated in 1940
• Fritz Lipmann and Herman Kalckar 1941
• Metabolic role of high energy compounds like ATP

9
II. GLYCOLYSIS

• Most completely understood biochemical pathway
• Sequence of 10 enzymatic pathways
• 1 molecule of glucose is converted to 2 3-carbon
  pyruvate molecules
• Concomitant generation of 2 ATP
• Key role in energy metabolism
• Provides free energy for organisms
• Prepares glucose (and other molecules) for
  further oxidative degradation

10
Function, Glycolysis, cont

• Most carbon in cells follows this pathway
• Only source of energy for many tissues
• Rates and Regulation vary among species
• Most significant difference is the way that
  pyruvate is utilized

11
Glycolosis, cont

• The fates of pyruvate
• Aerobic
• Oxidative decarboxylation to acetyl
• 2-cabon molecule
• Forms acetyl-coenzyme A
• To Krebs cycle
• Electrons to ETS
• Anaerobic
• To lactate
• To ethanol

12
(No Transcript)
13
Glycolysis, cont

• Overview of glycolysis in animal metabolism
• Glucose in the blood
• From breakdown of polysaccharides
• Liver glycogen
• Dietary sources
• Gluconeogenesis
• Synthesis from noncarbohydrate precursors
• Glucose enters cells
• Specific transporters

14
Glycolosis, cont

• Enzymes of glycolysis in cytosol
• Glucose converted into 2 3-carbon unites
  (pyruvate)
• Free energy harvested to synthesis ATP from ADP
  and Pi
• Pathway of chemically coupled phosphorylation
  reactions
• 10 reactions broken into 2 phases
• Preparatory phase (energy investment)
• Reactions 1 5
• Payoff phase (energy recovery)
• Reactions 6 - 10

15
Glycolosis, cont

• Preparatory phase (energy investment)
• Hexose glucose is phosphorylated by ATP
• C3-C4 bond broken
• yields 2 triose phosphates (glyceraldehyde
  -3-phosphate)
• Requires 2 ATP to prime glucose for cleavage

16
(No Transcript)
17
Glycolosis, cont

• Payoff Phase (energy recovery)
• Each triose phosphate is oxidized
• Energy is conserved
• by reduction of NAD
• Phosphate is transferred to ADP ? ATP
• Net gain 2 ATP
• 2 Glyceraldehyde-3-phosphate molecules are
  converted to 2 molecules of pyruvate
• NadH must be reoxidized

18
(No Transcript)
19
Glycolosis, cont

• ATP formation is coupled to glycolysis
• Glucose ? pyruvate generates 2 ATP (net)
• Involves coupled reactions
• Makes glycolysis irreversible under intracellular
  conditions
• Most energy remains in pyruvate
• Glycolysis releases 5
• Oxidation via TCA cycle releases the rest

20
Glycolosis, cont

• Phosphorylated intermediates are important
• Each intermediate is phosphorylated
• Phosphate has 3 functions
• Prevent diffusion of the intermediates out of the
  cell
• Can donate Pi to ADP ? ATP
• Provide binding energy to increase specificity of
  enzymes

21
The Reactions of Glycolysis

• 10 enzymes
• 9 Intermediates
• Cost (2 ATP)
• Payment
• 4 ATP
• 2 NADH H
• End products
• Metabolic crossroads

22
Reaction 1

• Hexokinase First ATP Utilization
• Transfer of a phosphoryl group
• From ATP
• To glucose (at C-6)
• Intermediate formed Glucose-6-phosphate (G6P)
• Enzyme Hexokinase
• Allosterically inhibited by product
• REGULATION SITE (one of three)
• Reaction is irreversible

23
(No Transcript)
24
Reaction 1, cont

• Kinase enzymes that transfers phosphoryl groups
  between ATP and a metabolite
• Name of metabolite acceptor is in prefix of the
  kinase name
• E.g.
• glucokinase (in liver) is specific for glucose
• Hexokinase ubiquitous, relatively nonspecific
  for hexoses
• D-glucose
• D-mannose
• D-fructose

25
Reaction 1, cont

• Second substrate for kinases (including
  hexokinase)
• Mg2 -ATP complex
• Mg2 is essential
• Uncomplexed ATP is a potent inhibitor of
  hexokinase
• Mg2 masks negative charge on phosphate oxygen
  atoms
• Makes nucleophilic attack by C6-OH group on
  gamma-phosphorus atom more possible

26
Reaction 1, cont
27
Substrate induced conformational changes in yeast
hexokinase
Glucose (magenta) induces significant change
like jaws this places ATP in close proximity to
the C6-H2OH group and excludes water (which
prevents ATP hydrolysis)
28
Reaction 1, cont

• Begins glycolysis
• Is first of 2 priming reactions
• Reaction is favorable under cellular conditions
• Hydrolysis of ATP liberates 30.5 kJ/mol
• Phosphylation of glucose costs 13.8kJ/mol
• Delta G -16.7 kJ/mol

29
Reaction 1, cont

• Importance of phosphorylating glucose
• Keeps substrate in the cell
• Glucose enters cell via specific transporters
• The transporter does not bind to G6P
• G6P is negatively charged, thus can not pass
  through plasma membrane
• Rapid phosphorylation of glucose keeps
  intercellular concentrations of glucose low
• Favors diffusion into cell
• Regulatory control can be imposed only on
  reactions not at equilibrium
• Large negative free energy change make this an
  important site for regulation

30
Reaction 1, cont

• Glucokinase
• In liver
• Carries out same reaction, but is glucose
  specific (high Km for glucose)
• Not inhibited by the product
• Important when blood glucose levels are high
• Glucose to G6P to stored glycogen
• Inducible by insulin
• When blood glucose levels are low, liver uses
  hexokinase

31
Reaction 2

• Phosphoglucose Isomerase (PGI)
• Conversion of G6P to Fructose-6-phosphate
• Isomerization of an aldose to a ketose
• Intermediate formed Fructose-6-phosphate (F6P)
• Enzyme Phosphoglucose Isomerase
• Reversible reaction

32
(No Transcript)
33
Reaction 2, cont

• Common reaction isomerization of a sugar
• Requires ring of G6P to open
• Isomerization
• Ring of F6P closes
• Prep for next reactions
• R3 Phosphorylation at C-1
• R4 cleavage between C-3 and C-4
• PGI in humans
• Requires Mg2
• Highly specific for G6P
• Reaction is near equilibrium, easily reversible
• Small delta G value

34
Reaction 3

• Phosphofructokinase second ATP utilization
• Phosphorylation of F6P to Fructose-1,6-bisphosphat
  e
• bis not di phosphates not together)
• ATP donates a phosphate
• Intermediate formed Fructose-1,6-bisphosphate
  (FBP or F1,6P)
• Enzyme Phosphofructokinase (PFK-1)
• REGULATION SITE (two of three)
• Irreversible reaction

35
(No Transcript)
36
Reaction 3, cont

• Similar to Hexokinase reaction
• Nucleophilic attack by C1-OH of F6P on Mg2 -ATP
  complex
• PFK plays central role in control of glycolysis
• Catalyzes one of the pathways rate-determining
  reactions
• Allosteric regulation of PFK in many organisms

37
Reaction 4

• Aldolase
• Cleavage of Fructose-1,6-bisphosphate
• Forms two trioses
• Glyceraldehyde-3-phosphate (GAP)
• Dihydroxyacetone phosphate (DHAP)
• Intermediates formed GAP and DHAP
• Enzyme aldolase
• Reversible reaction

38
(No Transcript)
39
Reaction 4, cont

• A cleavage between C-3 and C-4
• two molecules from one
• Requires
• A carbonyl at C-2
• A hydroxyl at C-4
• Hence the logic at reaction 2
• 2 classes of aldolases
• Class I in animal tissues
• Class II in bacteria and fungi
• Require a active-site metal, normally zinc Zn 2

40
Reaction 5

• Triose phosphate isomerase
• Interconversion of DHAP and GAP (triose
  phosphates)
• Isomerization of aldose-ketose isomers
• Intermediate formed Glyceraldehyde-3-phosphate
• Enzyme Triose phosphate isomerase
• Reversible reaction

41
(No Transcript)
42
(No Transcript)
43
Reaction 5, cont

• Only glyceraldehyde-3-P can continue in
  glycolysis
• Dihydroxyacetone-P is rapidly converted

44
(No Transcript)
45
Taking Stock so far

• Investment phase Produces 2 triose phoshates
• One glucose ? 2 glyceraldehyde-3-P
• Costs 2 ATP
• Now, need a little chemical artistry to convert
  low energy GAP to high energy compounds and
  synthesis ATP

46
Next

• Payoff phase Produces ATP
• One glucose ? 2 glyceraldehyde-3-P
• Conversion to pyruvate ? 4 ATP
• Also 2 reduced NADH

47
Reaction 6

• Glyceraldehyde-3-phosphate Dehydrogenase First
  High-energy Intermediate Formation
• Oxidation of GAP by NAD and Pi
• Intermediate formed 1,3-bisphosphoglycerate
• Enzyme GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE
• Reaction is reversible
• Energy-conserving reaction

48
(No Transcript)
49
Reaction 6, cont

• Aldehyde is dehydrogenated to an acyl phosphate
  with a high standard free energy of hydrolysis
  (?G01 -49.3 kJ/mole)
• NAD serves as hydrogen acceptor
• NAD ? NADH H

50
Reaction 7

• Phosphoglycerate kinase first ATP generation
• Transfer of a phosphate to ATP
• Yields ATP 3-phosphoglycerate
• Intermediate formed 3-phosphoglycerate
• Enzyme PHOSPHOGLYCERATE KINASE
• Energy-coupling reactions 6 7
• A substrate-level phosphorylation

51
(No Transcript)
52
Reaction 8

• Conversion of 3 PG to 2-phosphoglycerate (2PG)
• Intermediate formed
• Enzyme PHOSPHOGLYCERATE MUTASE (PGM)
• Reversible phosphate shift

53
(No Transcript)
54
Reaction 9

• Dehydration to Phosphoenol Pyruvate (PEP)
• Intermediate formed phosphoenol pyruvate
• Enzyme ENOLASE
• Energy-conserving reaction
• Reversible reaction

55
(No Transcript)
56
Reaction 10

• Pyruvate kinase Second ATP generation
• Transfer of a phosphate to ? ATP
• Product pyruvate
• Enzyme Pyruvate kinase
• Irreversible reaction
• Substrate-level phosphorylation
• enol spontaneously tautomerizes to keto form

57
(No Transcript)
58
(No Transcript)
59
Glycolosis, cont

• Overall balance sheet
• Anaerobic
• net gain of 2 ATP
• Must free reduced NAD from reaction 6
• In humans lactic acid pathway
• Aerobic
• NADH re-oxidized to NAD via respiratory chain in
  mitochondria
• e- transfer provides energy for ATP synthesis
• 2.5 ATP/ reduced NAD
• Therefore 5 more ATPs if go aerobic

60
Glycolosis, cont

• Anaerobic alternatives for pyruvate
• Must oxidize NAD
• Lactic acid pathway
• Fermentation
• Aerobic alternatives for pyruvate
• Hydrogens from reduced NAD transported to ETS in
  mitochondria
• Transporters in mitochondrial membrane

61
(No Transcript)
62
(No Transcript)
63
Glycolosis, cont

• Dietary polysaccharides
• must by hydrolyzed to monosaccarides
• Dietary Disaccharides
• must by hydrolyzed to monosaccarides
• Disaccharides cannot enter glycolytic pathway

64
(No Transcript)
65
Glycolosis, cont

• Hexoses can enter glycolysis
• Hydrolytic enzyes are attached to epithelial
  cells in intestines
• Monosaccharides ? intestinal cells ? blood ?
  liver (phosphorylation) ? glycolysis

66
(No Transcript)
67
III. REGULATION of CARBOHYDRATE CATABOLISM

• Regulatory enzymes act as metabolic valves
• Substrate-limited reactions are determined by S
• Enzyme-limited reactions are RATE-LIMITING STEPS
• Irreversible reactions
• Exergonic
• regulatory

68
Regulation of Carbohydrate Catabolism, cont

• Regulation of glucose metabolism differs in
  muscle liver
• Muscle Object is ATP production
• Enzyme GLYCOGEN PHOSPHORYLASE
• Enzyme is allosterically regulated
• Skeletal muscle signalled to ? ATP by EPINEPHRINE
• Both enzyme hormone influence ATP production

69
Regulation of Carbohydrate Catabolism, cont

• Liver object is maintenance of blood glucose
  levels
• Regulated by GLUCAGON blood glucose
• Enzyme GLUCOSE-6-PHOSPHATE
• ?
• GLUCOSE-6-P H2O ? GLUCOSE Pi

70
Regulation of Carbohydrate Catabolism, cont

• Other regulatory enzymes
• Hexokinase catalyzes entry of free glucose into
  gycolysis
• Pyruvate kinase catalyzes last step in
  glycolysis
• Inhibited by ATP, excess fuel

71
Regulation of Carbohydrate Catabolism, cont

• Phosphofructokinase-1 commits cell to passage
  of glucose through glycolysis
• Irreversible reaction
• Allosterically inhibited by ? ATP
• When ATP levels are sufficiently high, glycolysis
  is turned down
• Inhibition relieved by allosteric action of ADP
  AMP
• Rate of glycolysis increases when ATP levels are
  low

72
Regulation of Carbohydrate Catabolism, cont

• Phosphofructokinase-1 links glycolysis and
  citric acid cycle (CAC)
• Allosterically inhibited by citrate
• An intermediate in CAC
• When citrate accumulates, glycolysis slows down
• Phosphofructokinase-1also regulated by
  beta-D-fructose-2,6-bisphosphate
• Allosteric activator
• Increases affinity of PFK for F6P

73
Regulation of Carbohydrate Catabolism, cont

• Futile Cycling simultaneous production
  consumption of glucose by the cell
• Gluconeogenesis conversion of pyruvate ?
  glucose (opposite of glycolysis)
• Uses some of the same enzymes as glucolysis

74
Regulation of Carbohydrate Catabolism, cont

• Both sets of reactions are substrate limited
• Some glycolytic reactions are irreversible (3,
  catalyzed by regulatory enzymes)

75
Regulation of Carbohydrate Catabolism, cont

• These reactions are by-passed in gluconeogenesis
  by different enzymes
• To prevent FUTILE CYCLING, enzymes limited
  reactions are subject to reciprocal allosteric
  control

76
IV. SECONDARY PATHWAYS of GLUCOSE OXIDATION

• Pentose Phosphate pathway
• Produces NADPH ribose-5-phosphate
• NADPH used in biosynthesis of fatty acids,
  steroids
• Pentoses used in nucleic acid synthesis

77
Secondary Pathways of Glucose Oxidation, cont

• Transformation into Glucuromic Acid Ascorbic
  Acid
• D-glucuronate used to convert non-polar toxins
  to polar derivatives
• L-ascorbic acid cannot be accomplished by humans

78
(No Transcript)
