Evidence Based Hematological Solutions

1

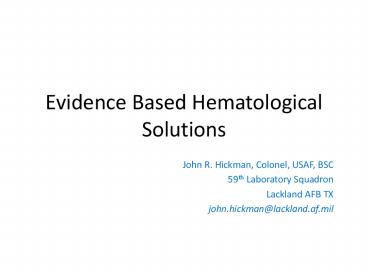

Evidence Based Hematological Solutions

• John R. Hickman, Colonel, USAF, BSC
• 59th Laboratory Squadron
• Lackland AFB TX
• john.hickman_at_lackland.af.mil

2
Todays Topics

• Sysmex XE-500 Principles/Technology
• Hematological challenges Solutions
• Infection Surveillance/Immature Granulocyte Count
  (IG)
• Anemia Management/Reticulocyte Hemoglobin
  (Retic-He) Immature Reticulocyte Fraction (IRF)
• Thombopoeisis Management/Immature Platelet
  Fraction (IPF)

3
Red Cell/Platelet Counting Technology

• Direct current technology
• Hydrodynamic Focusing
• Floating Discriminators

4
Hematocrit -Hemoglobin

• Hematocrit
• Cumulative Pulse Design Detection
• Direct Measurement/not calculated
• Cumulative sum all pulses in RBC histogram
• Total volume of RBCs
• Total volume of sample

• Hemoglobin
• Light AbsorbanceSulfolyser
• Sodium Laural Sulfate (lyse agent)
• Non-cyanide
• Environmentally safe

5
Flow Cytometry- Measured Signals
6
Diff Channel
Reagent Reaction?Stromatolyser-4DL 4DS
Same principle for Basophils (FB) NRBC (NR)
7
Reticulocyte Channel
Reagent Reaction ? Ret Search II
High Fluorescence
Low Fluorescence
Reference Range 29 - 35 pg
8
Immature Retic Fraction (IRF)
9
Immature Platelet Fraction (IPF)

• Reference Range 0.9 - 11.2

10
Hematological Challenges/Solutions

• Sysmex Advanced Hematological Parameters
• Infection Surveillance /Immature Granulocyte
  Count (IG)
• Anemia Management/Reticulocyte Hemoglobin
  (Retic-He) Immature Reticulocyte Fraction
• Thrombopoiesis Management/Immature Platelet
  Fraction (IPF)
• Simple to obtain
• Standardized
• Clinically relevant

11
Infection Surveillance
70 of HAI Occur Outside the ICU
Klevens, R. M. et al, Public Health Reports,
Estimating Health Care-Associated Infections and
Deaths in U.S. Hospitals, 2002, March April,
2007 Vol. 122 160 166
12
Pathogenesis of Sepsis

• Increased neutrophil migration and adhesion
• Increased coagulation
• Decreased fibrinolysis
• Increased inflammation
• Endothelial injury and loss of barrier integrity
• Microvascular injury results in altered
  microcirculatory perfusion

13
Infection Surveillance Challenges

• How effectively can we identify present on
  admission infections?
• How early in the process can infections be
  identified?
• How do we work up febrile neutropenia?

14
What about shift to left (?)

• Clinical significance of shift to left?
• Infection/inflammatory response
• Recovering bone morrow
• Bone marrow diseases (myleproliferative disorder,
  metastatic malignancy)
• Latrogenic (i.e. GF therapy)
• Detection of Shift to left (issues)
• No good definition
• Manual diffs not an accurate/precise indicator
• More accurate indicator needed

15
IG (Immature Granulocyte) Count
16
Flow Cytometry vs Manual diff
Fujmoto et al, Cytometry 2000, 42371-78
17
IG Better than WBC
Ansari-lari, et al Am J of Clin Path
2003120795-799
18
Clinical Utility IG

• More sensitive/specific for infection than WBC
  comparable to ANC
• IGs gt3 predicted positive blood cultures with
  92 specificity
• Improve predictive value of infection by adding
  the IG into an algorithm with other lab tests to
  target a careful workup on patients with a IG gt3
• IG count can ID potential acute infection or
  inflammatory response at early state when other
  parameters are within normal range and
  nonspecific indicator

19
IG Infection Surveillance Tool
Briggs, C. et al Laboratory Hematology (2003)
IG can elevate in infection even when WBC, ANC,
and other markers are normal
20
Solution Automated Immature Granulocyte Count
21
Anemia challenges

• What is best assessment of Iron Deficiency
  Anemia (IDA)?
• Determine Fe stores before treatment?
• Determine efficacy of EPO and Fe therapy?

22
IDA Testing

• Current Fe anemia testing

• Enhanced Fe anemia testing

• Retic
• Iron studies
• Serum Fe
• Ferritin
• T-Saturation
• H H

• Immature Retic Fraction (IRF)
• Retic-He
• Retic
• H H

Retic Count RBC Production Rate IRF Rate of
Change in RBC Production
23
How RET-He Helps Diagnose IDA
Iron Deficiency Anemia diagnostic criteria for
patients on maintenance dialysis Fe lt40 Tsat lt20 F
erritin lt100 Hgb lt11
Brugnara, C., Schiller, B., Moran, J. (2006).
Clinical Laboratory Haematology, 18303 308
24
Challenges AssessingFunctional Iron Deficiency
Functional Iron Deficiency diagnostic
criteria TSat lt20 Ferritin 100-800

• How does a direct cellular measure compare to
  traditional parameters for diagnosis of FID?
• Inflammation, uremia, and protein nutrition
  increases biological variation of chemistry
  parameters in these patients

Brugnara, C., Schiller, B., Moran, J. (2006).
Clinical Laboratory Haematology, 18303 308
25
Clinical Utility Automated Ret-He

• Directly measuring the RET-He, early stages of
  iron deficiency may be identified, at a time that
  other traditional biochemical parameters are
  non-informative.
• Presence of inflammation and uremia makes this
  diagnosis particularly challenging for dialysis
  patients.

Brugnara, C., Schiller, B., Moran, J. (2006).
Clinical Laboratory Haematology, 18303 308
26
Day-to-Day, Week-to-Week Variations in Tests of
Anemia and Iron Status

• Hgb, Hct, and RET-He, but not TSAT or Ferritin
  are useful analytes to guide dose adjustment for
  ESA or IV iron

David B. Van Wyck, MD, Harry Alcorn, PharmD1
Resmi Gupta,(2009) ASN poster
27
Recognizing Functional Iron Deficiency Early for
Appropriate Intervention
Muusze, R. et al (2009). Protocol for
Transfusion Free Major Orthopaedic Operations
Using RET-He. Sysmex Journal International,
191, 1-8.
28
Transfusion Assessment

• Low Retic Low IRF
• No Production
• Transfuse

• Low Retic High IRF
• Production
• Do Not Transfuse

29
Decrease in Blood Transfusions
Muusze, R. et al (2009). Protocol for
Transfusion Free Major Orthopaedic Operations
Using RET-He. Sysmex Journal International,
191, 1-8.
30
Solution Automated Reticulocyte Hemoglobin
31
Thrombopoiesis Challenges

• Decreased Production?
• Aplastic anemia
• Leukemia
• Decreased Thrombopoietin production
• Liver and Kidney Disease
• Viral mediated

• Increased Destruction?
• Idiopathic/Immune Thrombocytopenia (ITP)
• Exclusionary Dx
• Thrombotic Thrombocytopenic Purpura (TTP)
• Idiopathic or secondary
• Heparin Induced Thrombocytopenia (HIT)

32
Comprehensive Platelet Count

• Immature Platelet Fraction Reticulated Platelet
• of total platelets that are immature
• Measures platelets newly released from the bone
  marrow
• Indicates thrombopoiesis
• ? Plts ? IPF ? Production
• ? Plts ? IPF ? Destruction

33
Immature Platelet Fraction for Differential
Diagnosis

• In thrombocytopenia does IPF diagnostically
  distinguish between consumptive and aplastic
  causes?
• In pregnancy, does IPF correlate with
  development of PIH?
• In thrombocytopenia, does regular monitoring of
  IPF provide valuable information for treatment
  decisions?

Briggs, C. (2004) British Journal of Haematology
126 93 - 99
34
What about PLT Transfusions?

• 10 million platelet units to 2.2 million
  recipients each year
• 12,000 platelet units may be contaminated with
  bacteria

• 120,000 recipients dies from transfusion-transmit
  ted sepsis
• Platelets have second highest rate of transfusion
  related death
• Refractory to Platelets
• Alloimmunization
• Viral Transmission (particularly CMV)
• TPO T/2
• Product Availability?

35
Transfusion Assessment

• Low PLT Low IPF
• No Production
• Transfuse

• Low PLT High IPF
• Production
• Do Not Transfuse

36
Immature Platelet Fraction for Transfusion
Management

• When do patients need prophylactic platelet
  transfusions?
• When Plt is low and IPF is high Do we need to
  transfuse plts?

Briggs, C. (2003) Transfusion Management 16101 -
109
37
CAP Transfusion Medicine Checklist

• TRM.42110 Phase I N/A YES NOIs the laboratory
  developing a plan to reduce the risk of
  transfusion-related acute lung injury(TRALI)?
• NOTE The laboratory should track the frequency
  of TRALI.

38
Clinical Utility Transfusion Management

• IPF should allow a more controlled prophylactic
  platelet transfusion policy to be implemented at
  specified threshold count, particularly when
  platelet recovery is imminent.
• Predicting platelet recovery would permit more
  reasoned use of prophylactic platelet transfusion
  and provide the potential to reduce the use of
  platelet concentrates, minimizing possible
  transfusion-transmitted infections.

Briggs, C. (2003) Transfusion Management 16101 -
109
39
Immature Platelet Fraction to Assess Bone Marrow
Recovery

• How well can IPF predict platelet recovery
  following peripheral blood HPC transplantation?

Zucker, M. Laboratory Hematology, 2006 12125 -
130
40
Clinical UtilityBone Marrow Recovery

• Following HPC transplantation, IPF recovered
  significantly earlier than platelet count, ANC,
  and IRF.
• A persistently low IPF in this setting would
  suggest failure of thrombopoietic recovery.

Zucker, M. Laboratory Hematology, 12125 - 130
41
Solution Immature Platelet Fraction
42
Questions ??
