Input Space versus Feature Space in Kernel-Based Methods

1

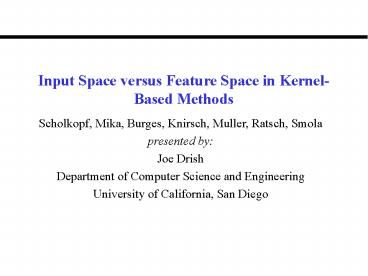

Input Space versus Feature Space in Kernel-Based
Methods
Scholkopf, Mika, Burges, Knirsch, Muller, Ratsch,
Smola presented by Joe Drish Department of
Computer Science and Engineering University of
California, San Diego
2
Goals
Objectives of the paper

• Introduce and illustrate the kernel trick
• Discuss the kernel mapping from input space
  to feature space F
• Review kernel algorithms SVMs and kernel PCA
• Discuss interpretation of the return from F to
  after the dot product computation
• Discuss the form of constructing sparse
  approximations of feature space expansions
• Evaluate and discuss the performance of SVMs and
  PCA

Applications of kernel methods

• Handwritten digit recognition
• Face recognition
• De-noising this paper

3
Definition

• A reproducing kernel k is a function k ?
  R.
• The domain of k consists of the data patterns
  x1, , xl ?
• is a compact set in which the data lives
• is typically a subset of RN

Computing k is equivalent to mapping data
patterns into a higher dimensional space F, and
then taking the dot product there. A feature map
? RN ? F is a function that maps the input data
patterns into a higher dimensional space F.
4
Illustration

• Using a feature map ? to map the data from input
  space into a higher
• dimensional feature space F

F(X)
X
X
O
F(X)
F(O)
X
F(X)
O
F(O)
X
F(X)
O
F(O)
F(O)
O
F

5
Kernel Trick

• We would like to compute the dot product in the
  higher
• dimensional space, or

?(x) ?(y).
To do this we only need to compute
k(x,y),
since
k(x,y) ?(x) ?(y).
Note that the feature map ? is never explicitly
computed. We avoid this, and therefore avoid a
burdensome computational task.
6
Example kernels
Gaussian
Polynomial
Sigmoid
Nonlinear separation can be achieved.
7
Nonlinear Separation
8
Mercer Theory
Input Space to Feature Space
Necessary condition for the kernel-mercer trick
NF is equal to the rank of ui uiT the outer
product ? is the normalized eigenfunction
analogous to a normalized eigenvector
9
Mercer Linear Algebra
Linear algebra analogy
Eigenvector problem Eigenfunction problem

A
k(x,y)
u,?
?,?

• x and y are vectors
• u is the normalized eigenvector
• ? is the eigenvalue
• is the normalized eigenfunction

10
RKHS, Capacity, Metric

• Reproducing kernel Hilbert space (RKHS)
• Hilbert space of functions f on some set X such
  that all evaluation functions are continuous, and
  the functions can be reproduced by the kernel

• Capacity of the kernel map
• Bound on the how many training examples are
  required for learning, measured by the
  VC-dimension h

• Metric of the kernel map
• Intrinsic shape of the manifold to which the data
  is mapped

11
Support Vector Machines
The decision boundary takes the form

• Similar to single layer perceptron
• Training examples xi with non-zero coefficients
  ?i are support vectors

12
Kernel Principal Component Analysis
KPCA carries out a linear PCA in the feature
space F The extracted features take the
nonlinear form
The
are the components of the k-th eigenvector of the
matrix
13
KPCA and Dot Products
Wish to find eigenvectors V and eigenvalues ? of
the covariance matrix
Again, replace
?(x) ?(y).
with
k(x,y).
14
From Feature Space to Input Space
Pre-image problem
Here, ? is not in the image.
15
Projection Distance Illustration
Approximate the vector ? ? F
16
Minimizing Projection Distance
z is an approximate pre-image for ? if
Maximize
For kernels where k(z,z) 1 (Gaussian), this
reduces to
17
Fixed-point iteration
So assuming a Gaussian kernel

• ?i are the eigenvectors of the centered Gram
  matrix
• xi are the input space
• ? is the width

Requiring no step-size, we can iterate
18
Kernel PCA Toy Example
Generated an artificial data set from three point
sources, 100 point each.
19
De-noising by Reconstruction, Part One

• Reconstruction from projections onto the
  eigenvectors from previous example
• Generated 20 new points from each Gaussian
• Represented by their first n 1, 2, , 8
  nonlinear principal components

20
De-noising by Reconstruction, Part Two

• Original points are moving in the direction of
  de-noising

21
De-noising in 2-dimensions

• A half circle and a square in the plane
• De-noised versions are the solid lines

22
De-noising USPS data patterns
Patterns 7291 train 2007 test Size 16 x 16
Linear PCA
Kernel PCA
23
Questions
