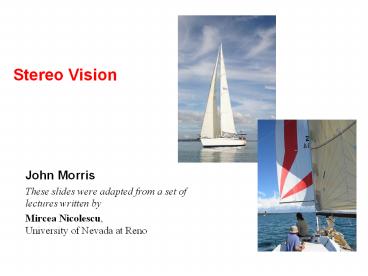

Stereo Vision

1
Stereo Vision

• John Morris
• These slides were adapted from a set of lectures
  written by
• Mircea Nicolescu, University of Nevada at Reno

Vision Research in CITR
2
Basics

• A single image has no depth information
• Humans infer depth from clues in the scene
• but
• These are ambiguous
• Stereo vision systems take two images of a
  scenefrom different viewpoints
• Usually referred to as left and right images
• Left and right images are slightly different
• Disparity isDisplacement of corresponding points
  from one image to the other
• From the disparity, we can calculate depth

3
Stereo Vision - Basics
Two cameras Left and RightOptical centres OL
and OR Virtual image plane is projection of
actual image plane through optical
centre Baseline, b, is the separation between the
optical centres Scene Point, P, imaged at pL and
pR pL 9 pR 3 Disparity, d pR PL
6 Disparity is the amount by which the two
images of P are displaced relative to each other
bf
Depth, z
pd
p pixel width
4
Motivation - Applications

• Stereo Vision has many applications
• Aerial Mapping
• Forensics - Crime Scenes, Traffic Accidents
• Mining - Mine face measurement
• Civil Engineering - Structure monitoring
• Collision Avoidance
• Real-time performance needed
• Depth accuracy critical
• Manufacturing
• Process control
• Process monitoring
• General Photogrammetry
• Any non contact measurement

5
Motivation - Advantages

• Example
• Collision avoidance
• Why stereo?
• RADAR keeps airplanes from colliding
• SONAR
• Keeps soccer-playing robots from fouling each
  other
• Guides your automatic vacuum cleaner
• Active methods are fine for sparse environments
• Airplane density isnt too large
• Only 5 robots / team
• Only one vacuum cleaner

6
Motivation - Advantages

• Collision avoidance
• What about Seoul (Bangkok, London, New York, )
  traffic?
• How many vehicles can rely upon active methods?
• Reflected pulse is many dB below probe pulse!
• What fraction of other vehicles can use the same
  active method before even the most sophisticated
  detectors get confused?(and car insurance
  becomes unaffordable ?)
• Sonar, in particular, is subject to considerable
  environmental noise also
• Passive methods (sensor only) are the only safe
  solution
• In fact, with stereo, one technique for resolving
  problems may be assisted by environmental noise!

7
Stereo Vision

• Goal

• Recovery of 3D scene structure
• using two or more images,
• each acquired from a different viewpoint in space
• Using multiple cameras or one moving camera
• Term binocular vision is used when two cameras
  are employed

• Stereophotogrammetry
• Using stereo vision systems to measure properties
  (dimensions here) of a scene

8
Stereo Vision - Terminology
9
Stereo Vision

• Camera configuration
• Parallel opticalaxes

10
Stereo Vision

• Camera configuration
• Verging opticalaxes

Note that if the cameras are aligned so that the
scanlines of both cameras lie in the epipolar
planes, then matching pixels must lie in the same
scanline on both images. This is the epipolar
constraint.
11
Triangulation
Principle underlying stereo vision

• 3D location of any visible point in the scene
  must lie on the straight line that passes through
  the optical centre (centre of projection) and the
  projection of the point on the image plane
• Binocular stereo vision determines the position
  of a point in the scene by finding the
  intersection of the two lines passing through the
  optical centres and the projection of the point
  in each image

12
Stereo Vision

• Two problems

• Correspondence problem.
• Reconstruction problem.

• Correspondence problem

• Finding pairs of matched points in each image
  that are projections of the same scene point
• Triangulation depends on solution of the
  correspondence problem

13
Stereo Vision

• Correspondence problem

• Ambiguous correspondence between points in the
  two images may lead to several different
  consistent interpretations of the scene
• Problem is fundamentally ill-posed

Possible scene points
Actual scene points
14
Reconstruction

• Having found the corresponding points, we can
  compute the disparity map
• Disparity maps are commonly expressed in pixels
• ie number of pixels between corresponding points
  in two images
• Disparity map can be converted to a 3D map of the
  scene if the geometry of the imaging system is
  known
• Critical parameters Baseline, camera focal
  length, pixel size

15
Reconstruction

• Determining depth
• In a coordinate space based on the optical centre
  of the left camera
• A scene point, P ( Xl , Yl , Zl ) is projected
  on to the image plane at ( xl , yl ) where
• Similarly, in a coordinate space based on the
  optical centre of the right camera
• A scene point, P ( Xr , Yr , Zr ) is projected
  on to the image plane at ( xr , yr ) where

• In general, the two cameras are related by a
  rotation, R, and a translation, T

16
Reconstruction

• Determining depth

• If P (Xl,Yl,Zl) in a coordinate space based on
  the optical centre of the left camerafrom its
  projections, pl and pr ,use the pinhole camera
  projection relations

• In general, the two cameras are related by a
  rotation, R, and a translation, T

• Parallel camera optical axes ? Zr Zl Z and
  Xr Xl T so we have

where d xl xr is the
disparity - the difference in position between
the corresponding points in the two images,
commonly measured in pixels
17
Reconstruction

• Determining depth

• To recover the position of P from its
  projections, pl and pr

• In general, the two cameras are related by a
  rotation, R, and a translation, T

• Parallel camera optical axes ? Zr Zl Z and
  Xr Xl T so we have

where d xl xr is the
disparity - the difference in position between
the corresponding points in the two images,
commonly measured in pixels
18
Reconstruction

• Recovering depth
• where T is the baseline
• If disparity, d, is measured in pixels,then
• d xl xr dp
• where p is the width of a pixel in the image
  plane,then we have
• Z Tf / dp

Note the reciprocal relationship between
disparity and depth! This is particularly
relevant when considering the accuracy of stereo
photogrammetry
19
Stereo Camera Configuration

• Standard CaseTwo cameras with parallel optical
  axes

b baseline (camera separation) q camera
angular FoV Dsens sensor width n number of
pixels p pixel width f focal length a
object extent D distance to object
20
Stereo Camera Configuration
Points along these lineshave the same L?R
displacement (disparity)

• Canonical configuration
• Two cameras with parallel optical axes
• Rays are drawn through each pixel in the image
• Ray intersections represent points imaged onto
  the centre of each pixel

• but
• An object must fit into the Common Field of
  View

21
Stereo Vision

• Configuration parameters

• Intrinsic parameters
• Characterize the transformation from image plane
  coordinates to pixel coordinates in each camera
• Parameters intrinsic to each camera
• Extrinsic parameters (R, T)
• Describe the relative position and orientation of
  the two cameras

• Can be determined from the extrinsic parameters
  of each camera

22
Correspondence Problem

• Why is the correspondence problem difficult?

• Some points in each image will have no
  corresponding points in the other image
• They are not binocularly visible or
• They are only monocularly visible
• Cameras have different fields of view
• Occlusions may be present
• A stereo system must be able to determine parts
  that should not be matched

These two are equivalent!
23
The Correspondence Problem

• Methods for establishing correspondences

• Two issues
• How to select candidate matches?
• How to determine the goodness of a match?
• Two main classes of correspondence (matching)
  algorithm
• Correlation-based
• Attempt to establish a correspondence by matching
  image intensities usually over a window of
  pixels in each image
• Dense disparity maps
• Distance is found for all BV image points
• Except occluded (MV) points
• Feature-based
• Attempt to establish a correspondence by matching
  a sparse sets of image features usually edges
• Disparity map is sparse
• Number of points is related to the number of
  image features identified

24
Correlation-Based Methods

• Match image sub-windows in the two images using
  image correlation
• oldest technique for finding correspondence
  between image pixels
• Scene points must have the same intensity in each

• Assumes
• All objects are perfect Lambertian scatterers
• ie the reflected intensity is not dependent on
  angle or objects scatter light uniformly in all
  directions
• Informally matte surfaces only
• Fronto-planar surfaces
• (Visible) surfaces of all objects are
  perpendicularto camera optical axes

25
Correlation-Based Methods
26
Correlation-Based Methods

• Usually, we normalize c(d) by dividing it by the
  standard deviation of both Il and Ir (normalized
  cross-correlation, c(d) ? 0,1)

where and are the average pixel values in
the left and right windows.

• An alternative similarity measure is the sum of
  squared differences (SSD)

• Experiment shows that the simpler sum of absolute
  differences (SAD) is just as good

c(d) ? ? Il(ik,jl) Ir(ik-d,jl)
27
Correlation-Based Methods

• Problem
• Two cameras with slightly different viewpoints
• Electronic gain (contrast) and dark noise
  (offset) differ slightly
• Different maximum and minimum intensities
• Simple intensity matching fails
• Slightly different scattered intensities
• Scene objects are not perfect Lambertian
  scatterers

28
Correlation-Based Methods

• Improvements
• Do not use image intensity values, use intensity
  gradients instead!
• One scheme calculates thresholded signed gradient
  magnitudes at each pixel
• Compute the gradient magnitude at each pixel in
  the two images without smoothing
• Map the gradient magnitude values into three
  values -1, 0, 1 (by thresholding the gradient
  magnitude)
• More sensitive correlations are produced this way
• several dozen moresee Scharstein Szeliski,
  2001 and the Middlebury web pages for a review
• Many matching functions can be used with varying
  success!!

29
Correlation-Based Methods

• Comments

• The success of correlation-based methods depends
  on whether the image window in one image exhibits
  a distinctive structure that occurs infrequently
  in the search region of the other image.
• How to choose the size of the window, W?

• too small a window
• may not capture enough image structure and
• may be too noise sensitive
• many false matches
• too large a window
• makes matching less sensitive to noise (desired)
  but also
• decreases precision(blurs disparity map)
• An adaptive searching window has been proposed

30
Correlation-Based Methods
Input Ground truth
3x3 window Too noisy!
7x7 window Sharp edges are blurred!
Adaptive window Sharp edges and less noise
31
Correlation-Based Methods
32
Correlation-Based Methods

• Comments

• How to choose the size and location of R(pl)?

• if the distance of the fixating point from the
  cameras is much larger than the baseline, the
  location of R(pl) can be chosen to be the same as
  the location of pl
• the size of R(pl) can be estimated from the
  maximum range of distances we expect to find in
  the scene
• we will see that the search region can always be
  reduced to a line

33
Feature-Based Methods

• Main idea

• Look for a feature in an image that matches a
  feature in the other.
• Typical features used are
• edge points
• line segments
• corners (junctions)

34
Feature-Based Methods

• A set of features is used for matching
• a line feature descriptor, for example, could
  contain

• length, l
• orientation, ?
• coordinates of the midpoint, m
• average intensity along the line, i

• Similarity measures are based on matching feature
  descriptors

where w0, ..., w3 are weights (determining the
weights that yield the best matches is a
nontrivial task).
35
Feature-Based Methods
36
Correlation vs. feature-based approaches

• Correlation methods
• Easier to implement
• Provide a dense disparity map (useful for
  reconstructing surfaces)
• Need textured images to work well (many false
  matches otherwise)
• Do not work well when viewpoints are very
  different, due to
• change in illumination direction
• Objects are not perfect (Lambertian) scatterers
• foreshortening
• perspective problem surfaces are not
  fronto-planar

• Feature-based methods
• Suitable when good features can be extracted from
  the scene
• Faster than correlation-based methods
• Provide sparse disparity maps
• OK for applications like visual navigation
• Relatively insensitive to illumination changes

37
Other correspondence algorithms

• Dynamic programming (GimelFarb)
• Finds a path through an image which provides
  the least-cost match
• Can allow for occlusions (Birchfield and Tomasi)
• Generally provide better results than area-based
  correlation
• Faster than correlation
• Graph Cut (Zabih et al)
• Seems to provide best results
• Very slow
• Concurrent Stereo Matching
• Examine all possible matches in parallel (Delmas,
  GimelFarb, Morris, work in progress)
• Uses a model of image noise instead of arbitrary
  weights in cost functions
• Suitable for real-time parallel hardware
  implementation

38
Other correspondence algorithms

• and many more!!
• See the Middlebury Stereo page for examples and
  performance comparisons
• vision.middlebury.edu/stereo/
