Advanced Game Design

1

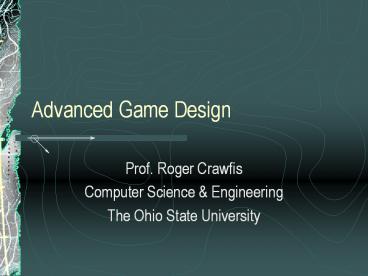

Advanced Game Design

• Prof. Roger Crawfis
• Computer Science Engineering
• The Ohio State University

2
Course Overview

• Project-based / Team-based
• Little lecturing
• Focus on programming for games
• Systems integration graphics, sound, AI,
  networking, user-interfaces, physics, scripting
• Utilize higher-level toolkits, allowing for more
  advanced progress while still developing
  programming skills.

3
Course Structure

• I will lecture for about the first week and a
  half.
• Student game project groups will provide several
  presentations on their game ideas and progress.
• Student technology teams will provide an
  intermediate and an advanced lecture on their
  findings and analysis about their area.

4
Project Goals

• Large-scale software development
• Team-based (synergistic development)
• Toolkit-based (fast-start development)
• Learn and utilize the many non-graphical elements
  needed for games.
• Leverage and extend your software engineering,
  graphics, AI, , expertise.

5
Elements

• Gaming Engine
• Responsible for providing primitives
• Hardware abstraction
• Handle different areas of the game
• Physics, AI, etc.
• Game
• Defined by a genre
• Defines the gameplay

6
Requirements of a gaming engine

• Stunning Visuals
• Immersive sound stage
• Varied input/output devices
• Scalability
• Simulation
• Animation
• Networking

7
Requirements of a game

• Scripting
• Artificial Intelligence
• Supporting Tools
• Optimizing game content
• Developing game content
• Extending game content
• Debugging / Tuning of game performance

8
Stunning Visuals

• Adding realism
• Smarter Models
• Use hardware
• Bump-mapping
• Dynamic water or other liquids
• Rich textures (Billboards, gloss-maps,
  light-maps, etc.)
• Shadows
• Particle systems

9
Immersive sound stage

• Multi-track sound support
• Positional sound effects (3D immersion)
• Dynamic sounds / movement (doppler effects)

10
Input devices

• Commonly available devices are
• Keyboard, mouse, gamepads and joysticks
• Force feedback (haptic) devices are gaining
  popularity
• Steering wheels
• Joysticks
• Motion tracking
• Output devices
• Multiple monitors
• Head mounted displays

11
Scalability

• Multiple hardware capabilities
• Multi-resolution models
• Multi-user support
• LOD
• Multiple model definitions
• Multi-res models
• Subdivision surfaces

12
Simulation

• Virtual worlds are all good to look at
• Immersion breaks when real world physics are not
  applied
• So we need
• Collision detection
• Collision response

13
Animation

• Linear transformations
• Modeled animations
• Articulated motion
• Lip syncing
• Facial Expressions
• Blending animations

14
Networking

• Multi-player support essential
• Common problems
• Latency
• Synchronization
• Scalability
• Consistent game state
• Security

15
Scripting

• Strict coding is tedious
• Support for scripting is essential for RAD
• Scripting has added a whole new fun factor for
  many games.

16
Artificial Intelligence

• Games need specialized AI
• Strategy
• Path finding
• Modeling behavior
• Learning
• Non-perfect!
• Fast!

17
Tools

• Creating varied content
• models, video, images, sound
• Integrating content
• Common file format support
• Supporting existing popular tools via plug-ins
• 3DS Max, Lightwave, Maya etc.
• Adobe premier, Adobe Photoshop

18
Interactive Programs

• Games are interactive systems - they must respond
  to the user
• How?

19
Interactive Program Structure

• Event driven programming
• Everything happens in response to an event
• Events come from two sources
• The user
• The system
• Events are also called messages
• An event causes a message to be sent

Initialize
User Does Something or Timer Goes Off
System Updates
20
User Events

• The OS manages user input
• Interrupts at the hardware level
• Get converted into events in queues at the
  windowing level
• Are made available to your program
• It is generally up to the application to make use
  of the event stream
• Windowing systems may abstract the events for you

21
System Events

• Windowing systems provide timer events
• The application requests an event at a future
  time
• The system will provide an event sometime around
  the requested time. Semantics vary
• Guaranteed to come before the requested time
• As soon as possible after
• Almost never right on (real-time OS?)

22
Polling for Events
while ( true ) if ( e checkEvent() ) switch
( e.type ) do more work

• Most windowing systems provide a non-blocking
  event function
• Does not wait for an event, just returns NULL if
  one is not ready
• What type of games might use this structure?
• Why wouldnt you always use it?

23
Waiting for Events
e nextEvent() switch ( e.type )

• Most windowing systems provide a blocking event
  function
• Waits (blocks) until an event is available
• Usually used with timer events. Why?
• On what systems is this better than the previous
  method?
• What types of games is it useful for?

24
The Callback Abstraction

• A common event abstraction is the callback
  mechanism
• Applications register functions they wish to have
  called in response to particular events
• Translation table says which callbacks go with
  which events
• Generally found in GUI (graphical user interface)
  toolkits
• When the button is pressed, invoke the callback
• Many systems mix methods, or have a catch-all
  callback for unclaimed events
• Why are callbacks good? Why are they bad?

25
Upon Receiving an Event

• Event responses fall into two classes
• Task events The event sparks a specific task or
  results in some change of state within the
  current mode
• eg Load, Save, Pick up a weapon, turn on the
  lights,
• Call a function to do the job
• Mode switches The event causes the game to shift
  to some other mode of operation
• eg Start game, quit, go to menu,
• Switch event loops, because events now have
  different meanings
• Software structure reflects this - menu system is
  separate from run-time game system, for example

26
Real-Time Loop

• At the core of interactive games is a real-time
  loop
• What else might you need to do?
• The number of times this loop executes per second
  is the frame rate
• frames per second (fps)

while ( true ) process events update animation
/ scene render
27
Lag

• Lag is the time between when a user does
  something and when they see the result - also
  called latency
• Too much lag and causality is distorted
• With tight visual/motion coupling, too much lag
  makes people motion sick
• Big problem with head-mounted displays for
  virtual reality
• Too much lag makes it hard to target objects (and
  track them, and do all sorts of other perceptual
  tasks)
• High variance in lag also makes interaction
  difficult
• Users can adjust to constant lag, but not
  variable lag
• From a psychological perspective, lag is the
  important variable

28
Computing Lag

• Lag is NOT the time it takes to compute 1 frame!
• What is the formula for maximum lag as a function
  of frame rate, fr?
• What is the formula for average lag?

Process input
Event time
Frame time
Update state
Render
Lag
Process input
Update state
Render
Process input
29
Frame Rate Questions

• What is an acceptable frame rate for twitch
  games? Why?
• What is the maximum useful frame rate? Why?
• What is the frame rate for NTSC television?
• What is the minimum frame rate required for a
  sense of presence? How do we know?
• How can we manipulate the frame rate?

30
Frame Rate Answers (I)

• Twitch games demand at least 30fs, but the higher
  the better (lower lag)
• Users see enemys motions sooner
• Higher frame rates make targeting easier
• The maximum useful frame rate is the monitor
  refresh rate
• Time taken for the monitor to draw one screen
• Synchronization issues
• Buffer swap in graphics is timed with vertical
  sweep, so ideal frame rate is monitor refresh
  rate
• Can turn of synchronization, but get nasty
  artifacts on screen

31
Frame Rate Answers (II)

• NTSC television draws all the odd lines of the
  screen, then all the even ones (interlace format)
• Full screen takes 1/30th of a second
• Use 60fps to improve visuals, but only half of
  each frame actually gets drawn by the screen
• Do consoles only render 1/2 screen each time?
• It was once argued that 10fps was required for a
  sense of presence (being there)
• Head mounted displays require 20fps or higher to
  avoid illness
• Many factors influence the sense of presence
• Perceptual studies indicate what frame rates are
  acceptable

32
Reducing Lag

• Faster algorithms and hardware is the obvious
  answer
• Designers choose a frame rate and put as much
  into the game as they can without going below the
  threshold
• Part of design documents presented to the
  publisher
• Threshold assumes fastest hardware and all game
  features turned on
• Options given to players to reduce game features
  and improve their frame rate
• There is a resource budget How much of the loop
  is dedicated to each aspect of the game
  (graphics, AI, sound, )
• Some other techniques allow for more features and
  less lag

33
Decoupling Computation

• It is most important to minimize lag between the
  user actions and their direct consequences
• So the input/rendering loop must have low latency
• Lag between actions and other consequences may be
  less severe
• Time between input and the reaction of enemy can
  be greater
• Time to switch animations can be greater
• Technique Update different parts of the game at
  different rates, which requires decoupling them
• For example, run graphics at 60fps, AI at 10fps
• Done in Unreal engine, for instance

34
Animation and Sound

• Animation and sound need not be changed at high
  frequency, but they must be updated at high
  frequency
• For example, switching from walk to run can
  happen at low frequency, but joint angles for
  walking must be updated at every frame
• Solution is to package multiple frames of
  animation and submit them all at once to the
  renderer
• Good idea anyway, makes animation independent of
  frame rate
• Sound is offloaded to the sound card

35
Overview of Ogre3D

• Not a full-blown gameengine.
• Open-source
• Strong user community.
• Decent Software Engineering.
• Cool Logo

36
Features

• Graphics API independent 3D implementation
• Platform independence
• Material Shader support
• Well known texture formats png, jpeg, tga, bmp,
  dds, dxt
• Mesh support Milkshape3D, 3D Studio Max, Maya,
  Blender
• Scene features
• BSP, Octree plugins, hierarchical scene graph
• Special effects
• Particle systems, skyboxes, billboarding, HUD,
  cube mapping, bump mapping, post-processing
  effects
• Easy integration with physics libraries
• ODE, Tokamak, Newton, OPCODE
• Open source!

37
Core Objects
38
Startup Sequence

• ExampleApplication
• Go()
• Setup()
• Configure()
• setupResources()
• chooseSceneManager()
• createCamera()
• createViewport()
• createResourceListener()
• loadResources()
• createScene()
• frameStarted/Ended()
• createFrameListener()
• destroyScene()

39
Basic Scene

• Entity, SceneNode
• Camera, lights, shadows
• BSP map
• Integrated ODE physics
• BSP map
• Frame listeners

40
Terrain, sky, fog
41
CEGUI

• Window, panel, scrollbar, listbox, button, static
  text
• Media/gui/ogregui.layout
• CEGUIWindow sheet
• CEGUIWindowManagergetSingleton().loadWindowLay
  out( (CEGUIutf8)"ogregui.layout")
• mGUISystem-gtsetGUISheet(sheet)

42
Animation

• Node animation (camera, light sources)
• Skeletal Animation
• AnimationState mAnimationState
• mAnimationState ent-gtgetAnimationState("Idle")
• mAnimationState-gtsetLoop(true)
• mAnimationState-gtsetEnabled(true)
• mAnimationState-gtaddTime(evt.timeSinceLastFrame)

• mNode-gtrotate(quat)

43
Animation

• Crowd (instancing vs single entity)
• InstancedGeometry batch
• new InstancedGeometry(mCamera-gtgetSceneManager
  (), "robots" )
• batch-gtaddEntity(ent, Vector3ZERO)
• batch-gtbuild()
• Facial animation
• VertexPoseKeyFrame manualKeyFrame
• manualKeyFrame-gtaddPoseReference()
• manualKeyFrame-gtupdatePoseReference
  ( ushort poseIndex, Real influence)

44
Picking
45
Picking

• CEGUIPoint mousePos CEGUIMouseCursorgetSi
  ngleton().getPosition()
• Ray mouseRay
• mCamera-gtgetCameraToViewportRay(mo
  usePos.d_x/float(arg.state.width),
•
  mousePos.d_y/float(arg.state.height))
• mRaySceneQuery-gtsetRay(mouseRay)
• mRaySceneQuery-gtsetSortByDistance(fals
  e)
• RaySceneQueryResult result
  mRaySceneQuery-gtexecute()
• RaySceneQueryResultiterator
  mouseRayItr
• Vector3 nodePos
• for (mouseRayItr result.begin()
  mouseRayItr ! result.end() mouseRayItr)
• if (mouseRayItr-gtworldFragment)
• nodePos mouseRayItr-gtworldFr
  agment-gtsingleIntersection
• break
• // if

46
Particle Effects

• mSceneMgr-gtgetRootSceneNode()-gtcreateChildSceneNod
  e()-gtattachObject(
• mSceneMgr-gtcreateParticleSystem("s
  il", "Examples/sil"))
• Examples/sil
• material Examples/Flare2
• particle_width 75
• particle_height 100
• cull_each false
• quota 1000
• billboard_type oriented_self
• // Area emitter
• emitter Point
• angle 30
• emission_rate 75
• time_to_live 2
• direction 0 1 0

47
Particle Effects
Particle system attributes quota material particle_width particle_height cull_each billboard_type billboard_origin billboard_rotation_type common_direction common_up_vector renderer sorted local_space point_rendering accurate_facing iteration_interval nonvisible_update_timeout Emitter attributes (point, box, clyinder, ellipsoid, hollow ellipsoid, ring) angle colour colour_range_start colour_range_end direction emission_rate position velocity velocity_min velocity_max time_to_live time_to_live_min time_to_live_max duration duration_min duration_max repeat_delay repeat_delay_min repeat_delay_max Affectors (LinearForce, ColorFader) Linear Force Affector ColourFader Affector ColourFader2 Affector Scaler Affector Rotator Affector ColourInterpolator Affector ColourImage Affector DeflectorPlane Affector DirectionRandomiser Affector
48
Fire and Smoke

• affector Rotator
• rotation_range_start 0
• rotation_range_end 360
• rotation_speed_range_start -60
• rotation_speed_range_end 200

49
Cel Shading

• vertex_program Ogre/CelShadingVP cg
• source Example_CelShading.cg
• entry_point main_vp
• default_params
• material Examples/CelShading
• vertex_program_ref Ogre/CelShadingVP
• fragment_program_ref Ogre/CelShadingFP

50
Cube Mapping

• With Perlin noise to distort vertices
• void morningcubemap_fp (
• float3 uv TEXCOORD0,
• out float4 colour COLOR,
• uniform samplerCUBE tex register(s0) )
• colour texCUBE(tex, uv)
• // blow out the light a bit
• colour 1.7

51
Bump Mapping


52
Reflections Refractions

• // Noise
• texture_unit
• // Perlin noise volume
• texture waves2.dds
• // min / mag filtering, no mip
• filtering linear linear none
• // Reflection
• texture_unit
• // Will be filled in at runtime
• texture Reflection
• tex_address_mode clamp
• // needed by ps.1.4
• tex_coord_set 1
• // Refraction
• texture_unit

53
Reflections Refractions
54
Grass

• Each grass section is 3 planes at 60 degrees to
  each other
• Normals point straight up to simulate correct
  lighting

55
Post-Processing Effects
56
Supporting tools (add-ons)

• Blender, Autodesk 3DS, Milkshape3D, Softimage XSI
  importers/exporters
• Particle editors, mesh viewers
• GUI editors
• Physics bindings
• Scene exporters and lots more
• Add-on site

57
References

• http//www.ogre3d.org/

58
Design Patterns

• First, an aside on Design Patterns

59
Ogre Foundations

• Root
• RenderSystem
• SceneManager
• ResourceManager

60
Ogre Foundations

• Mesh
• Entity
• Material
• Overlay OverlayElement, OverlayContainer,
  OverlayManager
• Skeletal Animation

61
(No Transcript)
