Chapter 11 Nervous System II

1

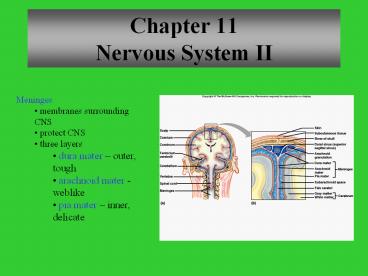

Chapter 11Nervous System II

• Meninges
• membranes surrounding CNS
• protect CNS
• three layers
• dura mater outer, tough
• arachnoid mater - weblike
• pia mater inner, delicate

2
Meninges of the Spinal Cord
3
Ventricles

• interconnected cavities
• within cerebral hemispheres and brain stem
• continuous with central canal of spinal cord
• filled with cerebrospinal fluid (csf)

• lateral ventricles
• third ventricle
• fourth ventricle
• cerebral aqueduct

4
Cerebrospinal Fluid

• secreted by choroid plexus
• circulates in ventricles, central canal of
  spinal cord, and subarachnoid space
• completely surrounds brain and spinal cord
• clear liquid
• nutritive and protective
• helps maintain stable ion concentrations in CNS

5
Spinal Cord Structure

• extends foramen magnum to 2nd lumbar vertebra

6
Cross Section of Spinal Cord
7
Spinal Cord Functions

• center for spinal reflexes

• conduit for nerve impulses to and from the brain

8
Reflex Arcs
Reflexes automatic, subconscious responses to
stimuli
9
Knee-jerk Reflex

• helps maintain posture

10
Withdrawal Reflex

• protective

11
Crossed-Extensor Reflex

• flexor muscles contract
• flexor muscles on opposite side inhibited
• extensor muscles on opposite side contract for
  balance

12
Tracts of the Spinal Cord

• Ascending tracts conduct sensory impulses to the
  brain
• Descending tracts conduct motor impulses from
  the brain to motor neurons reaching muscles and
  glands

13
Ascending Tracts

• fasciculus cuneatus
• lateral spinothalamic

14
Corticospinal Tract
15
Brain

• Functions
• interprets sensations
• determines perception
• stores memory
• reasoning
• makes decisions
• coordinates muscular movements
• regulates visceral activities
• determines personality

• Major Parts
• cerebrum
• two cerebellar hemispheres
• diencephalon
• brain stem
• cerebellum

16
Brain Development

• Three Major Vesicles
• Forebrain
• Midbrain
• Hindbrain

• Forebrain (prosencephalon)
• anterior portion (telencephalon)
• cerebrum
• basal ganglia
• posterior portion (diencephalon)
• thalamus
• hypothalamus
• posterior pituitary
• pineal gland

17
Brain Development

• Midbrain (mesencephalon)
• midbrain

• Hindbrain (rhombencephalon)
• anterior portion (metencephalon)
• cerebellum
• pons
• posterior portion (myelencephalon)
• medulla oblongata

18
Structure of Cerebrum

• corpus callosum
• connects hemispheres
• convolutions
• bumps or gyri
• sulci
• grooves
• longitudinal fissure
• separates hemispheres
• transverse fissure
• separates cerebrum from cerebellum

19
Lobes of Cerebrum

• Frontal
• Parietal
• Temporal
• Occipital
• Insula

20
Functions of Cerebrum

• interpretation
• initiating voluntary movements
• storing memory
• retrieving memory
• reasoning
• center for intelligence and personality

21
Functional Regions of Cerebral Cortex
Cerebral Cortex thin layer of gray matter that
constitutes the outermost portion of cerebrum
contains 75 of all neurons in nervous system
22
Motor Areas

• Primary Motor Areas
• frontal lobes
• control voluntary muscles

• Brocas Area
• anterior to primary motor cortex
• usually in one hemisphere
• controls muscles needed for speech

• Frontal Eye Field
• above Brocas area
• controls voluntary movements of eyes and eyelids

23
Motor Areas
24
Sensory Areas

• Cutaneous Sensory Area
• parietal lobe
• interprets sensations on skin

• Visual Area
• occipital lobe
• interprets vision

• Auditory Area
• temporal lobe
• interprets hearing

25
Sensory Areas
26
Association Areas

• regions of cortex that are not primary motor or
  primary sensory areas
• widespread throughout the cerebral cortex
• analyze and interpret sensory experiences
• provide memory, reasoning, verbalization,
  judgment, emotions

27
Association Areas

• Frontal Lobe Association Areas
• concentrating
• planning
• problem solving
• judging

• Temporal Lobe Association Areas
• remember visual scenes
• remember music
• remember complex patterns

• Parietal Lobe Association Areas
• understanding speech
• using words to express thought

• Occipital Lobe Association Areas
• combine visual images with other sensory
  experiences

28
Hemisphere Dominance

• In over 90 of population, left hemisphere is
  dominant

• Nondominant hemisphere controls
• nonverbal tasks
• motor tasks
• understanding and interpreting musical and
  visual patterns
• provides emotional and intuitive thought
  processes

• Dominant hemisphere controls
• speech
• writing
• reading
• verbal skills
• analytical skills
• computational skills

29
Memory

• Short Term
• working memory
• closed circuit
• circuit is stimulated over and over
• when impulse flow stops, memory disappears

• Long Term
• changes structure and function of neurons
• enhanced synaptic transmission

30
Basal Nuclei

• masses of gray matter
• deep within cerebral hemispheres
• caudate nucleus, putamen, globus pallidus
• produce dopamine
• control certain muscular activities

31
Diencephalon

• between cerebral hemispheres and brainstem
• surrounds third ventricle

• thalamus
• hypothalamus
• optic tracts
• optic chiasm
• infundibulum
• posterior pituitary
• mammillary bodies
• pineal gland

32
Diencephalon

• Thalamus
• gateway for sensory impulses heading to cerebral
  cortex
• receives all sensory impulses (except smell)
• channels impulses to appropriate part of
  cerebral cortex for interpretation

• Hypothalamus
• maintains homeostasis by regulating visceral
  activities
• links nervous and endocrine systems

33
Limbic System

• Consists of
• portions of frontal lobe
• portions of temporal lobe
• hypothalamus
• thalamus
• basal nuclei
• other deep nuclei

• Functions
• controls emotions
• produces feelings
• interpret sensory impulses

34
Brain Stem

• Three Parts
• Midbrain
• Pons
• Medulla Oblongata

35
Midbrain

• between diencephalon and pons
• contains bundles of fibers that join lower parts
  of brainstem and spinal cord with higher part of
  brain
• cerebral aqueduct
• cerebral peduncles bundles of nerve fibers
• corpora quadrigemina centers for visual and
  auditory reflexes

36
Pons

• rounded bulge on underside of brainstem
• between medulla oblongata and midbrain
• helps regulate rate and depth of breathing
• relays nerve impulses to and from medulla
  oblongata and cerebellum

37
Medulla Oblongata

• enlarged continuation of spinal cord
• conducts ascending and descending impulses
  between brain and spinal cord
• contains cardiac, vasomotor, and respiratory
  control centers
• contains various nonvital reflex control centers
  (coughing, sneezing, vomiting)

38
Reticular Formation

• complex network of nerve fibers scattered
  throughout the brain stem
• extends into the diencephalon
• connects to centers of hypothalamus, basal
  nuclei, cerebellum, and cerebrum
• filters incoming sensory information
• arouses cerebral cortex into state of wakefulness

39
Types of Sleep

• Slow Wave
• person is tired
• decreasing activity of reticular system
• restful
• dreamless
• reduced blood pressure and respiratory rate
• ranges from light to heavy
• alternates with REM sleep

• Rapid Eye Movement (REM)
• some areas of brain active
• heart and respiratory rates irregular
• dreaming occurs

40
Cerebellum

• inferior to occipital lobes
• posterior to pons and medulla oblongata
• two hemispheres
• vermis connects hemispheres
• cerebellar cortex gray matter
• arbor vitae white matter
• cerebellar peduncles nerve fiber tracts
• dentate nucleus largest nucleus in cerebellum
• integrates sensory information concerning
  position of body parts
• coordinates skeletal muscle activity
• maintains posture

41
Peripheral Nervous System

• Cranial nerves arising from the brain
• Somatic fibers connecting to the skin and
  skeletal muscles
• Autonomic fibers connecting to viscera

• Spinal nerves arising from the spinal cord
• Somatic fibers connecting to the skin and
  skeletal muscles
• Autonomic fibers connecting to viscera

42
Structure of a Peripheral Nerve
43
Nerve Fiber Classification

• Sensory Nerves conduct impulses into CNS
• Motor Nerves conduct impulses to muscles or
  glands
• Mixed Nerves contain both sensory nerve fibers
  and motor nerve fibers most nerves

• General somatic afferent fibers
• carry sensory impulses to CNS from skin and
  skeletal muscles

• General somatic efferent fibers
• carry motor impulses from CNS to skeletal muscles

• General visceral efferent fibers
• carry motor impulses away from CNS to smooth
  muscles and glands

• General visceral afferent fibers
• carry sensory impulses to CNS from blood vessels
  and internal organs

44
Nerve Fiber Classification

• Special somatic efferent fibers
• carry motor impulses from brain to muscles used
  in chewing, swallowing, speaking, and forming
  facial expressions

• Special visceral afferent fibers
• carry sensory impulses to brain from olfactory
  and taste receptors

• Special somatic afferent fibers
• carry sensory impulses to brain from receptors
  of sight, hearing, and equilibrium

45
Cranial Nerves
46
Cranial Nerves I and II

• Olfactory (I)
• sensory
• fibers transmit impulses associated with smell

• Optic (II)
• sensory
• fibers transmit impulses associated with vision

47
Cranial Nerves III and IV

• Trochlear (IV)
• primarily motor
• motor impulses to muscles that move the eyes

• Oculomotor (III)
• primarily motor
• motor impulses to muscles that
• raise eyelids
• move the eyes
• focus lens
• adjust light entering eye

48
Cranial Nerve V

• Trigeminal (V)
• mixed
• opthalmic division
• sensory from surface of eyes, tear glands,
  scalp, forehead, and upper eyelids
• maxillary division
• sensory from upper teeth, upper gum, upper lip,
  palate, and skin of face
• mandibular division
• sensory from scalp, skin of jaw, lower teeth,
  lower gum, and lower lip
• motor to muscles of mastication and muscles in
  floor of mouth

49
Cranial Nerves VI and VII

• Abducens (VI)
• primarily motor
• motor impulses to muscles that move the eyes

• Facial (VII)
• mixed
• sensory from taste receptors
• motor to muscles of facial expression, tear
  glands, and salivary glands

50
Cranial Nerves VIII and IX

• Glossopharyngeal (IX)
• mixed
• sensory from pharynx, tonsils, tongue, and
  carotid arteries
• motor to salivary glands and muscles of pharynx

• Vestibulocochlear (VIII)
• sensory
• sensory from equilibrium receptors of ear
• sensory from hearing receptors

51
Cranial Nerve X

• Vagus (X)
• mixed
• somatic motor to muscles of speech and
  swallowing
• autonomic motor to viscera of thorax and abdomen
• sensory from pharynx, larynx, esophagus, and
  viscera of thorax and abdomen

52
Cranial Nerves XI and XII

• Accessory (XI)
• primarily motor
• motor to muscles of soft palate, pharynx,
  larynx, neck, and back

• Hypoglossal (XII)
• primarily motor
• motor to muscles of the tongue

53
Spinal Nerves

• mixed nerves
• 31 pairs
• 8 cervical (C1 to C8)
• 12 thoracic (T1 to T12)
• 5 lumbar (L1 to L5)
• 5 sacral (S1 to S5)
• 1 coccygeal (Co)

54
Spinal Nerves

• Dorsal root
• axons of sensory neurons in the dorsal root
  ganglion

• Dorsal root ganglion
• cell bodies of sensory neurons

• Ventral root
• axons of motor neurons whose cell bodies are in
  spinal cord

• Spinal nerve
• union of ventral root and dorsal root

55
Dermatome

• an area of skin that the sensory nerve fibers of
  a particular spinal nerve innervate

56
Cervical Plexus
Nerve plexus complex networks formed by
anterior branches of spinal nerves fibers of
various spinal nerves are sorted and recombined

• Cervical Plexus
• C1-C4
• lies deep in the neck
• supply muscles and skin of the neck
• contribute to phrenic nerve

57
Brachial Plexus

• C5-T1
• lies deep within shoulders
• musculocutaneous nerves
• supply muscles of anterior arms and skin of
  forearms
• ulnar nerves
• supply muscles of forearms and hands
• supply skin of hands
• radial nerves
• supply posterior muscles of arms and skin of
  forearms and hands
• axillary nerves
• supply muscles and skin of superior, lateral,
  and posterior arms

58
Lumbosacral Plexus

• T12 S5
• extend from lumbar region into pelvic cavity
• obturator nerves
• supply adductors of thighs
• femoral nerves
• supply muscles and skin of thighs and legs
• sciatic nerves
• supply muscles and skin of thighs, legs, and feet

59
Autonomic Nervous System

• functions without conscious effort
• controls visceral activities
• regulates smooth muscle, cardiac muscle, and
  glands
• efferent fibers typically lead to ganglia
  outside CNS

• Two Divisions
• sympathetic prepares body for fight or flight
  situations
• parasympathetic prepares body for resting and
  digesting activities

60
Autonomic Nerve Fibers

• all are motor (efferent)
• preganglionic fibers
• axons of preganglionic neurons
• neuron cell bodies in CNS
• postganglionic fibers
• axons of postganglionic neurons
• neuron cell bodies in ganglia

61
Sympathetic Division

• thoracolumbar divison location of
  preganglionic neurons

• preganglionic fibers leave spinal nerves through
  white rami and enter paravertebral ganglia

• paraverterbral ganglia and fibers that connect
  them make up the sympathetic trunk

62
Sympathetic Division

• postganglionic fibers extend from sympathetic
  ganglia to visceral organs

• postganglionic fibers usually pass through gray
  rami and return to a spinal nerve before
  proceeding to an effector

• preganglionic fibers to adrenal medulla do not
  synapse with postganglionic neurons

63
Sympathetic Division
64
Parasympathetic Division

• craniosacral division location of
  preganglionic neurons

• preganglionic fibers of the head in III, VII,
  and IX

• ganglia are near or within various organs

• preganglionic fibers of thorax and abdomen in X

• short postganlionic fibers

65
Parasympathetic Division
66
Autonomic Neurotransmitters

• Cholinergic Fibers
• release acetylcholine
• preganglionic sympathetic fibers
• preganglionic parasympathetic fibers
• postganglionic parasympathetic fibers

• Adrenergic Fibers
• release norepinephrine
• postganglionic sympathetic fibers

67
Actions of AutonomicNeurotransmitters

• depend on receptor

• Cholinergic receptors
• bind to acetlycholine
• muscarinic
• excitatory
• nicotinic
• excitatory

• Adrenergic Receptors
• bind to norepinephrine
• alpha
• different responses on various effectors
• beta
• different responses on various effectors

68
Insert figure 11.39
Actions of AutonomicNeurotransmitters
69
Control of Autonomic Activity

• Controlled largely by CNS
• Medulla oblongata regulates cardiac, vasomotor
  and respiratory activities
• Hypothalamus regulates visceral functions
• Limbic system and cerebral cortex control
  emotional responses

70
Life-Span Changes

• Brain cells begin to die before birth
• Over average lifetime, brain shrinks 10
• Most cell death occurs in temporal lobes
• By age 90, frontal lobe has lost half its
  neurons
• Number of dendritic branches decreases
• Decreased levels of neurotransmitters
• Fading memory
• Slowed responses and reflexes
• Changes increase risk of falling
• Sleep problems common

71
Clinical Application
Cerebral Injuries and Abnormalities

• Concussion
• brain jarred against cranium
• loss of consciousness
• temporary loss of memory
• mental cloudiness
• headache
• recovery usually complete

• Cerebral Palsy
• motor impairment at birth
• caused by blocked cerebral blood vessels during
  development
• seizues
• learning disabilities

• Cerebrovascular Accident
• stroke
• sudden interruption in blood flow
• brain tissues die

72
TABLES FOR CHAPTER 11
73
(No Transcript)
74
(No Transcript)
75
(No Transcript)
76
(No Transcript)
77
(No Transcript)
78
(No Transcript)
79
(No Transcript)
80
(No Transcript)
81
(No Transcript)
82
(No Transcript)
