University of Alabama in Huntsville NMI Testing and Experiences

1

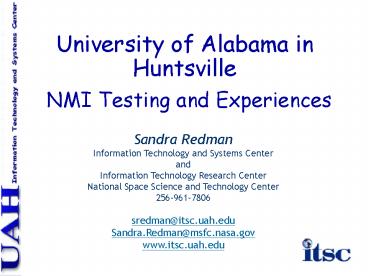

University of Alabama in Huntsville NMI Testing
and Experiences
Sandra Redman Information Technology and Systems
Center and Information Technology Research
Center National Space Science and Technology
Center 256-961-7806 sredman_at_itsc.uah.edu Sandra.R
edman_at_msfc.nasa.gov www.itsc.uah.edu
2
Improving Data Usability

• Advanced Applications Development
• Data organization and management for archival and
  analysis
• Data Mining in real-time and for post run
  analysis
• Interchange Technologies for improved data
  exploitation
• Semantics to transform data exploitation via
  intelligent automated processing
• Exploiting Technology
• Grid technologies for seamless access to multiple
  computational and data resources into a virtual
  computing environment
• Cluster technologies for high speed parallel
  computation, for multiple agent computations, and
  other applications
• High-performance networking for advanced
  applications development and high performance
  connectivity
• Next generation technologies in videoconferencing
  and electronic collaboration

3
Exploiting Technology to Improve Data Usability
Distributed Immersive Collaborative Environments
Real-time Data Fusion Information Delivery
Customized knowledge delivery
GRID Processing
Knowledge Discovery
On-Board Mining
Adaptive/learning
Increasing Capability
Custom Order Processing
3D and 4D distributed dynamic data fusion
Visual navigation aides
Earth Science Markup Language (ESML)
Data Mining
Time
Now
Future
4
Data Usability Success Builds on the Integration
of User Domains and Information Technology

• Information Technology Scientists
• Information Science Research
• Knowledge Management
• Data Exploitation

• Domain Scientists and Engineers
• Research and Analysis
• Data Set Development

• Collaborations
• Accelerate research process
• Maximize knowledge discovery
• Minimize data handling
• Contribute to both fields

Domain Scientists and Engineers
Information Scientists
5
Data Mining

• Automated discovery of patterns, anomalies from
  vast observational data sets
• Derived knowledge for decision making,
  predictions and disaster response
• http//datamining.itsc.uah.edu

6
Mining Environment When, Where, Who and Why?

• WHERE
• User Workstation
• Data Mining Center
• Cluster
• Grid
• On-board

• WHEN
• Real Time
• On-Ingest
• On-Demand
• Repeatedly

• WHO
• End Users
• Domain Experts
• Mining Experts

• WHY
• Event
• Relationship
• Association
• Corroboration
• Collaboration

Data Mining
7
Creating a Successful Environment for Data Mining

• Provide scientists with the capabilities to allow
  the flexibility of creative scientific analysis
• Provide data mining benefits of
• Automation of the analysis process
• Reducing data volume
• Provide a framework to allow a well defined
  structure to the entire process
• Provide a suite of mining algorithms for creative
  analysis that can adapt to new hypotheses
• Provide capabilities to add science algorithms
  to the environment
• Exploit emerging technologies in computational
  and data grids, high-performance networks, and
  collaborative environments

8
Algorithm Development and Mining System (ADaM) -
System Overview

• Consists of over 100 interoperable mining and
  image processing components
• Each component is provided with a C application
  programming interface (API), an executable in
  support of scripting tools (e.g. Perl, Python,
  Tcl, Shell)
• ADaM components are lightweight and autonomous,
  and have been used successfully in a grid
  environment
• ADaM has several translation components that
  provide data level interoperability with other
  mining systems (such as WEKA and Orange), and
  point tools (such as libSVM and svmLight)
• Components include Python wrappers and web
  service interfaces
• Visualization of results easily accomplished with
  various visualization packages

9
ADaM Components
10
Current Mining Environments

• Multiple Configurations
• Complete System (Client and Engine)
• Mining Engine (User provides its own client)
• Application Specific Mining Systems
• Operations Tool Kit
• Stand Alone Mining Algorithms
• Distributed/Federated/Grid Mining
• Distributed services
• Distributed data
• Chaining using Interchange Technologies
• On-board Mining
• Real time and distributed mining
• Processing environment constraints
• Space-based/ground-based/unmanned

11
ADaM Feature Subset Selection application chosen
for testing

• Supervised pattern classification is a technique
  important in many domains
• Used to improve both the runtime and accuracy of
  a supervised pattern classifier by eliminating
  noisy, irrelevant or redundant attributes or
  features from the data set.
• Feature subset selection is the process of
  choosing a subset of the features from the
  original data set in order to maximize classifier
  accuracy
• Both processor and data-intensive

12
Parallel Version of Cloud Extraction

• GOES images used to recognize cumulus cloud
  fields
• Cumulus clouds are small and do not show up well
  in 4km resolution IR channels
• Detection of cumulus cloud fields in GOES can be
  accomplished by using texture features or edge
  detectors

Master
Slave 1
Slave 2
Slave 3
GOES Image
Laplacian Filter
Sobel Horizontal Filter
Sobel Vertical Filter
Energy Computation
Energy Computation
Energy Computation
Energy Computation
Classifier
Cloud Image
GOES Image
Cumulus Cloud Mask
Three edge detection filters are used
together to detect cumulus clouds which lends
itself to implementation on a parallel cluster
13
Feature Subset Selection Testing

• Application ported to linux
• Support Vector Machine downloaded and tested
• Developed application scripts
• Modified for Globus environment by writing simple
  Globus RSL file
• Ran each combination of tools on a different node
  on the grid
• Globus used to execute jobs on different machines
• Experimented with both real and synthetic data

14
Early Findings (NMI R2)

• Globus documentation improved, installation
  trouble-free, application port straight-forward
• No problems encountered during Condor-G
  installation, but found problem with Condor-G
  under Redhat linux 7.3 when using nss_ldap.
  Developer provided workaround - start name
  service caching daemon (nscd)
• GSI-OpenSSH installed, but Kerberos
  authentication did not work since linux was not
  compiled with PAM option (undocumented)
• Network Weather Service installed, but learned we
  are more interested in MDS

15
MEADModeling Environment for Atmospheric
Discovery

• One of the NSF PACI Alliance research Expeditions
• Expeditions ensure intense collaboration among
  technology developers and application scientists
  and focus on the deployment of infrastructure
  that supports computational science and
  engineering and science in a variety of
  disciplines.
• MEADs focus is on retrospective analysis of
  hurricanes and severe storms using the TeraGrid,
  integrating computation, grid workflow
  management, data management, model coupling, data
  analysis/mining, and visualization.

16
MEAD

• Science Objective
• To investigate different thunderstorm cell
  interactions favorable for subsequent tornado
  (mesocyclone) formation
• Approach
• Use idealized WRF model simulations with
  different initial conditions
• Create a large parameter space of thunderstorm
  cell interaction and storm behavior
• Mine this search space for patterns and trends

17
WRF Initializations

• 230 WRF runs were made, two control
  (single-cell)
• Each corresponded to a particular
  arrangement of a pair of initial storm cells
• In figure at left
• Each square 1 simulation
• 1st storm in the middle
• 2nd at one of blue squares
• Center cell stronger

Matrix of WRF simulations
Slide Source Brian Jewett
18
Goals of this Mining Study

• Develop a mesocyclone detection algorithm (in
  both 2D and 3D)
• Develop an algorithm to track the temporal
  evolution of the mesocyclone features
• Investigate the use of clustering techniques to
• Summarize differences in simulation runs
• Provide an overview of all the simulations

19
Example Tracking Results
20
Mesocyclone Detection and Tracking Results
Features with time durations of a single time
step are filtered out
21
Summary Mesocyclone Detection

• Number of mesocyclones with higher duration tend
  to be associated with initializations where the
  second cell is closer to the first
• Mesocyclones found in the storm simulations are
  sensitive to the particular arrangement of a pair
  of initial storm cells (secondary storm placement
  at 45 degrees to the primary storm)
• Clustering techniques are useful to summarize
  differences in simulation runs
• Clustering techniques provide an overview of all
  the simulations

22
Some Lessons Learned

• NMI Testbed Process working well
• Answers found through NMI discussion lists from
  developers and other users
• Have to sell the grid concept to developers,
  administrators, users
• NMI Work proven helpful in other grid work
• TeraGrid
• LEAD Linked Environments for Atmospheric
  Discovery
• SpaceDoG Space Development and Operations Grid
• CEOS Committee for Earth Observing Satellites
• More Components needed

23
Linked Environment for Atmospheric Discovery
(LEAD)

• NSF Information Technology Research Program
• Creating a cyberinfrastructure for mesoscale
  meteorology
• real-time, on-demand, and dynamically adaptive
  needs for mesoscale weather research
• High volume data sets and streams
• Computationally demanding numerical models and
  data assimilation systems

24
The LEAD Goal

• To create an integrated, scalable framework in
  which analysis tools, forecast models, and data
  repositories can be used as dynamically adaptive,
  on-demand systems that can
• operate independent of data formats and the
  physical location of data or computing resources
• change configuration rapidly and automatically in
  response to weather
• continually be steered by new data (i.e., the
  weather)
• respond to decision-driven inputs from users
• initiate other processes automatically and
• steer remote observing technologies to optimize
  data collection for the problem at hand

25
The LEAD Vision Dynamic, Adaptive, Multi-Scale
NWS National Static Observations Grids
Virtual/Digital Resources and Services
ADAS
ADaM
Mesoscale Weather
MyLEADPortal
Experimental Dynamic Observations
Tools
Remote Physical (Grid) Resources
Local Physical Resources
Local Observations
26
LEAD An integrated framework for identifying,
accessing, preparing, assimilating, predicting,
managing, analyzing, mining, and visualizing
meteorological data, independent of format and
physical location
27
Challenges for Next-generation Mining

• Develop and document common/standard interfaces
  for interoperability of data and services
• Design new data models for handling
• real-time/streaming input
• data fusion/integration
• Design and develop distributed standardized
  catalog capabilities
• Develop advanced resource allocation and load
  balancing techniques
• Exploit the grid concept for enhanced data mining
  functionality
• Develop more intelligent and intuitive user
  interfaces
• Integrate with collaborative environments
• Develop ontologies of scientific data, processes
  and data mining techniques for multiple domains
• Support language and system independent
  components
• Incorporate data mining into science and
  engineering curricula

28
LEAD GWSTBsGrid and Web Services Testbeds

• Local User Environment customized portal,
  control of information flows, collaboration
  tools, managing processes
• Productivity Environment models, tools, and
  algorithms
• Data Services Environment data transport, data
  formatting, and interoperability
• Distributed Technologies Environment workflow
  infrastructure to autonomously acquire resources
  and adapt to changing plans
• Data Archive recent and historical data,
  products, and tools

29
LEAD Education Testbeds

• Provide hands-on access to assess the
  effectiveness of LEAD technologies for education
• Provide input and feedback to LEAD developers
• Facilitate knowledge transfer
• Collaborative technologies

30
LEAD policy development and implementation

• Define Virtual Organizations
• LEAD designed for use principally by the
  meteorological higher education and operations
  research communities
• Develop LEAD policies
• Developing LEAD global policies
• Adhere to local policies of each site (security,
  resource utilization, etc.)
• Policy management services
• PKI cryptography, X.509 certificates
• Authorization service
• Monitor resource utilization and accounting
  services

31
Other considerations

• Emerging standards and middleware
• Applications development to concentrate on the
  application using NMI middleware (Globus,
  MyProxy, OGCE, etc) for grid infrastructure also
  using additional middleware (MCS, RSL,
  performance monitoring tools)
• Current software has dependencies on middleware
  versions
• Configuration management
• Distributed team developing and delivering
  software to multiple testbeds
• Goal is to allow heterogeneous host environments
• Collaborative technologies
• Access Grid, H.323 videoconferencing facilitate
  LEAD team project planning and work sessions
• Collaborative technologies will be integrated
  into testbeds for user education and research

32
Data Integration and Mining From Global
Information to Local Knowledge
Emergency Response
Precision Agriculture
Bioinformatics
Urban Environments
Weather Prediction
