Title: NeST: Network Storage


1

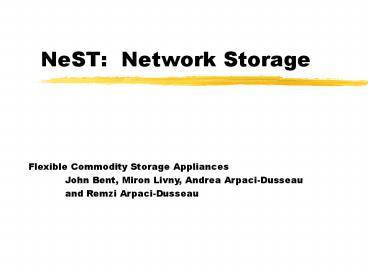

NeST Network Storage
Flexible Commodity Storage Appliances John
Bent, Miron Livny, Andrea Arpaci-Dusseau and
Remzi Arpaci-Dusseau
2
Terms
  • Appliance (Merriam-Webster)
  • b an instrument or device designed for a
    particular use specifically a household or
    office device
  • Storage appliance
  • Storage plus access methods

3
What storage users want
  • Reliability and availability
  • Manageability
  • cost of management gt cost of storage itself
  • no futz computing
  • Scalability
  • Performance

4
What storage vendors have
  • NetApp, EMC, others make storage appliances
    (network-attached storage)
  • Manageable
  • Just plug it in and it works
  • Administrative web interface
  • Reliable and available
  • Standard RAID techniques
  • High performance
  • Specialized, thin OS focused on serving files

5
What storage vendors get,annual revenues
NetApp 800 million in 2000
EMC 9 billion in 2000
6
Whats the problem?
  • False coupling between HW and SW
  • Playground syndrome
  • Myth of specialization

7
H/W and S/W are bundled
  • Hardware decisions are imposed
  • Hard to ride commodity curve
  • Example
  • Netapp F720
  • 35,000.00, 252 GB
  • 138 / GB
  • Maxtor DiamondMax
  • 279.00, 80 GB
  • 3.50 / GB

8
Playground syndrome
  • We have storage appliances . . .
  • if you use these protocols,
  • if you use these security mechanisms,
  • if you are comfortable with our data semantics
  • Non-flexible software entity

9
Myth of specialization
  • Specialize for one protocol on one machine
  • Specialization decreases over time as
  • Protocols are added
  • Product line expands
  • Example Netapp software
  • Generation 1 fit on a single floppy
  • Generation 2 took six
  • Generation 3?

10
Alternatives?
  • Appliance (Merriam-Webster)
  • a a piece of equipment for adapting a tool or
    machine to a special purpose

11
Our game?
  • Flexible, commodity based, software-only storage
    appliances
  • Goal
  • Find a networked machine
  • Drop some software on it
  • Have a ready to use storage appliance with
    flexible mechanisms

12
New worlds, new problems
  • Diverse hardware, software platforms
  • Netapp, EMC advantage
  • fewer platforms, control over OS
  • Our approach
  • Automate configuration to each host system
  • Hardware example - use file system or self-manage
  • Software example - use either read/write or mmap
  • Cost of flexibility
  • Key is design of the software

13
Outline
  • Introduction
  • Building flexible storage modules
  • Big picture
  • Protocol layer
  • Concurrency architecture
  • Storage layer
  • Motivations for flexible storage appliances
  • Conclusion and current status

14
NeST structure
  • Cleanly separated modules for communication,
    transfer and storage
  • Protocol layer
  • Maps diverse protocols into common control flows
  • Concurrency architectures
  • Different models to maximize system throughput
  • Storage layer
  • Provides abstract interface to disks

15
NeST structure
Central Control
16
Protocol layer
A collection of servers is less than the sum of
their parts.
17
Consolidate protocols
  • Single point of control
  • Storage quotas and guarantees can be supported
    across multiple protocols.
  • Bandwidth can be controlled and quality of
    service can be guaranteed.
  • Single administrative interface
  • Set policies
  • Manage user accounts

18
Protocol layer implementation
  • Each protocol listens on well-defined port
  • Central control accepts connections
  • Protocol layer reads from connection and returns
    generic request object
  • Like Linux V-nodes
  • Add new protocol by writing a couple of methods

19
Protocol layer example,directory list request
20
Concurrency architecture
  • Three difficult goals
  • Low latency
  • High bandwidth
  • Multiple simultaneous clients
  • No single portable solution
  • Provide multiple models to provide solutions on a
    range of different platforms
  • Multi-threaded
  • Multi-process
  • Event driven

21
Concurrency architecture
  • Central control creates transfer object
  • Socket descriptor from the protocol layer
  • File descriptor from the storage layer
  • Transfer object passed to concurrency
    architecture

22
Concurrency on Linux
23
Storage layer
  • Three needed areas of flexiblity
  • File systems interfaces
  • Example read()/write() or mmap()
  • Abstract storage models
  • RAID, JBOD, etc.
  • User account administration
  • Creation and removal
  • Quotas and guarentees for users and groups

24
File system interfaces on Linux
25
Outline
  • Introduction
  • Building flexible storage modules
  • Motivations for flexible storage appliances
  • Conclusion and current status

26
Clients have different needs
  • Communication protocols
  • Replacement costs
  • Data semantics
  • Security and authentication

27
Communication protocols
  • The Esperanto problem
  • Too many protocols to implement them all
  • Too many clients use proprietary protocols

Storage must allow pluggable protocols.
28
Replacement costs
  • Infinite cost to replace first class data.
  • Variable cost to replace cached data depending on
    size and distance.
  • Variable cost to replace job output files
    depending on computation cost.

First class data
Cheap cached files
Cost aware storage can effectively increase its
own capacity.
29
Data semantics
  • Must stored objects be protected from read and
    write dependencies?
  • Is transaction support necessary?
  • Acceptable replies to storage requests.

30
Data semantics, example
  • Problem
  • PFS on top of FTP fakes open
  • read may then return file not found
  • Solution
  • Mechanisms are needed to support flexible
    semantics independent of the transfer protocol.

Divorce semantics from the protocol.
31
Security and authentication
  • Ownership
  • Privacy
  • Encryption
  • Authentication
  • Access rights

32
Who, when, how and how much?
  • Who is allowed to use the storage?
  • Promiscuity and monogamy are easy
  • Polygamy is also easy

33
Do I know you?
  • Problem
  • Migrant grid users may need temporary,
    preferential storage access
  • Solution
  • Provide mechanisms to
  • advertise available storage
  • create self-destructing user accounts

Matchmake applications with storage opportunities.
34
Outline
  • Introduction
  • Building flexible storage solutions
  • Motivations for flexible storage appliances
  • Conclusion
  • Current status
  • Future work
  • Concluding remarks

35
Current status
  • Concurrency architectures are done
  • Gets, puts, reads and writes perform well
  • Virtual protocol class interface is built
  • NeST speak is fully implemented
  • Grid ftp coming soon!!
  • Simple first implementation of storage
    reservations and remote quota management is done
  • Venkateshwaran Venkataramani

36
Future work
  • Discovery process of client storage requirements
  • Quality of service guarantees for bandwidth and
    storage
  • Support for transient and opportunistic users

37
Concluding remarks
  • Return storage to the commodity curve by creating
    software-only storage appliances
  • Allow greater storage flexibility for a wide
    range of application needs
