Design of Bending Members in Timber What can go wrong

1

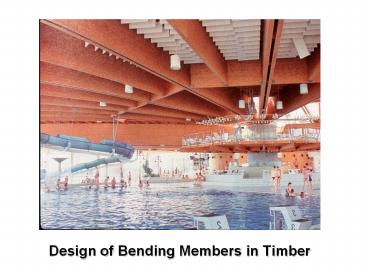

Design of Bending Members in Timber
2
An Example of Timber Beams
3
What can go wrong ?

• TIMBER BEAMS
• Bending failure
• Lateral torsional buckling
• Shear failure
• Notch failure
• Bearing failure
• Excessive deflections

4
Bending Strength

• Linear elastic stresses

y
M
Design Equation
Where Fb is the characteristic bending
strength For timber it is Fb fb (KDKHKSbKT)
5
Bending failure in compression

• Only likely for very high grade material
• Benign failure mode

6
Logging bridge near Pemberton, BC Glulam I-beam
7
Bending failure in tension

• Most likely failure mode
• Brittle
• Combination of tension and shear, although
  tension fracture is the initiating mode

8
Bending capacity
Mr f Fb S KZb KL where f 0.9 and Fb
fb (KD KH KSb KT )
9
(No Transcript)
10
Glulam beams in a Gerber system
11
Glued-laminated beams
better laminations
20f-E and 24f-E grades
12
Glued-laminated beams
20f-EX and 24f-EX grades
13
(No Transcript)
14
Lateral torsional buckling of timber beams
Le
Note The warping stiffness for rectangular
shapes is small compared to the torsional and
bending stiffness
15
Lateral torsional buckling of deep I-joists
16
Capacity of a timber beam subject to lateral
torsional buckling
Mr
Le
17
Lateral torsional buckling factor KL
KL
1.0
KL 1
KL 1 1/3 (CB / CK)4
0.67
practical limit
0.5
KL (0.65 E KSE KT) / (CB2 Fb KX)
CK ( 0.97 E KSE KT / Fb )0.5
0
CB
10
30
40
20
50
0
Slenderness ratio CB ( Le d / b2 )0.5
18
Deep glulam beam
19
Prevention of lateral torsional buckling
lt 610 mm
KL 1.0 when lateral support is provided as
shown
lt 610 mm
lt 8d
20
Bridging for floor joists
21
Shear stress in a beam
22
Shear in a timber beam
As
sv(max)
Vr f Fv 2/3 A KZv where f 0.9 and Fv
fv (KD KH KSv KT )
sv(avg)
sv(max) 1.5 sv(avg) 1.5 V / A
23
UNBC Prince George, BC
24
Shear failures

• One of the very weak properties of wood
• Shrinkage cracks often occur at the ends of beams
  in the zone of maximum shear stress

25
Shear design of glulam beams

• A simple approach for beams where the volume lt
  2.0 m3

Vr f Fv 2/3 A KN where f 0.9 and Fv
fv (KD KH KSv KT ) KN notch factor (see
next section)
For larger beams this is usually quite
conservative and a more sophisticated approach
is used (see clause 6.5.7.3)
26
Notch factor for Glulam beams
dn
d
dn
e
KN ( 1 dn/d )2
For e gt d KN ( 1 dn/d ) For e lt d KN
1 dne/d(d dn)
27
(No Transcript)
28
Notch effect in sawn lumber

• For notches on the tension side of supports (sawn
  lumber)
• In new code Reaction calculation

NEW !!
Fr ? Ft A KN ? 0.9 Ft ft (KD KH KSt KT)
where ft specified reaction force strength
0.5 MPa for sawn lumber KSt 1.0 for dry and 0.7
for wet service conditions A gross
cross-section area KN notch factor
Area A
29
Notch factorKN
Based on Fracture Mechanics theory
30
Bearing failure in a timber beam

• The soft property of wood
• Often governs

31
(No Transcript)
32
(No Transcript)
33
Bearing resistance
Ab

• Qr ? Fcp Ab KZcp KB
• ? 0.8
• Fcp fcp (KScp KT)

34
Critical bearing areas in woodframe construction
35
Bearing resistance (double bearing)
Ab2
Abavg 0.5(Ab1 Ab2) but 1.5 Ab1
Ab1
45 deg

• Qr (2/3) ? Fcp Abavg KZcp KB
• ? 0.8
• Fcp fcp (KD KScp KT)

36
Bearing factor KB
37
(No Transcript)
38
Deflections

• A serviceability criterion
• Avoid damage to cladding etc. (? L/180)
• Avoid vibrations (? L/360)
• Aesthetics (? L/240)
• Use unfactored loads
• Typically not part of the code

?
