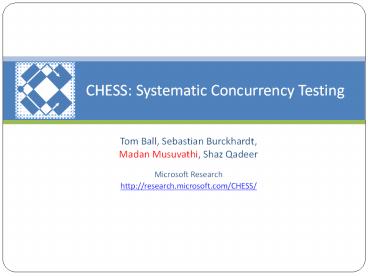

CHESS Systematic Concurrency Testing

• Tom Ball, Sebastian Burckhardt,
• Madan Musuvathi, Shaz Qadeer
• Microsoft Research
• http//research.microsoft.com/CHESS/

2
Testing concurrent programs is HARD

• Rare thread interleavings expose bugs
• Coverage problem
• Testing misses thread interleavings that expose
  errors
• Reproducibility problem
• Concurrency bugs Heisenbugs
• Not reproducible ? hard to debug
• Crash dumps dont help

3
Thread interleavings
Thread 1
Thread 2
x x
x2 x2
0
1
0
2
2
0
1
4
3
1
2
4
2
2
4
3
8
5
6
4
Concurrency testing today

• Concurrency testing stress testing
• Example testing a concurrent queue
• Create 100 threads performing queue operations
• Run for days/weeks
• Stress increases the interleaving variety, but
• Not systematic might miss interleavings
• Not predictable cannot find the same error again
• Makes any error found hard to debug

5
Why stress is not sufficient
1
6
Concurrency testing what we need

• Methodology and tools to
• systematically and predictably
• test thread interleavings

7
CHESS in a nutshell
ConcurrentProgram

• Replace the OS scheduler with a demonic scheduler
• Systematically explore all scheduling choices

Win32 API
Kernel Scheduler
Demonic Scheduler
8
CHESS will run this program 6 times exploring all
the different interleavings
Thread 1
Thread 2
x x
x2 x2
0
1
0
2
2
0
1
4
3
1
2
4
2
2
4
3
8
5
6
9
Dont stress, use CHESS
2
10
CHESS architecture
Program
CHESS runs the scenario in a loop
While(not done) TestScenario()
TestScenario()
CHESS

• Every run takes a different interleaving
• Every run is repeatable

• Intercept synch. threading calls
• To control and introduce nondeterminism

Win32 API

• Detect
• Assertion violations
• Deadlocks
• Dataraces
• Livelocks

Kernel Threads, Scheduler,
Synchronization Objects
11
CHESS methodology generalizes

• Need wrappers for every concurrency API
• CHESS has wrappers for Win32, .NET, Singularity
• Wrappers understand the semantics of the API
• Expose nondeterminism in the API
• Looking for volunteers to build wrappers for
  Linux and Java

12
CHESS clients

• PCP Parallel Computing Platform (for
  multi/many-cores)
• PLINQ Parallel LINQ
• CDS Concurrent Data Structures
• STM Software Transactional Memory
• TPL Task Parallel Library
• ConcRT Concurrency RunTime
• CCR Concurrency Coordination Runtime
• Dryad
• Part of COSMOS
• Singularity/Midori
• CHESS can systematically test the boot and
  shutdown process

13
Stateless model checking Verisoft 97

• Systematically enumerate all paths in a
  state-space graph
• Dont capture program states
• Capturing states is extremely hard for large
  programs
• Effective for message-passing programs
• CHESS applies stateless model checking for
  shared-memory multithreaded programs

14
Outline

• Preemption bounding PLDI 07
• Fair stateless model checking PLDI 08
• Sober CAV 08, EC2 08
• FeatherLite
• Concurrency Explorer EC2 08

15
Outline

• Preemption bounding
• Makes CHESS effective on deep state spaces
• Fair stateless model checking
• Sober
• FeatherLite
• Concurrency Explorer

16
State space explosion
Thread 1
Thread n

• Number of executions
• O( nnk )
• Exponential in both n and k
• Typically n lt 10 k gt 100
• Limits scalability to large programs

x 1 y k
x 1 y k

k steps each
n threads
Goal Scale CHESS to large programs (large k)
17
Preemption bounding

• Prioritize executions with small number of
  preemptions
• Two kinds of context switches
• Preemptions forced by the scheduler
• e.g. Time-slice expiration
• Non-preemptions a thread voluntarily yields
• e.g. Blocking on an unavailable lock, thread end

Thread 1
Thread 2
x 1 if (p ! 0) x p-gtf
x 1 if (p ! 0)
p 0
preemption
x p-gtf
non-preemption
18
Polynomial state space

• Terminating program with fixed inputs and
  deterministic threads
• n threads, k steps each, c preemptions
• Number of executions lt nkCc . (nc)!
•
  O( (n2k)c. n! )
• Exponential in n
  and c, but not in k

Thread 1
Thread 2

• Choose c preemption points

x 1 y k
x 1 y k
x 1
x 1

• Permute nc atomic blocks

y k
y k
19
Preemption bounding
3
20
Find lots of bugs with 2 preemptions
Program Lines of code Bugs
Work Stealing Q 4K 4
CDS 6K 1
CCR 9K 3
ConcRT 16K 4
Dryad 18K 7
APE 19K 4
STM 20K 2
TPL 24K 9
PLINQ 24K 1
Singularity 175K 2
37 (total)
Acknowledgement testers from PCP team
21
So, is CHESS is unsound?

• Soundness prove that the program is correct for
  a given input test harness
• Need to exhaustively explore all interleavings
• For small programs, CHESS is sound
• Iteratively increase the preemption bound
• Preemption bounding helps scale to large programs
• A good knob to trade resources for coverage
• Better search algorithms ? more coverage faster
• Partial-order reduction
• Modular testing of loosely-coupled programs

22
Outline

• Preemption bounding
• Makes CHESS effective on deep state spaces
• Fair stateless model checking
• Makes CHESS effective on cyclic state spaces
• Enables CHESS to find liveness violations
  (livelocks)
• Sober
• FeatherLite
• Concurrency Explorer

23
Concurrent programs have cyclic state spaces

• Spinlocks
• Non-blocking algorithms
• Implementations of synchronization primitives
• Periodic timers

Thread 1
Thread 2
! done L2
! done L1
L1 while( ! done) L2 Sleep()
M1 done 1
done L2
done L1
24
A demonic scheduler unrolls any cycle ad-infinitum
Thread 1
Thread 2
while( ! done) Sleep()
done 1
! done
done
! done
done
! done
done
! done
25
Depth bounding

• Prune executions beyond a bounded number of steps

! done
done
! done
done
! done
done
! done
Depth bound
26
Problem 1 Ineffective state coverage

• Bound has to be large enough to reach the deepest
  bug
• Typically, greater than 100 synchronization
  operations
• Every unrolling of a cycle redundantly explores
  reachable state space

! done
! done
! done
! done
Depth bound
27
Problem 2 Cannot find livelocks

• Livelocks lack of progress in a program

Thread 1
Thread 2
temp done while( ! temp) Sleep()
done 1
28
Key idea

• This test terminates only when the scheduler is
  fair
• Fairness is assumed by programmers
• All cycles in correct programs are unfair
• A fair cycle is a livelock

Thread 1
Thread 2
while( ! done) Sleep()
done 1
! done
! done
done
done
29
We need a fair demonic scheduler

• Avoid unrolling unfair cycles
• Effective state coverage
• Detect fair cycles
• Find livelocks (violations of fair termination)

Test Harness
ConcurrentProgram
Win32 API
Demonic Scheduler
Fair Demonic Scheduler
30
Fair termination allows CHESS to check for
arbitrary liveness properties

• Example Good Samaritan assumption
• Forall threads t GF scheduled(t) ? GF yield(t)
• A thread when scheduled infinitely often yields
  the processor infinitely often
• Examples of yield
• Sleep(), ScheduleThread(), asm rep nop
• Thread completion

Thread 1
Thread 2
while( ! done) Sleep()
done 1
31
Outline

• Preemption bounding
• Makes CHESS effective on deep state spaces
• Fair stateless model checking
• Makes CHESS effective on cyclic state spaces
• Enables CHESS to find liveness violations
  (livelocks)
• Sober
• Detect relaxed-memory model errors
• Do not miss behaviors only possible in a relaxed
  memory model
• FeatherLite
• Concurrency Explorer

32
C Example
volatile bool isIdling volatile bool hasWork
//Consumer thread void BlockOnIdle()
lock (condVariable) isIdling true
if (!hasWork)
Monitor.Wait(condVariable) isIdling
false //Producer thread
void NotifyPotentialWork() hasWork
true if (isIdling) lock
(condVariable) Monitor.Pulse(condVar
iable)
33
Example Store Buffer Vulnerability

• Key pieces of code on previous slide
• On x86, hardware may perform store late
• Bug Producer thread does not notice waiting
  Consumer, does not send signal

volatile int ii 0 volatile int hw 0
Consumer
Producer
Store ii, 1
Store ii, 1
Load hw, 0
Store hw, 1
Load ii, 1
0
34
Sober algorithm

• Programmers assume sequential-consistency (SC)
• Insert synchronizations fences to counter
  memory-model relaxations
• Sober checks if a program is memory-model safe
• i.e., program has only SC executions in a memory
  model
• Reports any such violation as an error
• Sober is a dynamic monitor that checks if any SC
  execution can be extended to a non-SC execution
• Theorem CHESS Sober guarantees memory-model
  safety

35
Outline

• Preemption bounding
• Makes CHESS effective on deep state spaces
• Fair stateless model checking
• Makes CHESS effective on cyclic state spaces
• Enables CHESS to find liveness violations
  (livelocks)
• Sober
• Detect relaxed-memory model errors
• Do not miss behaviors only possible in a relaxed
  memory model
• FeatherLite
• A light-weight data-race detection engine (lt20
  overhead)
• Concurrency Explorer

36
Outline

• Preemption bounding
• Makes CHESS effective on deep state spaces
• Fair stateless model checking
• Makes CHESS effective on cyclic state spaces
• Enables CHESS to find liveness violations
  (livelocks)
• Sober
• Detect relaxed-memory model errors
• Do not miss behaviors only possible in a relaxed
  memory model
• FeatherLite
• A light-weight data-race detection engine (lt20
  overhead)
• Concurrency Explorer
• First-class concurrency debugging

37
Conclusion

• Dont stress, use CHESS
• CHESS binary and papers available at
  http//research.microsoft.com/CHESS
• Stateless model checking is very effective
• Preemption bounding to scale to deep state spaces
• Fair demonic scheduler to handle nonterminating
  programs
• Need better testing and debugging methodologies
  for concurrent programs

38
