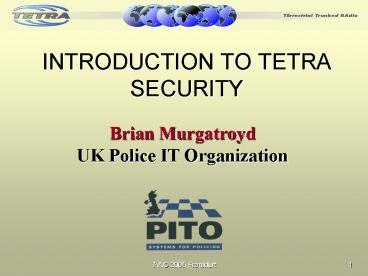

INTRODUCTION TO TETRA SECURITY

1
INTRODUCTION TO TETRA SECURITY
Brian Murgatroyd UK Police IT Organization
2
Agenda

• Threats to systems
• Network Security
• Overview of standard TETRA security features
• Authentication
• Air interface encryption
• Key Management
• Terminal Disabling
• DMO security
• End to End Encryption

3
Security Threats

• What are the main threats to your system?
• Confidentiality?
• Availability?
• Integrity?

4
Message and User Related Threats

• Message threats
• Interception
• Eavesdropping
• Masquerading
• Manipulation of data.
• Replay

• User related threats
• traffic analysis
• observability of user behaviour.

5
System Related Threats
6
Network Security
IT security is vital in TETRA networks Gateways
are particularly vulnerable. Operating staff need
vetting
7
TETRA Communications Security

• Security is not just encryption!
• Terminal Authentication
• User logon/Authentication
• Stolen Terminal Disabling
• Key Management with minimum overhead
• All the network must be secure, particularly with
  a managed system

8
User authentication (aliasing)

• Second layer of security
• Ensures the user is associated with terminal
• User logon to network aliasing server
• log on with Radio User Identity and PIN
• Very limited functionality allowed prior to log
  on
• Log on/off not associated with terminal
  registration
• Could be used as access control for applications
  as well as to the Radio system

9
Authentication

• Used to ensure that terminal is genuine and
  allowed on network.
• Mutual authentication ensures that in addition to
  verifying the terminal, the SwMI can be trusted.
• Authentication requires both SwMI and terminal
  have proof of secret key.
• Successful authentication permits further
  security related functions to be downloaded.

10
Authentication
Generate RS
Authentication Centre (AuC)
K known only to AuC and MS
K
RS
TA11
KS
K
RS
Generate RAND1
KS (Session key) RS (Random seed)
TA11
KS
RAND1
RS, RAND1
KS
RAND1
RES1
TA12
DCK
EBTS
TA12
XRES1
DCK1
Compare RES1 and XRES1
RES1
DCK1
11
Encryption Process
Traffic Key (X)CK
Key Stream Generator (TEAx)
CN LA CC
Combining algorithm (TB5)
Key Stream Segments
Initialization Vector (IV)
A
B
C
D
E
F
G
H
q
c
I
y
4
M
v

Q
t
Clear data in
Encrypted data out
12
Air Interface traffic keys

• Four traffic keys are used in class 3 systems-
• Derived cipher Key (DCK)
• derived from authentication process used for
  protecting uplink, one to one calls
• Common Cipher Key(CCK)
• protects downlink group calls and ITSI on initial
  registration
• Group Cipher Key(GCK)
• Provides crypto separation, combined with CCK
• Static Cipher Key(SCK)
• Used for protecting DMO and TMO fallback mode

13
DMO Security
Implicit Authentication Static Cipher keys No
disabling
14
TMO SCK OTAR scheme
SwMI
Key Management Centre
15
Key Overlap scheme used for DMO SCKs
Transmit
Past
Present
Future
Receive

• The scheme uses Past, Present and Future versions
  of an SCK.
• System Rules
• Terminals may only transmit on their Present
  version of the key.
• Terminals may receive on any of the three
  versions of the key.
• This scheme allows a one key period overlap.

16
Disabling of terminals

• Vital to ensure the reduction of risk of threats
  to system by stolen and lost terminals
• Relies on the integrity of the users to report
  losses quickly and accurately.
• Disabling may be either temporary or permanent
• Permanent disabling removes all keys including
  (k)
• Temporary disabling removes all traffic keys but
  allows ambience listening

17
End to end encryption

• Protects messages across an untrusted
  infrastructure
• Provides enhanced confidentiality
• Voice and SDS services
• IP data services (soon)

Network
MS
MS
Air interface security between MS and network
End-to-end security between MSs
18
Key management for end to end encryption
19
Benefits of end to end encryption in combination
with Air Interface encryption

• Air interface (AI) encryption alone and end to
  end encryption alone both have their limitations
• For most users AI security measures are
  completely adequate
• Where either the network is untrusted, or the
  data is extremely sensitive then end to end
  encryption may be used in addition
• Brings the benefit of encrypting addresses and
  signalling as well as user data across the Air
  Interface and confidentiality right across the
  network

20
Conclusions

• Security functions built in to TETRA from the
  start!
• User friendly and transparent key management.
• Air interface encryption protects, control
  traffic, IDs as well as voice and user traffic.
• Key management comes without user overhead
  because of OTAR.
