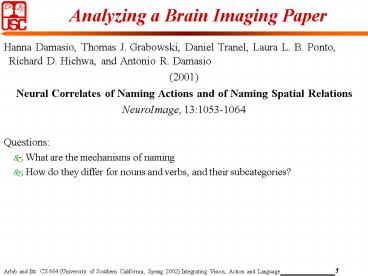

Analyzing a Brain Imaging Paper

1
Analyzing a Brain Imaging Paper

• Hanna Damasio, Thomas J. Grabowski, Daniel
  Tranel, Laura L. B. Ponto, Richard D. Hichwa, and
  Antonio R. Damasio
• (2001)
• Neural Correlates of Naming Actions and of Naming
  Spatial Relations
• NeuroImage, 131053-1064
• Questions
• What are the mechanisms of naming
• How do they differ for nouns and verbs, and
  their subcategories?

2
Bibliography

• Our concern today is to carefully analyze this
  paper both
• for content, and
• to classify its material for entry into a
  database
• thus setting the stage for your own contribution
  to our initial database of brain imaging studies
  related to action, action recognition, imitation,
  and language.
• An important step is to enter all references you
  find of interest into the database. Where
  possible, insert abstracts and links to full
  text.
• However Do not restrict your follow-up reading
  only to Web-accessible papers.

3
Page 1053

• ... evidence from lesion studies that retrieval
  of words for actions can be related to structures
  in the left premotor/prefrontal region and in the
  left posterior temporal regions (Caramazza and
  Hillis, 1991 Damasio and Tranel, 1993 Daniele
  et al., 1994 Hillis and Caramazza, 1995 Miceli
  et al., 1988 Miozzo et al., 1994
  Thompson-Schill et al., 1998 Zingneser and
  Berndt, 1990).
• Suggests a possible annotation to add to these 8
  papers. Later reading of such papers could then
  expand the information for individual papers.
• Some convergent evidence can also be found in
  several functional imaging and electrophysiologica
  l studies (Fiez et al., 1996 Grabowski et al.,
  1996 Hinke et al., 1993 Koenig et al., 1999
  Martin et al., 1995 Martin et al., 2000 Perani
  et al., 1999 Petersen et al., 1988 Pulvermuller
  et al., 1999 Raichle-et al., 1994 Warburton et
  al., 1996 Wise et al., 1991).
• Note that to annotate these 12 papers we have to
  rephrase the comment preceding them
• ... evidence from functional imaging or
  electrophysiological studies that retrieval of
  words for actions can be related to structures in
  the left premotor/prefrontal region and in the
  left posterior temporal regions

4
Pages 1053-54

• In agrammatic aphasics there is often an impaired
  use of prepositions, the closed class words, some
  of which denote spatial relations (e.g.,
  Friederici, 1982, 1985 Friederici et al., 1982
  Schwartz et al., 1980 Tesak and Hummer, 1994
  Zurif and Caramazza, 1976).
• As above. Issue Simply entering the annotation
  for each paper versus crediting the source of the
  annotation.
• The next clump is to be entered for this paper
  as Guiding Hypothesis
• The salient aspects of the neural activations
  caused by naming actions and naming spatial
  relations occur in left frontal operculum and
  left parietal cortices but not in left
  infero-temporal cortices (IT) or right parietal
  cortices. The actions focused on are those
  denoted by action verbs, while the spatial
  relations are those denoted by locative
  prepositions (e.g., in, on, above, below).
• But note that this has to be linked to the
  outcome of the study Was the hypothesis
  confirmed or not? As the richness of the database
  increases, we will search for data in other
  papers pro and con each hypothesis and we will
  want to post summaries of the best hypotheses.
  What is best?

5
Support for the Hypothesis

• The following must be linked to the hypothesis it
  supports. The judgement call is whether Support
  for hypothesis is a label for the entry or a
  label for the link between it and the hypothesis.
  My point The database you will work with is an
  initial design. Thus your assignment will both to
  enter data and to suggest better ways to
  structure the database for searches, report
  generation, etc., etc.
• The parietal and frontal regions are
  hypothesized to pertain to both actions and
  spatial relations because of their known
  involvement in the processing of space and of
  motion in space. This involvement was first
  suggested in classical human neuropsychological
  studies (Newcombe, 1969), and in nonhuman primate
  studies (Ungerleider and Mishkin, 1982).
• The selection of the left as opposed to right
  aspect of those structures derives from the
  assumption that the linguistic denotation of
  actions and spatial relations will be
  preferentially handled by the language-dominant
  hemisphere. NSR No supporting reference.
• The prediction that left IT would not be
  activated came both from the fact that left IT is
  active when words denoting concrete entities are
  retrieved and the fact that there is no
  compelling reason to expect this region to be
  involved when spatial manipulations are being
  performed on concrete entities that are not being
  specifically identified or named. NSR
• There is some evidence suggesting that left IT is
  not necessary for the retrieval of words for
  actions (Damasio and Tranel, 1993)

6
Clumps Need Not Have Contiguous Atoms

• The next paragraph on p.1054 breaks into 2 parts
• Additions to the Hypothesis
• We predicted that word retrieval for actions
  would activate the lateral temporo-occipital
  cortices related to motion processing,
  specifically those known as area MT, but we did
  not predict activation in lateral
  temporo-occipital cortices during word retrieval
  for spatial relations.
• Support for these portions of the hypothesis
• Area MT has been identified by neurophysiological
  and neuroimaging studies to be involved in the
  perception of real motion, or motion suggested by
  consecutive presentation of static images (Goebel
  et al., 1998 Kaneoke et al., 1997 Stevens et
  al., 2000 Tootell et al., 1995 Watson et al.,
  1993 Zeki et al., 1991, 1993). However, there
  is no compelling evidence to suggest that area MT
  might be involved in the processing of spatial
  relations.
• Note then the issue of (a) aggregating the
  hypothesis from separate parts of the paper but
  (b) then decomposing it into the separate pieces
  for which different supporting data may be
  marshaled. Again, as the database progresses,
  some parts of a hypothesis may be further
  supported others may be modified while yet
  others will come to be rejected outright. What
  database tools will support this kind of dynamic
  knowledge management?

7
The Structure of the Lexicon

• What is the structure of the lexicon?
• Conceptual issue How does a conceptual structure
  propagate to, e.g., different lexical forms?
  Relate to general issues of metaphor and analogy?
  What is stored for later retrieval, what is
  computed on the fly?
• Later lectures will explore the idea of
  Verb-Argument structure, as in
• Hit(Harry, hammer, nail)
• Bite(Yingshu, kaki)
• and suggest that the representation of a verb may
  obligatorily involve representation of the
  general characteristics of nouns which fill its
  slots.
• We may thus wish to post hypotheses as we enter
  material into the database, and then gradually
  link the hypothesis to supporting or contrary
  data as we build the database and search it for
  the contributions of others.
• But then we need an inference engine to (a)
  assess reliability of each possibly relevant
  datum and then (b) compute a confidence value for
  the hypothesis.

8
Semi-Models and Experiment Design

• Need to better tease apart
• the recognition processes engaged in naming an
  object or an action
• going from a representation of the recognized
  entity to a representation of its name
• going from the representation of a name to a
  representation of the recognized entity
• the use of words in sentence production and
  perception
• p.1054 . In addition to regions involved in
  implementing the actual vocalization of the
  response, other regions must be involved in
  processing the conceptual knowledge behind a
  given action or spatial relation, and in
  retrieving the specific morphemes used in the
  correct response.
• The experiments conducted in this study aimed at
  identifying regions involved in conceptual
  processing and intermediary word retrieval and at
  excluding activation of regions involved in
  implementing responses, which were shared by the
  target and control tasks, and were to be canceled
  out in the subtraction of the former from the
  latter.
• The experiments do not address the issue of the
  degree to which conceptual processing and word
  retrieval can be functionally separated.
• To what extent should this analysis of key
  subprocesses be entered as part of the
  hypothesis. Is the appeal to subtraction
  theory-free?

9
Theoretical framework

• p.1054 Damasio, 1989 Damasio et al., 1990,
  1996 Damasio and Damasio, 1994 Tranel et al.,
  1997a, 1997b
• Word-form production is dependent on three kinds
  of neural structures
• (1) those which support conceptual knowledge and
  are located in early and high-order sensory
  cortices of both hemispheres
• (2) those which support the vocal implementation
  of word forms and are located in classical left
  perisylvian language areas and
• (3) language-related mediational or intermediary
  structures, located in inferotemporal and
  parieto-frontal regions, which are engaged by the
  structures described in (1) to guide the
  implementation described in (2).

10
Theoretical framework

• pp.1054-55 The same system of ensembles and
  pathways is not recruited equally, in the same
  subject, on all occasions. Moreover, there is
  more than one system of ensembles and pathways to
  support a particular function, i.e., in all
  likelihood there are several systems assisting
  with the retrieval of the action verbs and
  locative prepositions required by our tasks, and
  those different systems can be engaged depending
  on the task demands the subject has to do, among
  other factors. We presume that certain systems
  probably support the most effective and complete
  version of a certain performance, and are thus a
  "preferred" system, but there are other systems
  that can support the same performance, albeit not
  necessarily as efficiently.
• The sensorimotor patterns that embody the
  explicit representations of word-forms, e.g., the
  word forms for actions or spatial relations, do
  not occur at the intermediary sites. But those
  patterns are triggered by language-related
  intermediary ensembles and circuits, which have
  in turn been triggered by the concept-related
  intermediary ensembles and circuits.
• Such intermediary roles are presumed to be played
  by the frontal and parietal sites hypothesized to
  be activated by the tasks.

11
Methods Protocol

• We can pretty much tease apart three components
  inn this kind of experiment
• Subjects
• Imaging Procedure
• includes scanning method, warping method, and
  statistical analysis
• Tasks
• The main data gathered will be of the kind
• When subjects execute task A as compared to task
  B, then regions R1, R2, .. are more significantly
  activated
• Activation may depend on an indirect estimate of
  rCBF (regional cerebral blood flow, in PET
  Positron Emission Tomography) or the BOLD signal
  (based on the measurement of local changes in the
  electromagnetic field, due to changes in the
  concentration of oxygenated blood diamagnetic
  and deoxygenated blood paramagnetic, in fMRI
  functional Magnetic Resonance Imaging)
• The regions R1, R2, clearly depend on the
  confidence level set for the test of
  significance.

12
Caveats

• A region that is more significantly active in
  task A than in task B may nonetheless play a
  critical role in task B.
• What is the neural activity which rCBF or BOLD
  in a region correlates with?
• My favorite Integrated synaptic activity
• Needed The vampire model of the neuron (and
  glia).

13
Methods

• Typically, theorists eyes tend to glaze over
  when getting to the Methods section, which is
  often skipped.
• However, once one accumulates data from multiple
  experiments, one may find apparent discrepancies,
  and it may only be by examining details of the
  Methods that we can resolve these discrepancies
  or form judgements of the weight to give to
  various data in forming a summary one will use as
  a basis for later work, whether designing new
  experiments, creating models, or
• Thus it is crucial that methods be included in
  the database.
• Having said this, I will leave you to read the
  paper for Subject and PET Imaging methodology,
  and proceed to the tasks.

14
(No Transcript)
15
Two Cohorts

• The subjects were divided into two cohorts of 10
  subjects with 5 men and 5 women each. One of the
  cohorts was studied for the retrieval of words
  denoting actions and the other for the retrieval
  of words denoting spatial relations. Each
  subject received 8 injections of 50 mCi of 15O
  water. For each cohort there were four tasks.
  Each of the tasks was performed twice. The
  session was divided, and in each half-session the
  sequence of tasks was randomized.
• For the cohort involved in the retrieval of
  words denoting actions the tasks were as follows
  (1) retrieval of words denoting actions performed
  with an implement, mostly manipulable tools and
  utensils (ISI 1.8 s) (2) retrieval of words
  denoting an action performed without an
  implement, movements of the body or body parts of
  the agent (ISI 1.8 s) (3) retrieval of words
  denoting tools and utensils (ISI 1.8 s) and (4)
  an orientation judgment performed on the faces of
  unknown persons requiring the response up if the
  face was in the canonical position (up) and down
  if the face was inverted (ISI 1.0 s).
• For the cohort involved in the retrieval of
  words denoting spatial relations the tasks were
  as follows (1) retrieval of words denoting the
  spatial relation between two (or among three)
  concrete entities (mostly tools and utensils)
  depicted as realistic line drawings, in which the
  target object was shaded in red (ISI 1.5 s) (2)
  the same task as (1) but using abstract rather
  than realistic drawings (ISI 1.5 s) (3)
  retrieval of the words denoting the names of the
  red shaded tools/utensils in the stimuli used in
  (1), (ISI 1.5 s) and (4) an orientation judgment
  performed on the faces of unknown persons
  requiring the response yes if the face was in the
  canonic position (up) and no if the face was
  inverted (ISI 1.0 s).

16
Reasons for Experimental Design

• For word retrieval for actions they considered
  that the processing of actions performed without
  an implement, mostly whole body actions, might be
  partially segregated from that of words denoting
  actions performed with an implement
• For the retrieval of words denoting spatial
  relations they predicted that using abstract
  stimuli might activate regions specifically
  related to recognition of a given spatial
  relation and its subsequent verbal labeling,
  uncontaminated" by associations with the
  concrete objects used in the stimulus (e.g., ring
  on the finger versus ring around the finger the
  latter is correct relative to the spatial
  relation, the former is the one that reflects
  typical usage).
• They have used the control task of judging the
  orientation of unknown faces before, but did not
  want subjects in the second cohort to say up or
  down in the control task because they reflect a
  word denoting a spatial relation between the
  position of the face and the surround. Thus they
  preferred to use yes for the canonic presentation
  of the face and no when it was inverted. But
  then why not do this for both cohorts?
• They used a second control task for the
  target tasks involving concrete objects so as to
  compare directly the retrieval of words denoting
  actions produced with an implement or denoting
  relations between concrete entities, to the
  retrieval of words denoting those entities.

17
Displaying Regions

• Plotting confidence levels on a 3D structure
  based on an MRI (i.e., non-functional) of the
  subjects brain
• Plotting confidence levels on a 3D structure
  based on a standard structure obtained by warping
  the subjects brain MRI to a standard brain,
  e.g., that of a French woman given in Talairach,
  J., Tournoux, P. (1988) Co-Planar Stereotaxic
  Atlas of the Human Brain. Georg Thieme Verlag,
  Stuttgart, Germany.
• 2D displays showing contour maps of confidence
  level for active blobs on various views of the
  brain.
• Giving the names of the neuroanatomical
  structures in which (much of) the mass of each
  blob is located.
• Giving the T88 Talairach coordinates of the
  (perhaps loosely determined) center of each
  blob.
• But not every lab uses the Talairach atlas, human
  brains differ greatly, and so do warping methods.

18
For now, consider the display, not the data
19
(No Transcript)
20
I do not plan to look at this or the other 3
tables in detail in class Get the idea now,
review the paper later.

• But
• What do you notice about Table 1A as compared to
  1B?
• And what about 2A compared to 2B?
• See last paragraph of p.1058 and last page of
  penultimate paragraph of p.1060 for the answer.
• What does this suggest for database construction?
• A wish list for the database
• Explicit links between
• Talairach coordinates in a table and
• a view of the brain showing the blob containing
  those coordinates.

21
(No Transcript)
22
(No Transcript)
23
The results in the search volume

• (1) Naming actions performed with or without an
  implement) minus the standard control task
  orientation of unknown faces showed
  significant maxima in left frontal operculum,
  left posterior middle frontal gyrus, left IT,
  left and right inferior parietal lobule (angular
  and supramarginal gyri). The left and right
  supramarginal gyri also showed significant minima
  as did the right angular gyrus (see Table 1A).
• For entry in the data base, the term control
  task is inadequate.
• (2) Naming spatial relations (using
  tools/utensils or abstract shapes), minus the
  standard control task showed significant maxima
  in left frontal operculum, left posterior middle
  frontal gyrus, and left IT when using
  tools/utensils, but no maxima in the inferior
  parietal lobule, either on the left or on the
  right (see Table 2A).
• (3) Naming actions performed with an implement
  minus naming actions performed with an implement
  showed a cluster of significantly active voxels
  in the depth of the posterior sector of the
  middle temporal gyrus (-45, -52, -1, t 4.76),
  and two additional smaller clusters in the left
  supramarginal gyrus (-55, -27, 29 and -42, -42,
  46 with t 4.37 and 4.12, respectively)
  i.e., there was more activation in this region
  during the task in which tools/utensils were used
  (Fig. 2A).
• Are there any implications of such differences
  for syntax or only for the underlying perception
  of actions?

24
The results in the search volume

• (4) Naming spatial relations using tools/utensils
  minus naming spatial relations using abstract
  shapes showed significant activation in left IT
  (-37, -47, -10, t 5.05) i.e., there was more
  activation in this region during the retrieval of
  words for spatial relations using tools/utensils
  than when using abstract drawings. This
  subtraction also revealed a significant
  negativity in the right supramarginal gyrus (46,
  -44, 41, t -4.39), suggesting that there was
  more activity during the retrieval of words for
  spatial relations using abstract shapes rather
  than when using tools/utensils (Fig. 2B).
• (5) Naming of actions performed with an implement
  minus naming of implements showed two maxima in
  the posterior temporo-occipital region, at the
  level of the middle temporal gyrus, one within
  the search volume, in the left hemisphere (-43,
  -72, 9, t of 6.33), and the other outside the
  search volume, in the right hemisphere (49, -69,
  3, t of 5.45). See Fig. 3A.
• (6) Naming spatial relations minus naming of
  implements shows significant activation in the
  left supramarginal gyrus (-62, -41, 27, t of
  4.29). See Fig. 3B.
• (7) A matter of taste as to whether to include or
  omit?
• Note the different judgements of an author
  versus a collator transferring a paper into a
  database.

25
Discussion

• The subtraction of naming actions performed with
  a tool or utensil minus naming tools or utensils,
  reveals activation in both MT areas, as
  predicted. The subtraction of naming spatial
  relations using stimuli with real objects) minus
  naming tools or utensils reveals activation in
  left supramarginal gyrus, but not in the MT
  region also as predicted.
• The bilateral activation of MT, a region which
  both neurophysiological studies (Zeki, 1993, for
  review) and functional imaging studies (Corbetta
  et al., 1990 Watson et al., 1993 Zeki et al.,
  1991) have implicated in the perception of
  movement is intriguing, considering that the
  stimuli used in this study are static.
• We presume that in order to perform the naming of
  an action from a static stimulus the subject will
  generate a mental simulation of the movement.
• Courts and Kanwisher (2000) observed activation
  of MT? with viewing of static pictures
  representing motion, a finding entirely consonant
  with ours.
• The activation site seen here is posterior to the
  sites noted in several previous studies engaged
  in the generation of a verb from the viewing of a
  concrete entity as opposed to the depiction of an
  action (Fiez et al., 1996 Martin et al., 1995
  Warburton et al., 1996 Wise et al., 1991
  summarized in Martin et al., 2000).
• Note the need to tease apart summary of data from
  elsewhere, summary of data from this study, and
  hypotheses (presumptions) and interpretations
  supported by the data.

26
Discussion

• The finding of left frontal opercular activation
  during the naming of actions is concordant with
  previous findings of activation at this site when
  "verb generation" tasks were used, as in Peterson
  et al.'s original study (1988) and in the several
  subsequent studies using the same or similar
  paradigms (e.g., Fiez et at., 1996 Grabowski et
  al., 1996 Hinke et al., 1993 Koenig et al.,
  1999 Martin et al., 1995 Perani et al., 1999
  Raichle et al., 1994 Warburton et al., 1996
  Wise et al., 1991.
• The fact that naming spatial relations did not
  show activation sites in the parietal lobe when
  the subtraction involved the standard control
  task is probably explained by the nature of this
  task. Although we asked subjects to say yes and
  no, instead of up or down, in order to avoid the
  retrieval of a word denoting a spatial relation,
  the task still relies on the perception and
  recognition of a spatial relation, namely the
  spatial orientation of a face. It is possible
  that this process engages parietal structures
  that are also engaged in the production of the
  word that denotes the spatial relation between
  the two target objects. The fact that we did
  detect activation in left parietal cortices when
  the retrieval of words denoting concrete entities
  is used as control task (subtraction 6), favors
  this explanation.

27
Discussion

• Our prediction that inferotemporal cortices would
  not be involved in naming actions or spatial
  relations was not supported.
• Note link needed from hypothesis to data which
  disconfirm it.
• Both naming actions as well as naming spatial
  relations (minus the standard control task) show
  that the posterior sector of IT also becomes
  active. However, this activation is
  significantly stronger when concrete entities are
  part of the stimuli, as seen in the results of
  subtraction 3 and 4, and depicted in Fig. 2.
• We do not believe that IT is involved in
  retrieving words for actions or spatial
  relations, but rather that the words denoting the
  objects represented in the stimuli are also
  retrieved, consciously or not along with the
  words that denote the actions and spatial
  relations.
• MAA Note this for my later discussion of
  verb-argument structure.
• The possibility that naming actions performed
  with an implement versus actions performed
  without an implement might produce different
  results was not confirmed. The contrast between
  the two conditions revealed only a small region
  of activation in posterior IT during naming
  actions performed with an implement. Again, this
  activation may point to the conscious or
  nonconscious concurrent retrieval of the names of
  objects (tools or utensils) used in the stimuli.

28
Discussion

• The contrast between naming spatial relations
  from concrete objects and from abstract shapes
  seems to support our prediction that using
  abstract stimuli might activate regions
  specifically related to the recognition of a
  given spatial relation. The stronger activation
  of the right supramarginal gyrus during naming
  spatial relations from abstract shapes speaks to
  this point.
• The last sentence seems to lack force.
• The left supramarginal activation identified in
  association with the process of naming the
  spatial relation between two entities (using the
  subtraction of naming concrete entities from
  naming spatial relations) suggests a major
  involvement of systems involved in object
  manipulation in both personal and extrapersonal
  space.
• The retrieval of concepts related to, say,
  "in-ness" or "on-ness" or "between-ness,"
  requires spatial analyses that engage components
  of the so called "where" system (Ungerleider and
  Mishkin, 1982 Kosslyn, 1994). MAA The how
  system. More specificity required.
• The supramarginal activation lateralized to the
  left might also be related to the retrieval of
  the actual word (e.g., on, in, between). To
  clarify this issue further it will be necessity
  to gather additional evidence from lesion studies
  and functional imaging studies in which
  recognition and naming can be separated.

29
Discussion

• To clarify this issue further it will be
  necessity to gather additional evidence from
  lesion studies and functional imaging studies in
  which recognition and naming can be separated.
  It is interesting to note that the direct
  contrast between the two conditions involving
  spatial relationships showed a strong activation
  in left posterior IT when the stimuli were
  concrete entities, the same site that becomes
  active when the words denoting those concrete
  entities were being retrieved.
• This finding also seems to indicate that,
  regardless of the task, the presence of concrete
  entities as stimuli engages the system used to
  process words denoting those entities. This is
  in keeping with the fact that the spatial task
  using "abstract-shapes" significantly engaged the
  right supramarginal gyrus, a region not
  significantly activated when the stimuli are
  concrete objects.
• The use of abstract shapes probably promotes a
  nonverbal strategy in which the subject is forced
  to analyze "coordinate spatial relations" in
  order (in the sense of Kosslyn, 1994) to produce
  the verbal response, without relying on an
  automatically selected verbal response usually
  associated with a particular object in a
  particular language. We interpret the right
  hemisphere engagement as signaling part of the
  conceptual process relative to spatial relations.

• Do you find this argument convincing?
• I feel the need for more explicit computational
  models which can be tuned and updated in the face
  of accumulating evidence.

30
Discussion

• Because both the words for spatial relationship
  and the words for actions used in this study
  constitute a subtype of prepositions and verbs,
  respectively, the brain sites identified here
  should not be seen as representative of the
  networks necessary for retrieval of prepositions
  or verbs in general. We see our results simply
  as identifying part of the brain circuitry that
  we believe is necessary to retrieve words that
  designate spatial relationships or actions.
• We are not suggesting that the frontal and
  parietal regions engaged in the retrieval of
  words for actions or for spatial relations are
  specific to the retrieval of this type of words.
  We know, even from the results of this study,
  that these regions are also engaged in the
  retrieval of words for concrete entities (the
  subtractions of naming concrete entities from
  naming actions, and from spatial relations, do
  not show any significant difference in activity
  in these regions). We are simply saying, in the
  perspective of the theoretical framework
  summarized in the background section, that word
  retrieval for actions and for spatial relations
  from visually presented stimuli, when performed
  in its most efficient way, does engage a system
  of which these areas are a component.
