DNA: Structure, Dynamics and Recognition

1

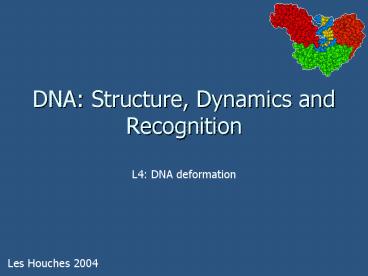

DNA Structure, Dynamics and Recognition
L4 DNA deformation
Les Houches 2004
2
BASE PAIR OPENING
3
Biological time scale
Bond vibrations 1 fs (10-15 s) Sugar
repuckering 1 ps (10-12 s) DNA bending 1
ns (10-9 s) Domain movement 1 ?s (10-6 s) Base
pair opening 1 ms (10-3 s) Transcription 2.5 ms
/ nucleotide Protein synthesis 6.5 ms / amino
acid Protein folding 10 s RNA lifetime 300 s
4
Enzymatic base chemistry
5
Adenine-Thymine base pair
HN3 imino proton
6
Guanine-Cytosine base pair
HN1 imino proton
7
Base opening lifetimes
GC 15-25 ms AT 5-10 ms
C G C A A G A A G C
G 4 1 1 23 4 5 4

8
A4T4 versus T4A4
Base pair lifetimes (ms) 15C
T T T T A A A A 1 17 19
4 4 19 17 1 A A A A T
T T T 60 100 100 65 65 100 100 60
Leroy et al. Biochemistry 27, 1988, 8894
9
B-DNA - 2ns dynamic trajectory
10
Free energy calculations using restrained opening
Guidice et al. ChemPhysChem 2, 2001, 673 Varnai
Lavery J. Am. Chem. Soc. 124, 2002, 7272
11
WHAM
BIASED PROBABILITY HISTOGRAM
Nw
? Pi(q) exp ??Vi(q) i
1 Pi(q) ? ?????????? Nw
? ni exp ?Fi(q)?Vi(q)
i 1
Nw Fi(q) ? ?kT ln
? Pi(q) i 1
N(q)
FREE ENERGY PROFILE
W(q)
Reaction coordinate (q)
12
B-DNA oligonucleotide studied
13
Extraction dune base de lADN
14
Closed AT pair
15
Adenine 50 (minor)
16
Adenine 100 (minor)
17
Adenine 50 (major)
18
Adenine 100 (major)
19
Free energy curves for base opening
20
Imino proton accessibility (Å2)
21
Base movements are coupled
Dq Thymine ()
Dq Adenine ()
Dq Adenine ()
Dq Thymine ()
22
Sequence effects on opening A-tracts
23
Bending amplitude ()
q lt -50 -50 lt q lt 50 q
gt 50
24
A word of warning!
25
BASE FLIPPING
26
Hha1 methyltransferaseKlimaauskas et al. Cell
76 (1994) 357
27
Minor groove ?? Major groove
28
-200 opening
160 opening
29
Backbone rearrangements
30
Backbone rearrangements
31
SUPERCOILING
32
DNA supercoiling (circular plasmid)
33
DNA supercoiling
L linking number number of strand crossings T
twist number of turns of double helix W
writhe number of helix crossovers L T W s
supercoiling density (L L0) / L0 DL / L0
typically s -0.06 (1 crossing less per 17
turns)
34
Linking number (L or Lk) a topological constant
35
Twist (T) versus Writhe (W)
Low force
High force
36
L T W
37
Interwound and toroidal forms of a negatively
supercoiled plasmid
L.H.
R.H.
38
Ethidium bromide intercalates into DNA and
reduces its twist by 26
39
Effect of an intercalator on a negatively
supercoiled plasmid
40
Topoisomerases
Topoisomerase I - single strand cuts - releases
negative supercoiling Topoisomerase II - double
strand cuts (eukaryotes) - releases negative
supercoiling Topo II (gyrase) - generates
negative supercoiling (prokaryotes) - consumes
ATP Reverse gyrase - generates positive
supercoiling (thermophiles)
41
Topoisomerase I single strand cuts
42
Topoisomerase II double strand cuts
43
Topo II (gyrase)DNA wrapping
44
DNA packed on nucleosomes
45
Nucleosome schematic view
46
EXTREME DEFORMATIONS
47
DNA stretching
Cluzel et al. Science 271, 1996, 792
48
70 pN phase transition
49
S-DNA fibre and ribbon forms
50
Fibre diffraction of stretched DNA
Greenall et al. J. Mol. Biol. 2001, 305,
669 Rise 5.6 Å Helix spacing 13 Å
51
TBP-DNA complex
52
DNA local stretching
5'
3'
3'
Minor
3'
5'
Major
5'
3'
5'
53
DNA global and local 3'3' stretching
54
TBP induced deformation
X-ray Model
55
Magnetic twisting control
N
S
Biotin Streptavidin
DIG AntiDIG
Strick et al. Biophys. J. 74, 1998, 2016 Allemand
et al. Proc. Natl. Acad. Sci. (USA) 95, 1998,
14152
56
Twisted DNA forms plectonemes
57
DNA twisting under tension
gt 3 pN
lt 0.3 pN
58
Simulation of DNA twisting
59
Simulating twisting
