Chapter 8: Graph Problems, Greedy Algorithms

1

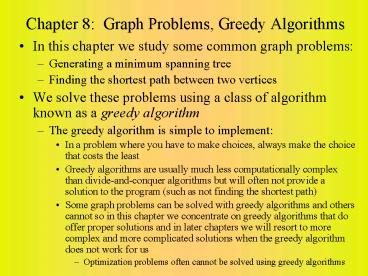

Chapter 8 Graph Problems, Greedy Algorithms

• In this chapter we study some common graph
  problems
• Generating a minimum spanning tree
• Finding the shortest path between two vertices
• We solve these problems using a class of
  algorithm known as a greedy algorithm
• The greedy algorithm is simple to implement
• In a problem where you have to make choices,
  always make the choice that costs the least
• Greedy algorithms are usually much less
  computationally complex than divide-and-conquer
  algorithms but will often not provide a solution
  to the program (such as not finding the shortest
  path)
• Some graph problems can be solved with greedy
  algorithms and others cannot so in this chapter
  we concentrate on greedy algorithms that do offer
  proper solutions and in later chapters we will
  resort to more complex and more complicated
  solutions when the greedy algorithm does not work
  for us
• Optimization problems often cannot be solved
  using greedy algorithms

2
The Greedy Algorithm a Skeletal Solution

• Consider a problem where, for n choices, you have
  m selections
• cost 0
• for(i0iltni)
• s set of possibilities from step i
• choicei min(s)
• cost choicei
• The cost of this algorithm is ?(nm)
• Another way to look at the greedy algorithm is to
  view the solution as a collection of choices as
  follows
• solution null
• while(solution is incomplete and there are still
  choices available in s)
• x min(s)
• solution solution union x
• remove x from s

• Do either of these approaches yield the best
  solution?
• It depends, are the values in s static, or do
  they depend on prior choices?
• If the answer is the latter, then the above
  greedy algorithm will not give you the best
  answer
• The best answer might take a good deal more
  effort to compute!
• We will visit some problems later where the
  greedy solution does not give the best answer

3
Minimum Spanning Trees

• A graph might have many more edges than vertices
• (n-1)2 for n vertices
• There are circumstances where we want to create
  subgraph that contains all of the same vertices,
  but only enough edges to keep the graph connected
• This is known as a spanning tree
• If the graph is a network, then the minimum
  spanning tree (MST) is a spanning tree whose
  edges weights are the minimum sum in order to
  keep the graph connected

• So, we might ask, given a graph, how can we
  generate an MST
• Note for any graph, there could be more than 1
  MST, but we dont care which one we generate, all
  MSTs will have the same overall cost
• For example, we might want to take a bus trip
  from city A to city B that covers every city that
  the bus goes, but the trip should take a minimal
  amount of time (or distance or cost)

4
Generating an MST

• In the worst case, an MST has (n-1)2 edges for 2
  vertices
• To generate an MST is to then search through the
  edges to find the least cost that connects all
  vertices
• With n vertices, this could take n3 amount of
  work
• for each vertex, determine which of the n2 edges
  best connects it to the graph
• Is there a better way to do this?
• Yes, there are in fact 2 greedy algorithms that
  can improve on this behavior
• Unfortunately, both require the use of other ADTs
  that we have discussed earlier, so we must apply
  our knowledge of ADTs to help us solve the problem

5
Example

• The network on the left is shown as a MST on the
  right where only the least costly edges are
  retained such that the MST is still a graph that
  contains the same vertices
• In this case, the MST has a cost of 22 whereas
  other spanning trees created from the network
  could cost as much as 31

6
Solution 1 Prims Algorithm

• For this algorithm, start at any vertex and
  include it in the MST
• Now, repeat the following until all vertices in
  the graph have been included
• Obtain all of the edges of the vertices currently
  in the MST that can connect us to another vertex
  which is not currently in the MST
• we will call these vertices the fringe
• Take the minimum edge such that the other vertex
  is a fringe vertex and add the vertex at the
  other end to the MST, updating the overall cost
• We have to determine how
• to find the minimum edge (a priority queue?)
• to make sure a vertex is part of the fringe, not
  part of the MST

7
A Solution

• This algorithm uses a priority queue
• Inserting and removing a value from the priority
  queue is log n given n items stored there
• revise pq will require finding a given edge in
  the queue and changing its value, and then moving
  it into position we can do this through the
  heaps decreaseKey operation
• A slightly more complete description of the
  algorithm is given on page 395

Select a vertex, s Initialize priority queue pq
to contain a dummy edge of (nowhere, s, 0)
that is, an edge to s from nowhere that
costs 0 While pq is not empty e
removeMin(pq) v second vertex of e (the
vertex not currently in MST) add v and e to
MST, cost weight(e) get f adjacent
nodes to v for each node x in f if x is not
in MST get candidate edge (v, x)
pq.insert(edge(v, x)) else if weight(v, x) is
less than any other edge weight in pq leading
to x, then revise pq
8
Complexity of Our Solution

• For a graph of n vertices and m edges, we
  continue to search until all n vertices have been
  attached to the MST
• The priority queue will store all edges from
  included nodes to fringe nodes but only edges
  that are minimal
• for instance, if we have vertices a and b in the
  MST, then only the minimum edge of a, c or b, c
  will go into the priority queue, not both
• So we add to and remove from the priority queue
  n-1 times
• However, every time we place a new node in the
  MST, we might have to update the priority queue
  using decreaseKey
• How many times? At most, once per edge
• This gives us a worst-case performance of
• W(n, m) ?(n T(removeMin) n T(insert) m
  T(decrease Key))
• Recall that inserting and deleting to a priority
  queue, implemented as a heap, is O(log n), and
  decreaseKey was O(log n)
• Thus, this algorithm is ?(n log n m log n)
  but remember that m might be as large as (n-1)2,
  so our algorithm is bound by ?(n2 log n)

9
Improving Our Algorithm

• The way to improve this algorithm is to make the
  observation that we have the potential for
  performing decreaseKey a lot more often than
  inserting or removing from the priority queue
• Is there a way to make decreaseKey easier while
  making insert and remove harder?
• Yes, all we have to do is use an ordinary array
  and require an ?(n) insert/remove but we obtain
  an ?(1) decreaseKey
• How?
• Lets have an array storing the weights of
  candidate edges which will either be -1 if both
  vertices are already in the MST, the minimum edge
  weight from any vertex in the MST to a given
  fringe node, or infinity if neither vertex is in
  the MST
• Inserting and removing are now ?(n) but
  decreaseKey is ?(1)
• This will reduce the complexity of the algorithm
  to ?(n2)

10
The New Algorithm

• We use 4 arrays and no priority queue
• included is a boolean array to denote if a node
  has been included in the MST yet
• g and mst are NxN matrices representing the
  original graph (network) and the MST being
  created
• distance is an Nx2 array where, for each vertex i
• distancei, 0 is a vertex already in the MST
  that connects to i, a fringe node, with the least
  weight
• distancei, 1 is the weight of the edge that
  connects i to the vertex stored in distancei, 0

included ? false for all entries mst ? infinity
for all entries distance, 0 ?
infinity distance, 1 ? -1 current start
node includedcurrent true while all nodes are
not yet included adj ? all nodes adjacent to
current for each v in adj such that
includedv false if(distancev,1 gt
gcurrent, v) distancev,1 gcurrent, v
distancev,0 current
temp ? x such that distancex, 1 is the
smallest value and tempincluded is false
includedtemp true mstcurrent,
temp gcurrent, temp cost
gcurrent, temp current temp
11
Example Using Prims

• Using our previous example of a network, we
  generate the MST using Prims as follows
• Lets start with vertex A
• Fringe is B, C and D with minimum costs of 3, 5
  and 2 respectively (other vertices are not yet
  reachable)
• Select the minimum edge weight to a fringe node
  2, and include that vertex (C) and edge (A-C)
• Fringe B, D and E, minimum costs of 3, 1 and 4
• Note Ds minimum cost is lower now because edge
  C to D is cheaper than edge A to D
• Select minimum, 1, and include D (edge C-D)
• Fringe B, E, F, G with minimum costs of 3, 4, 3
  and 2 respectively
• Select 2 and include G (edge D-G)
• Fringe B, E, F and I with minimum costs of 3,
  4, 3 and 6 respectively
• Select 3 (arbitrarily pick B, not F), include B
  (edge A-B)
• Fringe E, F, I with minimum costs 4, 3, 6
• Select 3 (F and edge D-F)
• Fringe E, H, I with minimum costs 4, 4, 6
• Select 4 (E, edge C-E)
• Fringe H, I with minimum costs 4, 6
• Select 4 (H, edge F-H)
• Fringe I with minimum cost 3 (it had been 6)
• Select I, done, total cost of MST 22

12
Complexity of Prims

• Our prior implementation of Prims algorithm had
  an unfortunate worst-case complexity of ?(n2 log
  n)
• Examining this algorithm, we see that the while
  loop will iterate n times, once for each vertex
• In the loop, we examine all edges connected to
  current to determine whether we need to update
  distance or not
• This will at most be n 1 edges
• We then find the minimum value in distance and
  call that entry current
• Since this array stores n vertices, this is at
  most n 1 comparisons
• All other instructions inside this loop are
  individual instructions, ?(1)
• So, this algorithm is ?(n2), an improvement over
  the previous implementation of Prim
• Can we do better?

13
Kruskals Algorithm

• Another way to build the MST is to sort all edges
  in ascending order
• Now, go through each edge, either selecting it to
  be included in the MST or throwing it out if the
  two vertices of the edge are already in the MST
• How do we determine if two edges are already in
  the MST? We will use the Union-Find ADT
• So, given an edge, let x one vertex and y the
  other
• t1 find(x)
• t2 find(y)
• if (t1 ! t2) then union(x, y) otherwise discard
  this edge
• Good thing we improved our Union-Find ADT in
  chapter 6!

14
The Algorithm

• We use the priority queue (heap) to sort
  (heapsort) the edges in our graph G
• Now, remove each edge and see if both vertices
  are already in mst, if not, union the two
  vertices (add that edge to mst)
• The complexity of this algorithm is as follows
• Sorting takes ?(m log m) operations
• The while loop executes m times
• Each pass through the while loop takes ?(log m)
  to delete an edge from pq and at most log n
  operations for each find and the union, so the
  entire loop takes at most ?(m log m) operations
• Thus, Kruskal is bound by ?(m log m)
• How does this compare to ?(n2) of Prim?
• If the graph has a lot of edges, m log m gt n2 but
  if the graph is sparse, then m log m lt n2
• So our choice of Prim vs. Kruskal will be based
  on how dense our graph is to begin with

PriorityQueue pq new PriorityQueue( ) cost
0 mst new Graph for each edge e in G,
pq.insert(e) while(pq.isEmpty( ) false)
e pq.delete( ) x e.from y
e.to t1 find(x) t2 find(y)
if(t1 ! t2) union(x, y)
cost Gx, y mst.add(x, y)
At what value m compared to n should we switch
from Prim to Kruskal??
15
Example Using Kruskal

• We start by sorting all edges giving the
  following as a priority queue
• (C-D, 1), (A-C, 2), (D-G, 2), (A-B, 3), (D-F,
  3), (H-I, 3), (B-F, 4), (C-E, 4), (F-H, 4), (A-D,
  5), (E-G, 5), (G-I, 6)
• Start with C-D
• Union A-C MST A, C, D
• Union D-G MST A, C, D, G
• Union A-B MST A, B, C, D, G
• Union D-F MST A, B, C, D, F, G
• Union H-I MST A, B, C, D, F, G, H, I
• Do not Union B-F (since both B and F are both in
  the MST)
• Union C-E MST A, B, C, D, E, F, G, H, I
• Union F-H MST A, B, C, D, E, F, G, H, I
• Done since all nodes are now in the same MST

Examine the resulting MST, you will find that you
got the same one using Prim. Depending on the
network and order that vertices are visited or
added to the priority queue, we could wind up
with different MSTs from the two algorithms but
they will have the same total costs.
16
Finding the Shortest Path

• Another use of a greedy algorithm is to find the
  shortest path (in terms of the sum of the edge
  weights of the path) from a given point to
  another point
• We could attempt to generate every possible path
  from the starting point to the destination
• How much effort is this?
• If the graph is complete (strongly connected),
  then the starting node can reach n 1 other
  nodes and those n 1 nodes can reach n 2 other
  nodes, etc, so we could determine the shortest
  path by generating all (n 1)! paths and compare
  them but thats way too much work
• Lets reconsider Prims algorithm
• In creating an MST, we started at some random
  vertex and found the edges to connect to all
  other vertices that cost the minimum amount
• Can we use a variation of this to complete a
  path? Yes

17
Using Prims Algorithm

• The idea is to maintain a list of shortest edge
  distances to each to fringe vertex like we did in
  Prims
• Here however
• if we can currently reach v from x in some
  distance d1, and we are considering current,
  which can be reached from x in d2, and d2
  weight(current, v) lt d1, then we know we can
  reach v cheaper by going through current
• We update our minimum distance to v to go through
  current
• We continue this process until we reach y
• So we maintain two growing pieces of information
• The shortest distance from our start point to all
  fringe nodes
• The node in our path immediate prior to that
  fringe node
• We then select the shortest distance fringe node
  to act as our current

18
Dijkstras Shortest Path Algorithm
dijkstra(int x, int y, int g, int n) int
distance new intn int path new
intn boolean included new booleann
for(i0iltni) distancei
infinity includedi false
pathi -1 current x while(current !
y) adj ? all vertices v adjacent to x
such that includedv false for each
node v in adj if(distancev gt
distancecurrent gcurrent, v)
distancev distancecurrent
gcurrent, v pathv current
current ? vertex v such that distancev is
minimum and includedv is
false

• This algorithm is straightforward
• We maintain the fringe vertices and at each
  iteration, we extend the shortest path by
  selecting the minimum edge and updating the
  fringe vertices
• If the newly included vertex has an edge that
  takes us to some other, yet-to-be-included vertex
  in a shorter distance, we update the minimum
  distance array and remember that to get to that
  node, we went through current
• The path is determined by iterating from y to
  pathy to pathpathy until we get to x

19
Example

• Lets find the shortest path from B to G
• Starting at B, our fringe nodes are A and F with
  distances of 3 and 4 respectively and each has a
  path of B (that is, to get to A or F, we go
  through B)
• Select the shortest distance 3, making A
  current
• Update Fringe C, D, F, with distances of 5, 8,
  4 respectively
• Select the shortest distance, 4, making F current
• Fringe C, D, H with distances of 5, 7, 8
• Ds distance is shorter going B-F-D instead of
  B-A-D and Ds path is now through F instead of A
• Shortest distance is 5 so C is current
• Fringe D, E, H with distances of 6, 9, 8
• Again, Ds distance and path are updated to go
  through C now
• Shortest distance is 6 so D is current
• Fringe E, G, H with distances of 9, 8, 8
• Shortest distance is 8 so G is current
• G is picked arbitrarily over H because G lt H
  alphabetically
• We have reached G, we are done
• Path is determined by backtracking from G
• We got to G from D
• We got to D from C
• We got to C from A

20
Complexity

• It is easy to see that Dijkstras algorithm has a
  complexity of ?(n2)
• To prepare, we initialize several arrays which is
  ?(n)
• The number of passes through the while loop is at
  most n because we visit a new vertex each time
  through and there are n vertices in the graph
• During each pass, we determine if a vertex
  adjacent to current can be arrived at in shorter
  distance than what we currently know, and if so,
  update distance, in the worst case this is ?(n)
• We then select a new current by finding the
  vertex with the minimum distance which, in the
  worst case, is ?(n)
• Can we improve over ?(n2) for our worst case? No
• A graph could have as many as (n 1)2 edges and
  in the worst case, we will have to look at all of
  them before knowing we have found the shortest
  path

21
More on Greedy Algorithms

• In these examples, when it came to selecting what
  to focus on next (next fringe vertex, next edge),
  we picked the one with the minimum cost
  associated with what we were trying to solve
• So, will greedy algorithms always give us the
  best solution?
• No
• Consider the Knapsack problem
• You have a knapsack capable of holding X weight
  and you have n objects, each of which have a
  weight of wi and a price of pi
• Your goal is to find a combination of objects
  such that their total weight lt X and provides
  the best maximum price
• A greedy solution is given to the right

Given the arrays p and w where pi the price
of including i (that is, the benefit) and wi
item is weight, and given W, the weight that the
knapsack can hold, generate the items to be
included totalPrice 0 totalWeight
0 for(i0iltni) includedi
false while(totalWeight lt w) i ? the item
where includedi is false, pi is maximum,
and w lt totalWeight wi totalWeight
wi totalPrice pi
includedi true
Note we could select i such that wi is a
minimum rather than pi being maximum
22
Our Solution

• It should be easy to see that the solution is
  ?(n2) since we must find the minimum pi
  remaining each time we select a new item, and in
  the worst case, we might wind up selecting all n
  items
• However, our solution does not give us the best
  answer (the maximum cost)
• Consider the following values for p and w and you
  will see that neither selecting minimum weight
  nor maximum price yields an optimal answer
• We will have to solve this problem using some
  other method (as we will talk about later in the
  semester)

Item 1 2 3 4 5 p 16 14 3 4 2 w 12 7 4 5 1 If
our knapsack can hold 16 pounds, our algorithm
will either tell us to take 1, 3 (if we
maximize pi) or 3, 4, 5 (if we minimize
wi), which give us prices of 19 and 9
respectively, but the best solution is to take
2, 3, 4 for a price of 21
