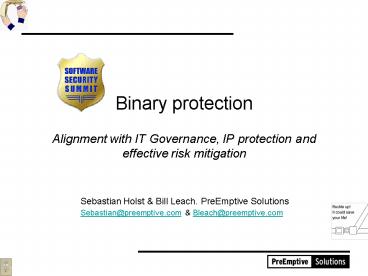

Binary protection Alignment with IT Governance,
IP protection and effective risk mitigation
Sebastian Holst Bill Leach. PreEmptive
Solutions Sebastian_at_preemptive.com
Bleach_at_preemptive.com
2
Agenda

• Binary protection scope and magnitude
• Obfuscation a compensating control
• Contrasting algorithms with process
• Who obfuscates?
• Why, when and when-not to obfuscate?
• Inventory of obfuscation techniques
• Best practices
• Declarative obfuscation
• Continuous integration
• Considerations and accommodations
• Debugging
• Operations and support
• Patch management
• Summary
• What, when, how why
• Questions to leave with

3
Technical, operational and regulatory drivers

• Threats from outside and from within
• Obligation to take every reasonable step
  necessary to meet business objectives, mitigate
  risk, protect information assets, and comply
• No single solution possible
• Integration people, processes, systems, and
  technology
• Complex, overlapping (sometime conflicting)
  regulations
• GLBA, Sarbanes Oxley, USA Patriot Act, FISMA,
  HIPAA, SEC 17a3 and 4, and many others.
• Overlapping control frameworks
• Cobit, ITL, ISOCOSO, COSO ERM, OCEG

4
IT Governance an operational approach

• Assess and adapt control practices
• Develop broad operational approach to governance,
  risk and compliance management
• Access control, authentication, encryption,
  data/log collectionetcObfuscation
• Access Control
• Guidance All access should be provided on a
  least privileged or need-to-know basis.
• Question Who needs to know your source code?

5
When source binary

• Operational, financial and privacy
• Change control
• IP loss, attack vulnerability, revenue loss
• Source access control
• .NET and Java environments changed the rules
• SOURCE BINARY

Binary Access outside the
enterprise
Binary Access Inside
the enterprise
Source Access
6
When source binary

• Operational, financial and privacy
• Change control
• IP loss, attack vulnerability, revenue loss
• Source access control
• .NET and Java environments changed the rules
• SOURCE BINARY

SOURCE Access outside the
enterprise
SOURCE Access Inside
the enterprise
Source Access
7
Risk Management when and if IT matters

• Step I Risk assessment (partial list)
• Enterprise-wide and beyond (supply chain,
  partners, etc.)
• Identify and classify all information system
  assets (i.e. data, systems, applications, and
  hardware).
• Identify all threats to those assets (e.g.,
  internal and external unauthorized access,
  malicious or unintentional damage)
• Identify all vulnerabilities or weaknesses that
  could allow the threats to harm or jeopardize
  corporate or customer information and assets.
• Review the adequacy of all current policies,
  procedures, and risk mitigation controls.
• Analyze the probability of each identified
  threat.
• Identify additional risk-based controls
  appropriate to the identified threats.
• Continuously and proactively monitor and adjust
  the risk assessment to respond to changes in
  threats, controls, and your organizational
  activities

8
Risk Management when and if IT matters

• Step II mitigate risks (partial list)
• Develop policies that specify
• Responsibilities and the assignment of those
  responsibilities.
• Guidance for implementing, assessing and auditing
  controls
• Enforcement policies and sanctions for
  non-compliance.
• Select specific controls based on your risk and a
  cost benefit analysis.
• Implement defense in depth layered controls and
  testing to establish multiple lines of protection

9
Smoke detectors, seatbelts and obfuscation

• Obfuscation as a compensating control

6. Analyze the probability of each identified
threat. 7. Identify additional risk-based
controls appropriate to the identified threats

• Select specific controls based on your risk and a
  cost benefit analysis.

10
Obfuscation algorithm versus process
If you cant describe what you are doing as a
process, you dont know what you are doing.
W. Edwards Deming
11
Who obfuscates?
28 of Software Security Summit attendee companies
12
Why and When to Obfuscate

• Obfuscate when
• The application contains Intellectual Property or
  Trade Secrets.
• When application enforces usage, license or other
  metering
• The application contains hints about IT
  infrastructure (e.g. SQL statements, DB
  connections strings, etc.)
• Any time source code should not be freely
  available.
• Obfuscation
• Keeps out most attackers (just like a door lock)
• Will not keep out determined attackers with time
  and expertise.

13
What is program obfuscation?

• A collection of tactics that transform a program
  into a new program that
• Functions the same as the original.
• Is materially more difficult for a human to
  understand its inner workings.
• Is materially more difficult for a decompiler to
  output correct, understandable, high level source
  code.

Not to be confused with a program obfuscation
solution
14
How an Obfuscator Works

• Binary in, Binary out (no source code required)
• Uses static analysis and other techniques to
  perform obfuscating transforms
• Outputs mapping information.
• How to translate obfuscation transform back to
  original

15
How an Obfuscator Works

Input Programs
Output Programs
Obfuscator
External Dependencies
Map Data
External Configuration
16
Example C Source Code
17
Example C Source Code
18
Example Decompiled
19
Example Decompiled with Control Flow Obfuscation
20
Obfuscating Transforms

• An Obfuscating Transform Can
• Be lossy or irreversible
• Change program size
• Impact program performance
• Examples of Obfuscating Transforms
• Identifier Renaming
• Metadata Removal
• Control Flow Obfuscation
• String Encryption

21
Identifier Renaming

• Programmers use descriptive identifier names to
  create self documenting code.
• The goal is to replace meaningful names with
  non-meaningful names.
• Increases time and effort required to understand
  decompiler output.
• Irreversible. The original names cannot be
  recovered from the output program alone.
• Going back to original names can be done with a
  map file.

22
What Can be Renamed?

• Classes, Interfaces, Methods, Fields, Method
  Parameters, Generic Type Parameters, etc.
• All names used only internally can be renamed.
• If the program is a library
• All external names can be renamed if all clients
  are obfuscated in sync.
• External names must be preserved if clients are
  not obfuscated.
• Most commercial obfuscators support both library
  scenarios with minimal configuration.

23
Constraints on Renaming

• New names must follow the rules of the runtime in
  order for the program to remain valid.
• Implicit naming relationships must be preserved
• Virtual method overrides
• Interface contracts
• Renaming must be done consistently across
  interdependent components
• E.g. Method definitions and method call sites

24
Approaches to Renaming

• 11 algorithms
• One unique new name for each unique original name
• Easy to implement in an obfuscator
• Easier to attack. Once a names intent is known,
  use global search and replace on decompiled
  output.

GetPayroll() becomes AX() GetPayroll(int
key) becomes AX(int AY) MakeDeposit(float
amt) becomes AZ(float AI) SendPayment(string
key) becomes AV(string AY)
25
Approaches to Renaming

• 1 to Many algorithms
• One new name for many original names, subject to
  platform scoping rules.
• Generate new names optimally. Use as few unique
  names as possible within any given scope
• More difficult to implement in an obfuscator.
  Requires deep analysis.
• More difficult to attack. Global search and
  replace is ineffective.
• Size reduction (fewer names to store) is a nice
  side effect.

26
Approaches to Renaming

• Overload Induction
• A 1Many algorithm for method renaming.
• Rename as many methods as possible to the same
  name, inducing method overloading.
• Original method overload relationships are lost
  and hidden in the noise.

GetPayroll() becomes a() GetPayroll(int
key) becomes a(int a) MakeDeposit(float
amt) becomes a(float a) SendPayment(string
key) becomes a(string a)
27
When to Rename

• First line of defense against decompilation it
  is best to rename as much as possible.
• If the application is self contained (no
  unobfuscated external clients), rename
  everything.
• If the application is obfuscated in sync with all
  clients, rename everything.
• If the application has unobfuscated clients,
  rename only internal names.
• Items referenced dynamically may not be
  renameable.
• E.g. A class that is dynamically loaded by name,
  based on a user input string.

28
Renaming Side Effects

• Smaller programs
• Performance neutral
• Adds complexity to debugging and troubleshooting.

• If not proactively addressed, renaming can create
  problems when debugging, troubleshooting, and
  updating.

29
Metadata Removal

• Not all metadata is required to execute an
  application
• Properties, Events, Method Parameter names
• Some Custom Attributes / Annotations
• Often used at design / development time by IDEs
  and other tools
• This information provides hints to decompilers
  and attackers.
• An obfuscator can strip it out.
• Irreversible. The stripped metadata cannot be
  recovered from the output program alone.

30
Metadata Removal

• When to Remove Metadata
• If the program is not a library meant to be used
  by other developers, it is usually safe to strip
  metadata like properties, events, and method
  parameter names.
• Some metadata is used at runtime by framework
  code (e.g. in .Net, data bound controls use
  properties.).
• An obfuscator should figure this out or allow the
  user to specify that certain metadata not be
  removed.
• Side Effects
• Decreases size of the application
• Performance neutral

31
Control Flow Obfuscation

• High level source is compiled into a sequence of
  instructions that closely mirrors source.
• The goal is to transform the original instruction
  sequence into a logically equivalent sequence
  that does not mirror the source.
• One that will not decompile back to the original
  source.
• Increases time and effort required to understand
  decompiler output.
• Nice side effect sometimes breaks decompilers
  expecting vanilla code.
• Semi-reversible. The original logic must be
  preserved, so the original instruction sequence
  may be re-discovered.

32
Approaches to Control Flow Obfuscation

• Decompilers look for clues to reproduce high
  level statements.
• Simple Rules
• Loops are backward jumps
• If statements are forward jumps
• Block Re-Ordering
• Move blocks of instructions and introduce extra
  jumps
• Destroys clues used by decompilers
• goto considered beneficial

33
Block Re-Ordering Illustration
x
Original
Re-Ordered
for
goto
for
if xlt0
goto
yy-1
yy1
yy-1
goto
x
yy1
if xlt100
goto
if xlt0
if xlt100
34
Approaches to Control Flow Obfuscation

• Splitting blocks of instructions and introducing
  spurious control flow.
• Classic Optimizations can be obfuscatory
• Loop Unrolling
• Caching local variables on the stack

35
Optimization as Obfuscation (Example)
Source code int temp a a b b
temp Compiles to something like push a pop
temp push b pop a push temp pop b
Which can be optimized to push a push b pop
a pop b And commonly decompiles to a b b
a
36
When to Use Control Flow Obfuscation (Caution)

• When you want to hide program logic from human
  readers and decompilers.
• Increase the time, effort, and expertise required
  to understand program logic.
• Can increase application size.
• Depends on the algorithm used.
• Can decrease performance.
• If performance is a concern, measure impact and
  do not apply to performance sensitive methods.

37
String Encryption

• String literals are compiled into the application
  in the clear.
• A common attack is to disassemble or decompile
  the program, then search for a known sensitive
  string.
• Allows attacker to quickly locate sensitive code.
• The goal of string encryption is to slow this
  attack down.
• At runtime, the strings must be decrypted on
  demand, so this transform is reversible.

38
Approaches to String Encryption

• Encrypt selected strings at obfuscation time and
  embed in application.
• Add a decryption method call immediately after
  every string load instruction.
• Replace the encrypted string on the stack with
  the clear string.
• Typically use a fast but weak encryption.
• Since the decryption must occur at runtime, there
  is little use for strong encryption.

39
When to use String Encryption

• When you want to deter casual attacks. A
  determined attacker can recover the strings.
• Can increase application size.
• Apply selectively to size sensitive programs.
• Can impact performance.
• Adds the overhead of a method call in front of
  every encrypted string load.
• If performance is a concern, measure impact and
  do not apply to performance sensitive methods.

40
Other Obfuscating Transforms

• Preventative Transforms (breaking known
  decompilers)
• Inserting invalid metadata that the runtime can
  ignore
• Exploiting bugs in decompilers and disassemblers
• No guarantees here
• Runtime compatibility issues
• Bugs in decompilers get fixed
• Transforming Program Structure
• Riskier transforms, benefits unclear.
• Obfuscation tools usually dont implement

41
Other Transforms (While the Hood is Up)

• Pruning
• Benefit of static analysis that obfuscators
  perform
• Determine and remove unused code
• This can offset size and performance increases
  introduced by other transforms.
• Linking and Packaging
• Merging code
• E.g. for .NET, merge multiple input assemblies
  into one output assembly.
• More size reduction
• Can simplify deployment

42
Other Transforms

• Application Watermarking
• Embedding and hiding data inside an application
• Obfuscation hinders attacks, watermarking detects
  attacks
• Track applications
• E.g. discover who leaked a program onto a P2P
  network by watermarking each copy with a serial
  number
• Obfuscators can hide a watermark inside any
  number of internal data structures
• A good watermark is
• Resilient. Difficult to remove without changing
  or breaking the application.
• Stealthy. It should not be immediately obvious
  that an application contains a watermark.

43
Obfuscation Best Practices

• Integrate obfuscation into the lifecycle as early
  as possible
• Development
• Debugging
• Automated builds
• Testing
• Support
• Updating

44
Developing Obfuscated Applications

• Reflection and dynamic invocation considerations
• Declarative obfuscation
• Developers know the code best.
• Developers are not always the ones doing the
  obfuscation.
• Developers annotate their code to give hints to
  the obfuscator.
• E.g. do not rename this method
• An obfuscator can strip out attributes after
  processing.
• Obfuscator IDE integration for local builds
• Developers can use the obfuscator on their code
  to gauge the impact.

45
Debugging Obfuscated Applications

• Symbols are obfuscated because of renaming.
• Control flow obfuscation can change line number
  information.
• An obfuscator should be able to transform
  debugging information along with the output
  programs.
• E.g. PDB files for .Net that contain line number
  information.
• Also provide a way to get an original name back
  from an obfuscated name and context.
• Use a mapping file produced by the obfuscator
• Ideally integrate into the IDE and debugger
  itself

46
Building Obfuscated Applications

• Automated Builds
• An obfuscator should easily integrate into
  builds.
• Command line interface
• Ant, Nant, MSBuild, etc.
• Code signing considerations
• Obfuscation must be performed on a binary before
  it is signed because obfuscation changes the code
• Verification
• Consider putting a check in the automated build
• Is the code obfuscated?

47
Testing Obfuscated Applications

• Obfuscation changes code and therefore can
  introduce bugs.
• Configuration errors
• Errors in obfuscating transform algorithms
• Is the output application valid?
• Does the output application work the same as the
  unobfuscated version?
• Behavior
• Performance and size requirements
• Was a problem introduced by the obfuscator?
• Regression testing is key
• Test before and after obfuscation.

48
Supporting Obfuscated Applications

• Information from the field might be obfuscated
• Log information
• Crash dumps
• Stack trace information
• Output map file is key to decoding
• Utilities to translate obfuscated symbols back to
  original symbols

49
Updating Obfuscated Applications

• Applications may consist of multiple obfuscated
  components that are serviced independently
• Applications may depend on shared obfuscated
  components that are serviced independently
• Obfuscated applications with a plug-in
  architecture can be dynamically updated with new
  features
• Obfuscation (renaming) can complicate these
  scenarios
• Incompatible identifier names will break
  referencing components

50
Incremental Obfuscation

• How to safely update components of obfuscated
  applications independently?
• Two approaches
• Dont let the obfuscator change names of visible
  symbols.
• Simplifies updating at the cost of less effective
  obfuscation
• Always re-obfuscate updated components using the
  same obfuscated names.
• Incremental Obfuscation
• Import the original name mapping into the
  obfuscator and let it use the same names.
• Map file becomes an artifact that must be tracked
  throughout the components lifecycle.

51
Summary

• Obfuscation is a strategy and a process
• Like anything, it has strengths and weaknesses
  that need to be assessed in relation to
  requirements.
• Once assessed, you can make your decisions about
  obfuscation.
• A good obfuscator should not only provide strong
  obfuscating transforms, it should also provide
  support for the process throughout the software
  development lifecycle.
