Combustion mechanisms in detonation fronts Joe Shepherd, Caltech October 2004

1

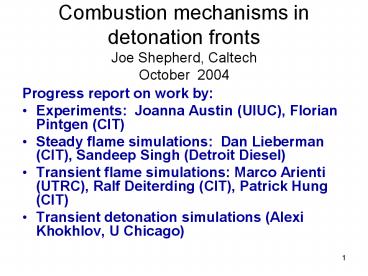

Combustion mechanisms in detonation frontsJoe
Shepherd, Caltech October 2004

• Progress report on work by
• Experiments Joanna Austin (UIUC), Florian
  Pintgen (CIT)
• Steady flame simulations Dan Lieberman (CIT),
  Sandeep Singh (Detroit Diesel)
• Transient flame simulations Marco Arienti
  (UTRC), Ralf Deiterding (CIT), Patrick Hung (CIT)
• Transient detonation simulations (Alexi Khokhlov,
  U Chicago)

2
Detonation Tube Experiments

• 8 m long, 280 mm diameter
• cookie-cutter attached to the 150 mm square
  test section
• Initiation with an exploding wire and an
  acetylene-oxygen-driver

End plate soot foil
3
Cellular Structure
R. Akbar 1997
4
Themes

• Some experimental observations
• Speculations about combustion mechanisms
• The role of diffusive processes
• The classical theory of high-speed flames
• Transient processes at shear layers
• The turbulent flame
• Future studies

5
Observations

• We observe a range of reaction front features
  which are strongly correlated with the
  sensitivity of the reaction rates to temperature
  variations.

6
OH fluorescence images - irregular structure
5 mm
8 mm
Shot 1597, 2H2O2 8 N2, 20kPa
Shot 1604, 2H2O2 8 N2, 20kPa
2H2O2 9 N2, 20kPa, Image height 50mm
All 150x150mm testsection
Reference F. Pintgen, J. M. Austin, and J. E.
Shepherd, Detonation front structure Variety and
characterization, Confined Detonations and Pulse
Detonation Engines, pages 105-116. Torus Press,
Moscow, 2003.
7
Highly Irregular MixturesN2O H2 mixtures
N2-diluted
10 mm
10 mm
10 mm
Shot 1607
Shot 1608
Shot 1609
H2 N2O 3 N2, 20 kPa, Cellsize 70mm
All 150x150mm testsection
Reference F. Pintgen, J. M. Austin, and J. E.
Shepherd, Detonation front structure Variety and
characterization, Confined Detonations and Pulse
Detonation Engines, pages 105-116. Torus Press,
Moscow, 2003.
8
Highly Irregular MixturesN2O H2 mixtures
N2-diluted
Shot 1643, H2 N2O 2 N2, 20kPa, Cell size 42mm
50 mm
50 mm
50 mm
20 mm
Shot 1609, H2 N2O 3 N2
Shot 1656, H2 N2O 2 N2
Shot 1643, close up
9
Instability driven turbulence
highly unstable (high Ea/RTS)
f1
unstable
stable
weakly unstable (low Ea/RTS)
10
What are we learning?

• Front structure not universal
• Strong function of chemical system
• Characterize with reaction zone structure
• Activation energy
• Shape of reaction zone ti/tr
• Correlated with longitudinal instability
  threshold
• Range of scales increases with increasing
  activation energy
• For fuel-air mixtures
• 102-103 range of length scales
• High frequency temporal fluctuations
• Decoupling at end of reaction zone

11
Explosive events following decoupling
4mm
12
Turbulent detonations?

• Reaction zone appears to be dominated by
  fluctuations in leading shock velocity
• Consequence of highly unstable structure
• Leads to large fluctuations in species and energy
  release rate
• Transverse waves
• Consequence or cause of spatial variation of
  leading shock?
• May lead to explosive events following decoupling
• Diffusive processes may operate at very small
  scales but
• Smallest scales not resolved in experiments
• Suggests that turbulent detonations may be
  intrinsically different than turbulent
  deflagrations

Is this a new or an old regime of turbulent
combustion?
13
Why?

• 1. Why is the reaction zone turbulent?
• Conjecture The mean flow is highly unstable to
  small perturbations. Numerous modes of transverse
  and longitudinal instability are present
  simultaneously. Nonlinear interactions of these
  modes creates a highly fluctuating environment
  within the reaction zone.

14
What?

• 2. What is the nature of the turbulence?
• At least two possibilities
• Coherent quasi-periodic keystone structures
  created by hierarchy of transverse waves
• Incoherent random superposition of fluctuations
  in front velocity creates random fluctuations
  in OH thermicity. Transverse waves are acoustic
  mode of turbulence.

15
How?

• 3. How is this different from classical
  turbulence?
• Speculations
• Fluctuations in temperature much more significant
  than fluctuations in velocity.
• Three dimensional shock geometry more significant
  than vorticity distribution.

16
Possible Consequences

• 4. How does turbulence influence detonation
  propagation?
• Unknown but we speculate that
• Perturbations to reaction rate
• Increases mean reaction rate
• Decreases sensitivity to mean fluctuations
• Harder to quench detonation by diffraction or
  energy absorption

17
Numerical Simulations

• Two-dimensional inviscid simulations with
  simplified reaction mechanism (1-step) but highly
  refined spatial discretization (A. Khokhlovs FTT
  method)
• Ea/RT chosen to match regular and irregular
  mixture thermochemical computations.

18
Regular Instability, Ea/RT 6.5
Numerical
Experimental
19
Irregular instability, Ea/RT 10
Experimental
Numerical
20
Conclusions

• Two-dimensional simulations at CJ condition
  feasible even with simplified reaction mechanism.
• Cellular substructure, wrinkling of reaction
  front, localized explosions consistent with
  experimental observations.
• Purely chemical-gasdynamic explanation for
  inviscid turbulence

21
However

• Computations are based on Euler model no
  diffusive processes. Is this what happens in
  nature?
• What happens at even higher values of Ea/RT?
• Most probable situations for diffusive transport
• Thin layers of unreacted material surrounded by
  products
• Shear layers between warm (shocked) reactants and
  hot products.
• Could conventional diffusive turbulent combustion
  be possible?

22
Regimes for Conventional Diffusive Turbulent
Combustion
from N. Peters (2000) Turbulent Combustion
23
Can we put some points on this plot?

• Are there regimes where laminar flames can exist
  in detonation fronts?
• What is the characteristic values of laminar
  flame speed in post-shock conditions?
• What are the range of length scales and
  fluctuation velocities in turbulent detonations?

24
Classical analysis of diffusive transport in
high-speed combustion

• Numerical study of Clarkes one-dimensional fast
  flames
• Re-examining conclusions reached with asymptotics
  for realistic detailed chemistry.
• Examine key issue not addressed by Clarke When
  do diffusion flames cease to be well defined?

25
One-Dimensional Fast Flame
26
Postshock Conditions
Stoichiometric CH4-air mixtures at various shock
speeds
27
Governing Equations
28
(No Transcript)
29
(No Transcript)
30
Two Extremes
CJ-ZND
Adiabatic flame
31
Magnitude of the terms in the energy balance
equation
v2m/s
v5.81m/s
tconv
tcond
tdiff
treac
tpress

tsum
v20m/s

v100m/s
32
Fast flame study conclusions
33
Existence of flames behind shocks
34
(No Transcript)
35
Results of flame computations
36
Summary of fast flame study
37
Characterization of fronts
Coastlines
Distribution of lengths
38
Scale-dependent fractal?
39
Wrinkled laminar flamelet analysis
M r u A
M r SL AT
AT/A U/SL
40
Conclusions

• Identified potential relevance of
  diffusion-controlled mechanisms in irregular
  detonation cellular structure
• Highly unstable reactive mixtures provide
  sufficient time-scale separation between thotcv
  and twarmcv in the decaying part of the
  detonation cell cycle.
• Molecular transport and thermal conduction can
  accelerate chemical kinetics in the time-scale of
  interest

41
Transient ignition of flames at shear layers

• Motivated by OH PLIF observations and numerical
  simulations.
• Analog of classic Marble-Adamson problem for
  ignition behind flame holder

Warm reactants
Hot products
42
The Marble-Adamson problem

• Chemical changes occur by a single reaction step

• Boundary layer scaling ?
• Diffusive term is of the same order as convective
  terms? ?
  ?

• Schvab-Zeldovich formulation
• Steady, low speed (isobaric) flow
• Binary diffusion coefficients of all species
  equal
• Unit Lewis number

43
The Marble-Adamson problem
propagating laminar flame
cold combustibles ? u1
hot inerts ? u2
boundary layer

• But
• Warm not cold combustible stream close to
  reaction.
• Hot stream is not inert (role of radicals
  diffusion vs. thermal diffusion).

44
Time scale competition

• Two streams
• hot, with temperature Th and adiabatic (c.v.)
  induction time thotcv
• warm, with temperature Tw and adiabatic (c.v.)
  induction time twarmcv
• Time to ignite a homogeneous mixture
• Time for a diffusive flame to developwhere
• Diffusive flame at shear layer if

• ? Look for large separation of thotcv and twarmcv

45
Local triple point analysis

• Polar analysis for non-reactive gas.
• Flow is steady in the reference frame of the
  triple point.
• Constant track angle f from incident leading
  shock.
• Known shock speed D at the cell centerline.
• All waves are straight.

46
Comparison of adiabatic ignition times
2H2-O2-7Ar P16.67kPa Miller Bowman
C2H4-3O2-8N2 P120kPa GRI-Mech 3.0
47
Homogeneous mixing ignition at shear layer
idealizedcell
48
Dependence from chemical mechanism

• 0-dimensional calculations at constant pressure
  usingthe CHEMKIN library Kee et al., 1989.

0.21 O2-0.79 N2
0.25 H2-0.75 N2
1100K
300K
Z kg
(1-Z) kg
1 atm
Mixture fraction Z
tHMI(Z)
49
Time scales competition
C2H4-3O2-8N2 P120kPa GRI-Mech 3.0
50
Flame development 1-D unsteady code

• AMROC provides access to adaptive data management
  as well as to detailed reaction mechanisms (via
  CHEMKIN).
• Operator splitting approach added subroutine to
  compute diffusive fluxes

• Species molecular diffusion, mixture thermal
  conductivity and thermal diffusion coefficients
  from TRANSPORT software package.
• Mixture averages using CHEMKIN gas-phase
  utilities.

51
Test 1 H2-O2 premixed laminar flame

• Comparison with steady solution from PREMIX
  program.

2H2-O2-7Ar mixture at P11 atm
H2-O2 mechanism by Miller Bowman (1989)
52
Test 2 H2-O2 non-premixed laminar flame
0.25 H2-0.75 N2 (300K) / 0.21 O2-0.79 N2 (1100K)
at P11 atm H2-O2 mechanism by
Kreutz Law (1996)
53
Weakly and strongly unstable reactive mixtures
2H2-O2-8N2
2H2-O2-7Ar
Composition at 10 peak temperature in hot-stream
c.v. explosion. H2-O2 mechanism by Miller
Bowman (1989)
54
Example I Diffusion flame at shear layer
2H2-O2-8N2
Composition hot stream at equilibrium ? or inert
? at 2213 K warm stream
unreacted at 1020 K ? twarmcv 1470 ms
? Estimated tHMI(0.95) 17. ms
55
Example II Convective explosion at shear layer
2H2-O2-8N2
T at 23.6 ms
XOH at 23.6 ms
Composition hot stream at equilibrium ? or
inert ? at 2213 K warm
stream reactants at 1200 K ? twarmcv 19.8 ms
? Estimated tHMI(0.95) 8. ms
56
Example III Energy vs. radical diffusion effects
2H2-O2-11N2
Composition hot stream at equilibrium ? or inert
? at 1427 K warm stream
reactants at 1000 K ? twarmcv 327 ms
? Estimated tHMI(0.95) 162 ms
