Title: Speed, Velocity and Acceleration


1

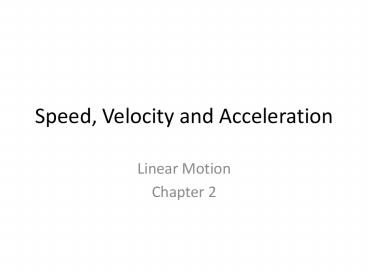

Speed, Velocity and Acceleration
  • Linear Motion
  • Chapter 2

2
Linear Motion
  • Motion is easy to recognize but can be hard to
    describe
  • The following quantities are used to describe
    motion speed, velocity and acceleration
  • Each of these is a rate. A rate is a quantity
    divided by time.
  • Motion along a straight line is sometimes called
    linear motion.

3
All Motion is relative
  • All motion is relative to a reference.
  • This means that we describe motion of an object
    relative to some other object
  • In our environment, the reference for motion is
    the earths surface, and speeds are measured
    relative to the earth
  • The earth moves at 107,000 km/h relative to the
    sun

4
Speed
  • Speed is a measure of how fast something is
    moving.
  • It is the rate at which a distance is covered
  • Units of speed could be km/h, m/s, mi/h, ft/s
  • In physics we use units of m/s for speed

  • s d/t

5
Instantaneous Speed
  • Instantaneous speed is speed at any instant in
    time.
  • A speedometer measures speed in real time (the
    instantaneous speed).

6
Average Speed
  • Average speed is the average of all instantaneous
    speeds found simply by a total distance/total
    time ratio
  • The average speed of a trip
  • For more information http//www.glenbrook.k12.il.u
    s/gbssci/phys/Class/1DKin/U1L1d.html

7
Velocity and Speed
  • In physics we distinguish between speed and
    velocity
  • Speed refers to how quickly an object moves (a
    scalar quantity).
  • Velocity is defined as speed in a given direction
    or rate of change of position (displacement over
    time). v x/t
  • Velocity refers to both the speed and direction
    of motion of an object (a vector quantity).
  • Negative velocity means the object is moving in
    the opposite direction
  • Motion at constant velocity means that both the
    speed and direction of an object do not change.
  • In a car, we can change the velocity three ways
    gas pedal to speed up, brake to slow down or
    steering wheel to change direction

8
Velocity Triangle
  • Speed and velocity triangles are similar because
    v x/t
  • Find the equation for displacement, and time
    using the triangle
  • x v x t
  • t x/v

9
Velocity Questions
  • How far does Bob run if he maintains an average
    velocity of 3 m/s for 10 s?
  • List three ways you can change the velocity of
    your car.
  • Is it possible to go around a corner without
    changing velocity? Explain.
  • One car is going 25 miles/hr north, another car
    is going 25 miles/hr south. Do they have the
    same velocity? Explain.

10
Acceleration
  • For its velocity to change, an object must
    accelerate.
  • An object accelerates whenever its speed or
    direction or both change.
  • Acceleration may be positive (increasing speed)
    or negative (decreasing speed).
  • Acceleration is a measure of how quickly the
    velocity changes a Dv/t

11
Acceleration at constant speed
  • An object moving in a circle at constant speed is
    always accelerating (changing direction).

12
Solving Acceleration Problems using Acceleration
Triangle
  • http//www.glenbrook.k12.il.us/gbssci/phys/mmedia/
    kinema/avd.html
  • If you have starting and ending velocity or
    speed, find that before you use the triangle.
  • If not, use triangle to find change in velocity
    (Dv), then find initial or final velocity
  • Dv ending velocity starting velocity

13
More Acceleration Equations
  • The equations x v x t and d s x t can only be
    used when the is no acceleration (velocity is
    constant)
  • If there is an acceleration and the starting
    velocity is zero, the following equations must be
    used for distance or displacement x ½ at2
    and d ½ at2
  • If there is an acceleration, and the starting
    velocity is zero, the following equation
    describes the velocity at any time v a x t or
    v at
  • Note If the starting velocity is not zero we use
    the equations v v0 at and x v0t ½
    at2 but student in this class will not be
    required to use these equations

14
Acceleration Questions
  • A dragster going at 15 m/s increases its velocity
    to 25 m/s in 4 seconds. What is its
    acceleration?
  • The driver of a car steps on the brakes, and the
    velocity drops from 20 m/s to 10 m/s in a time of
    2 seconds. Find his acceleration.
  • Find the acceleration of a car that travels at a
    constant velocity of 45 Km/hr for 10 s.
  • Challenge Calculate the velocity of a
    skateboarder who accelerates from rest for 3
    seconds down a ramp at an acceleration of 5 m/s2.

15
Free fall, an example of acceleration
  • Free fall is when an object is falling being
    affected only by gravity. That means NO air
    resistance.

16
Free Fall All objects fall at the same rate
  • If you drop a coin and a feather at the same time
    you will notice that the coin reaches the ground
    way before the feather.
  • However, if you were to take the air out of the
    container you would find that the coin and
    feather fall together and hit the bottom at the
    same time!

17
Acceleration due to gravity, g
  • Newton told us that every object with mass
    attracts every other object with mass and the
    size of the attraction depends on the mass of
    each object and the distance between the objects
  • We dont feel the attraction of most objects
    because their mass is small relative to the Earth
    which has a huge mass.
  • The Earth pulls so that objects experience an
    acceleration of about 10 m/s2. This acceleration
    is given a special letter, g.
  • g 10 m/s2 This number is important, remember
    it!
  • So during each second an object is in free fall,
    its velocity increases by 10 m/s. If the object
    experiences air resistance its velocity wont
    increase as fast because air resistance will slow
    it down.

18
Challenge Question
  • Suppose someone throws a ball straight upward
    with a speed of 30 m/s and at the same time
    throws one straight down with a speed of 30 m/s.
    Which ball will be traveling faster when it hits
    the ground, the one thrown straight upward or the
    one thrown straight down? Assume there is no air
    resistance.

19
Time and velocity for an object in free fall
  • v gt

20
Time and Distance for an object in free fall

  • d ½ gt2

21
Free Fall Questions How Fast?
  • 1) When a ball is thrown straight down, by how
    much does speed increase each second on Earth?
  • 2) When a ball is thrown straight up, by how much
    does speed decrease each second?
  • 3) In free fall, do a feather and a ball fall
    side by side? Explain.
  • 4) An apple falls freely from rest for 8 s on
    Earth, find its speed at 8 s.
  • 5) Suppose a rock is dropped on a planet where
    the acceleration due to gravity it 5 m/s2, by how
    much would the speed change each second?
  • 6) If a rocket on the planet in 5 falls from
    rest for 3 s, what is its speed at the end of the
    3 s interval?
  • 7) Challenge Find g on a planet where a rock has
    a velocity of 120 m/s after 6s of free fall.

22
Free Fall Questions How Far?
  • For a freely falling rock does the distance
    fallen each second stay the same, increase with
    time, or decrease with time?
  • A ball is dropped from rest and freely falls for
    6 s. How many meters has it fallen in 6 s?
  • A ball is thrown straight upward and travels 5 m
    until it reaches the top of its path.
  • How far will it fall before it reaches its
    initial position?
  • How long will it take to fall that distance?
  • How long will the ball be in the air?
  • 4) A ball is thrown straight up and returns to
    Earth 6 s later.
  • Find its speed at the top of its path.
  • Find its acceleration at the top its path.
  • How long does it take to reach the top of its
    path?
  • How fast is it traveling when it returns to
    Earth?
  • Challenge What is its maximum height?

23
Additional Free Fall Review
  • If one had only a stopwatch, could one determine
    the initial speed of a ball launched vertically
    upward from the earths surface? Explain.
  • With only a stopwatch, could one determine how
    high the ball travels before it stops? Explain.

24
Motion Graphs Position vs. Time
constant, rightward () velocity of 10 m/s
a rightward (), changing velocity - that is, a
car that is moving rightward but speeding up or
accelerating
25
Motion Graphs Velocity vs. Time
constant, rightward () velocity of 10 m/s
a rightward (), changing velocity - that is, a
car that is moving rightward but speeding up or
accelerating
26
Motion Graph Questions
  • 1) What do you think might be happening in this
    graph?

2) What do you think position and velocity graphs
of free fall motion might look like? Try to
sketch them.
27
Sources
  • http//rigel.physics.unr.edu/faculty/phaneuf/class
    info/index100.html
  • Conceptual Physics by Paul Hewitt
  • Hs-staffserver.stjames.k12.mn.us/schisa/PowerPoin
    t/Physics/3Chapter2.ppt
