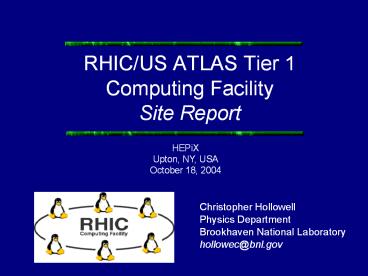

RHIC/US ATLAS Tier 1 Computing Facility Site Report

1
RHIC/US ATLAS Tier 1 Computing FacilitySite
Report
HEPiX Upton, NY, USA October 18, 2004

• Christopher Hollowell
• Physics Department
• Brookhaven National Laboratory
• hollowec_at_bnl.gov

2
Facility Overview

• Created in the mid 1990's to provide centralized
  computing services for the RHIC experiments
• Expanded our role in the late 1990's to act as
  the tier 1 computing center for ATLAS in the
  United States
• Currently employ 28 staff members planning on
  adding 5 additional employees in the next fiscal
  year

3
Facility Overview (Cont.)

• Ramping up resources provided to ATLAS Data
  Challenge 2 (DC2) underway
• RHIC Run 5 scheduled to begin in late December
  2004

4
Centralized Disk Storage

• 37 NFS Servers Running Solaris 9 recent upgrade
  from Solaris 8
• Underlying filesystems upgraded to VxFS 4.0
• Issue with quotas on filesystems larger than 1 TB
  in size
• 220 TB of fibre channel SAN-based RAID5 storage
  available added 100 TB in the past year

5
Centralized Disk Storage (Cont.)

• Scalability issues with NFS (network-limited to
  70 MB/s max per server 75-90 MB/s max local
  I/O in our configuration) testing of new
  network storage models including Panasas and
  IBRIX in progress
• Panasas tests look promising. 4.5 TB of storage
  on 10 blades available for evaluation by our user
  community. DirectFlow client in use on over 400
  machines
• Both systems allow for NFS export of data

6
Centralized Disk Storage (Cont.)
7
Centralized Disk Storage AFS

• Moving servers from Transarc AFS running on AIX
  to OpenAFS 1.2.11 on Solaris 9
• The move from Transarc to OpenAFS motivated by
  Kerberos4/Kerberos5 issues and Transarc AFS end
  of life
• Total of 7 fileservers and 6 DB servers 2 DB
  servers and 2 fileservers running OpenAFS
• 2 Cells

8
Mass Tape Storage

• Four STK Powderhorn silos provided, each with the
  capability of holding 6000 tapes
• 1.7 PB data currently stored
• HPSS Version 4.5.1 likely upgrade to version 6.1
  or 6.2 after RHIC Run 5
• 45 tape drives available for use
• Latest STK tape technology 200 GB/tape
• 12 TB disk cache in front of the system

9
Mass Tape Storage (Cont.)

• PFTP, HSI and HTAR available as interfaces

10
CAS/CRS Farm

• Farm of 1423 dual-CPU (Intel) systems
• Added 335 machines this year
• 245 TB local disk storage (SCSI and IDE)
• Upgrade of RHIC Central Analysis Servers/Central
  Reconstruction Servers (CAS/CRS) to Scientific
  Linux 3.0.2 (updates) underway should be
  complete before next RHIC run

11
CAS/CRS Farm (Cont.)

• LSF (5.1) and Condor (6.6.6/6.6.5) batch systems
  in use. Upgrade to LSF 6.0 planned
• Kickstart used to automate node installation
• GANGLIA custom software used for system
  monitoring
• Phasing out the original RHIC CRS Batch System
  replacing with a system based on Condor
• Retiring 142 VA Linux 2U PIII 450 MHz systems
  after next purchase

12
CAS/CRS Farm (Cont.)
13
CAS/CRS Farm (Cont.)
14
Security

• Elimination of NIS, complete transition to
  Kerberos5/LDAP in progress
• Expect K5 TGT to X.509 certificate transition in
  the future KCA?
• Hardening/monitoring of all internal systems
• Growing web service issues unknown services
  accessed through port 80

15
Grid Activities

• Brookhaven planning on upgrading external network
  connectivity to OC48 (2.488 Gbps) from OC12 (622
  Mbps) to support ATLAS activity
• ATLAS Data Challenge 2 jobs submitted via Grid3
• GUMS (Grid User Management System)
• Generates grid-mapfiles for gatekeeper hosts
• In production since May 2004

16
Storage Resource Manager (SRM)

• SRM middleware providing dynamic storage
  allocation and data management services
• Automatically handles network/space allocation
  failures
• HRM (Hierarchical Resource Manager)-type SRM
  server in production
• Accessible from within and outside the facility
• 350 GB Cache
• Berkeley HRM 1.2.1

17
dCache

• Provides global name space over disparate storage
  elements
• Hot spot detection
• Client software data access through libdcap
  library or libpdcap preload library
• ATLAS PHENIX dCache pools
• PHENIX pool expanding performance tests to
  production machines
• ATLAS pool interacting with HPSS using HSI no
  way of throttling data transfer requests as of yet
