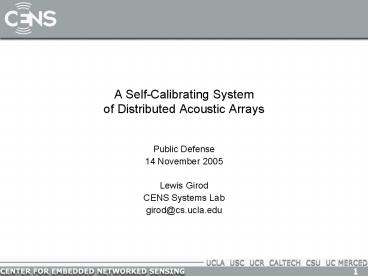

A SelfCalibrating System of Distributed Acoustic Arrays

1
A Self-Calibrating Systemof Distributed Acoustic
Arrays

• Public Defense
• 14 November 2005
• Lewis Girod
• CENS Systems Lab
• girod_at_cs.ucla.edu

2
Distributed Acoustic SensingApplication
Requirements

• Acorn Woodpecker Localization
• Solution
• Surround trees with acoustic arrays
• Arrays detect woodpecker(s)
• Arrays estimate bearing to birds
• Cross-beam localization to estimate number and
  location of birds
• Key Problem
• Need 3D Array Position and Orientation
• Design constraints
• 3D birds are in trees, 3D terrain
• Spacing requirement 20 meters
• Accuracy requirement
• 2 bearing, ?25 cm position
• Resilient to environment
• Ground foliage
• Background noise
• Weather conditions

3
Problem Statement
Goal Develop a self-calibrating system to
support collaborative acoustic sensing
applications, such as beam-forming and cross-beam
localization.

• Target System
• Input Node placement
• 3D, Outdoor, Foliage OK
• 20m Inter-node spacing
• Arrays are level
• Output Estimates
• XYZ Position 25cm
• Orientation 2
• Results in James Reserve
• Accurate Mean 3D Position Error 50 cm
• Precise Std. Dev. of Node Position 18 cm

70x50m
4
Why is this hard?
Node 108

• Spacing / low node density requirement
• Requires high precision (10 µS) time
  synchronization
• Acoustic range often RF range ? multi-hop
  timesync
• Less range data available, larger impact of
  angular error
• 3D positioning vs. 2D
• Adds additional degree of freedom
• Topologies tend to be flat i.e. poorly
  constrained Z
• Orientation estimation
• Adds additional degree of freedom
• Accuracy of 2 degrees difficult with small
  baseline array
• Noise and interference rejection
• Ranging must acquire precise phase of first
  arrival
• Foliage often obstructs LOS
• Blocks/attenuates signal (esp. narrowband
  signals)
• Increases odds of ranging errors

Node 104
5
Acoustic Position Estimation SystemA Vertical
Distributed Sensing Application
Acoustic Ranging and Positioning System

• Range and DOA Estimation (Ch 3)
• Multilateration Algorithms (Ch 4)
• Calibration Application (Ch 2,4,5)

Integration of Embedded Platform

• CPU and Microphone Array (Ch 2)
• Emstar Software Framework (Ch 6)
• Audio Server and Sync Support (Ch 7)
• Diagnostic and control tools (Ch 6)

Network Stack and Collaboration Primitives

• Multi-hop Time Synchonization (Ch 7)
• Topology discovery and control (Ch 8)
• Reliable State Dissemination (Ch 8)

6

Related Work
Studentized Residuals
Active Bat
Ultrasound
X Indoor Only
Ad-Hoc Acoustic
Audible
AHLoS
Cricket
X Accuracy
UCB (Whitehouse)
UIUC (Kwon)
X 2-D
Vanderbilt (Sallai)
Cricket Compass
Yao/Wang
Penn State (Ji)
X 2-D
OSU (Moses)
Microsoft (Rui)
MultiDim Scaling
X Accuracy
DOA
Network Services
X Wireless
ISIS
SRM
DOA Based Localization
Range Error Models
Hood
Trickle
USC (Chintalapudi)
X Mote-based
Slijepcevic/Potkonjak
X 2-D
X Accuracy
UCB (Doherty)
7
Key Contributions Beyond Related Work

• Works well outdoors, even in obstructed
  environments
• Other systems tested at shorter range, no foliage
• Works for relatively sparse nets 20m spacing
  with foliage
• Others work well only at high densities and
  larger scales
• This is not always practical
• Achieves better accuracy and precision, in 3D
• The best competing system gives 50cm position
  error in 2D
• Our system gives 9cm error in 2D, 50cm error in
  3D with poorly constrained flat topology
• Precise orientation estimation
• Required to support cross-beam algorithms
• Does not require magnetic compass
• 3D DOA estimation
• Angular constraints are critical to good 3D
  performance, especially given that most
  topologies are relatively flat
• Multi-hop time synchronization with COTS 802.11
• Acoustic range RF range

Node 108
Node 104
8
Acoustic Position Estimation SystemA Vertical
Distributed Sensing Application
Acoustic Ranging and Positioning System

• Range and DOA Estimation (Ch 3)
• Multilateration Algorithms (Ch 4)
• Calibration Application (Ch 2,4,5)

Integration of Embedded Platform

• CPU and Microphone Array (Ch 2)
• Emstar Software Framework (Ch 6)
• Audio Server and Sync Support (Ch 7)
• Diagnostic and control tools (Ch 6)

Network Stack and Collaboration Primitives

• Multi-hop Time Synchonization (Ch 7)
• Topology discovery and control (Ch 8)
• Reliable State Dissemination (Ch 8)

9
Position Estimation Application
10
Acoustic Array Configuration

• 4 condenser microphones, arranged in a square
  with one raised
• 4 piezo tweeter emitters pointing outwards
• Array mounts on a tripod or stake, wired to CPU
  box
• Coordinate system defines angles relative to array

11
Range and DOA Estimation

• Inputs
• The input signals from the microphones
• The time the signal was emitted (used to select
  from input signal)
• The PN code index used
• Outputs
• Peak phase (i.e. range)
• The 3-D direction of arrival ?, ?, and a scaling
  factor V
• Signal to Noise Ratio (SNR)

12
Filtering and Correlation Stage

• Synchronized Sampling Layer completely abstracts
  application from synchronization details
• Correlation
• Generate reference signal from PN code index
• Correlate against the incoming signal

13
Correlation

• Signal detection via matched filter constructed
  from PN code
• Observed signal S is convolved with the reference
  signal
• Peaks in resulting correlation function
  correspond to arrivals
• Earliest peak is most direct path

Lag Time of Flight
14
Detection Stage

• Want to detect first peak above noise floor
• Need to capture approx. peak region peak
  selection refined later
• Noise floor is time varying and must be estimated
• Use EWMA to compute continuous mean and variance
  estimate
• Selected a such that system adapts to 1 within
  5ms
• Define threshold to be a multiple of the standard
  deviation
• First value over threshold considered peak
• How to select threshold?

15
Selecting a Peak Detection Threshold
Detection Peak.. 1st peak above threshold
Noise Peak.. max peak before detection

• Given a peak detection threshold, e.g. 12, we can
  determine for any given signal the noise peak
  and detection peak.
• To be certain not to detect noise, we want a wide
  gap between the distribution of rejected noise
  peaks and of detection peaks
• We selected a threshold of 12, and tested it with
  100,000 trials collected at the James Reserve.

12
Multiples of s
0
12
Distribution of Noise Peaks
Distribution of Detection Peaks
16
Zooming in.. 8x Interpolation

• Sub-sample phase comparison is critical to DOA
  estimation
• Otherwise, large quantization errors 1 sample
  offset 5
• Once a peak region is identified
• Zoom in by interpolating
• Use Fourier coefficients to expand the signal at
  higher resolution
• Equivalent to phase shift in FD
• But enables direct TD processing of correlation
  outputs

17
DOA Estimation and Combining Stage

• 6-way cross-correlation of correlations ? DOA
  Estimator
• Filtered signals from each pair of microphones
  are correlated
• Offset of maximum correlation between pair
  (lag) recorded
• DOA Estimator uses least squares to fit lags to
  array geometry
• Key Resilient to perturbations in microphone
  placement
• DOA estimate used to recombine signals to improve
  SNR
• Final peak detection yields range estimate

18
Position Estimation

• Problem
• Given pair-wise range and DOA estimates
• Estimate X,Y,Z locations and orientation T for
  each node

R,?,?
19
Position Estimation Solution

• Two refinement algorithms
• R-? and NLLS
• Filtering out bad data is the key to good results
• Pre-filtering step
• Rejection of inconsistent data
• Metrics for assessment

20
Use DOA for Initial Estimate
(Difference of forward and reverse DOA used to
estimate orientation)
R
?
21
Two Refinement Methods R-? and NLLS

• R-? method extrapolates positions based on range
  and DOA
• Simpler results in linear system, e.g.
  (assuming T constant)
• Non-linear Least Squares (NLLS)
• Express range constraints separately from angle
  constraints
• Does not result in a linear system

22
Comparison of R-? and NLLS
2-D Position errors from courtyard data

• NLLS outperforms R-? for our system
• Position error from ? scales with R
• R-? cant independently weight angle and range
  info
• R-? cant independently drop angle and range info
• Note, R-? works for very high node densities
• Given distributions of R and ? errors
• Uncertainty of R and ? is comparable for an
  inter-node spacing S such that
• S?? ?R
• For our system,
• ?? 1 0.017 rad,
• ?R 3.8 cm,
• so S 2.17 m

23
Interleaved Orientation Estimation

• Orientation estimated in a separate, interleaved
  step
• Average difference between measured and computed
  angles
• Average represents bias caused by array
  orientation
• Values converge rapidly keep fixed after 10
  iterations while NLLS converges.

Measured
Computed
T
Node
24
Rejecting Inconsistent Data

• Rejecting data from inconsistent angles
• Angular error likely caused by reflections
• Pre-filter data
• Perform multiple trials, keep data from median
  angle value
• After orientation converges
• Drop ranges associated with angles that differ
  significantly from angles computed from estimated
  positions
• Rejecting outlier constraints
• Use studentized residuals
• Divides each residual by its variance
• Intuition Large residuals with low variance are
  inconsistent

25
Building the Position Estimation Application
26
StateSync A Multi-hop Collaboration Primitive

• StateSync provides a simple Publish-Subscribe API
  and reliable, efficient data dissemination over
  multiple hops. It is designed to support
  applications publishing long-lived data.

27
StateSync Achieves Low Quiescent Cost
28
Without Sacrificing Latency Much
29
StateSync Greatly Simplifies Position Estimation

• Ranging component publishes range estimates
• Position Estimation component subscribes to range
  estimates
• Processes current data
• If data is insufficient to achieve convergence
  and place our own node, requests local ranging
  component to emit ranging signals
• StateSyncs reliability layer unburdens the
  application
• Reliable
• Handles retransmission to achieve reliable
  delivery
• Brings late joiners up to date
• Nodes that lose connectivity can smoothly rejoin
  the network
• Stale data from rebooted nodes is dropped
• Efficient
• Leverages broadcasts
• Eliminates expensive soft-state refresh for low
  quiescent cost

30
Experiments

• Component Testing
• Azimuth angle test
• Zenith angle test
• Range test

• System Testing
• Court of Sciences Test
• James Reserve Test

31
Experimental Setup for Angular Tests
32
Azimuth Errors as Function of Angle
33
Overall Distribution of Azimuth Errors
34
Zenith Errors as Function of Angle

• Negative angles are obstructed by the array
  itself, and have much worse variance.
• Zenith performance varies with the azimuth angle,
  perhaps a function of the array geometry. Our
  data only tested two azimuth angles.

35
Overall distributions of Zenith Angle

• The zenith data does not fit well to a normal
  distribution (which is problematic because the
  position algorithms assume that).
• To improve things slightly, we computed
  statistics on subsets of the data. Both position
  algorithms can accept parameterized ? values.

36
Experimental Setup for Range Tests
Semi-enclosed environment (lot 9). Tests at
different scales assess precision at a range of
distances.
37
Range Measurements with Mean Error
38
Anomalous Behavior at 50m

• Might be due to bug in time synchronization
  service that has since been fixed, or to
  environmental variables.

39
Overall Distribution of Range Errors

• Not a particularly good fit to normal
  distribution
• Might improve under more controlled experiment
  (e.g. lot 4)

40
System Tests

• Experimental Process
• Lay out 10 nodes, and run system to collect
  ranges and DOA
• Apply positioning algorithms to compute maps
• Compare to ground truth
• Metrics1
• Average Range Residual
• Measures quality of fit, useful when GT unknown
• Simple average of range residual values
• Average Position Error
• Absolute measure of performance, useful when GT
  known
• Fit estimated map to ground truth
• Then compute average distance between
  corresponding points

1. Modification of metrics presented in
Slijepcevic and Potkonjak, Characterization of
Location Errors in WSNs, Analysis and
Applications, IPSN 03.
41
Fitting to Ground Truth to get Fair Position
Error
Ground Truth
Computed
Corresponding Points
42
System Test Court of Sciences
N

• 10 nodes placed at yellow dots
• Yellow lines denote tall hedges
• Ground truth measured as carefully as possible
  and arrays aligned to point west.
• Z axis was difficult to measure used data from
  Google Earth, which is measured to the nearest
  foot.

43
2D and 3D position error

• 3D position error for NLLS reflects low quality Z
  GT, flat topology
• NLLS did not converge for experiment 9
• R-? much worse, but shows improvement over time
  (env. cond.?)

44
Average Range Residuals and Position Err

• Average Range Residual metric is consistently
  low, except for the failed Experiment 9.

45
Repeatability Per-node XY mean and std-dev
X cm
Y cm
Mean Std-dev X3.18, Y3.85
46
Z and Orientation mean and std-dev
Mean Std-dev 1.37
Mean Std-dev 49.15

• Are non-zero means due to errors in ground truth
  or in measurements?
• X/Y estimates unclear. Ground truth
  incorporated cumulative errors and obstructions
  often blocked efforts to measure both axes.
• Z estimates likely inaccurate. The variation is
  larger than that expected from Google Earth data.
• Orientation estimates likely accurate They are
  generally low-variance and ground truth errors in
  alignment of 5 degrees are expected.

47
James Reserve System Test

• Deployed 10 nodes in forested area.
• In many cases LOS was partially obstructed.
• Accurate ground truth difficult to measure
  because of blocked LOS and changes in elevation.
• Measurements were taken with a laser rangefinder
  and an altimeter with a output resolution of 1m.
• Nodes were aligned to point west with a compass.

N
48
James Reserve per-node mean and std-dev
Mean Std-dev X3.48, Y3.78

• Errors in ground truth likely to be significant
  fraction of error in mean

49
James Reserve Z and Orientation mean/std-dev
Mean Std-dev 17.1
Mean Std-dev 3.15

• For many nodes, the variance in Z values for the
  hilly JR data is considerably lower than those in
  the courtyard data.
• The orientation repeatability is comparable to
  the courtyard data. The errors in ground truth
  for JR are expected to be worse.
• All data taken from the 6 experiments that placed
  all 10 nodes. The location stakes are still in
  place.

50
Range Consistency vs. Position Error

• This result shows that there are few cases where
  a good fit resulted in bad position error. The
  better fits at JR are likely due to more
  well-constrained Z axis which relies less on ?
  angles.

51
Conclusions

• Acoustic ENSbox platform supports distributed
  acoustic sensing
• Implemented ranging and position estimation
  application.
• Highly accurate positioning in a challenging
  environment
• XYZ Position 50cm (likely considerably better)
• Orientation 2
• Nearly order of magnitude improvement upon prior
  work
• 9 cm XY error vs. 50 cm (UIUC)
• Supports XYZT estimation
• achieved with
• fewer nodes
• lower densities
• more difficult conditions.

52
Review of Contributions
Acoustic Ranging and Positioning System

• Range and DOA Estimation (Ch 3)
• Multilateration Algorithms (Ch 4)
• Calibration Application (Ch 2,4,5)

Integration of Embedded Platform

• CPU and Microphone Array (Ch 2)
• Emstar Software Framework (Ch 6)
• Audio Server and Sync Support (Ch 7)
• Diagnostic and control tools (Ch 6)

Network Stack and Collaboration Primitives

• Multi-hop Time Synchonization (Ch 7)
• Topology discovery and control (Ch 8)
• Reliable State Dissemination (Ch 8)
