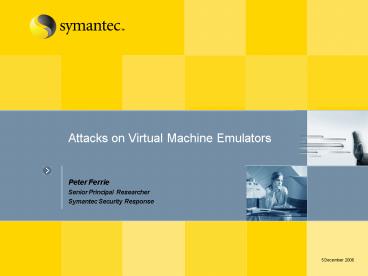

Attacks on Virtual Machine Emulators

1
Attacks on Virtual Machine Emulators

• Peter Ferrie
• Senior Principal Researcher
• Symantec Security Response

5 December 2006
2
A G E N D A

• Attack Types
• Types of Virtual Machine Emulators
• Detection of Hardware VMEs
• Detection of Software VMEs
• What can we do?
• Q and A

3
Attack Types

• DETECTION
• DENIAL-OF-SERVICE
• ESCAPE!

4
Attack Types Detection
5
Attack Types Detection
6
Attack Types Denial-of-Service
7
Attack Types Escape!
8
Attack Types Escape!
9
Types of Virtual Machine Emulators
Virtual Machine Emulators
Hardware-Bound Pure
Software
Hardware-Assisted Reduced-Privilege Guest
10
Reduced-Privilege Guest VMEs

• Software-based virtualization of important data
  structures and registers
• Guest runs at lower privilege level than before
• No way to avoid notification of all CPU events

11
Examples of Reduced-Privilege Guest VMEs

• VMware
• Xen
• Parallels
• Virtuozzo (probably)

12
Hardware-Assisted VMEs

• Uses CPU-specific instructions to place system
  into virtual mode
• Guest privileges unchanged
• Separate host and guest copies of important data
  structures and registers
• Guest copies have no effect on the host
• Host can request notification of specific CPU
  events

13
Examples of Hardware-Assisted VMEs

• BluePill
• Vitriol
• Xen 3.x
• Virtual Server 2005
• Parallels
• Virtuozzo (probably)

14
Detection of Hardware VMEs TSC Method

• Physical Hardware Virtual Hardware
• T1Instruction 1 T1...Instruction 1
• T11...Instruction 2 T11..Instruction 2
• T12...Instruction 3 T12..VM fault
• T1N.Instruction 3
• where N is a large number

15
Detection of Hardware VMEs TLB Method
1

• T1read memory 1
• T1X1read memory 2
• T1X2read memory 3
• T1X3read memory 4
• FT (Fill Time) ((T1X3)-T1)/4
• T2read memory 1
• T2Y1read memory 2
• T2Y2read memory 3
• T2Y3read memory 4
• CT (Cached Time) ((T2Y3)-T2)/4

2
16
Detection of Hardware VMEs TLB Method
3

• Execute CPUID
• T3read memory 1
• T3Z1read memory 2
• T3Z2read memory 3
• T3Z3read memory 4
• DT (Detect Time) ((T3Z3)-T3)/4
• If DT CT, then physical
• If DT FT, then virtual

4
5
17
Pure Software VMEs

• CPU operation implemented entirely in software
• Emulated CPU does not have to match physical CPU
• Portable
• Can optionally support multiple CPU generations
• Examples
• Hydra
• Bochs
• QEMU

18
Pure Software VMEs (Hybrid model)

• Commonly used by anti-virus software
• Emulates CPU and partial operating system
• CPU operation implemented entirely in software
• Examples
• Atlantis
• Sandbox

19
Malicious VMEs (SubVirt)

• Reduced-privilege guest
• Installs second operating system
• Runs on Windows and Linux
• Carries VirtualPC for Windows
• Carries VMware for Linux
• Difficult to detect compromised system

20
Detecting VMware

• IDT/GDT at high memory address
• Non-zero LDT
• Port 5658h
• Windows registry
• Video and ROM BIOS text strings
• Device names
• MAC address ranges

21
Detecting VirtualPC

• IDT/GDT at high memory address
• Non-zero LDT
• 0F 3F opcode
• 0F C7 C8 opcode
• Overly long instruction
• Device names

22
Detecting Parallels

• IDT/GDT at high memory address
• Non-zero LDT
• Device names

23
Detecting Bochs

• WB INVD flushes TLBs
• REP CMPS/SCAS flags
• CPUID processor name
• CPUID AMD K7 Easter Egg
• 32-bit ARPL register corruption
• 16-bit segment wraparound
• Device names

24
Attacking Bochs

• Bochs denial-of-service
• Floppy with 18 sectors per track
• Floppy with 512 bytes per sector
• Non-ring0 SYSENTER CS MSR

25
Detecting Hydra

• REP MOVS/SCAS integer overflow
• 16-bit segment wraparound

26
Detecting QEMU

• CPUID processor name
• CPUID K7 Easter Egg
• CMPXCHG8B memory write
• Double-faulting CPU

27
Detecting Atlantis and Sandbox

• Unimplemented APIs
• Incorrectly-emulated APIs
• Example Beep() in Windows 9x vs Windows NT
• Unfortunately correct emulation
• Example not crashing on corrupted WMFs

28
What can we do?

• Reduced-privilege guests
• Nothing
• VirtualPC
• Intercept SIDT
• Check for maximum instruction length
• Remove custom CPUID processor name
• Bochs, Hydra, QEMU
• Bug fixes
• Full stealth should be possible

29
Questions?

• Thank you.
• e-mail peter_ferrie_at_symantec.com
