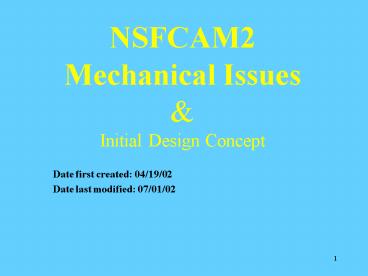

NSFCAM2 Mechanical Issues

1
NSFCAM2 Mechanical IssuesInitial Design
Concept

• Date first created 04/19/02
• Date last modified 07/01/02

2
Issues Design Tasks

• Nsfcam2 WeightSurface Areas
• Nsfcam2 Optical Configuration
• 2048x2048 Hawaii RG Array (new)
• Dichroic Turret and Mount (new)
• Focal Plane Wheel Mechanism (new)
• Lens assembly (new)
• Interface Mount (new)
• Design for use with IRTF AO (Copy? WFS)

3
Issues DesignTasks contd

• Vacuum Jacket (new)
• V-Truss (new)
• Thermal Design( old and new)
• Radiation Shield (new)
• Detent Mechanism ( new or redesign)
• Hall Sensors (replace limit switches)
• Compliant Worm Design, adopt
• Phases of Upgrade
• Wave Plate (external to VJ)?

4
Nsfcam2 WeightSurface Areas
5
Nsfcam2 Optical Configuration

• Note Distance MIM Truck Bottom-to-TFP same for
  Spex and Nsfcam2 (28.655 inch)
• To accommodate new lenses, will extend VJ,
  Rad.Shield and Cold Structure by about 12 inches
• IRTF AO WFS shown
• Need to decide whether to build a duplicate WFS
  or one with a larger FOV
• Interface Mount omitted

MIM Truck
Dichroic
TFP
VJ Extension
6
2048x2048 Hawaii 2RG Array

• Design Tasks
• New optics increases Overall Length approx 12
  inch
• Add Extension to existing Cold Structure
• Design new Radiation Shield and Vacuum Jacket to
  suit new Overall Length
• Redesign cold strap 2nd stage
• Adapt 2K Rockwell Array Mount to design
• Design-in Access to Detector
• Design for new wiring of 2K Array

7
Dichroic Turret Mount (new design)

• Design Tasks
• Adopt Spex Dichroic Mount Design for Nsfcam2
• Use Spex Generic Motor Mount (Animatics Motor)
• Design new Dichroic Turret and Bearing Assembly
• Design new Dichroic Drive, Train and Detent
  (compliant worm)
• Omit Limit switches, use Hall Sensors instead
• Add 3 outriggers to Dichroic Turret for Stability
• Extend Cold Structure to enclose new Dichroic
  Turret
• Redesign/stiffen up Turret Support Plate
  (backbone)
• Increase Worm Ratio

8
Focal Plane Wheel Mechanism (new)

• Design Tasks
• FPW Design new mechanism for Nsfcam2
• Design to fit into space of Thermal Clamp (to be
  removed)
• Lens-Turret capability not needed if FPW is used
• Use Lens-Turret drive for FPW, Redesign
• Detented mechanism, with 4 positions (use
  compliant worm)
• Continuous mechanism may have advantages?
• Use Spex Generic Motor Mount (Animatics Motors)
• Modify Cold Structure for new drive location
  (enlarge port,plug)

9
Lens Assembly (new)

• Design Tasks
• Optics-Lens-design requires new Lens-cell
  assembly(ies)
• 2 Lens-cell assemblies required without Focal
  Plane Wheel, Lens-turret must remain operational
• 1 Lens-cell assembly (fixed) required with Focal
  Plane Wheel, Lens-Turret will be modified (fixed
  Lens-cell) or Lens-Turret will be removed and a
  new lens-mount will be built

10
Interface Mount (new)

• Design Tasks
• Similar to Mount for Nsfcam, longer by 5 inch
• Use THK mechanism for ease of installation (same
  as for Nsfcam)
• Fabrication cost Approx 8K (from previous one
  built)
• Instrument Mount will be bolted to Top Surface of
  VJ.rather than on the sides, as in Nsfcam. This
  will improve the Stiffness of the Design

Nsfcam Interface (built)
11
Design for use with IRTF AO

• Design Tasks
• If we use same WFS and APD Rack Mountthen
• Mounting WFS and APD Rack will be identical as in
  Nsfcam
• Installation procedure same
• Electronics Box may change due to new Array
• CCC might change,depending on cooling capacity
  needed.

12
Vacuum Jacket (new)

• Design Features
• 4 Sections ,Alu 6061-T6
• Deep Sections 10, open-ended
• Bolted Assembly
• Custom O-Rings Qty4
• O-Ring placement designed to facilitate assembly
• Inside Dimensions identical to Nsfcam
• Weight as shown 166 lbs
• Weight Relief Estimate 20
• Interface Mount bolts to top section, increases
  stiffness
• Top cover provides access to Dichroic mechanism,
  detents.
• Bottom cover provides access to Detector and
  wiring

13
V-Truss-1 (new)

• Design Features
• Center of Mass of Cold Structure located in
  middle of apex plane gravitational forces
  produce no moment and body does not tilt as it
  deflects.
• Easy Installation Assembly because of sectional
  approach to Vacuum Jacket
• Use G-10 Fiberglass for V-Truss Material
• Calculate required stiffness of V-Trusses

14
V-Truss-2 (new)

• Design Features
• V-Truss Bases are attached to blue section of VJ
  first.V-Trusses are in place when adding Cold
  Structure
• Apexes are attached to Cold Structure full
  access
• Upper part of Radiation Shield will also be in
  place when inserting the Cold Structure (not
  shown)
• Yellow top sits on horizontal table for assembly

15
V-Truss Calculation(Stiffness, Heat Conduction)
S (rad) nAEsin2phi/L Stiffness of system
acting in plane of apexes) n4 (number of
V-Trusses) E4.06exp6 lbs/in2 (Elastic Modulus
for G-10) A1/4 inch x 2 inch.5 in2
(x-section/leg) Phi(ang)30 deg (semi-angle at
apex) L4 inch/cos(phi) (length of
leg) S4.39exp5 lbs/in FS(rad)x x80lbs/4.39exp
5 4.6 micron (deflection) for 80 lbs
Cold-Structure No tilt involved Cold Structure
supported at C-of-G
Ref R.P.Hastings
C-of-G
S(rad)
Cold Structure
Heat Conduction thru V-Trusses Calculated by
comparing to (NICI) 2 Watt A/L NICI
9.84exp-2 A/L Nsfcam2 1.08exp-1 Ratio is approx
1 2 Watts Ratio Nsfcam2/Nsfcam 1.7x more
conductive
4
16
Thermal Design-1

• Notes/Design Changes
• Increased Heat Load due to increased size of Cold
  Structure and Radiation Shield
• Preliminary Estimates(Areas) Cold Structure up
  16 , Radiation Shield up 36 (Spreadsheet)
• Preliminary Estimates (Mass) Cold Structure up
  20, Radiation Shield up 36
• Original Radiation Shield in Nsfcam was NOT
  polished
• Recalculate the needed cooling capacity based on
  new Cold Structure Mass and Surface Areas
• May have to go with 1050 cti Cryocooler
• Recalculate the thermal Strap
• E-Box redesign possible due to new 2K Array

17
Thermal Design-2
Existing Thermal Design
Vacuum Jacket
Cold- Structure
350 CTI Cooler
Pre-charge Can (2.5L)
Rad-Shield Passive Non-Polished
18
Thermal Design-3
New Thermal Design
Vacuum Jacket

• Notes on New Thermal Design
• Same as for Spex
• Need to calculate Precharge Capacity required
• Need to calculate Cooler Capacity

Cold- Structure
350 CTI Cooler
Pre-charge Can (2.5L)
Rad-Shield Active-Cooled Polished
19
Radiation Shield (new)

• Design Features
• 3/32 Shield Thickness Total Weight 20 lbs
  Total Surface Area 4118 in2, in and out (2.65
  m2)
• 4 Shear- webs for thermal isolation and support
• Polish all in-and-out side surfaces to 10 micron
  finish (not done in Nsfcam)
• Follows design approach used for Vacuum Jacket
• Geometry of shear-web 1 inch free L 1/32 thick
  Qty 4
• Conductive Heat Load due to shear-webs will be
  approximately 160 mW

20
X-Section (updated 06/06/02)redo
21
Upgrade Schedule-1 Build Phase

• Plan (Given we use FPW)
• Tasks prior to opening up Nsfcam
• Build a new Dichroic Turret, complete with drive
  train and detent
• Build one Lens-cell assembly for new optics
  lenses
• Build one Lens-cell Mount
• Build the FPW complete with drive train and
  detent
• Build the plate which holds the Dichroic Turret,
  Lens-cell Mount and FPW. This plate is a a
  modified version of the existing one. This is the
  backbone for the new parts/assemblies inside
  Nsfcam2
• Build new Motor Mounts (Animatics) for all the
  mechanisms in Nsfcam2
• Build new Vacuum Jacket
• Build new Radiation Shield
• Build Cold Structure Extensions (Dichroic Turret
  and 2K Extension)

22
Upgrade Schedule-2 Modify Fit Phase

• Tasks after opening Nsfcam
• Remove Dichroic Turret,Lensturret, drive trains
• Remove Thermal Clamp
• Modify Existing Cold Structure (Add tapped holes
  etc)
• Fit new internal Nsfcam2 to modified Cold
  Structure
• Fit Bottom Extension to Cold Structure
• Fit new V-Trusses
• Add Top Extension to fit the new Design for
  Dichroic Turret and Drive
• Fit new Radiation Shield using shear webs
• Fit new Vacuum Jacket
• Fit new drive trains
• Fit Generic Motors (from Spex)

23
Time Estimate Spreadsheet
