Distributed Synchronization

1

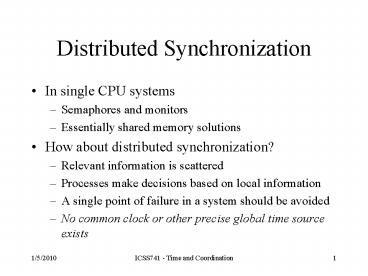

Distributed Synchronization

• In single CPU systems
• Semaphores and monitors
• Essentially shared memory solutions
• How about distributed synchronization?
• Relevant information is scattered
• Processes make decisions based on local
  information
• A single point of failure in a system should be
  avoided
• No common clock or other precise global time
  source exists

2
What Is Needed

• In order to coordinate events in a distributed
  system
• We may need to know the time at which a
  particular event took place
• We may need to determine the order in which two
  events took place, or should take place, without
  respect to the time they actually occur
• Synchronization requires either
• Global time
• Global ordering

3
Time Synchronization

• Is it possible to synchronize all clocks to
  produce a single, unambiguous time standard?
• Time synchronization need not be absolute
• What usually matters is that processes agree on
  the order in which events occur (not necessarily
  the time at which they occur)

4
Time and Coordination

• Basically two problems with time
• External synchronization
• Synchronize clocks with an authoritative external
  source of time
• Internal synchronization
• The internal consistency of the clocks is what
  matters, not whether they are close to the real
  time

5
Astronomical Time

• Since the 17th century time has been measured
  astronomically
• The event of the sun reaching the highest point
  in the sky is called the transit of the sun
• The interval between two consecutive transits of
  the sun is called a solar day
• In the 1940s, it was established that the earths
  rotation is not constant
• The earth is spinning slower
• 300 million years ago there were about 400 days
  per year

6
Atomic Time

• The atomic clock was invented in 1948
• One second is the time it takes the cesium 133
  atom to make 9,192,631,770 transitions
• Currently about 50 cesium-133 clocks exist
• Periodically they are averaged to produce
  international atomic time (TAI)
• The Bureau International de lHeure (BIH)
  maintains the official clock

7
Leap Seconds

• Currently about 86,400 TAI seconds is about 3msec
  less than a mean solar day
• Not a problem until noon becomes 6am
• BIH solves the problem by inserting leap seconds
  to compensate for the difference
• Leap seconds are added whenever the discrepancy
  grows to 800 msec
• Power companies will increase their frequencies
  to compensate
• UTC (Universal coordinated time) is the result

8
Obtaining Accurate Time

• UTC is an international standard for the current
  time
• WWV shortwave radio from Fort Collins (accuracy
  0.1 10 milliseconds)
• GEOS satellites (0.1 milliseconds)
• GPS satellites (1 millisecond)

9
Physical Clocks

• Computer each contain their own physical clocks
• Timer might be a better word
• Utilize crystal that oscillate at a known
  frequency
• A count of the oscillations is maintained
• Software typically takes this count, divides it
  down, and stores it as a number in a register
• Most systems provide date/time from the counter
• Ordering events, in a single machine, with such a
  clock is easy
• Provided the clock resolution is fine enough

10
Clock Drift

• Crystal-based clocks are subject to drifting
• the change in the offset between the clock and a
  nominal perfect reference clock per unit of time
  measured by the reference clock
• Typical drift rates
• Quartz crystals 10-6 (about a difference of one
  second every 1,000,000 seconds or 11.6 days)
• Atomic clocks 10-13

11
External Synchronization

• Lets say you have access to a UTC time source
• Assume the machine has a timer that causes an
  interrupt H times a second
• Current clock value is C
• When UTC time is t, the value of the clock on
  machine p is Cp(t)
• Ideally Cp(t)t for all p and t (dC/dt should be
  1)

12
Maximum Drift Rate
dC/dt gt 1
dC/dt 1
Fast clock
Perfect clock
dC/dt lt 1
Slow clock
13
Synchronizing Physical Time

• What exactly does it mean to synchronize two
  clocks?
• Clocks inherently suffer from drifting
• Assuming clocks can always be precisely
  synchronized in unrealistic
• Define an acceptable range for the difference in
  time reported by two clocks (clock skew)
• A distributed physical clock synchronization
  service defines, and maintains, a maximum skew
  throughout the system.

14
The Basic Algorithm

• A wants to read Bs clock
• A sends a request to B
• B records its current clock value
• The clock value is sent back to A
• Bs clock value is adjusted to reflect travel
  time
• Bs clock value can now be compared to As
• Step 4 is difficult to implement accurately

15
Interesting Question

• So you have to adjust your time
• Your clock is slow move it ahead
• Your clock is fast move it back?
• Implementations
• Slow down your clock so it will continually move
  towards the real time
• Speed up your clock so it will move towards the
  real time
• Just move your clock ahead to the real time

16
Cristians Algorithm

• One machine knows the true time
• Periodically each machine sends a request for the
  current time

T0
Request
Time
I, interrupt handling time
CUTC
T1
Measured with the same clock
17
Transit Time

• Estimating propagation time
• ( T1 T0 ) / 2
• ( T1 T0 I ) / 2
• If minimum possible propagation delay is known,
  the estimate can be made better
• Accuracy can be improved by taking several
  measurements
• Any measurement in which T1 T0 exceeds a
  threshold is discarded (congestion)

18
ICMP Timestamp Request/Reply
Type (17 or 18)
Code (0)
Checksum
Identifier
Sequence Number
32-bit originate timestamp
32-bit receive timestamp
32-bit transmit timestamp
Same clock so difference is accurate
rtt
19
The Berkeley Algorithm

• Time server is active, and polls each machine
  periodically for its time
• Based on the answers, an average time is computed
• A fault-tolerant average is used
• Machines are then told to slow down, or speed up
  their clocks
• Suitable for systems where no UTC source is
  available

20
Berkeley Algorithm
740
740
Current Time 740 Adjusted TimeA 730 Adjusted
TimeB 742 Average 737
Current Time 720 Move clock forward 7
Current Time 737
720
737
7
Network delay 10
Network delay 5
21
Network Time Protocol

• NTP is used to synchronize the time of a computer
  client to another server or reference time source
• Client accuracies are typically within a
  millisecond on LANs and up to a few tens of
  milliseconds on WANs
• NTP configurations utilize multiple redundant
  servers and diverse network paths in order to
  achieve high accuracy and reliability
• Configurations can use authentication to prevent
  accidental or malicious protocol attacks

22
NTP Strata
Primary Servers (stratum 1 ) sync to UTC source
Secondary Servers (stratum 2 ) sync to primary
servers
Workstations
23
USNA NTP Time Servers
24
Rules of Engagement

• Clients should avoid using the primary servers
  whenever possible
• In most cases the accuracy of the NTP secondary
  (stratum 2) servers is only slightly degraded
  relative to the primary servers
• As a group, the secondary servers may be just as
  reliable

25
When to Use a Primary

• As a general rule
• The secondary server provides synchronization to
  a sizable population of other servers and clients
• The server operates with at least two and
  preferably three other secondary servers in a
  common synchronization subnet
• The administration(s) that operates these servers
  coordinates other servers within the region, in
  order to reduce the resources required outside
  that region.
• In order to ensure reliability, clients should
  spread their use over many different servers

26
NTP Servers

• http//www.ntp.org (home page for NTP)
• List of Primary Servers (100)
• http//www.eecis.udel.edu/mills/ntp/clock1.htm
• List of Secondary Servers (110)
• http//www.eecis.udel.edu/mills/ntp/clock2.htm
• Our server
• timehost.cs.rit.edu

27
Synchronization Modes

• Servers synchronize in one of three modes
• Multicast
• Used on high speed LANs
• Servers periodically broadcast their time
• Low accuracies, but efficient
• Procedure-call
• Similar to the operation of Cristians algorithm
• Symmetric
• Used by master servers
• Pairs of servers exchange information
• Timing data is retained in order to improve
  accuracy

28
NTP Design Goals

• The four primary design goals of NTP are
• Allow accurate UTC synchronization
• Enable survival despite significant losses of
  connectivity
• Allow frequent resynchronization
• Protect against malicious or accidental
  interference

29
Accurate Synchronization

• NTP provides the following information relative
  to the primary server
• Clock offset
• Difference between the two clocks
• Round-trip delay
• Total transmission time for the messages
• Dispersion
• Offsets are predicted
• Dispersion is a measure of how much the
  prediction differs from what what reported
• Large dispersion values indicate inaccuracy

30
Logical Clocks

• Since physical clocks cannot be perfectly
  synchronized across a distributed system
• Physical time cannot be used to determine the
  order in which events occur
• Logical clocks can be used to order events within
  a distributed system
• The essence of a logical clock is the
  happens-before relationship

31
Happens-Before

• The happens-before relationship is denoted a ? b
• If a and b are events in the same process, and a
  occurs before b, then a ? b
• If a is the event of a message being sent by one
  process, and b is the event of the message being
  received by another process, then a ? b
• If a ? b, and b ? c, then a ? c
• Any two events that are not in a happen-before
  relationship are concurrent

32
Events
33
Lamports Logical Clock

• To obtain logical ordering, timestamps that are
  independent of physical clocks are used
• Lamport clocks follow these rules
• Each process increments it clock between every
  two consecutive events
• If a sends a message to b, the message includes
  T(a). Upon receipt, b sets its clock to the
  greater of T(a)1 and the current clock

34
Lamports Algorithm
0 8 16 24 32 40 48 61 69 77 85
0 10 20 30 40 50 60 70 80 90 100
0 8 16 24 32 40 48 56 64 72 80
0 10 20 30 40 50 60 70 80 90 100
0 1 2 3 4 5 6 7 8 70 71
0 1 2 3 4 5 6 7 8 9 10
a
a
b
b
c
c
d
d
e
e
f
f
A(6) ? F(10) ? B(24) ? C(50) ? D(60) ? E(64)
A(6) ?B(24) ? C(50) ? D(60) ? E(64) ? F(71)
35
Partial Ordering

• If a ? b then L(a) lt L(b)
• Note that
• L(d) lt L(e)
• Does not imply that
• d ? e
• Since d and e might be concurrent
• Plus L(a) might equal L(b)

36
Example
37
Total Ordering

• Between every event the clock must tick at least
  once
• Since events cannot happen at the same time,
  attach the process number to the low-order end of
  the time, separated by a decimal point
• Now
• If a happens before b in the same process, C(a) lt
  C(b)
• If a and b represent the sending an receiving of
  a message, C(a) lt C(b)
• For all events a and b, C(a) is not equal to C(b)

38
Vector Clocks

• Vector clocks were designed to overcome the
  shortcomings of Lamports clocks
• A vector clock is an array of times
• The rules
• Initially, Vij0, for i,j 1,2 , N
• Just before pi timestamps an event, it increments
  Vii
• pi includes the value t Vi in every message it
  sends
• When pi receives a timestamp in as message, it
  takes the component-wise maximum of the two
  vector timestamps

39
Example
40
Comparing Timestamps

• Vector timestamps are compared as follows
• V V iff Vj Vj for j1,2,,N
• V lt V iff Vj lt Vj for j1,2,N
• V lt V iff VltV and V ! V
• So what?
• If V(e) lt V(e) then e?e
• c and e are concurrent since neither V(c) lt V(e)
  nor V(e)ltV(c)
