Introduction to RosettaNet: XML Working Group 51601 Minus RosettaNet Template

1

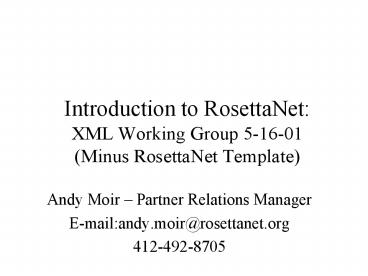

Introduction to RosettaNetXML Working Group
5-16-01(Minus RosettaNet Template)

• Andy Moir Partner Relations Manager
• E-mailandy.moir_at_rosettanet.org
• 412-492-8705

2
In this Presentation

• Industry Overview
• Consortium Organization
• Business Process Architecture
• RosettaNet Roadmap
• Conclusion

3
Major Industry Trends Demand Action

• Competitive pressure to achieve extreme
  operational efficiency
• Transition from linear to dynamic supply chain
  model
• No explicit agreement on data exchange process
• Increased support for XML, a lower cost
  alternative to electronic data interchange (EDI)

4
Global Trends in E-Business
Business-to-Business Trade Growth
Source Jupiter Research 2000
5
The RosettaNet Vision, Mission

• Vision The Leader in global e-business standards
• Mission RosettaNet drives collaborative
  development and rapid deployment of
  internet-based business standards, creating a
  common language and open e-business processes
  that provide measurable benefits and are vital to
  the evolution of the global, high-technology
  trading network.

6
RosettaNet In the News

• RosettaNet is bold. Where other e-business
  efforts start small working on a single
  business unit first and then building up
  RosettaNet is working on the entire IT industry.

Y2K Top 10 Winner Internet Week
7
Information Exchange Standards
Process-centric
Message-centric

• Real-time
• 100 of B2B processes
• Internet-enabled
• XML
• Global
• All businesses
• Standard industry dictionaries

• Batch
• 10 of B2B processes
• VAN-enabled
• X.12/EDIFACT/JECALS
• Regional
• Large businesses
• Custom industry dictionaries

8
In this Presentation

• Industry Overview
• Consortium Organization
• Business Process Architecture
• RosettaNet Roadmap
• Conclusion

9
RosettaNet History

• 6/98 Information Technology (IT) Board Formed
• 8/99 Electronic Component (EC) Board Formed
• 4/00 RosettaNet Japan Formed
• 11/00 RosettaNet Announces Global Leadership
• 12/00 Nokia Joins
• 1/01 Semiconductor Manufacturing (SM) Board
  Formed
• 02/01 RosettaNet Korea Announced (16 Companies)
• 02/01 Sony Joins

10
RosettaNet Partners
Trade Associations

• RosettaNet standards led at global level
• Regional focus on implementation support, etc.
• Partners have option of global or regional
  membership

Standards Bodies
Government Agencies
Solution Providers
Supply Chain Companies
11
RosettaNet Governing Process
X 3
12
Information Technology (IT) Supply Chain Board

• Hewlett-Packard
• IBM
• Ingram
• Insight
• Intel
• Lucent Technologies
• NEC
• Netscape
• Office Depot

Pioneer Quantum SAP Siemens Solectron Tech
Data Trilogy UPS

• 3Com
• Arrow Electronics
• Avnet
• Cisco Systems
• Compaq
• CompUSA
• Dell
• Federal Express
• GSA

13
Electronic Components (EC) Supply Chain Board
14
Semiconductor Manufacturing (SM) Supply Chain
Board

• Air Products Chemicals
• Agilent Technologies
• Amkor Technology
• Applied Materials
• ASE
• Chartered Semiconductor
• Intel
• JSR
• LSI
• Lucent Technologies

• Micron Technology
• Motorola
• National Semiconductor
• NEC
• Philips Semiconductors
• Samsung Electronics
• Shin-Etsu Handoutai
• Shinko Electronics
• SPIL
• Sumitomo Bakelite

Sumitomo Metal Texas Instruments TOK Tokyo
Electron Toppan Toshiba TSMC UMC Winbond Xilinx
15
Potential Future Boards

• Automotive
• Telecommunications

16
In this Presentation

• Industry Overview
• Consortium Organization
• Business Process Architecture
• RosettaNet Roadmap
• Conclusion

17
Partner-to-Partner Electronic Business Interface

Company B
Company Specific processing
I2 APS
Translate from Rosettanet standards to Company
A system data set.
RosettaNet defines processes and a framework for
how data gets passed over the Web and certain
handshake criteria.
18
Business Processes
Supplier
Customer
Private process(Company -specific)
Public process(Standard)
Public process(Standard)
Private process(Company -specific)
ProcessSales Order
Process PO
Send POCustomer
Send POSupplier
Receive PORequest
Receive PO
Receive PO
Send PO
Receive PO
Send PO
Receive PO
SelectSupplier
PO
CheckCustomer
CheckCustomer
CRM
GenerateRFQ
Receive POAcknowledge
Send POAcknowledge
Receive POAcknowledge
Send POAcknowledge
CheckCredit
CheckCredit
SendRFQ
CheckAvailability
CheckAvailability
SCM
Receive POResponse
Send POResponse
Figure provided by Vitria Systems
Receive POResponse
Send POResponse
Select RFQ Response
Create SalesOrder
Create SalesOrder
SendPO
Send POResponse
Send POResponse
Send POResponseAcknowledge
Receive POResponseAcknowledge
Send POResponseAcknowledge
Receive POResponseAcknowledge
Close
ERP
Close
Close
19
E-Business Exchange
PIP
Dialog
human-to-humanbusiness exchange
Partner-to-Partner eBusiness exchange
20
RosettaNet Business Process Architecture

• Partner Interface Process (PIP)
• RosettaNet Dictionaries
• RosettaNet Implementation Framework (RNIF) Core
  (Messaging Services)

21
Partner Interface Process (PIP)

• Depict activities, decisions and interactions
  that fulfill a business transaction
• Specify structure and format of business document
  payloads
• Organized by clusters and segments

22
RosettaNet Business Technical Dictionaries

• Ensures consistent information exchange during
  PIP execution
• Technical dictionary (form, fit, function)
• Specifies common product properties
• Business dictionary
• Specifies common partner properties
• Enables partners to identify one another
• Shares common standards
• Partner Identification
• Product Identification

23
RosettaNet Implementation Framework (RNIF) Core

• Defines RosettaNet Object (RNO)
• Specifies how to transport RosettaNet Object
  between trading partners network applications
• Version 2.0 features and benefits
• HTTP and SMTP transfer protocols better support
  for e-marketplaces
• Support for .pdf, .gif files - can send complex
  documents
• Support for S/MIME v.2 - greater security,
  privacy and authentication

24
RosettaNet Process Model
RosettaNet Partner Interface Process Standards
Partner Profile Management
Manu-facturing
Order Management
Inventory Management
Marketing and Support
Product Information
Manage Profile Subscriptions Request Profile
Data Profile Change Notification Profile Process
Request

• Preparation for Distribution
• Product Change Notification
• Product Design Information
• Collaborative Design

Design Transfer Manage Manufacturing WO and
WIP Distribute Manufacturing Information
(Genealogy and Quality)
Quote Order Entry Transportation
Distribution Returns Finance Ship from Stock
Debit/Credit

• Demand Planning and Release
• Inventory Allocation
• Inventory Replenishment
• Inventory Reporting
• Sales Reporting
• Price Protection

• Lead Opportunity Management
• Marketing Campaign Management
• Design Win Management
• Provide Service

25
Standards Management Process
Standards Development Methodology
Configuration Management
Portfolio Management
Public Feedback
Development and Vote
Prioritization
Maintenance
Validation
26
In this Presentation

• Industry Overview
• Consortium Organization
• Business Process Architecture
• RosettaNet Roadmap
• Conclusion

27
FY 2000 Accomplishments

• Built formal global presence
• Formed the Semiconductor Manufacturing Board
• Re-engineered the PIPTM assembly line
• 55 board members moved into PIPTM production

28
PIPTM Production FY 2000 - Members
Cluster Product Information
PIP 2A1 Distribute New Product Information PIP
2A2 Query Product Information PIP 2A9 Query
EC Technical Information
Cluster Order Management
PIP 3A2 Request Price and Availability PIP
3A3 Transfer Shopping Cart PIP 3A4 Manage
Purchase Order PIP 3A6 Distribute Order
Status PIP 3A7 Notify of Purchase Order
Acceptance PIP 3B2 Notify of Advance
Shipment PIP 3B4 Query Shipment Status
Cluster Inventory Management
PIP 4B1 Allocate Inventory
Cluster Marketing Information Management
PIP 5C1 Distribute Product List PIP
5C2 Request Design Registration PIP
5C3 Request Design Win
29
Implementation Successes
IMPLEMENTATION SUCCESS
30
RosettaNet 2001 Priorities

• Increase global membership
• Evaluate and embrace major intermediaries
• Expand into logical/urgent adjacent vertical
  supply chains
• Extend standards for new business processes and
  new business models
• Produce and enable adoption of PIPsTM

31
Standards Priorities 2001

• Increase number of member validated PIPsTM
• Business process scenarios outlined, including
  existing and emerging processes
• End-to-end process scenarios developed and ready
  for validation
• Integrated demand management
• Process manufacturing management
• Distributed discrete manufacturing
• TBD based on board member milestone analysis

32
E-Business Process Scenarios
Forecast to Order Management
Produce Sales Forecast
Produce Order Forecast
Query Shipment Status
Transfer Shopping Cart
Request Price and Availability
Manage Purchase Order
33
Board-Approved 2001 Milestones
PROGRAMS
Name being finalized
34
Software Compliance Program

• Program purpose is to ensure that a software
  solution has implemented the RosettaNet
  specifications correctly
• Validation will take place against a neutral
  implementation
• RosettaNet compliant solutions lay groundwork for
  interoperable solutions
• Self-testing toolkit available Q2 2001

35
In this Presentation

• RosettaNet Overview
• RosettaNet Business Process Architecture
• The RosettaNet Consortium
• RosettaNet Roadmap
• Conclusion

36
Summary

• RosettaNet is a global leader in e-business
  standards
• RosettaNet Business Process Architecture
• RosettaNet is a consortium of 400 partners and
  growing
• FY 2001 will see increased momentum

37
Information is Power, but

• Competitive advantage lies not in how you gather
  the data, but what you do with it once youve
  got it.

The Rosetta Stone Made 196 b.c. Discovered July
1799
