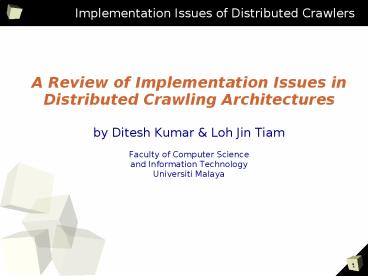

Implementation Issues of Distributed Crawlers

1
Implementation Issues of Distributed Crawlers

• A Review of Implementation Issues in
• Distributed Crawling Architectures
• by Ditesh Kumar Loh Jin Tiam
• Faculty of Computer Science
• and Information Technology
• Universiti Malaya

2
Implementation Issues of Distributed Crawlers

• What are crawlers?
• Networked software systems that perform indexing
  services of certain resources.
• Most crawlers focus on web content (eg HTML
  pages).
• Generally serves as a backend to search engines.

3
Implementation Issues of Distributed Crawlers

• Functionality of Crawlers

Download Resource
Store Resource
Retrieve Pointer
Perform Pointer Analysis
Store New Pointers
4
Implementation Issues of Distributed Crawlers

• Issues
• Architectures
• Coverage, overlap and communication overhead
• Assignment of Responsibility
• Scalability
• URL Partitioning

5
Implementation Issues of Distributed Crawlers

• Distributed Architectures
• One server, multiple crawlers

Server
crawler
crawler
crawler
6
Implementation Issues of Distributed Crawlers

• Architectures (many crawlers-one server)
• Advantages
• Well known architecture, easy to code.
• Easy to partition responsibility.
• Easy to perform fault-tolerance (eg, if crawler
  dies, it can be restarted).
• Scalability not an issue.
• Process, performance monitoring becomes easier.
• Less network traffic.

7
Implementation Issues of Distributed Crawlers

• Architectures (many crawlers-one server)
• Dis-advantages
• Potential bottleneck.
• Not practical when number of crawlers is large.

8
Implementation Issues of Distributed Crawlers

• Architectures
• Peer-to-peer

crawler
crawler
crawler
9
Implementation Issues of Distributed Crawlers

• Architectures (p2p)
• Advantages
• Scalable if coded properly.
• Automatic partitioning of responsibility.
• No central point of failure.
• Fault-tolerant (eg, if crawler dies, it can be
  replaced by another crawler).

10
Implementation Issues of Distributed Crawlers

• Architectures (p2p)
• Dis-advantages
• Hard to code properly.
• Network traffic relatively higher.
• Harder to collate information collected.
• Harder to monitor performance.

11
Implementation Issues of Distributed Crawlers

• Balancing and Contravariance (URL Partitioning)
• First Rule Given a set of resources to crawl,
  highest efficiency is attained if two crawlers
  never crawl the same subset (balancing).

Crawler B

Crawler A
a.com
b.com
c.com
d.com
Crawler C
Crawler D
12
Implementation Issues of Distributed Crawlers

• Balancing and Contravariance (ctd.)
• Second Rule If total resource size changes, then
  the subset to be crawled by each crawler must
  change accordingly (contravariance).

Crawler B
Crawler C

Crawler A
Crawler D
Crawler E
Crawler H
Crawler F
Crawler G
13
Implementation Issues of Distributed Crawlers

• Balancing and Contravariance (ctd.)
• Four issues first, ensure all crawlers get
  roughly an equal number of crawling assignments.
• Second, ensure that the assignments never clash.
• Third, it must be possible for any crawler to
  know who is responsible to crawl a particular
  resource.

14
Implementation Issues of Distributed Crawlers

• Balancing and Contravariance (ctd.)
• Fourth, each crawler must be able to adapt to new
  crawling assignments (to ensure contravariance).

15
Implementation Issues of Distributed Crawlers

• Balancing and Contravariance (ctd.)
• A good technique is hashing the resource name and
  partitioning those hashes between the crawlers.
• Papers suggest usage of domain names for hash
  source.
• Better way is to use IP address (benefit able to
  geographically separate crawling disadvantage
  reverse-DNS lookup).

16
Implementation Issues of Distributed Crawlers

• Coverage, overlap, communication overhead
• Coverage is U/I
• Overlap is N/U
• Communication overhead is E/N
• Goal
• Maximize coverage
• Minimize overlap
• Minimize communication overhead

17
Implementation Issues of Distributed Crawlers

• Assignment of Responsibility
• Firewall ignores resource links not in domain of
  crawling agent (CA). Zero communication overhead
  and overlap, but lower coverage.
• Cross-over retrieves resources links not in
  domain of CA. Zero communication overhead and
  greater coverage but high overlap ratio.
• Exchange send resource links to relevant CA.
  Maximized coverage, reduced overlap but high
  communication overhead.

18
Implementation Issues of Distributed Crawlers

• Assignment of Responsibility
• Best solution combination of cross-over and
  exchange models.
• Cross-over model used when the communication
  overhead far outweighs the actual retrieval
  process.
• Exchange model used when communication overhead
  is just a fraction of the actual retrieval cost,
  the exchange model is used.
• Intuitively, we expect that the exchange model be
  used most of the time.

19
Implementation Issues of Distributed Crawlers

• Scalability
• Defined as the number of pages crawled per second
  per crawler should be (almost) independent of the
  number of crawlers.
• Throughput grows linearly with the number of
  agents (easy to measure performance).
• Load must be handled transparently by cleanly
  adding new agents in crawling swarm.

20
Implementation Issues of Distributed Crawlers

• Scalability
• Crawling agents can have multiple threads. Google
  uses 300 threads/agent, Mercator uses 100
  threads/agent, Polytechnic uses 1000
  threads/agent.
• Issue is OS thread support vs fork()-ing support.

21
Implementation Issues of Distributed Crawlers

• Conclusion
• Distributed crawlers are harder to
  design/code/monitor.
• Yet, distributed crawler architecture has
  significant benefits that justify building it.
• Issues that require further attention include
  using time information for next-crawl prediction,
  crawling relatively dynamic resources etc.
