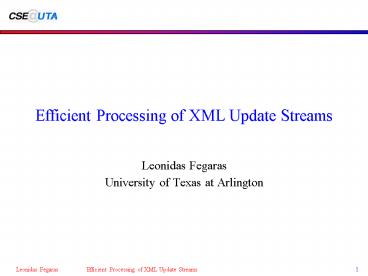

Efficient Processing of XML Update Streams

• Leonidas Fegaras
• University of Texas at Arlington

2
Data Stream Processing

• What is a data stream?
• continuous, time-varying data arriving at
  unpredictable rates
• continuous updates, long-running queries,
  continuous results
• Sought characteristics of stream processing
  engines
• real-time processing
• high throughput, low latency, fast mean response
  time, low jitter
• low memory footprint
• Why bother?
• many data are already available in stream form
• sensor networks, network traffic monitoring,
  stock tickers
• publisher-subscriber systems
• data stream mining for fraud detection
• data may be too volatile to index
• continuous measurements

3
XML Stream Processing

• Why XML?
• There is no reason to normalize stream data
• Various sources of XML streams
• tokenized XML documents
• RSS feeds
• web service results
• Granularity
• XML tokens (events) , , text, etc
• region-encoded XML elements (eg, based on
  pre-order numbering)?
• XML fragments (hole-filler model)?
• Push-based processing SAX
• Pull-based processing StAX

4
Traditional Stream Processing
output stream
input stream

• Works on streams that consist of numerical values
  or relational tuples
• Focuses on a sliding window
• fixed number of tuples, or
• fixed time span
• Calculates approximate results
• Uses a small (bounded) state
• Examples
• top-k most frequent values
• group-by SQL queries

past
stream engine
sliding window
state
future
5
Our Goals

• Handle continuous XQueries over continuous
  streamed XML data
• Embedded updates in the streams
• Exact rather than approximate answers
• Produce continuous results, even when the results
  are not complete
• Problem most interesting operations are blocking
  and/or require unbounded state
• grouping aggregation
• predicate evaluation
• sorting
• sequence concatenation
• backward axis steps
• We want to address the blocking problem
  differently
• Display the current result of the blocking
  operation continuously in the form of an update
  stream
• incoming vs. generated updates

6
Our View of XML Update Streams

• A continuous (possibly infinite) sequence of XML
  tokens with embedded updates
• Typically, a finite data stream followed by an
  infinite stream of updates
• SAX-like events
• three basic types of tokens , ,
  text
• the target of an update is a stream subsequence
  that contains zero, one, or more complete XML
  elements
• the source is also a token sequence that contains
  complete XML elements
• updates are embedded in the data stream and can
  come at any time
• update events can be interleaved with data events
  and with each other
• each event must now have an ID to associate it
  with an update
• updated regions can be updated too
• to update a stream subsequence, you wrap it into
  a Mutable region
• three types of updates
• replace, insertBefore, insertAfter

7
Example

• id Event
  equivalent to
• 1
• 1
• 2 startMutable(1)
• 2 Y
• 2 X
• 2
• 2 endMutable(1) X
• 1
• 3 startInsertBefore(2)
• 3
• 3 Y
• 3
• 3 endInsertBefore(2)?
• 1

8
Continuous Results

• Our stream engine is implemented as a pipeline
• each pipeline stage performs a very simple task
• The final pipeline stage is the Result Display
  that displays the query results continuously
• the display is an editable text window, where
  text can be inserted, deleted, and replaced at
  any point
• when an update is coming in the input stream, it
  is propagated all the way to the result display,
  where it causes an update to the display text!

result display
input stream with updates
output stream with updates
query pipeline
9
Motivating Example

• Group and order book titles by author
• let al distinct-values(doc(bib.xml)//book/au
  thor)?
• return
• for a in al order by a
• return
•
  doc(bib.xml)//bookauthora/title
• Multiple points of blocking
• distinct-values
• count
• self-join
• order-by

10
Motivating Example

• Group and order book titles by author
• let al distinct-values(doc(bib.xml)//book/au
  thor)?
• return
• for a in al order by a
• return
•
  doc(bib.xml)//bookauthora/title
• The result display is refreshed continuously

display

T1
input stream
currently
DT1 bookAT2 ookAT3 okBT4 kBT5 AT6
CT7 authorCT8 uthorAT9 thorBT10 thorDT11
...
11
Motivating Example

• Group and order book titles by author
• let al distinct-values(doc(bib.xml)//book/au
  thor)?
• return
• for a in al order by a
• return
•
  doc(bib.xml)//bookauthora/title
• The result display is refreshed continuously

display

T2 nameD T1

input stream
DT1 bookAT2 ookAT3 okBT4 kBT5 AT6
CT7 authorCT8 uthorAT9 thorBT10 thorDT11
...
currently
12
Motivating Example

• Group and order book titles by author
• let al distinct-values(doc(bib.xml)//book/au
  thor)?
• return
• for a in al order by a
• return
•
  doc(bib.xml)//bookauthora/title
• The result display is refreshed continuously

display

T2
T3 nameD T1

input stream
DT1 bookAT2 ookAT3 okBT4 kBT5 AT6
CT7 authorCT8 uthorAT9 thorBT10 thorDT11
...
currently
13
Motivating Example

• Group and order book titles by author
• let al distinct-values(doc(bib.xml)//book/au
  thor)?
• return
• for a in al order by a
• return
•
  doc(bib.xml)//bookauthora/title
• The result display is refreshed continuously

display

T2
T3 nameB T4

T1
input stream
DT1 bookAT2 ookAT3 okBT4 kBT5 AT6
CT7 authorCT8 uthorAT9 thorBT10 thorDT11
...
currently
14
Motivating Example

• Group and order book titles by author
• let al distinct-values(doc(bib.xml)//book/au
  thor)?
• return
• for a in al order by a
• return
•
  doc(bib.xml)//bookauthora/title
• The result display is refreshed continuously

display

T2
T3 nameB T4
T5 nameD T1

input stream
DT1 bookAT2 ookAT3 okBT4 kBT5 AT6
CT7 authorCT8 uthorAT9 thorBT10 thorDT11
...
currently
15
Why?

• Because, this is what you really want to see as
  the result of a query
• eg, in a stock ticker feed stream, where updates
  to ticker values come continuously
• It leads to optimistic evaluation where
  results are displayed immediately, to be
  retracted or modified later when more information
  is available
• addresses the blocking problem
• we proceed without waiting, displaying the
  results so far, but later we may have to send
  updates
• generalizes on-line aggregation

16
Optimistic Evaluation

• Pessimistic evaluation at all times, the query
  display must always show the correct results up
  to that point
• Optimistic evaluation display any possible
  output without delay and later, if necessary,
  retract it or modify it to make it correct
• complementary to, but different than, lazy
  evaluation
• How?
• Generated and incoming updates are propagated
  through the evaluation pipeline until they are
  processed by the display
• They may cause changes to the states of the
  pipeline stages
• Examples
• Event counting instead of waiting until we count
  all events, we generate updates that continuously
  display the counter so far
• Predicate testing assume the predicate is true,
  but when you later find that it is false, retract
  all output associated with this predicate
• Sorting wrap each element to be sorted around an
  update that inserts it into the correct place to
  the element sequence so far

17
Contributions

• Instead of eagerly performing the updates on
  cached portions of the stream, we propagate the
  updates through the pipeline
• all the way to the query result display
• the display prints the results continuously,
  replacing old results with new
• Other approaches
• display approximate answers continuously by
  focusing on a sliding window over the stream
• Our approach
• generates exact answers continuously in the form
  of an update stream
• But the propagated updates may affect the state
  of the operators
• we developed a uniform methodology to incorporate
  state change
• Used this framework to unblock operations and
  reduce buffering
• let the operations themselves embed new updates
  into the stream that retroactively perform the
  blocking parts of the operation
• why? because later is often better than now

18
State Transformers

• Each stage in the query evaluation pipeline is a
  state transformer
• Input a single event and a state S
• Output a sequence of events and a new state S
• Implemented as a function from an event to a
  sequence of events that destructively modifies
  the state
• can be used in both pull- and push-based stream
  processing
• The state transformers need only handle the basic
  SAX events , , text, and
  begin/end of stream

state
state transformer
stream with regular and update events
stream with regular events
19
Example Element Counting

• The state is an integer counter, count
• A blocking state transformer, f(e)
• if e is a text event
• count count1
• return
• else if e is end-of-stream
• return count value
• A non-blocking state transformer
• if e is begin-of-stream
• return startMutable(id), 0, endMutable(id)

• else if e is a text event
• count count1
• return startReplace(d), count value,
  endReplace(id)

20
XPath Steps

• The state transformers of simple XPath forward
  steps are trivial to implement
• Example the Child step (/tag)
• state
• need a counter nest to keep track of the nesting
  depth, and
• a flag pass to remember if we are currently
  passing through or discarding events
• logic
• when we see the event at nest1, we enter
  pass mode and stay there until we see at
  nest1
• when in pass mode, we return the current event
• otherwise, we return

21
Handling Updates

• It would be cumbersome to modify each state
  transformer to handle incoming update events
• Our solution the update events are handled in
  the same way for all state transformers
• Each state transformer is wrapped by a fixed
  function that handles update events by adjusting
  the states, while passing the regular events to
  the state transformer

state
update events
state adjustment
.
.
.
state
current state
regular and update events
regular and update events
state transformer
regular events
22
Adjusting States

• For each state transformer, we need to provide
  only one function
• adjust(s1,s2,s3)
• if state s2 is replaced by s3, adjust the
  succeeding state s1 accordingly
• Example the adjust function for element counting
  is
• adjust(s1,s2,s3).count s1.count(s3.count-s2.c
  ount)
• The adjust function for XPath steps is the
  identity
• adjust(s1,s2,s3) s1

23
Adjusting State for Element Counting

• id Event element
  counting adjustment
• 1
• 1
• 2 startMutable(1) start state(2)
  n n1
• 2
• 2 X
• 2
• 2 endMutable(1) end state(2) n1 n2
• 1
• 3 startInsertBefore(2) start state(3) n
• 3
• 3 Y
• 3
• 3 endInsertBefore(2) end state(3) n1
• 1

work with id2 state copy
work with id3 state copy
24
The Result Display

• Its like any other state transformer but it also
  does side-effects to the display screen
• The state of an update id is its position in the
  screen
• adjust(s1,s2,s3) s1s3-s2
• Side effects
• remove_text(start,end)?
• insert_text(position,text)?
• The state transformer is very simple
• eg, for a event insert in the
  screen at position

25
Problem

• For each update id, each state transformer must
  keep a separate copy of the state
• Will lead to space explosion for an infinite
  stream of updates
• Not applicable to replacement updates, since our
  queries are snapshot, not historical
• For incoming updates, we can ignore updates that
  are irrelevant to the query
• Hard for content-based predicates
• For generated updates, the scope of an update is
  usually limited
• The scope is often known at run time
• Allows the removal of out-of-scope states
• eg, predicate testing

26
Unblocking XQuery Operations

• We have used this technique for unblocking
• concatenation
• predicates
• descendant
• backward steps
• sorting
• In our preliminary results, many XQueries on
  large data sets had high throughput, required
  very little buffering, and (of course) had very
  fast first response time

27
Future Work

• Plan to cover most XQuery features completely
• Would like to handle historical queries
• Same model for update streams
• ... but now replacement updates may add a new
  version
• Example
• which stock increased its value by at least 10
  since the last update?
• Need to extend the XQuery syntax with historical
  features
• Need to cut-off out-of-scope historical data
