Understanding Windows

1

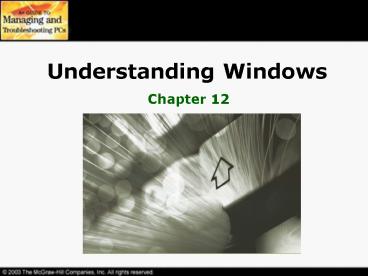

Understanding Windows

• Chapter 12

2
Overview

• In this chapter, you will learn to
• Identify and explain the basic functions of an
  operating system
• Identify the features and characteristics common
  to all Windows PCs
• Identify and differentiate the features an
  characteristics of Windows 9x/Me
• Identify and differentiate the features an
  characteristics of Windows NT/2000/XP

3
Functions of the Operating System
4
Functions of an Operating System

• Communicate with hardware
• Provide a user interface
• Provide a structure for access to applications
• Enable users to manipulate programs and data

5
Operating System Traits

• An OS works only with a particular type of
  processor
• An OS begins running as soon as the PC finishes
  its POST
• Application programs cannot run on a PC without
  an OS
• The OS provides a set of application programming
  interfaces (APIs)
• An OS must be able to use new software and
  hardware

6
Communicating with Hardware

• The system BIOS is programming code that tells
  the computer how to talk to basic hardware
• The OS works with the BIOS to talk to these
  devices
• When the BIOS does not know how to talk to a
  piece of hardware, the OS talks directly to the
  device
• Most OSs use device drivers provided by the
  manufacturer (Bring Your Own BIOS) to interpret
  the language necessary to talk to a new device
• When theres a problem, the OS should provide
  error handling or at least error notification

7
Creating a User Interface

• A user interface needs to
• Show what applications are available
• Provide an easy way to access those applications
• Provide a way to label and save the data
  generated using the application
• When a program starts, the user interface must
  disappear and allow the application to take over
  the screen
• While the application is running, the OS must
  provide access to hardware as needed
• When the application is shut down, the OS must
  return the user to the user interface

8
Organizing Programs and Data

• The OS must be able to organize programs and data
• What is data and how can we distinguish between
  different types of data?
• What are programs and what type of program is it?
• How can I distinguish the various places to store
  the data or programs?
• How can I efficiently retrieve the data or
  program?

9
Operating System Implementations

• Command Line
• Character-based or text-based
• Disk Operating System (DOS)
• Single-tasking
• DOS consists of
• IO.SYS
• MSDOS.SYS
• COMMAND.COM
• DOS configuration files
• CONFIG.SYS
• AUTOEXEC.BAT

• Graphical User Interface (GUI)
• Not necessarily the OS
• Win95, Win98, Win31 ran on top of DOS
• Apples OS 9 and OS X operate only as a GUI
• WinNT, Win2K, WinXP are GUI operating systems
  with a command line built in

10
(No Transcript)
11
Common Windows Features and Characteristics
12
User Interface

• Login
• Every version of Windows supports multiple users
• Requiring a user login increases security
• Desktop
• Primary interface to the computer
• Taskbar and Start Menu
• Runs along the bottom of the desktop and includes
  up to four sections
• Start menu allows access the installed programs
• System tray shows programs running in the
  background
• Quick Launch enables you to launch often-used
  programs with a single click

13
User Interface

• My Computer
• Provides access to drives, folders, and files
• Customizable may display different views, show
  hidden files, hide file extensions, and more
• Windows Explorer
• Another utility for accessing drives, folders,
  and files
• My Documents
• My Pictures, My Music, My Videos

14
User Interface

• Recycle Bin
• When you delete files they are sent to the
  Recycle Bin, a special folder just in case you
  change your mind
• Network Neighborhood or My Network Places
• Shows the current network connections available
  to you

15
Tech Utilities Control Panel

• Maintenance, upgrade, and configuration aspects
  of Windows
• Start?Settings?Control Panel
• Contains programs, called applets
• Any icon in the Control Panel is a file with a
  CPL extension
• If Control Panel wont start, one of these is
  probably corrupt rename each one until you find
  the bad one
• Each applet displays text that helps to explain
  its functions

16
Tech Utilities Control Panel
17
Tech Utilities Device Manager

• Device Manager is a primary tool for dealing with
  devices and device drivers in Windows
• A red x or a yellow exclamation
  point is displayed, if Windows
  detects a problem
• Devices are organized in
  special groups called types
• Access thru the System applet in
  Control Panel

18
Tech Utilities System Tools

• System Tools is a collection of tech utilities
  found on the Start menu
• Start ? Programs ? Accessories ? System Tools

19
Tech Utilities Command Line

• Command Line
• Start ? Run ? command
• Windows 2000/XP offer you a more powerful command
  line Start ? Run ? cmd

20
Tech Utilities MMC

• Microsoft Management Console (MMC)
• A shell program that holds individual utilities
  called snap-ins
• Start ? Run ? mmc
• You start with a blank console and then add
  snap-ins then save the new customized console
  you created
• File ? Add/Remove Snap-ins ? Add

21
Tech Utilities Adminstrative Tools

• Administrative Tools
• A folder that holds many pre-defined MMC consoles
  built by Microsoft
• Go to Control Panel and click on Administrative
  Tools
• The three most used Administrative Tools are
• Computer Management
• Event Viewer
• Performance

22
Tech Utilities Computer Management

• Computer Management
• A pre-defined MMC that pulls together snap-ins
  related to many computer management options

23
Tech Utilities Event Viewer

• Event Viewer
• Keeps track of events that happen with your
  computer

24
Tech Utilities Performance

• Performance
• System Monitor may show real time data
• Performance Logs and Alerts

25
Services

• Services
• Separate programs that handle a lot of functions
  for Windows
• Found in Administrative Tools
• Double-click on any service to examine its
  properties and settings
• Services start automatically, manually, or may be
  disabled

26
System Folder

• System Folder
• Folder where the OS files were installed
• systemroot
• windir for Win9x

27
What is the Registry?

• Registry
• A unified database where Windows stores all
  hardware and software configuration information
  for the local computer
• Hardware, central processor, keyboard, mouse,
  etc.
• Device drivers
• Applications
• Network protocols
• NIC settings
• User account information like group membership,
  rights and permissions

28
Registry Editors

• Regedit
• Clearly better in key searching down to the value
  of the keys
• Used by Windows 9x/Me
• Also installed in Windows NT/2000/XP
• Regedt32
• Used by Windows NT/2000/XP Better for adding keys
  and modifying their values
• Searches only down to keys and subkeys not
  values
• When using the Registry Editors, be very careful!
• Does not recognize syntax or semantic errors
• May prevent your operating system from loading

29
REGEDIT
30
REGEDT32
31
Registry

• The Registry has six main groups , or root keys
  shown below

HKEY_DYN_DATA is used in Windows 9x not 2000 or
XP
32
HKEY_LOCAL_MACHINE

• Configuration data about local computer
• Used by applications, device drivers and Windows
• Determines which device drivers and services load
  during startup
• Same regardless of user

33
HKEY_USERS

• Stores all the personalization information for
  all users on the PC
• Subkeys are
• DEFAULT subkey
• System default profile used when CtrlAltDel
  logon screen is displayed
• Security identifier (SID) of user currently
  logged on the computer

34
HKEY_CURRENT_USER

• Data about user currently logged on interactively
• Copy stored for each user account that has ever
  logged on to the computer in systemroot\Profiles\u
  ser_name in Ntuser.dat
• Points to same data as under HKEY_USERS\SID_of_the
  _currently_logged_on_ user
• Takes precedence over duplicate settings in
  HKEY_LOCAL_MACHINE

35
HKEY_CLASSES_ROOT

• Information about file associations and data
  associated with COM objects (Component Object
  Model OLE)
• Points to CLASSES subkey under HKEY_LOCAL_MACHINE\
  SOFTWARE

36
HKEY_CURRENT_CONFIG

• Data about active hardware profile
• Extracted from SOFTWARE and SYSTEM keys of
  HKEY_LOCAL_MACHINE

37
Virtual Memory

• All versions of Windows use virtual memory
• Windows swap files are used to implement virtual
  memory
• Windows sets the initial size of the swap file
  automatically according to the free space
  available on the C drive
• The swap file in Windows 9x is called WIN386.SWP
  it is known as PAGEFILE.SYS in Windows 2000

38
Virtual Memory

• When you need to run another program but your RAM
  is filled up, Windows will offload something that
  hasnt been used recently from RAM to the hard
  drive into a swap file to make room
• If you need to access the data that was offloaded
  into RAM, Windows will retrieve it from the hard
  drive

39
Essential Windows

• You should already have basic user skills in
  Windows. As a review check out Essential Windows
  on line at www.totalsem.com

40
Features and Characteristics of Windows 9x/Me
41
Windows

• Windows 3.1 was a graphical shell that ran on top
  of DOS
• Microsoft debuted Windows 95 as its first
  standalone GUI operating system
• Windows 9x and Me followed in later years
• Many files and configuration utilities were held
  over from earlier OSs

42
The Windows Boot Process

• Windows 9x is a combination of the DOS
  protected-mode interface (DPMI) and a
  protected-mode GUI
• Windows 9x first starts the DOS aspect of Windows
  and then the GUI
• Booting Windows 9x without the GUI from the boot
  menu is different than running a DOS window
  inside Windows 9x

43
FAT32

• Later versions of Windows 95 and all versions of
  Windows that followed support the FAT32 file
  format
• Partitions up to 2 terabytes in size

44
Long Filenames

• Windows 9x/Me
• Allows long file names up to 255 characters in
  length
• Removed the old 8.3 filename limitation of DOS
• Adopted the 16-bit unicode character set
• Unicode supports 65,536 characters
• ASCII used by DOS was 8-bits and supported only
  256 characters

45
DPMI Core Files

• IO.SYS
• Combined the previous IO.SYS and MSDOS.SYS into
  IO.SYS
• MSDOS.SYS
• Used as a startup options file read-only,
  hidden text file in root directory
• COMMAND.COM
• Not needed if the system will always run in the
  GUI mode

46
Boot Menu
Press F8 (or the left Ctrl key in Windows 98)
when Starting Windows.. appears to access the
Boot Menu
47
Boot Menu

• Normal
• Logged
• Creates a bootlog.txt file detailing the boot up
  process
• Safe mode
• Only the OS, mouse, keyboard, and VGA video
  drivers are loaded
• Useful when Windows wont boot due to a bad
  driver
• Safe mode with network support
• Step-by-step confirmation

48
Boot Menu

• Command prompt only
• Does everything but start the GUI
• Just type win to start Windows
• Safe mode command prompt only
• Skips all startup files
• Must reboot to start Windows
• Previous version of MS-DOS
• Useful only if you installed Windows over a true
  DOS system

49
MSDOS.SYS

• MSDOS.SYS
• Hidden, read-only text file that replaces many of
  the CONFIG.SYS and AUTOEXEC.BAT functions
• Edit using any text editor (after unchecking its
  attributes)
• Organized like an INI file with groups and
  options under each setting
• There are many useful options in the Options
  group see pages 429-430 in the book for a
  listing

50
Configuration Files

• Windows 9x/Me will use CONFIG.SYS and
  AUTOEXEC.BAT to load legacy device drivers and
  terminate and stay resident (TSR) programs

51
Legacy GUI Files

• After the DPMI-level OS files, configuration
  files, and utilities load, WIN.COM runs and
  initiates the graphical portion of the OS
• Incorporates legacy INI files to provide support
  to older applications
• INI files are text files that may be edited with
  any text editor such as Notepad
• INI files are broken in sections called groups
• Two main INI files from Windows 3.1 that
  still exist in later versions of
  Windows are SYSTEM.INI and WIN.INI

52
SYSTEM.INI

• All resources were initialized in the SYSTEM.INI
  file in Windows 3.1
• SYSTEM.INI still exists in Windows 2000/XP today
  to provide backward compatibility
• Windows 9x/Me require SYSTEM.INI

53
WIN.INI

• WIN.INI provided the personalizations of Windows
  3.1
• Rarely have a WIN.INI in Windows 9x/Me/2000/XP
• Dealing with SYSTEM.INI and WIN.INI is usually
  not necessary
• Unless you get error messages indicating a device
  driver cant be found
• Just find the culprit and put a semicolon in
  front of the line to disable it
• There are two lines in WIN.INI that may cause
  problems
• LOAD and RUN that automatically loads programs
  when Windows starts

54
The Windows 9x GUI Architecture
User interface
Core functions handled by the Kernel, Graphical
Device Interface, and User modules
Virtual Memory Manager Installable File System
Real-mode drivers are loaded by config.sys or
autoexec.bat. Protected mode drivers are loaded
with the GUI
55
Major Difference Among Windows

• Windows 98 is basically Windows 95 with a lot of
  new toys to improve usability or to address bugs
• A startup disk is a special bootable floppy disk
  that contains utilities to help you fix a system
  that wont boot Windows
• Both 95 and 98 allow you to make a startup disk
• 95s does not support a CD-ROM
• 98s supports almost all CD-ROMs

56
Major Difference Among Windows

• FAT32 is supported in all Windows versions except
  the first version of Windows 95
• System Information Tool
• Provides a launch point for almost every Windows
  98/SE/Me utility
• Windows Update
• Utility to keep Windows up to date
• Found on the Start menu

57
Major Difference Among Windows

• Disk Cleanup Utility
• Active Desktop
• Load active web pages on your desktop
• Vastly improved version of Internet Explorer

58
Major Difference Among Windows

• Internet Connection Sharing
• Included since Windows 98 SE
• Enables multiple PCs to share an Internet
  connection
• System Restore
• Windows Me shares the core files and structure of
  Windows 9x but has the look and feel of Windows
  2000
• Enables you to create Restore Points that will
  take your system back to its previous state at a
  given point in time

59
But Underneath

• Windows 98, 98 SE, and Me are nearly identical to
  Windows 95

60
Features and Characteristics of Windows NT/2000/XP
61
Windows NT

• Microsoft released Windows NT in 1996
• High-performance 32-bit GUI OS
• Windows 2000 and XP share the same core
  structure, files, and features but differ in ease
  of use and hardware support
• Windows NT looks like Windows 95 but thats where
  the similarities end

62
OS Organization

• Robust, scalable, cross-platform
• Object-oriented approach designed to support
  multiple platforms such as x86, DEC Alpha, MIPS,
  and PowerPC by using a Hardware Abstraction Layer
• Robustness comes from separating process and
  running them in various subsystems
• Supports symmetric multiprocessing (SMP) allowing
  support for up to 32 CPUs

63
Window NT Organization
64
NT File System (NTFS)

• NT File System (NTFS)
• Robust and powerful
• Long filenames containing up to 255 characters
• Advanced FAT called the Master File Table (MFT)
• Keeps a backup copy in the middle of the drive
  which shows up as a small, immovable chunk of
  data when you defrag
• Backwards compatible with DOS and Windows 9x
• Transaction logging determines incomplete file
  transactions, and restores the file back to the
  original format automatically and invisibly

65
NTFS Security

• To gain access to a Windows NT/2000/XP system,
  you must have a valid user account and password
• Every Windows NT/2000 PC has an administrator
  account that has full access to everything
• Create users using Users and Passwords in Windows
  2000 or User Accounts in Windows XP

66
Groups

• A group is a collection of user accounts that
  share the same access capabilities
• Assign access to a group and then put users into
  the group
• Users will inherit the access assigned to the
  group
• Windows provides several built-in groups

67
Built-in Groups

• Administrators
• May perform all administrative tasks on the
  computer
• Backup Operators
• May use Windows Backup
• Guests
• May perform only specific tasks that are granted
• Guest account is a member

• Power Users
• May create and modify local user accounts and
  share resources on the local computer
• Replicator
• Supports file replication in a domain
• Users
• May perform only tasks specifically assigned
• Local user accounts that are created become
  members
• Everyone

68
NTFS Permissions

• NTFS permissions in NT/2000/XP
• Details every user and group that has access to a
  file or folder
• Lists the specific level of access allowed
• Available only on volumes formatted as NTFS
• NTFS security is effective whether a user
• Gains access at the computer
• Gains access over the network

69
NTFS Permissions

• Ownership
• When you create a new file or folder you become
  the owner
• Owners have full control
• Be default, everyone is given full control
  permission
• Take Ownership
• Enables a user permission to take ownership of a
  file or folder
• Administrator account can take ownership without
  being given permission

70
NTFS Permissions

• Change permission
• Can give or take away permissions for other
  accounts
• Folder permissions
• Apply to folders
• File permissions
• Apply to files

71
NTFS Folder Permissions

• Full Control
• Enables you to do anything you want
• To deny all access, deny Full Control
• Modify
• Cannot delete files or subfolders but may modify
  them
• Read Execute
• Enables you to see the contents of the folder and
  subfolders
• List Folder Contents
• Enables you to see the contents of the folder and
  subfolders

72
NTFS Folder Permissions

• Read
• Enables you to read any files in the folder
• Write
• Enables you to write to files and create new
  files and folders
• By default, permissions are inherited from parent
  folders
• This may be prevented by removing the check mark
  at the bottom

73
NTFS Folder Permissions
74
NTFS File Permissions

• Full Control
• Enables you to do anything
• Modify
• Enables you to do anything except take ownership
  or change permissions
• Read Execute
• If the file is a program, you can run it
• Read
• If the file is data, you can read it
• Write
• Enables you to write to the file

75
Combining Permissions

• Users effective permissions are the cumulative
  (or least restrictive) permissions resulting from
  a combination of user and group permissions

• Deny permission overrides all other
  permissionsDeny always becomes the effective
  permission
• File permissions override folder permissions

76
Booting Up vs. Going Graphical

• Windows 9x and Windows 2000 differ significantly
  in the level of integration between the graphical
  interface and the text-based functions
• Both operating systems have primary boot files
  that start the operating system
• The boot file must be on the boot partition and
  the GUI file can be installed in any other drive
  letter
• Microsoft terminology for NT/2000
• System partition partition you boot from
• Boot partition partition that holds NT or 2000
  files

77
Booting Up vs. Going Graphical

• Windows NT and Windows 2000 do not have a pure
  command prompt environment
• Windows NT can log on to the command prompt only
  after the GUI is started

78
Preboot Sequence

• The computer runs power-on self test (POST)
  routines to determine the amount of physical
  memory, hardware components, and so on
• The computer BIOS locates the boot device and
  loads and runs the master boot record (MBR)
• The MBR locates, loads into memory, and executes
  the boot sector
• The computer loads and initializes the NTLDR file

79
The Boot Process

• NT Loader manages the booting process
• Windows NT/2000/XP boot files that must be in the
  root directory of the system partition are
• NTLDR (NT Loader)
• BOOT.INI
• NTDETECT.COM
• NTBOOTDD.SYS (only needed for SCSI controllers
  that dont have their own ROM BIOS)
• After the boot files start the PC, NTLDR passes
  control to the Windows NT kernel (NTOSKRNL.EXE)
• The GUI begins to load

80
Boot Files NTLDR

• NTLDR (NT Loader) manages the boot up process
  until control is handed over to NTOSKRL (NT
  kernel)
• To find available operating systems, NTLDR reads
  the boot.ini file
• If multiple OSs are available a menu shows up

81
Boot Files BOOT.INI

• BOOT.INI is a text file that lists the available
  OSs and where to find the boot partition

82
More Boot Files

• BOOTSEC.DOS is read by NTLDR if it finds a
  different OS to load
• NTDETECT.COM detects the hardware if you choose
  to boot to NT/2000/XP
• NTBOOTDD.SYS is used if NTLDR detects that the
  boot partition resides on a SCSI drive that lacks
  a ROM chip for BIOS support

83
Service Packs

• Windows NT uses service packs to fix operating
  system bugs and limitations in the architecture

84
Major Differences among Windows NT, 2000, and XP

• Windows 2000 combines an improved NT core with
  the ease-of-use and tech-friendly elements from
  Windows 9x
• The robustness of NT with the Windows 98 user
  interface
• Windows XP extended that merger into a fully new
  OS
• User organization is better to enhance file and
  folder security
• NTFS 5.0 added encryption, mount points, disk
  quotas, and dynamic disks to NTs NTFS 4.0

85
Major Differences among Windows NT, 2000, and XP

• Easier administration through Microsoft
  Management Console and the Computer Management
  tool
• Windows XP improved upon 2000 by adding built in
  support for burning CDs, an improved Start menu,
  and the Windows Update utility
• Windows XP has the Files and Settings Transfer
  Wizard that allows you to transfer everything
  from an old drive to a new one (get the update
  before using)

86
Major Differences among Windows NT, 2000, and XP

• Windows XP comes with System Restore to take a
  snapshot of your system in order to restore it to
  its previous state
• Driver Rollback enables you to rollback
  individual device drivers in Windows XP
• Remote Assistance is possible with Remote Access
• Gives you the ability to take control of any
  Windows XP PC remotely

87
(No Transcript)
