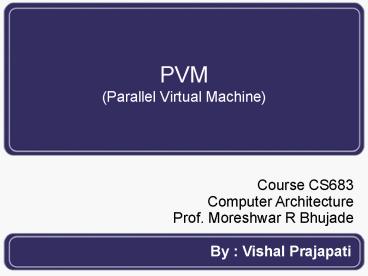

PVM Parallel Virtual Machine

1
PVM(Parallel Virtual Machine)?
Course CS683 Computer Architecture Prof.
Moreshwar R Bhujade
By Vishal Prajapati
2
Contents

• Introduction
• Features of PVM
• PVM as a System
• Example (Fork Join)?
• Summary

3
Introduction

• PVM is a software tool for parallel networking of
  computers.
• Major Acceptance because of
• Developements in MPP
• Powerfull computers (Blue gene)?
• Widespread use of distributed systems.
• Source code
• netlib (http//en.wikipedia.org/wiki/Netlib)?

The Key consept is PVM allows to see the
collection of computers as a one gient high
performance machine.
4
Introduction

• PVM is a software tool for parallel networking of
  computers.
• Major Acceptance because of
• Developements in MPP
• Powerfull computers (Blue gene)?
• Widespread use of distributed systems.
• Source code
• netlib (http//en.wikipedia.org/wiki/Netlib)?

The Key consept is PVM allows to see the
collection of computers as a one gient high
performance machine.
5
PVM (Physical Vs Logical View)?
Source ftp//ftp.netlib.org
6
Featurs of PVM - 1

• Portable
• Runs on nearly every Unix machine, plus many
  shared- and distributed-memory multipro-cessors.
• Heterogeneous
• Any types of machines can be combined in a
  single virtual machine
• Scalable
• Virtual machines can include hundreds of host
  computers, and run thousands of tasks.
• Dynamic configuration
• computers can be dynamically added and deleted
  from the parallel virtual machine by the
  application or manually.
• Hooks for fault tolerance
• Application can be noticed via messages of lost
  processes, processors or addition of new
  resources.

7
Featurs of PVM - 2

• Dynamic process groups
• user-defined process grouping for functions like
  broadcast and barrier. Groups can overlap and
  change dynamically during an application.
• Signals
• PVM tasks can send signals to other tasks.
• Multiple message buffers
• Allows easier development of PVM math libraries,
  graphical interfaces, etc.
• Tracing
• Call-level tracing built into PVM library.
• Can be customized
• User can write manager tasks to implement custom
  scheduling policies.

8
PVM - System

• Composed of Two parts
• PVM daemon pvmd3 or pvmd
• For accepting remote connection and connecting
  to remote machines
• PVM library libpvm3.a
• Contains user callable routines for message
  passing, spawning processes, coordinating tasks,
  and modifying the virtual machine.

9
PVM Example (Fork Join)?
/ Fork Join Example Demonstrates how
to spawn processes and exchange messages / /
defines and prototypes for the PVM library
/ include ltpvm3.hgt / Maximum number of
children this program will spawn / define
MAXNCHILD 20 / Tag to use for the joing
message / define JOINTAG 11 int main(int
argc, char argv)? / number of tasks to
spawn, use 3 as the default / int ntask
3 / return code from pvm calls / int
info
/ my task id / int mytid / my
parents task id / int myparent /
children task id array / int
childMAXNCHILD int i, mydata, buf, len,
tag, tid / find out my task id number /
mytid pvm_mytid() / check for error
/ if (mytid lt 0) / print out the
error / pvm_perror(argv0) /
exit the program / return -1
/ find my parent's task id number /
myparent pvm_parent()
10
PVM Example (Fork Join)?
/ exit if there is some error other than
PvmNoParent / if ((myparent lt 0)
(myparent ! PvmNoParent))
pvm_perror(argv0) pvm_exit()
return -1 / if i don't have a
parent then i am the parent / if (myparent
PvmNoParent) / find out how many
tasks to spawn / if (argc 2) ntask
atoi(argv1) / make sure ntask is
legal / if ((ntask lt 1) (ntask gt
MAXNCHILD)) pvm_exit() return 0 /
spawn the child tasks / info
pvm_spawn(argv0, (char)0, PvmTaskDefault,
(char)0, ntask, child) /
print out the task ids / for (i 0 i lt
ntask i) if (childi lt 0) /
print the error code in decimal/
printf(" d", childi) else /
print the task id in hex /
printf("tx\t", childi)
putchar('\n') / make sure spawn
succeeded / if (info 0) pvm_exit()
return -1 / only expect responses
from those spawned correctly / ntask
info
for (i 0 i lt ntask i) / recv
a message from any child process /
buf pvm_recv(-1, JOINTAG) if (buf
lt 0) pvm_perror("calling recv") info
pvm_bufinfo(buf, len, tag, tid)
if (info lt 0) pvm_perror("calling pvm_bufinfo")
info pvm_upkint(mydata, 1, 1)
if (info lt 0) pvm_perror("calling
pvm_upkint") if (mydata ! tid)
printf("This should not happen!\n")
printf("Length d, Tag d, Tid tx\n", len, tag,
tid) pvm_exit()
return 0 / i'm a child / info
pvm_initsend(PvmDataDefault) if (info lt 0)
pvm_perror("calling pvm_initsend")
pvm_exit() return -1 info
pvm_pkint(mytid, 1, 1) if (info lt 0)
pvm_perror("calling pvm_pkint") pvm_exit()
return -1 info pvm_send(myparent,
JOINTAG) if (info lt 0)
pvm_perror("calling pvm_send") pvm_exit()
return -1 pvm_exit() return 0
11
PVM Example

• It Contains both parent and child code.
• This function must be called before any other
  call. This call must be positive number.
• This call tells what goes wrong with the last
  call.
• Retuns the Parent ID or else will retrn Error
  code PvmNoParent says that the process is
  spawned by user and not by any other process.

/ find out my task id number / mytid
pvm_mytid()
pvm_perror(argv0)
/ find my parent's task id number /
myparent pvm_parent()
12
PVM Example

• Following code differenciate the parent of all
  childs.
• So by this you can differenciate the code of top
  process and child code.
• This is the code which spawns childs.

/ if i don't have a parent then i am the
parent / if (myparent PvmNoParent)
/ spawn the child tasks / info
pvm_spawn(argv0, (char)0, PvmTaskDefault,
(char)0, ntask, child)
13
PVM Example
/ spawn the child tasks / info
pvm_spawn(argv0, (char)0, PvmTaskDefault,
(char)0, ntask, child)

• Perameters
• First perameter gives the name of the program
  that the child should run.
• Second perameter is the arguments that can be
  passed to child
• Third perameter this says that where the
  child should spawn. We can give specific
  architecture or host name where the child can
  spawn
• Fourth perameter will have the values of the
  third perameter
• Fifth perameter specifies the number of the
  childs to be spawned.
• Last perameter is the array name which holds
  the child Id's.
• This Function is returning the no of child
  successfully spawned which should be equal to the
  sent number n the 5th perameter other wise
  something gone wrong.

14
PVM Example

• Following code is the waiting blocking call of
  parent.
• So by this parent is waiting for all the childs
  to send the join message.
• Parent gets the data from the child via the
  message and the following code gets the data
  from the buffer.
• After getting the join messages from all the
  childs parent also exits pvm.

/ recv a message from any child process / buf
pvm_recv(-1, JOINTAG)
info pvm_bufinfo(buf, len, tag, tid)
15
PVM Example

• Following code is run by child.
• First line - For message to be sent first we need
  to create the buffer to send the data.
• Second line We are adding the child's Id to the
  message.
• Third line sending the join call to the parent
  with the message attached.
• Fourth line calls off the child from pvm and
  distroy its memory references.

info pvm_initsend(PvmDataDefault) info
pvm_pkint(mytid, 1, 1) info
pvm_send(myparent, JOINTAG) pvm_exit()
16
PVM Example (Fork Join)?
Output forkjoin t10001c t40149 tc0037
Length 4, Tag 11, Tid t40149 Length 4, Tag 11,
Tid tc0037 Length 4, Tag 11, Tid t10001c
forkjoin 4 t10001e t10001d t4014b tc0038
Length 4, Tag 11, Tid t4014b Length 4, Tag 11,
Tid tc0038 Length 4, Tag 11, Tid t10001d Length
4, Tag 11, Tid t10001e
17
Summary
PVM is a software system that enables a
collection of heterogeneous computers to be used
as a coherent and flexible concurrent
computational resource, or a "Parallel Virtual
Machine".
