Introduction to the ArcGIS Pipeline Data Model APDM Version 4.0

1

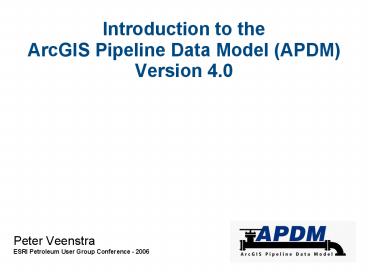

Introduction to the ArcGIS Pipeline Data Model
(APDM)Version 4.0

• Peter Veenstra
• ESRI Petroleum User Group Conference - 2006

2
Introduction

• Presentation about
• Introduction to the APDM
• Overview of APDM Version 4.0

3
ArcGIS Pipeline Data Model (APDM)

• Who Industry consortium of ESRI, pipeline
  vendors and operators
• PUG ? PIG ? Steering Committee, Technical
  Committee
• What Geodatabase model for transmission
  pipelines
• Where www.apdm.net
• When PUG, ESRI User Conference, GITA Oil Gas
• Why Passionate about ESRI technology

4
Overview of the APDM

• ESRI Geodatabase model for
• gas and/or liquids, onshore/offshore, gathering,
  transmission, or distribution pipeline systems
• Focused on pipelines that use stationed position
  AND XY coordinates to locate positions of
  features on or along the pipeline
• APDM ? ESRI Object Model Template to handle
• multiple forms of linear referencing
• ESRI route and measure technology
• hierarchical/geographical organization of
  pipeline features
• Feature behavior during centerline editing
  operations
• Links to external systems ERP, Document
  Management, Work Order MS
• Core Feature\Object Classes
• Abstract Classes

5
Overview of the Model

• APDM is the intellectual property of ESRI
• Managed in trust by the Pipe Interest Group
  (Petroleum User Group)
• Version 1.0 ? Build the model
• Focus on the technology, the core and conceptual
  classes in the model.
• Version 2.0 3.0 ? Link to the Enterprise
• Refine the conceptual model, expand the core
• Activities, External Documents, OwnerOperator,
  EventID
• Version 4.0 ? Metadata
• Data content
• Schema Description and Management
• Object behavior
• Best Practices ? Interoperability

6
APDM Steering and Technical Committees

• APDM 4.0 Steering Committee
•  Robert Brook, New Century Software,
  rob.brook_at_newcenturysoftware.com
•  Chris Elmer, Sempra Utilities,
  celmer_at_semprautilities.com
•  Greg McCool, Enbridge Energy Company,
  greg.mccool_at_enbridge.com
•  David Nemeth, Panhandle Energy,
  dbnemeth_at_panhandleenergy.com
•  Debra Rohrer, Columbia Gas, drohrer_at_nisource.com

•  Mark Warner, Questar Pipeline,
  mark.warner_at_questar.com
•  Edward Wiegele, GE Energy, edward.wiegele_at_ge.com

•  Craig Wilder (Chairperson), El Paso
  Corporation, craig.wilder_at_elpaso.com
•  Chad Zamarin, Colonial Gas, CZamarin_at_colpipe.com

•  Andrew Zolnai, ESRI, azolnai_at_esri.com
•  David Frye, ESRI, dfrye_at_esri.com

• APDM 4.0 Technical Committee
•  John Alsup, ESRI, jalsup_at_esri.com
• Jannette Jensen, Questar Gas Company
  (Secretary), jannette.jensen_at_questar.com
•  Theo Lawrence, Great Lakes Gas Transmission,
  tblawrence_at_glgt.com
•  Todd Murphy, Panhandle Energy Corporation,
  temurphy_at_panhandleenergy.com
•  Buddy Nagel, El Paso Corporation,
  buddy.nagel_at_elpaso.com
•  Jeff Puuri, Advantica, Jeff.Puuri_at_Advantica.biz

•  Fred Spickler, Photoscience Inc,
  fspickler_at_photoscience.com
•  Tracy Thorleifson, Eagle Information Mapping,
  jtt_at_eaglemap.com
•  Peter Veenstra, GE Energy (Chairperson),
  peter.veenstra_at_ge.com

7
APDM Version 4.0

• Abstract Classes (Core Attributes and
  Relationships)
• Centerline Objects, Facility Objects,
  Online/Offline Objects
• Response to editing the centerline
• Auditing feature/object edits
• Core Classes
• ControlPoint, StationSeries, AltRefMeasure,
  Lineloop, Subsystem, SubsystemHierarchy,
  LineloopHierarchy, Product, OwnerOperator,
  SubsystemRange, Site, Activity,
  ActivityHierarchy, ExternalDocument
• Metadata Classes
• Formal definition to describe behavior of
  reference modes
• Units, Basis, Type
• Listing and APDM categorization of classes within
  geodatabase
• Each class in the APDM will inherit from one of
  the APDM Abstract Classes
• Online Locations for Offline Features
• Listing of offline/online class pairs
• Listing of calculation methods for determining
  derivation of online locations
• Inline History and Auditing
• Facilities and Non-Geometric representation of
  features

8
ArcGIS Pipeline Data Model (APDM)

• APDM Logical Model Poster shows abstract
  classes, metadata classes, core classes and
  example concrete classes

9
Abstract Classes
10
Abstract Classes

• Object based abstract classes showing centerline
  objects, facility objects and non-facility objects

11
Abstract Classes

• Feature based abstract classes showing
  centerline objects, online/offline objects,
  facility objects and online location objects

12
Abstract Classes- Inheritance

• Example showing how a concrete class is
  derived via inheritance from the APDM abstract
  classes

13
Core Classes

• Represent the core classes within the model that
  must be implemented
• These classes represent critical parts of a
  pipeline reflecting centerline editing and
  integration with other enterprise systems
• ControlPoint known points of XY and station
  value location for a given reference mode
• StationSeries a route feature built from
  control point for a given reference mode
• AltRefMeasure stores alternate reference mode
  information for online features
• Lineloop a series of connected station series
  forming a line or route
• LineloopHierarchy ability to categorize
  lineloops into logical groupings
• Subsystem an area or zone along the pipeline
  used to break it up into logical regions
• SubsystemHierarchy ability to categorize
  subsystems into logical groupings
• SubsystemRange the online location of a
  subsystem along the centerline
• Product the product transported by the pipeline
• OwnerOperator owner and operator information
  for the assets of a pipeline
• Site any site boundary on or along the pipeline
• Activity things that happen during the
  operation and maintenance of a pipeline
• ActivityHierarchy ability to categorize
  activities into logical groupings
• ExternalDocument reports, regulatory and source
  documents that specifiy or document assets and
  events on or along the pipeline

14
Metadata Classes

• Describes the internal structure of the model
  for validation and verification

15
Implementing APDM

• APDM is built for the geodatabase
• It is an object model
• It describes feature editing behavior
• It provides meta-data or meta-models that can be
  integrated with other data models
• APDM Core ? APDM Tables ? Add/modify classes and
  attributes
• APDM Core ? PODS Business/Feature/Event Tables ?
  Add/modify classes and attributes
• APDM Core ? ISAT Business/Feature/Event Tables ?
  Add/modify classes and attributes
• APDM Core ? Any pipeline data model business
  tables ? Add /modify classes and attributes
• Implement APDM Abstract Tables and Core Tables

16
Compliance and Interoperability

• The purpose of APDM is to capture the behavior
  of pipeline events, features and objects within
  an geodatabase object model
• The purpose of APDM 4.0 abstract, metadata and
  core classes is to provide a standard for judging
  APDM compliance to allow true interoperability
  between vendor applications and data models
• Interoperability could be assessed by
  development of a standard set of editing,
  reporting and analysis applications that could be
  applied to any APDM geodatabase

17
Current Status of the APDM

• Yearly cycle
• Accrual of ideas and feedback ESRI UC ? Gita
  Oil Gas (Summer to Fall)
• Technical Committee develop new aspects of model
  (Fall through Winter ? ESRI PUG)
• Model Release (Spring ? ESRI UC)
• Planned Events
• APDM Pre-Conference Workshop Saturday, August
  12th
• http//www.esri.com/events/uc/sessions/uc_precons.
  html
• Scheduled release of proposed changes (V4.0)
• Logical Model Poster, Physical Model UML (Visio
  2002 format) available from www.apdm.net/downloads
  .htm
• White paper will be released in sections over the
  next 2-3 weeks for review up until 05/2006

18
Contact Information

• Online Resources (APDM)
• www.apdm.net
• APDM Model and white paper, UML, XMI, logical
  model
• www.esri.com\datamodels
• APDM Technical and Steering Committees
• Andrew Zolnai azolnai_at_esri.com
• Craig Wilder craig.wilder_at_elpaso.com
• Peter Veenstra peter.veenstra_at_og.ge.com
