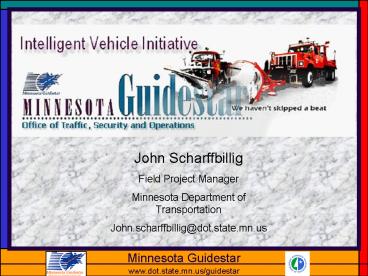

John Scharffbillig

1
John Scharffbillig Field Project
Manager Minnesota Department of
Transportation John.scharffbillig_at_dot.state.mn.us
2
State of Minnesota - US
New York
Chicago
Los Angeles
3

The Safety Problem In Minnesota

• 650 deaths, 45,000 injuries, 1.6 billion loss
• Lane departures 1 of 2 fatal crashes
• Adverse visibility 1 of 5 crashes

4
Safety Solutions

• Law enforcement
• Improve roadways
• Safer vehicles
• Driver education
• Driver-assistive technology

5
Funding

• Federal Funds - 4,200,000 (US)
• Minnesota State Funds 1,100,000 (US)
• In-kind Contributions - 1,700,000 (US)
• TOTAL FUNDING 7,000,000

6
PROJECT PARTNERS
7
Operational Test Concept

• Develop integrated lateral guidance and collision
  avoidance system
• Install on four snowplows, one ambulance, one
  State Patrol squad
• Regular operations under a variety of conditions
• Extensive data collection and evaluation

snowplow
ambulance
State Patrol squad
8

Hardware Software

• Differential GPS
• Digital map
• Magnetic tape
• Magnetic sensors
• Radar sensors

9

• Global Positioning
• System

Lane Awareness System
Radar Collision Avoidance
Geospatial Database
Driver Guidance
10
HEADS UP DISPLAY
11
Human Factors Evaluation

• Field Operation Testing
• December 2002 through April 2003
• Interviews provided useful subjective data
• Track Testing
• March 24th through April 2nd, 2003
• Subjective and Performance data

12
Operating in Limited Visibility
13
MNROAD TEST TRACK

• 9 Plow operators
• 3 to 4 hours driving
• 3 laps per condition (4), 5 practice laps
• One hazard was presented per condition
• Loading task (not presented on curves)

14
Loading Task Obstacles

• One hazard obstacle was presented per condition

• Loading Task
• - not presented on curves

15
Artificial Low-Visibility
16
Low-Visibility Verification
17
Average Lane Position
Unassisted Conditions Assisted
Conditions
Right of Lane Center
Lane Center
Left of Lane Center
18
Average Speed
19
Distance to Hazard Obstacle
On average, the radar detected the obstacle at
304 ft
20
Performance Measures Summary

• Perception of lane position differs from when
  driving unassisted
• While using the DAS
• More steering input
• Higher mental effort
• Lower average speeds
• Trends for improved lane keeping

21
Summary

• HUD Seat preferred components
• Increased usability reliability from 2002
• High trust comfort in system
• Higher (visual) workload, but expect improved
  driving performance
• Over half of drivers want in truck
• Almost all drivers would recommend

22
Conclusions

• Length of time using system better acceptance
• Rural operators accepted system more than urban
  operators
• Operators liked the improvements
• desire less bulky equipment
• improvement of roadway display needed
• believe that system can improve operations

23
Future Deployments

• Twin Cities Metro Transit Technobus
• Minnesota State Patrol
• Three Minnesota Counties
• MnDOT Truck Station
• Alaska Thompson Pass
• Alaska Valdez Airport

24
Vehicles as SensorsTechnology Assessment (A
Public Private Partnership betweenMn/DOT and
Ford Motor Company)
25
General Concept

• General concept of Vehicles as Sensors (VAS) is
  to
• Collect the data available from on-board sensors
  and computers (location, speed, anti-lock
  braking, lights, wipers, traction, etc.)
• Transmit data to the traffic management center
• Incorporate data into the traveler information
  database
• Transmit information back vehicles for visual or
  audio presentation to drivers

26
Vehicle As Sensors Schematic
511/511mn.org Data
Vehicle Control Systems
In-vehicle Display and Speech Engine
CARS Traveler Information Database
DSRC/ WiFi
Fiber Communications System
Roadside Transmitter/ Receiver
Vehicle Data Preprocessor
27
Project Purpose

• The purpose of this project is to conduct an
  initial evaluation of technologies needed for
  Vehicles as Sensors that include
• In-vehicle software and hardware
• Communication technologies and protocols for
  communication from vehicle to center via cellular
  technology.
• Processing individual vehicle data for fusion
  into DOTs traveler information database.
• Formulation of traveler information data for
  delivery to vehicles.

28
Relationship to VII Program

• Vehicle Infrastructure Integration (VII) is a
  cooperative effort between the Auto Industry and
  US DOT to improve safety and operation of the
  nations transportation network using two-way
  communication between vehicles and road
  infrastructure
• Mn/DOTs ITS Application to FHWA in October 2002
  included this VAS project to start the initial
  testing necessary to support future efforts in
  what has become known as VII

29
Project Schedule

• Phase 1 (April 2003 to May 2005)
• Develop onboard hardware and software
  (SmartModem) to collect and send information via
  cellular technology (interface designed to
  function with any vehicles from any
  manufacturer).
• Develop pre-processor software to screen input
  data prior to fusion with other traveler
  information data sources.
• Modify traveler information database CARS
  (Condition Acquisition and Reporting System) to
  create travel time estimates and road condition
  reports.
• Install SmartModem on 15 Minnesota State Patrol
  cruisers to assess the accuracy, completeness and
  transmission of the data and its effectiveness in
  creating a travel time estimate and road
  condition situation in CARS.
• Phase 2 (May 2005 to March 2006)
• Develop SmartModem II to communicate via
  dedicated short range communication equipment

30

• Questions?
• For up to date information
• please visit our website at
• www.dot.state.mn.us/guidestar
