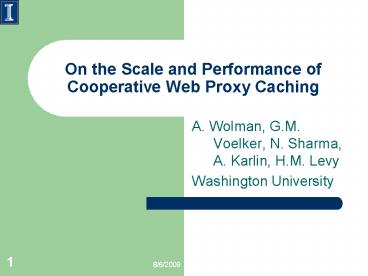

On the Scale and Performance of Cooperative Web
Proxy Caching

• A. Wolman, G.M. Voelker, N. Sharma, A. Karlin,
  H.M. Levy
• Washington University

2
Web Caching
http//l4ka.org/
Miss
Hit
Internet
http//l4ka.org/
3
Why Web Caching?!

• Reduce download time
• Reduce internet bandwidth usage
• ? Save money

4
Cooperative Caching

• Sharing and coordination of cache state among
  multiple communicating caches
• Request miss occurs
• Local cache transfer the request to other nodes
• Requests server

5
Cooperative Caching

• A proxy forwards a missing request to others to
  determine if
• Another proxy holds the requested document
• That document can be returned faster
• Their distance (inter-proxy communication
  latency)
• The client population served

6
Cooperative Caching

• Ideal Goal
• The collection of cooperative caches achieve the
  hit rate of a ideal single proxy acting over the
  combined population of all the proxies
• In Reality
• Performance will be less
• Proxies will not have perfect knowledge
• Proxies will pay the overhead
• Inter-proxy communication latency

7
Cooperative Caches
Overall Hit Rate?
8
Cooperative Caching

• Hierarchical
• Hierarchy of cache levels
• Clients request is forwarded up
• Distributed
• Hash function maps URL to one of caches
• Peer-to-Peer
• Eliminates the proxy servers
• Meta-information stored in clients or the server

9
Outline

• For what range of client populations can
  cooperative caching work effectively?

10
Cache Traces
Microsoft
University of Washington
Traces of same period of time
11
Cache Traces

• The University of Washington
• 50,000 students, faculty and staff
• 200 small, independent organizations
• Microsoft Corporation
• 40,000 employees
• Collected simultaneously May 714, 1999

12
Overall Trace Statistics
13
Simulation Methodology

• Infinite sized caches
• No expiration for objects
• No compulsory misses (cold start)
• Ideal vs. Practical Cache (cacheability)

14
Request Hit-Rate / Clients
Caches with more than 2500 clients do not
increase hit rates significantly!
15
Byte Hit-Rate / Clients (UW)
Shared Objects are smaller on average than others!
16
Object Request Latency
More clients do not reduce object latency
significantly.
17
Bandwidth / Clients
There is no relation between number of clients
and bandwidth utilization!
18
LocalityProxies and Organizations

• University of Washington
• Museum of Art and Natural History
• Music Department
• Schools of Nursing and Dentistry
• Scandinavian Languages
• Computer Science
• comparable to cooperating businesses

19
Local and Global Proxy Hit rates
20
Randomly populated vs. UW organizations
Locality is minimal(about 4)
21
Large-scale Experiment
Microsoft
University of Washington
60K Clients
23K Clients
22
Cooperative CachingMicrosoft UW
Disappointing ? Why?!?
23
Very small increase Why!??

• Unpopular documents are universally unpopular!
• Unlikely that a miss in one of these large
  populations will find the document in the other
  populations proxy!

24
Even more disappointing! ?

• For the most popular documents, cooperation does
  not help either

25
Summary and Conclusions

• Cooperative caching with small population is
  effective (
• Can be handled by single server ?
• Locality not significant

26
Caching Technologies for Web Applications

• Based on the presentation by C. Mohan from IBM
  Corp.
• Some of pictures from the reference presentation

27
Outline

• Introduction Caching
• Main principles
• Different caching approaches
• Focus database caching in e-Commerce
• Three case studies
• Open issues and discussions

28
Introduction

• Motivation of caching in web applications
• Improving performance in many contexts
• Processor caches in hardware
• Buffer pools in DBMSs
• Web proxy servers
• Focus of the presentation
• e-commerce transactional/Database applications,
  not Internet search, etc.

29
Main Features of e-Business Applications

• Large number of users
• Dominant loads can grow without natural limit
• Users are customers (should get satisfied)
• Multiple channels of access available for many
  applications
• Scalability
• Using caching to make it cheaper and faster
• 24x365 availability
• Manageability, and security are critical
  considerations

30
Caching principles

• What to cache?
• Web pages, fragment of pages, SQL query result,
  data, execution result,
• Where place the cache?
• Client, proxy, edge-of-net, ISP,
  edge-of-enterprise, application server, web
  server, DBMS
• Caching and invalidation policies
• Push and pull, freshness maintenance,
  transparency,
• Other requirements to enable caching
• Routing, failover, authentication,

31
(No Transcript)
32
HTTP Caching

• Multiple caches between browser and server
• HTTP headers control
• Whether or not to cache a page
• TTL for caching
• Full pages and images can be cached
• Unable to cache HTML fragments

33
Caching HTML fragments

• When part of a page is too volatile to cache, the
  rest of the page can still be cached

34
Goals of fragment caching

• Achieve benefits of cache for personalized pages
• Improved price/performance
• Improved response time latency
• Reducing cache storage requirements
• By sharing common fragments among multiple pages


35
Database caching

• Corporate data is the backbone of many eCommerce
  applications
• Existing approaches
• Application-aware caching model
• Suits app-specific data
• Replication
• Not dynamic enough to adapt to changing access
  patterns
• Alternative caching database data
• Scalability
• Reduced response time
• Reduced cost of ownership
• Improved throughput, congestion control,
  availability, QoS

36
Classical Web Setup 1
37
Classical Web Setup 2
38
Web setup with Data Caching
39
Edge server cache added
40
Types of caching
41
Middle-tier cache requirements

• Application's SQL shouldnt have to change
• Applications DB scheme shouldnt have to change
• Support failover of nodes
• Support dynamic addition/deletion of app server
  nodes
• Limits on update propagation latencies

42
Middle-tier data model choices

• Cloned each table identical to a backend table
• Pros
• DDL (Data Definition Language) definition is easy
• Every query can be satisfied anywhere
• Cons
• Updates need to reach multiple nodes
• Lots of data copying during node addition
• Subset each table is a proper subset of a
  backend table
• Pros
• Updates can be handled at minimal number of sites
• Smaller DBs in cache nodes, increasing the
  performance
• Cons
• More complex routing
• Complexity in DDL spec and query processing
• More complex updating

43
Cache Refresh

• Refresh brings new content or invalidates
  existing cache
• Requirement mutual consistency of related data,
  to guarantee transaction
• Automatic
• Time-driven
• Immediate
• Synchronous
• Asynchronous
• On-demand

44
Update Approaches

• Push
• Reduced response time for first hit
• Overwrite less total path length than
  invalidation pull
• Pull
• No need to cache everything
• Cache upon access
• Hottest stay longer in cache
• Personalized data cache only where needed

45
IBM Almadens DBCache Project
46
DBCache Components

• Seamless access to front-end data and back-end
  data
• Front-end data a subset of back-end data
• Queries can be partitioned with some going to
  front-end DB and rest going to backend DB
• Data freshness guarantee
• Challenges
• Query optimization
• Failure handling
• Tracking changing workload

47
NECs CachePortal

• URL-query caching

48
Case Study IBM WebSphere Commerce Suite (WCS)
Cache

• Usually for caching catalog data
• Admin influences what gets cached

49
Case study Olympics
50
Case study eBay

• As of Oct 2000
• 18.9 million registered users
• Millions of items in 4,500 categories
• 600k new items added daily by users
• 4M page views per month
• Average usage per month by a user is 119.6
  minutes
• Caching system
• Backend Sun machines running Oracle
• Front-ends Intel boxes running some specialized
  DBMS
• Data cached in FEs refreshed every 30 minutes or
  so

51
Open Issues

• Access control at the edge
• Session state tracking and failover support
• Cache synchronization
• Cache invalidation algorithms
• Load balancing
• Query optimization criteria
• Performance monitoring

52
Discussion

• Caching and security of critical cached
  information
• How efficient is caching in distributed systems
  (think distributed caching)?
• Is that scalable?
• Can gossip based algorithms be used for updating
  caches?

53
A Churn-Resistant Cooperative Web Caching
Application

• P. Linga, I. Gupta, K.P. Birman
• Cornell University

54
Web Caching
55
Cooperative Web Caching
56
Churn in P2P Systems

• Some nodes join/leave the system rapidly
• Leads to Stressful Network Conditions
• Host load increase
• Insert/look up operations blocking
• Denial of Service attack

57
P2P Caching

• Handling Churn
• Locality
• Service requests from close nodes
• Load Balancing
• Uniformly distributed client loads
• Performance

58
Churn-resistant solution Kelips!

• As the underlying index into caches
• Service request by a close node
• Low latency
• Better load balancing

59
Kelips
Take a collection of nodes
110
230
202
30
60
Kelips
Map nodes to affinity groups
Affinity Groups peer membership thru consistent
hash
0
1
2
110
230
202
members per affinity group
30
61
Kelips
110 knows about other members 230, 30
Affinity group view
Affinity Groups peer membership thru consistent
hash
0
1
2
110
230
202
members per affinity group
30
Affinity group pointers
62
Kelips
202 is a contact for 110 in group 2
Affinity group view
Affinity Groups peer membership thru consistent
hash
0
1
2
110
Contacts
230
202
members per affinity group
30
Contact pointers
63
Kelips
cnn.com maps to group 0. So 91 tells group 0
to route inquiries about cnn.com to it.
Affinity group view
Affinity Groups peer membership thru consistent
hash
0
1
2
110
Contacts
230
202
members per affinity group
91
30
Resource Tuples
Gossip protocol replicates data cheaply
64
State Updating Algorithm

• Gossip (epidemic) based
• Each peer
• Selects a few peers to gossip to
• Topological aware close nodes
• Uses Round Trip Time (RTT)
• Sends them state information
• Constant gossip message size
• Partial updating

65
Kelips and Caching!??

• To replicate a directory table for each cached
  object
• Directory table
• Small set of addresses of proximate nodes that
  hold a copy of the object
• Fields
• Node address, RTT estimate
• Time stamps, e.g. Time to Live (TTL)

66
Soft state
Directory Table for cnn.com
Affinity group view
Resource Tuples
Contacts
67
Web Object lookup
68
Experiments

• Simulator written in C
• cluster-based results
• 1000 nodes simulated
• Workload UCB Home IP traces
• Churn Overnet churn traces

69
Berkley HomeIP web access traces
70
External Bandwidth
External b/w and hit ratio comparable to
centralized cache
71
Locality
Low latency because of good locality/close
contacts
72
Load Balancing
Requests uniformly distributed - load balancing
73
Churn Affinity group view size

• Overnet traces (hourly) injected at Epoch second
  intervals into system

Higher churn rates, quality of views deteriorates
74
Churn Hit Ratio
Hit ratio goes down gracefully with increasing
churn rates
75
Discussions

• Kellips handles churn well!
• Performance comparable to centralized cache
• Load Balancing
