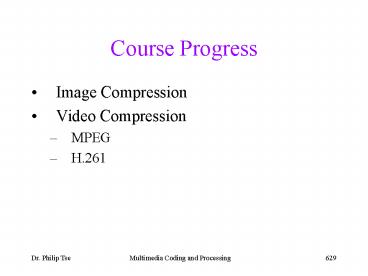

Course Progress

1
Course Progress

• Image Compression
• Video Compression
• MPEG
• H.261

2
Video Compression

• Development of Video Compression Standards by
  International Telecommunications Union and Motion
  Picture Expert Group
• By ITU alone
• H.261-gt H.263-gtH.263, H.263
• By ITU MPEG
• H.262/MPEG2-gt H.264
• By MPEG alone
• MPEG1 -gt MPEG4

3
MPEG

• MPEG1
• first video compression standard from MPEG in
  1993
• Compress video into sequence of image frames
• MPEG2
• Enhanced video compression standard in 1994
• MPEG4
• object based video compression standard in 1999
• Compress video into composing objects

4
MPEG

• MPEG7
• an Extensible Markup Language (XML) based
  multimedia content description standard
• MPEG21
• an open multimedia framework standard

5
MPEG

• Two Source Intermediate Formats (SIF)
• 352240 pixels/frame, 420 subsampling, 30
  frames/second, progressive scan, 30 mbps
• 352288 pixels/frame, 420 subsampling, 25
  frames/second, progressive scan, 30 mbps
• MPEG-1 compress SIF video with raw data rate 30
  mbps to about 1.1 mbps at VHS VCR quality

6
MPEG Compression

• Digital storage media and channels
• Asymmetric applications
• Movies, video-on-demand, education-on-demand,
  Point of sales
• Compression is done once at production
• Frequent use of decompression process
• Symmetric applications
• Video mail, video conferencing
• Similar compression and decompression frequency

7
MPEG-2 Compression

• Asymmetric compression
• Balance between intra-frame and inter-frame
  coding
• Two basic techniques
• Inter-frames Block based motion compensation to
  reduce temporal redundancy
• Intra-frame DCT based compression to reduce
  spatial redundancy

8
MPEG Structure

• An MPEG stream consists of many Group of Pictures
  (GOP).
• Each GOP consists of 3 types of pictures
  I-frame, P-frame, and B-frame
• I-frame intra-pictures
• Starting points for random access
• Moderately compressed using JPEG
• P-frame predicted pictures
• Coded with a reference to a past picture
• Used as a reference for future predicted pictures
• B-frame bi-directional predicted pictures
• Require past and future reference for prediction
• Highest compression

9
Inter-frame Structure

• The sequence of displaying frames are
• P-frames are displayed between I frames
• B-frames are inserted between I/P-frames
• Dependency among frames
• P frames are predicted from the previous I/P
  frame.
• B frames are interpolated from the previous and
  future I/P frames

1 2 3 4 5 6
7 8 9 10
time
I B B P B B
P B B I
Predictions
10
Sequence of frames

• Due to the dependency among frames, the order of
  frames are changed in transmission and storage.
• Transmission order I frames, P frames, then B
  frames
• Example
• Sequence (IBBPBBPBB) (IBBPBBPBB) (IBB
• Transmit order (PBBPBB)(IBBPBBPBB) (IBB
• (IPB) ratio (126)
• In 25 frames/second, random access provided at
  through 9/25 seconds, about 360 msec.

11
I-Frame Encoder
Color Space convertor
Entropy Encoder
Quantizer
FDCT
Compressed I-frame
I-frame
Similar to the JPEG image compression
12
P/B-Frame Encoder
Error terms
FDCT
Color Space convertor
Entropy Encoder

Compressed frame
P/B-frame
Motion estimator
RGB?YUV
Reference frames
13
Motion Estimation

• Motion compensation to compensate inter-frame
  differences due to motion
• Block matching techniques Find the best matching
  block from the previous frame
• Forward prediction

Previous frame
Current frame
A
Best match
A
14
Motion Compensated Interpolation

• Interpolate the blocks from the previous and
  future frames
• Bi-directional prediction

Future frame
Previous frame
Current frame
A
B
C
15
MPEG Compression bit rates
MPEG-1
MPEG-2
16
MPEG Compression

• Each MPEG video is divided into GOP of I, P, and
  B-frames.
• I frames are independently compressed like JPEG
  images. They are starting points for random
  access.
• P-frames are compressed using motion estimation
  with reference to the previous frames.
• B-frames are compressed using interpolation
  between previous and future I/P-frames
• The frames from the same GOP are stored or
  transmitted in the IPB order.

17
MPEG4 System

• System Requirements
• Coded representation of interactive audiovisual
  scenes
• Identification of elementary streams
• Object content information
• User interaction

Source Olivier Avaro, Carsten Herpel Julien
Signès, MPEG4 Tutorial
18
Decoding
Network
...
Ex MPEG-2 Transport
Display and Local User Interaction
19
Return Channel
Network
TransMux
DAI
20
Representation of Multimedia Content

• Identification of Elementary Streams Object
  Descriptor
• Scene Description BIFS
• Animation of the Scene Animation Streams
• Object Content Information OCI
• Identification of Intellectual Property

21
Object Descriptor

• Identification of Elementary Streams
• Stream types and decoder configuration,
• Streams identification and location,
• object content description.

• Association between Streams
• Coding dependency between streams,
• Clock dependencies between streams,
• Association between Scene streams and Media
  streams.

22
Binary Format for Scenes (BIFS)

• To compose together MPEG-4 media type
• 2D3D, naturalsynthetic, audiovideo,
  storedstreamed
• in the same environment.

• BIFS is based on VRML (Virtual Reality
  Manipulation Language)
• it is a set of nodes to represent the primitive
  scene objects to be composed, the scene graph
  constructs, the behavior and interactivity

23
BIFS

• Additionally to VRML, BIFS defines
• 2D capabilities,
• Integration of 2D and 3D,
• Advanced Audio Features,
• a timing model,
• BIFS - Update protocol to modify the scene in
  time,
• BIFS - Animation protocol to animate the scene in
  time,
• a binary encoding for the scene.

24
Summary to MPEG4

• A coded representation of interactive audiovisual
  scenes based on composition and rendering
• Identification of elementary streams
• Animate object scenes using object content
  information
• Allow user interaction with return channel

25
MPEG7

• Multimedia objects may be described by some
  descriptions called metadata.
• Example ltdurationgt of a video, lttime pointgt
  within an audio, ltauthorgt of an image, ltkeywordgt
  of an object, ltTextAnnotationgt of an object, etc
• Different content creation software/hardware may
  describe the same object type using different
  names and formats.
• ? Incompatibility among different software
• ? Difficult to search/index/compare objects from
  different databases

26
MPEG7

• Provide core technologies allowing the
  description of audiovisual data contents
• May include still pictures, graphics, 3D models,
  audio, speech, video, and composition information
• Different granularity in its descriptions to
  allow different levels of discrimination

27
MPEG7

• The main elements of the MPEG-7 standard are
• Description tools descriptors that define the
  syntax and semantics of each metadata element
• DDL defines the syntax of the description tools
  and allows the creation of new description
  schemes
• Classification Schema defines a list of typical
  terms used in many applications together with
  their meanings.
• Extensibility supported through MPEG-7 schema
  extensions mechanism
• System tools support binary coded representation
  for efficient storage and transmission.

28
MPEG7
Data Definition Language (DDL)
definition
Extension
definition
Classification Schema
MPEG7 document ltMpeg7gt lt/Mpeg7gt
Visual D Type MediaProfile D MediaQuality D
Visual DS Type Segment DS MediaInfo DS
instantiation
Description Scheme
Descriptors
Encoding delivery
29
MPEG7
Complete description
Content description
Content management

Content entity
Content abstraction
User description
Creation description
Multimedia content
Semantic description
Summary description

Type derivation hierarchy

Video
Audio
30
MPEG-7 Example

• A list of integer values can be defined as
  follows
• ltsimpleType nameintegerVectorgt
• ltlist itemTypeinteger/gt
• lt/simpleTypegt

31
MPEG-7 Example

• All MPEG-7 documents should have the following
  header
• lt?xml version1.0 encodingiso-8859-1?gt
• ltMpeg7 xmlnsurnmpegmpeg7schema2001
  xmlnsxsihttp//www.w3.or/2001/XMLSchema-instanc
  e
• xmlnsmpeg7urnmpegmpeg7schema2001
  xmlnsxmlhttp//www.w3.org/XML/1998/namespace
  xsischemaLocationurnmpegmpeg7schema2001
  Mpeg7-2001.xsdgt
• lt! Your MPEG-7 content - gt
• lt/Mpeg7gt

32
MPEG-21

• Many elements exist to build an infrastructure
  for the delivery and consumption of multimedia
  content
• No big picture to describe how these elements
  relate to each other

33
MPEG-21

• MPEG21 defines an open MM framework
• Enable transparent and augment use of MM
  resources across a wide range of networks and
  services
• Cover the entire content delivery chain
• Content creation, production, delivery,
  personalization, consumption, presentation, and
  trade.
• Describes the framework as a generic architecture

34
MPEG-21

• MPEG-21 defines
• Digital item a fundamental unit of distribution
  and transaction
• User model the concept of users interacting with
  DIs.

35
MPEG-21

• Digital Item (DI)
• a hierarchical container of resources, metadata,
  and other digital item
• User
• User is any entity that interacts in the MPEG-21
  environment or that makes use of a DI.
• E.g. individuals, corporations, consumer can be
  users

36
MPEG-21

• Relationship among users and digital items.
• User may use content in many ways (publish,
  deliver, consume, and so on).

Digital item
use
interaction
user
user
37
MPEG-21

• Seven key architectural elements
• Digital Item Declaration gives precise
  description of what constitutes a DI.
• Digital Item Identification identifies and
  describes a DI.
• Content management and usage provide interfaces
  and protocols that enable creation, manipulation,
  search, access, storage, and (re)use of content
  across its delivery and consumption chain
• Intellectual Property Management and Protection
  enables DIs and their rights to be persistently
  and reliably managed and protected

38
MPEG-21

• Seven key architectural elements (cont.)
• Terminals and networks provide tools that enable
  the interoperable and transparent access to
  content across networks and terminals
• Content representation defines how the media
  resources are represented
• Event reporting supplies the metrics and
  interfaces that enable users to understand
  precisely the performance of all reportable events

39
MPEG-21 Example

• The following XML declares the root element DIDL
  and several phto albums are grouped together in a
  DI.
• ltDIDLgt
• ltcontainergt
• ltDescriptorgt
• ltStatement mimeType text/plaingtMy Photo
  Albums in Itemslt/Statementgt
• lt/Descriptorgt
• ltItem idAlbum1gt lt/Itemgt
• ltItem idAlbum2gt lt/Itemgt
• lt/Containergt
• lt/DIDLgt

40
ITU

• ITU International Telecommunication Union
• 2 video formats
• Common Intermediate Format (CIF)
• compress video signals in half the resolution of
  BT.601 420 format in both horizontal and
  vertical dimensions.
• 352288 pixels, 420 subsampling, 30 frames
  progressive scan, 37 mbps.

41
ITU

• 2 video formats
• QCIF
• Half the resolution of CIF in both horizontal and
  vertical directions.
• 176144 pixels/frame, 420 subsampling, 30
  frames/second, progressive scan, 9 mbps.
• Both video formats are non-interlaced and
  developed for video conferencing applications.

42
H.261

• ISDN (integrated service digital network) lines
  only allow transmission rates in multiples of 64
  kbps.
• H.261 compress the CIF and QCIF to p64kbps,
  where p 1, 2, , 30.
• Compress a CIF signal with a raw data rate of 37
  mbps to 128-384 kbps with reasonable quality.
• Compress QCIF signal with a raw data rate of 9
  mbps to 64-128 kbps.

43
H.261 Encoder

• Features of a H.261 encoder
• H.261 subdivides the image into macroblocks of
  size 16x16 pels
• A macroblock consists of 4 luminance and 2
  chrominance blocks (1 for Cb and 1 for Cr)
• Each macroblock is transformed using a 8x8 DCT
  for each block to reduce spatial redundancy
• Uses the Differential Pulse Code Modulation
  (DPCM) to exploit temporal redundancy
• Uses unidirectional integer-pel forward motion
  compensation

44
H.261 Encoder
p
Mux
Coding Control
t
qz
q
Q
T
Video in

Q-1
Channel
T-1

d
P
F
f
45
H.261 Encoder

• T Transform
• Q Quantizer
• P Picture memory with motion estimator and
  motion compensation unit
• F Loop filter

• p flag for Intra/Inter
• t flag for transmitted or not
• qz quantizer indication
• q quantizing index for transform coefficients
• d motion vector
• f switching on/off of the loop filter

46
H.261 Encoder

• Each macroblock is transformed using a 8x8 DCT
  (block T)
• DCT coefficients are
• scanned using a zigzag scan
• quantized
• converted into a pair of symbols
• Encoded using variable length codewords

DC AC01 AC07
AC70
AC77
47
H.261 Encoder

• Differential Pulse Code Modulation (DPCM)
• Encodes the difference from the previous DC
  coefficient
• Two quantizers for DCT coefficients (block Q)
• A uniform quantizer with stepsize of 8 is used in
  intra-mode for DC coeff.
• A nearly uniform midtread quantizer with stepsize
  of 2 to 62 for AC coeff.

48
H.261 Encoder

• A nearly unifom midtread quantizer with input
  amplitude x and output amplitude Q(x).
• The dead zone, from -T to T, is quantized to
  zero. Otherwise, the stepsize is uniform.
• The dead zone avoids coding many small coeff.
  that would mainly contribute to coding noise.

-T
T
49
H.261 Encoder

• Each symbol includes two fields
• the number of coefficients that are quantized to
  zero
• the amplitude of the current nonzero coefficient.

• The symbols are encoded using Variable Length
  Codewords (VLC) like Huffman coding.
• The encoder sends an End of Block (EOB) after the
  last nonzero coefficient.
• E.g. The quantized DCT coefficients
• 5 0 0 2 3 0 0 4 0 0 0 0 0 0 1 0 0 0 0 0 0
  are converted into(0, 5), (2, 2), (0, 3), (2,
  4), (6, 1), EOB.

50
H.261 Encoder

• Uses unidirectional integer-pel forward motion
  compensation (block P)
• Uses a 2D loop filter to low-pass the
  motion-compensated prediction signal (block F)
• Decreases the prediction error and the
  blockliness of the prediction image

51
H.261 Encoder

• The encoder transmits mainly 2 classes of
  information for each macroblock
• DCT coefficients from the transform of the
  prediction error signal
• Motion vectors that are estimated by the motion
  estimator.
• Motion vectors are limited to 16 pels.

52
H.261 Encoder

• In intra-mode, the bit stream contains transform
  coefficients for each block.
• In inter-mode, the encoder has a choice of
  sending
• a differentially coded motion vector (MVD) with
  or without the loop filter on.
• a coded block pattern (CBP) to specify the blocks
  for which transform coefficients will be
  transmitted

53
Summary to Video Compression

• MPEG-2 compresses video into a collection of
  I/P/B frames
• I-frames uses DCT
• P-frames uses motion estimation
• B-frames uses bi-directional interpolation
• MPEG-4 animates video as interactive scenes of
  elementary streams.
• MPEG-7 describes multimedia objects with
  metadata.
• MPEG-21 builds a framework for users to
  manipulate digital items which are resources and
  metadata of multimedia objects

54
Summary to Video Compression

• H.261
• Divides images into 16x16 pel macroblocks
• Transforms macroblock with 8x8 DCT
• Encodes DCT coefficients using Differential Pulse
  Code Modulation and Variable Length Codewords
• Uses unidirectional integer-pel forward motion
  compensation
