Title: Session Policy Framework Draft draft-ietf-sipping-session-policy-framework-01

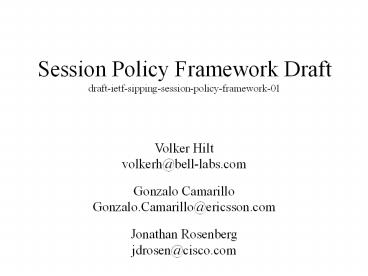

1
Session Policy Framework Draftdraft-ietf-sipping-
session-policy-framework-01
Volker Hilt volkerh_at_bell-labs.com Gonzalo
Camarillo Gonzalo.Camarillo_at_ericsson.com Jonathan
Rosenberg jdrosen_at_cisco.com
2
Status and Changes
  • Submitted as WG item.
  • draft-ietf-sipping-session-policy-framework-00
  • draft-ietf-sipping-session-policy-framework-01
  • Editorial changes and added more descriptive
    text.
  • IANA Considerations section now contains the
    registration details for new headers.
  • Improved Security Considerations section.
  • UA and policy server should perform mutual
    authentication.
  • Policy servers should use SIPS URIs.
  • UA should communicate with proxy via TLS.

3
Changes Session-independent Policies
  • Added architecture diagram.
  • Mandated support for the Media Policy Data Set
    format in NOTIFY bodies.

4
Changes Session-specific Policies (1)
  • Added an optimization for policies that only
    apply to the local session description.
  • Some policies only apply to the local session
    description of a UA.
  • Policy server can indicate that it wants to
    police the local but not the remote session
    description.
  • UA may skip sending the remote description.
  • Reduces message overhead in case the remote
    description has not yet been sent and message
    size.

5
Changes Session-specific Policies (2)
  • SUBSCRIBE/NOTIFY-based mechanism on policy
    channel.
  • Session-specific Policy Event Package.
  • Removed the PUBLISH/SUBSCRIBE/NOTIFY alternative
    from draft.
  • Closes the remaining major open issue!

6
Overview
UA A
Proxy A
PS URI
Policy Server A
7
Next Steps
  • No open issues for the framework.
  • Reviewers needed!

8
Event Package for Session-Specific
Policiesdraft-ietf-sipping-policy-package-01
  • Volker Hilt
  • volkerh_at_bell-labs.com
  • Gonzalo Camarillo
  • Gonzalo.Camarillo_at_ericsson.com

9
Status and Changes
  • Submitted as WG item.
  • draft-ietf-sipping-policy-package-00
  • draft-ietf-sipping-policy-package-01
  • Editorial changes and clarifications.
  • Improved Security Considerations section.
  • UA should authenticate a policy server, e.g., via
    TLS.
  • Policy server should authenticate the UA, e.g.,
    via SIP or TLS.
  • Policy servers should use SIPS URIs.

10
Changes (cont.)
  • New Examples section providing call flows and
    message details.
  • New event header parameter local-only for
    NOTIFY requests.
  • Indicates that the notifier only needs the local
    session description.
  • Subscriber may stop sending the remote
    description within the current subscription.

11
Open Issue 1 Body Format (1)
  • Which format for SUBSCRIBE and NOTIFY bodies?
  • SUBSCRIBE body contains session information
    (e.g. session description, target URI, )
  • NOTIFY body contains session policy
  • Option 1 SDP
  • UA includes local/remote SDP announcement.
  • Policy server returns SDP announcements that are
    modified according to current policies.
  • Simple
  • Not all session parameters can be expressed in
    SDP (e.g. target URI).
  • Requires MIME multipart bodies and new content
    disposition types to carry local AND remote
    session description.
  • UA needs to make sure that it fully supports the
    modified SDP announcement.

12
Open Issue 1 Body Format (2)
  • Option 2 XML-based Media Policy Dataset
  • UA generates a media policy dataset document for
    current session.
  • Policy server returns policies as media policy
    dataset document.
  • No dependencies on session description format.
  • Format can support all relevant session
    parameters and is extensible.
  • Local and remote session descriptions/policies
    can be transmitted in one document.
  • Same formats as for session-independent policies.
  • Easy to encode policy decisions that go beyond
    modifications of SDP (e.g. session needs to be
    terminated).
  • Requires UA to generate and parse these XML
    documents.
  • Note Media Policy Datatset does not yet support
    the required functionality.

13
Open Issue 2 Session Information
  • Which information should a UA submit to the
    policy server?
  • Option 1 SDP announcement
  • Option 2 use a basic set of elements
  • We already have identified a basic set of policy
    elements for the Media Policy Dataset.
  • Media Types, Codecs, and Bandwidth
  • In addition media IP addresses and ports, target
    URI.
  • UA should provide these, if available.

14
Next Steps
  • Proposal
  • Option 2 Use XML-based Media Policy Dataset
  • Extend the Media Policy Dataset

15
A User Agent Profile Data Set for Media
Policydraft-ietf-sipping-media-policy-dataset-01
Volker Hilt volkerh_at_bell-labs.com Gonzalo
Camarillo Gonzalo.Camarillo_at_ericsson.com Jonathan
Rosenberg jdrosen_at_cisco.com
16
Status
  • No changes since last meeting.
  • Depends on
  • A Schema and Guidelines for Defining Session
    Initiation Protocol User Agent Profile Data Sets
    (draft-petrie-sipping-profile-datasets-03.txt)
  • Usage within the session-specific policy event
    package.
